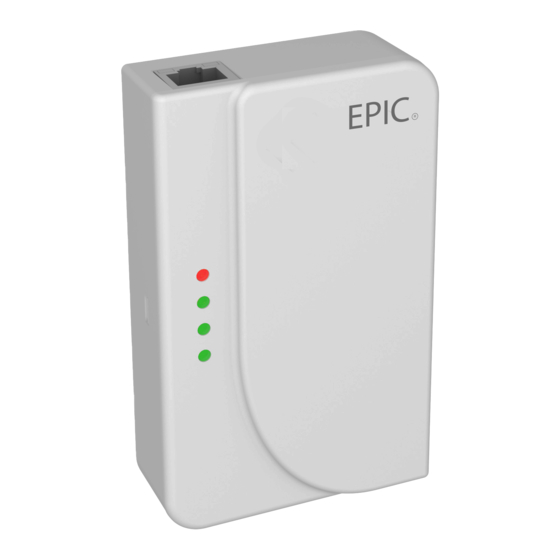

EPIC SAFETY aero-k Installation Manual

Wi-fi/ethernet alarm system communicator
Hide thumbs Also See for aero-k:

Advertisement

Quick Links

Download this manual
aero-k
Wi-Fi/Ethernet Alarm System Communicator
Installation Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the aero-k and is the answer not in the manual?

Questions and answers

Related Manuals for EPIC SAFETY aero-k

Summary of Contents for EPIC SAFETY aero-k

  • Page 1 Wi-Fi/Ethernet Alarm System Communicator Installation Guide...
  • Page 2 Aero-K uses 3 zones to monitor legacy systems for legacy burglary, fire, and panic alarms. Aero-K uses zone 1 and PGM 1 for keyswitch arming and disarming. Refer to Section 5 (PGM Output Functions) for information on the PGM multipurpose functionality.
  • Page 3 2.2. Aero codes Aero-K uses one master code (for the main user) and up to 40 user codes to arm and disarm the host control panel when keyswitch arming is used or if keybus connection is not used or available.

  • Page 4: Pre-Installation Recommendations

    • Always connect Aero-K to an approved power source and battery backup. 3.1. Cable length Using Station Z or CAT 5 type wire, Aero-K can be installed up to 1000 feet away from the alarm panel. For installations with over 1000 feet distance between the alarm panel and the device, use higher gauge wire(s) considering the guidelines below.

  • Page 5: Performance Guide

    High – Aero-K will trigger high temperature trouble event. 4.3. Voltage For proper operation, both alarm panel and Aero-K should be powered by approved power source within the recommended range. Different voltage levels and corresponding interpretations for the alarm panel are listed below.
  • Page 6 13.1 – 14.5 Good > 14.5 High voltage - Aero-K will trigger high voltage trouble event. 4.4. Button Functions Aero-K button is used for a few functions according to the table below: Button Press Function Function Use Duration time LED Indicators...
  • Page 7 4.5. LED Indications Fast Condition Status Color blink blink blinks DC power on DC power off Device not Power registered Device troubles Connected to a network via Green Ethernet Connected to a network via Wi- Green Not connected to a network Green Network Status (SSID exists).
  • Page 8 Connected to Green network(LINK) Communicating LINK/ACT Network with Green network(ACK) Not connected Green to the network Connected with 100M Yellow network(Good speed) LINK100 Network Not connected to 100M Yellow network *LEDs on RJ45 conncetor 4.6. Terminal Connections...
  • Page 9 4.6.1. Aero-K Terminals Description Connections Terminal Name Connects to the alarm panel TIP terminal for detection and capture of CID and SIA events to be sent to Aryo Tip (TIP) cloud and the CMS. Connects to alarm panel RING terminal for detection...
  • Page 10 4.7.4. Zones Aero-K provides four zone inputs. Zones 1 and 4 are used for partition 1 and partition 2 arm status, respectively. For legacy panels that do not use CID/SIA format, zones 2-4 are used for burglary, fire, and panic alarms respectively.
  • Page 11 Keyswitch - Dial Capture/ Legacy 5.2. When using Aero-K for dial capture or legacy monitoring and remote arm/disarm, PGM 1 must be connected to a keyswitch zone on the alarm panel. For remote arm/disarm on two partitions systems (dial capture only), PGM 2 must be connected to another keyswitch zone on the alarm panel.

  • Page 12: Installation & Programming

    6. Installation & Programming 6.1. DSC PowerSeries Alarm Panels 6.1.1. Keybus Monitoring DSC PowerSeries alarm panels can be connected to Aero-K via keybus terminals to monitor and control the alarm system remotely. All keybus functionalities are also available for users on the app.
  • Page 13 PC1864, PC1832, PC1616, PC5020, PC5010, PC1575, PC1555, PC585, PC580 6.1.2. Keybus and Digital Account Monitoring When DSC PowerSeries alarm panels are connected to Aero-K via keybus, a digital account with phone line can co-exist providing a backup communication to monitor and control the system remotely.
  • Page 14 6.1.2.2. Programming Instructions If the DSC PowerSeries alarm panel is connected to a land line via Tip/Ring, connect the Aero-K using the 4-wire configuration above. Program the panel for digital account. 6.1.3. Keybus and Dial Capture (Tip/Ring) Monitoring PowerSeries alarm panels connected to keybus can also be connected to Tip/Ring on Aero-...

  • Page 15: Programming Instructions

    6.1.3.1. Wiring Diagram 6.1.3.2. Programming Instructions 6.1.3.2.1. PC1864/1832/1616 Description Section [015] Turn option 4 on, and options 7 and 8 off. [301] Enter any phone number. [310] Enter a system account number. [311] - [318] Enter an account number for each partition if SIA format is not being used. [350] Enter 03 or 04 for CID or SIA reporting, respectively.
  • Page 16 [367]- [374] Turn option 1 on for each partition open/close reporting. Turn option 1 on to enable communicator for digital monitoring. Option 4 must [380] be off. [381] Options 3 and 7 must be off for automatic SIA and CID reporting. 6.1.3.2.2.
  • Page 17 [015] Turn option 4 on, and options 7 and 8 off. [301] Enter any phone number. [310] Enter a system account number. [360] Enter 03 for CID reporting or 04 for SIA. [361] Turn option 1 on for alarm/restore reporting. [365] Turn option 1 on for open/close reporting.
  • Page 18 [361] Turn option 1 on for each partition alarm/restore reporting. [365] Turn option 1 on for each partition open/close reporting. Turn option 1 on to enable communicator for digital monitoring. Option 4 must [380] be off. [381] Options 3 and 7 must be off for automatic SIA and CID reporting. 6.2.
  • Page 19 To monitor DSC alarm panels with dial capture, program your system as described below. Instructions in italics are for optional remote arming with keyswitch. PGMs on Aero-K can be connected to any zone programmed as keyswitch for remote arming functionality.
  • Page 20 [001] Set a zone to 22 for keyswitch arm. [009] Set PGM1 to 05 for partition armed status monitoring. [023] Turn on option 8 for keyswitch to arm in Away mode. [501] Option 3 must be on. 6.2.1.2.3. NEO (HS2016/2032/2064/2128) Section Description [015]...
  • Page 21 [0100010300]- Set a zone to 26 for momentary keyswitch arm on partition 1 (set [0100020300] another for partition 2). 6.2.1.2.5. SCW9045/9047 Section Description [015] Turn options 4 on, and options 7 and 8 off. [301] Enter any phone number. [310] Enter system account number.
  • Page 22 To monitor legacy DSC alarm panels that do not support CID or SIA format, program your system as described below. Instructions in italics are for optional remote arming with keyswitch. PGMs on Aero-K can be connected to any zone programmed as keyswitch for remote arming functionality.
  • Page 23 [01] Set a zone to 9 for keyswitch arm. [06] Set PGM to 04 for armed status monitoring. 6.3.1.2.2. PC2550 Section Description [15] Turn options 1 and 6 on. [16] Turn options 5 and 7 on. Set AUX input (first entry) to 3 for momentary keyswitch and PGM (second entry) [30] to 7 for armed status monitoring.
  • Page 24 6.3.2.1. Wiring Diagram 6.3.2.2. Programming Instructions 6.3.2.2.1. PC1500/1550 Section Description [12] Turn options 1 and 6 on. [32] Turn options 2 and 6 on. [34] Turn off options 2 and 5.
  • Page 25 6.4. Honeywell Alarm Panels 6.4.1. Keybus Monitoring Honeywell alarm panels can be connected to Aero-K via keybus to monitor and control your system remotely. 6.4.1.1. Wiring Diagram 6.4.1.2. Programming Instructions Make sure to disable communications and program the panel as a local system. No further programming is required for keybus monitoring of Honeywell alarm panels.
  • Page 26 6.4.2. Keybus and Digital Account Monitoring Honeywell panels can be connected to Aero-K via keybus alongside an existing digital account to monitor and control your system remotely. 6.4.2.1. Wiring Diagram 6.4.2.2. Programming Instructions If your Honeywell alarm panel is connected to an external phone line with a digital account, connect the Aero-K device using the 4-wire keybus configuration above.
  • Page 27 6.4.3.1. Wiring Diagram 6.4.3.2. Programming Instructions 6.4.3.2.1. Vista 10P(SIA)/15P(SIA)/20P(SIA)/21ip/48LA Section Description Enter any phone number. Enter an account number for partition 1. Enter an account number for partition 2 (Vista 20P/21iP/48LA). Set the report format to 7 for CID. *65-*66 Enter 1 in each entry to enable open/close report codes for partitions being used.
  • Page 28 6.4.4. Dial Capture (Tip/Ring) Monitoring and Keyswitch For Honeywell alarm panels that do not support keybus, use Tip/Ring and keyswitch to monitor and control your system remotely. 6.4.4.1. Wiring Diagram 6.4.4.1.1. 10P(SIA)/15P(SIA)/20P(SIA)/21ip/48LA...
  • Page 29 To monitor Honeywell alarm panels with dial capture, program your system as described below. Instructions in italics are for optional remote arming with keyswitch. PGMs on Aero-K can be connected to any zone programmed as keyswitch for remote arming functionality.
  • Page 30 Set the report format to 7 for CID. *65-*66 Enter 1 in each entry to enable open/close report codes for partitions being used. Enter 1 to enable alarm restore report codes. Set a zone to 77 for keyswitch arm on partition 1 (set another for partition 2 if available) Set to 1 (normally low) for OUTPUT 17 &...
  • Page 31 Enter 1 to for both open and close reports Enter 1 to enable keyswitch for partition 1. Enter 1 to enable open/close reporting for keyswitch. 1*46 Set Out 1 function to 1 for keyswitch armed status monitoring. 2*20 Enter 1 to enable J7 triggers. 6.4.5.
  • Page 32 6.4.5.2. Programming Instructions To monitor Honeywell alarm panels with dial capture, program your system as described below. 6.4.5.2.1. FA162C Section Description Enter any phone number. Enter an account number for the panel. Set the report format to 7 for CID reporting. *65-66 Enter 1 in each entry to enable open/close reporting.
  • Page 33 Info – Phone type Reporter – Primary CS Enter any phone number. Info – Phone Number Reporter – Primary CS Info – Enter an account number for the panel. Account Number Reporter – Primary CS Enable alarm reporting. Info – Report Alarms Reporter –...
  • Page 34 6.5.1.1. Wiring Diagram 6.5.1.1.1. Concord/Concord Express...
  • Page 35 To monitor Interlogix alarm panels with dial capture, program your system as described below. Instructions in italics are for optional remote arming with keyswitch. PGMs on Aero-K can be connected to any zone programmed as keyswitch for remote arming functionality.

  • Page 36: Concord Express

    01006 Enter 1 for SIA or 2 for CID reporting. 06100-06600 Turn on to enable opening reports. 06101-06601 Turn on to enable closing reports. 0014 Assign a keyswitch zone to partition 1. 0024 Assign a keyswitch zone to partition 2 0015-0025 Enter 1 to set the keyswitch style to Transition.
  • Page 37 Location 2 Select 13 for CID or 14 for SIA reporting. Location 4 Select options 1 and 2 to enable alarm/restore and open/close reports. Segment 1 Location 23 Select options 1 and 3 to enable open/close and alarm restore reports. Segment 3 Location 47- Set an AUX output to 21 for system armed status monitoring.
  • Page 38 6.5.2.1. Wiring Diagram 6.5.2.2. Programming Instructions To monitor Interlogix alarm panels with dial capture, program your system as described below. 6.5.2.2.1. Simon XT/XTi/XTi-5 Section Description Phone #1 Enter any phone number. Account Enter an account number. Number Ph.1 Rpt Set reporting mode to All CID or All SIA. Mode DTMF Dial Turn on to enable DTMF dialing.
  • Page 39 Opening Turn on to enable opening reports. Rpts. Closing Rpts. Turn on to enable closing reports. 6.6. Paradox Alarm Panels 6.6.1. Dial Capture (Tip/Ring) Monitoring and Keyswitch For Paradox panels that support CID or SIA formats, use Tip/Ring and keyswitch to monitor and control your system remotely.
  • Page 40 Aero-K can be connected to any zone programmed as keyswitch for remote arming functionality. 6.6.1.2.1. SP1728/1738/1728EX/1738EX Section Description Turn option 1 on to report disarming. Turn options 3 and 4 on and options 1 and 2 off. Turn option 3 on for automatic CID reporting codes.
  • Page 41 [0920]- Set activation event group to 064, feature group to 002, start and end # to 000 [0923] for partition 2 armed status monitoring. [0914]- Set deactivation event group to 014, feature group to 000, start and end # to 000 [0917] for partition 1.
  • Page 42 Set PGM delay time for PGMs 1 to 000. 6.6.1.2.5. SP5500/6000/7000 Section Description Turn options 1, 2, 3, and 4 off, and option 6 on. Turn option 1 off for disarm reporting. Turn options 1 and 5 on for alarm/restore and open/close reporting. Select 4 for CID or 5 for SIA.
  • Page 43 6.7.1.1. Wiring Diagram 6.7.1.2. Programming Instructions Section Description T1 01 Set to 01 for CID or 02 for SIA. T1 02 Set to 0 to always report. T1 03 Enter any phone number. T1 05 Enter an account number. T1 13 Turn on to enable alarm/restore reporting.
  • Page 44 Keyswitch & Program a zone for momentary keyswitch and select Out 3 for PGM, using alarm Output panel’s PC software. 6.8. Napco Alarm Panels 6.8.1. Dial Capture (Tip/Ring) Monitoring and Keyswitch For Napco Alarm panels that support CID (Point ID) or SIA format, use Tip/Ring and keyswitch to monitor and control your system remotely.
  • Page 45 6.8.1.3. Programming Instructions To monitor Napco panels with dial capture, program your system as described below. Instructions in italics are for optional remote arming with keyswitch. PGMs on Aero-K can be connected to any zone programmed as keyswitch for remote arming functionality.
  • Page 46 [37]-[38] Turn option 4 on to enable alarm/restore reporting for fire alarms. [39] Turn each option on to enable open/close reporting for all users. [61] Set appropriate CID (Point ID) codes for all zones. [25] Turn option 4 on for system armed status monitoring. Turn all other options off. [26] Turn option 1 on to enable momentary keyswitch.
  • Page 47 0460 Enter C for CID (Point ID) or B for SIA format on the right digit. 0462-0481 Enter any phone number (each digit in one section). 0592-0595 Enter an account number (each digit in one section). 0670 Enter the alarm restore reporting code. 0677-0680 Enter open/close reporting codes.
  • Page 48 6.9.1.1. Wiring Diagram 6.9.1.2. Programming Instructions 6.9.1.2.1. Remote arming via keyswitch Programming Description Set a zone or input to momentary keyswitch arm. Set PGM1 to arm status monitoring. Enable keyswitch to arm in away mode only. 6.9.1.2.2. For monitoring via relay Programming Description Set PGM2 to activate on fire alarms.
  • Page 49 Enable bell audible panic alarm. Disable telephone line troubles and monitoring. Disable bell output for all other events. 6.9.2. Without Keyswitch For legacy alarm panels without keyswitch, connect a relay as described below for fire/burglary monitoring. 6.9.2.1. Wiring Diagram 6.9.2.2. Programming Instructions 6.9.2.2.1.

  • Page 50: Trouble Conditions

    Disable bell output for all other events. Trouble Conditions 7.1 Primary Power Failure If alarm panel power falls below 9V, Aero-K will send a trouble event to Aryo cloud server and CMS. 7.2 Network Signal If radio signal is poor, Aero-K will send a trouble event to Aryo cloud server and CMS.

  • Page 51: Troubleshooting

    7.8 High/Low Temperature If the temperature goes above 50 degrees Celsius or falls below -5 degrees Celsius, Aero-K will send a trouble event to Aryo cloud and the CMS. Aero-K also monitors some important parameters such as alarm panel power, temperature, communication of keybus and Tip/Ring of the alarm panel for proper functionality and would report these conditions to Aryo Cloud and the CMS.
  • Page 52 1. First LED blinking quickly Keybus Communication (Yellow, Green) is connected 2. The forth LED blinks slowly Failure to the alarm panel and the or is off. AERO-K is well connected. does operate normally even after waiting while, check 1. First LED blinking quickly following.

  • Page 53: Specifications

    9. Specifications HARDWARE Aero-K Dimensions 115mm*70mm*26.7mm Weight Operating temperature 32°F to 120°F (0°C to 48.9°C) Humidity Input voltage 9-14 VDC Operating voltage 5-20 VDC Mounting 2 screw holes Average current draw at 70 mA 13.5V (Ethernet) Max current draw at 13.5V...
  • Page 54 (including negligence), arising out of or in connection with the use of this site. EPIC Safety does not warrant that the functions contained in the material contained in this site will be uninterrupted or error free, that defects will be corrected, or that this site or the server that makes it available are free of viruses or bugs or represents the full functionality, accuracy, reliability of the materials.
  • Page 55 EPIC Safety for all the purposes specified above; Indemnify EPIC Safety against all legal fees, damages and other expenses that may be incurred by EPIC Safety as a result of your breach of the above warrant; and Agree to waive any moral rights in your contribution for the purposes of its submission to and publication on the EPIC Safety site and the other purposes specified above.

  • Page 56: Limitation Of Warranty

    During the warranty periods, Epic shall, at its option, repair or replace any defective product upon return of the product to its factory, at no charge for labor and materials. Any replacement and/or repaired parts are warranted for the remainder of the original warranty or ninety (90) days, whichever is longer.
  • Page 57 the product, will not become obsolete or that such items are or will remain compatible with any other product or technology with which the product may be used.
