Do you have a question about the RZ450E 2023 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

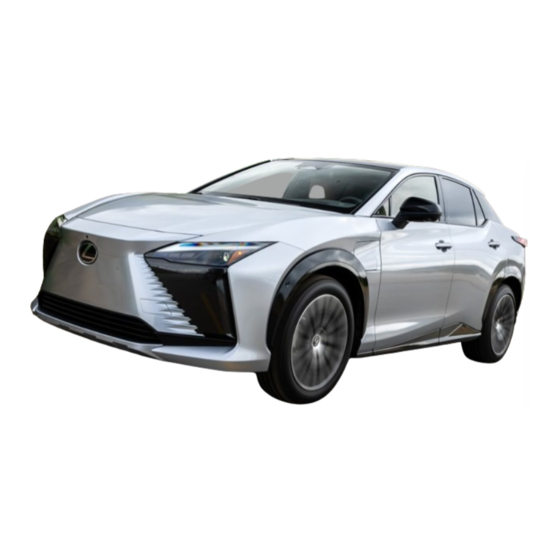

Summary of Contents for Lexus RZ450E 2023

  • Page 1 Pictorial index Search by illustration Before driving Important points to know before driving the vehicle Driving the vehicle Basic operations for when driving the vehicle Driving according Driving when the surrounding area is dark, or in rainy or to the conditions cold weather Using the air conditioning system and interior Interior features...
  • Page 2: Table Of Contents

    2-1. Starting and stopping the EV sys- Using the charging schedule func- tion............Starting the EV system ....Using My Room Mode....Stopping the EV system..... 1-4. Vehicle load limits 2-2. Driving procedures Vehicle load limits......Driving procedure......142 Breaking in your new Lexus ..144...
  • Page 3 4-3. Adjusting the temperature/envi- ............ronment inside the vehicle 3-3. Driving in the rain Comfortable condition to be main- Precautions for driving in the rain tained without adjusting each sys- ............tem (Lexus Climate Concierge) Ensuring visibility in the rain..............
  • Page 4 4-5. Using the interior features port functions Location of the storage features Driving assist systems ....262 ............Lexus Safety System + 3 software Convenient interior features... update..........4-6. Using the luggage compartment Lexus Safety System + 3... Using the cargo hooks....
  • Page 5 TABLE OF CONTENTS PKSB (Parking Support Brake) sys- Motor compartment maintenance tem...........365 items list..........427 Lexus Teammate Advanced Park Vehicle interior maintenance items ............list............. EV system output restriction when Vehicle exterior maintenance items the accelerator pedal and brake list............. pedal are depressed at the same Emission inspection and mainte- time..........398...
  • Page 6 TABLE OF CONTENTS 9-2. If a warning is indicated on the 9-6. If the EV system cannot be used meter normally If a warning light turns on/flashes If the charging port lid cannot be ............opened .......... If a warning message is displayed If AC charging cannot be per- ............483 formed normally......
  • Page 7 TABLE OF CONTENTS If the vehicle behaves abnormally SRS airbag instructions for Cana- ............555 dian owners (in French) ..Headlight aim instructions for 9-10. Items to check before contacting a Canadian owners (in French) dealership ............If the windows do not open or close by operating the power window Index switches.........556...
  • Page 8: For Your Information

     Meanings of symbols in illustrations time without notice. The names and meanings of symbols If Lexus chooses to update the manual, are as follows: updated versions can be viewed by selecting your vehicle by model and...
  • Page 9 ● Defensive driving: Always drive defen- • Indicates the outcome of sively. Anticipate mistakes that other drivers or pedestrians might make and be ready to avoid accidents. an operation (e.g. a lid opens). When driving over long distances, take ● regular breaks before you start to feel tired.
  • Page 10: Pictorial Index

    Pictorial index Pictorial index ■Exterior Side doors........................P.89 Locking/unlocking ......................P.92 Opening/closing the side doors ...................P.89 Opening/closing the side windows ................P.98 Locking/unlocking by using the mechanical key ..........P.524 Warning messages ......................P.483 Back door ........................P.103 Opening from inside the cabin ..................P.109 Opening from outside .......................P.110 Warning messages ......................P.483 Outside rear view mirrors..................P.134...
  • Page 11 Pictorial index Precautions for winter season..................P.183 To prevent freezing (windshield wiper de-icer) ..........P.186 Precautions for car wash ....................P.421 Charging port ......................P.32 Charging method ........................ P.43 Tires..........................P.444 Tire size/inflation pressure ...................P.570 Winter tires/tire chains ....................P.183 Checking/rotation/tire pressure warning system....P.444,444,446,457 Coping with flat tires......................
  • Page 12 Pictorial index ■Instrument panel Power switch ......................P.138 Starting the EV system/changing the modes ..........P.138,139 Emergency stop of the EV system................P.469 When the EV system will not start................P.504 Warning messages ......................P.483 Rotary shifter......................P.144 Changing the shift position.................... P.145 Precautions for towing ................P.549,550,551 Meters........................P.241 Reading the meters/adjusting the instrument panel light.......P.241,258 Warning lights/indicator lights ...................P.238...
  • Page 13 Pictorial index Headlights/parking lights/tail lights/license plate lights/daytime running lights ..............................P.166 Windshield wiper and washer switch..............P.177 Usage............................P.177 Adding washer fluid......................P.440 Warning messages ......................P.483 Emergency flasher switch ...................P.469 Hood lock release lever..................P.433 Tilt and telescopic steering control switch............P.126 Adjustment ..........................P.126 Driving position memory .....................
  • Page 14 Pictorial index ■Switches VSC OFF switch.....................P.262 P position switch......................P.154 Brake hold switch....................P.193 Parking brake switch .....................P.154 Applying/releasing the parking brake..............P.154 Precautions for winter season..................P.185 Warning buzzer/messages..................P.483 Instrument panel light control switches ............P.258 ODO/TRIP switch ....................P.245 Driving position memory switches ..............P.199 Power back door switch ..................P.109...
  • Page 15 Pictorial index Paddle shift switches....................P.150 Meter control switches ..................P.251 Cruise control switch Dynamic radar cruise control................P.312,325 Audio remote control switches LTA (Lane Tracing Assist) switch ............P.288,294 Telephone switch ....................P.251 Talk switch Audio remote control switches/telephone switch/talk switch ....P.251 Switch function change switch ................P.251 : Refer to “MULTIMEDIA OWNER’S MANUAL”.
  • Page 16 Pictorial index ■Interior SRS airbags......................P.399 Floor mats........................P.20 Front seats.........................P.120 Rear seats........................P.120 Head restraints......................P.121 Seat belts ........................P.123 Console box......................P.221 Cup holders ......................P.221 Assist grips ......................P.230...
  • Page 17 Pictorial index ■Ceiling Inside rear view mirror ..................P.127 Digital Rearview Mirror ..................P.127 Sun visors........................P.175 Vanity mirrors ......................P.230 Auxiliary box......................P.220 Dimming switch ....................P.214 Interior light ......................P.217 Personal lights ......................P.218 “SOS” button......................P.412 Door-linked interior light switch ................P.218 Garage door opener switches................
  • Page 18 Pictorial index...
  • Page 19: Before Driving

    Before driving 1-5. For safe driving with children on 1-1. Using the dedicated floor mats board Using the dedicated floor mats Riding with children ....correctly........Child restraint systems ....69 1-2. Important points for the EV sys- 1-6. Entering/exiting the vehicle Electric vehicle system features types..........82 .............21...
  • Page 20: Using The Dedicated Floor Mats Correctly

    When installing a driver's side floor ● mat, do not use floor mats designed for other models or different model year vehicles, even if they are Lexus Genu- WARNING ine floor mats. Always install the floor mat securely Only use floor mats designed for the ●...
  • Page 21: Important Points For The Ev System

    1-2. Important points for the EV system 1-2.Important points for the EV system Electric vehicle system features Battery electric vehicles are considerably different from conventional vehi- cles. They use electricity charged in a traction battery, to drive the electric motor. Since battery electric vehicles are driven using electricity, they do not emit any emissions such as CO (Carbon Dioxide) and NOx (Nitrogen Oxides).
  • Page 22 1-2. Important points for the EV system When braking (regenerative brak- ing with the shift position in D. ■ ing) ■ Charging the 12-volt battery The 12-volt battery is charged from the trac- The electric motor (traction motor) tion battery when the EV system is oper- charges the traction battery.
  • Page 23 ● The operation sound of the air condition- ing system (air conditioning compressor, blower motor). Maintenance, repair, recycling, and dis- ■ posal Contact your Lexus dealer regarding main- tenance, repair, recycling and disposal. Do not dispose of the vehicle yourself.
  • Page 24: Electric Vehicle System Precautions

    1-2. Important points for the EV system Electric Vehicle system precautions Be careful of the high voltage components (nominal voltage at 355.2 V), such as the traction battery, electricity supply unit, orange colored high voltage cables, and electric motor, as well as high temperature components such as the cooling radiator, which are provided on the battery electric vehicle.
  • Page 25 1-2. Important points for the EV system Air conditioning compressor WARNING Electromagnetic waves ■ High-voltage precautions ● High-voltage parts and cables on the bat- ■ tery electric vehicles incorporate elec- The vehicle has high voltage DC and AC tro-magnetic shielding, and therefore systems as well as a 12-volt system.
  • Page 26 Never touch exposed elec- tery may have been damaged. Leave tric wires. the vehicle as soon as possible. In addition, contact your Lexus dealer ● Do not touch the traction battery if liq- with regard to the leakage found on the uid is leaking from or adhered to it.
  • Page 27 Lexus injury. dealer or a qualified service shop. If the traction battery is not disposed of...
  • Page 28: Battery Electric Vehicle Driving Tips

    1-2. Important points for the EV system When the traction battery is completely ■ Battery Electric Vehicle driv- discharged ing tips When the EV system cannot be started due to the traction battery being completely dis- charged, restart the system after AC Unlike the conventional vehicles, charging or DC charging.
  • Page 29 In order to avoid overuse of the heater. those situations as much as possible,  Lexus Climate Concierge allows check traffic reports before leaving. If automatic air conditioning control the vehicle is driven in traffic conges-...
  • Page 30: Driving Range

    1-2. Important points for the EV system Driving range Checking tire inflation pressure Make sure to check the tire inflation The driving range displayed on the pressure frequently. Improper tire infla- meter, etc., shows the reference tion pressure can cause poor electric- distance that driving is possible, ity consumption.
  • Page 31 1-2. Important points for the EV system  Accelerate and decelerate the vehi- cle as smoothly as possible  Drive at moderate speeds as much as possible and maintain a constant speed  Set the air conditioning system to a moderate temperature and avoid using the heating and cooling func- tions excessively.
  • Page 32: Charging With The Ev System

    1-3. Charging with the EV system 1-3.Charging with the EV system Charging equipment Charging equipment and names AC charging inlet Charging indicator (P.34) Charging inlet light DC charging inlet Charging port lid (P.32) AC charging cable (if equipped) (P.35) Charging port Front emblem (light-emitting type) (if equipped) Opening/closing the charging Front emblem (light-emitting type) (if...
  • Page 33 1-3. Charging with the EV system tion shown in the illustration) Fully open the charging port lid by hand. The charging port lid will be locked ■ when ● In the following cases, the charging port lid will be locked. Close ■...
  • Page 34 1-3. Charging with the EV system Illumina- tion/flash- Vehicle condition ing pattern  Charging is in progress Illuminated  Traction battery heater (P.43) is operating When charging schedule is Charging port lid open/close detection ■ Flashes switch registered (P.60) and AC charging cable is connected When the charging port lid is open, do not normally...
  • Page 35: Ac Charging Cable

    (Charging Circuit Interrupting Device), stop charging immediately After inserting the charging connec- ● and contact your Lexus dealer. tor, do not apply excessive force to or twist the connector. Also, do not lean ● Do not subject the AC charging cable,...
  • Page 36 1-3. Charging with the EV system NOTICE Precautions for low temperatures ■ In low temperatures, the AC charging cable and plug-cord may become hard. Therefore, make sure to not apply exces- sive force when they are hard. If exces- sive force is applied to the hardened AC charging cable and plug-cord, they may be damaged.
  • Page 37 1-3. Charging with the EV system the plug is inserted into the socket. Safety functions The CCID (Charging Circuit Inter- CCID (Charging Circuit Inter- rupting Device) has the following rupting Device) indicators safety features. Indicator operation ■ Electrical leakage detection func- ■...
  • Page 38 If any abnormalities are found in the AC charging cable as a result of the inspection, immediately stop use and consult your Lexus dealer. Maintaining the AC charging cable ■ When the AC charging cable is dirty, first...
  • Page 39: Locking And Unlocking Ac Charging Connector

    1-3. Charging with the EV system unlock the door. (P.93) Locking and unlocking AC charging connector Changing the charging connector ■ lock settings The AC charging connector will be The method for locking and unlocking locked when it is connected to the the charging connector can be AC charging inlet, preventing the changed on the...
  • Page 40 1-3. Charging with the EV system locked. WARNING : When the stop time of the charging When connecting the AC charging ■ schedule “Start and stop” setting is connector to the AC charging inlet reached, the AC charging connector is Do not insert hand into the connector unlocked even if it is not fully charged.
  • Page 41: Power Sources That Can Be Used For Ac Charging (Vehicles With An Ac Charging Cable)

    1-3. Charging with the EV system Power sources that can be Sockets that can be connected used for AC charging (vehi- NEMA 5-15R socket cles with an AC charging The illustration is an example shown for cable) demonstration purposes, and may differ from the actual configuration.
  • Page 42 1-3. Charging with the EV system ● Make sure to connect the charging WARNING connector and AC charging inlet Connect to an AC 120 V socket ● directly. Do not connect a converting (NEMA 5-15R) with a Ground-Fault adaptor or extension cord between Circuit-Interrupter (GFCI) and sup- the charging connector and AC plied by a circuit breaker per your...
  • Page 43: Charging Methods

    1-3. Charging with the EV system Traction battery heater ■ Charging methods When the outside temperature is low and the charging cable is connected to The following methods can be used the vehicle, this function automatically to charge the traction battery. warms the traction battery until it reaches or exceeds a certain tempera- Types of charging methods...
  • Page 44 1-3. Charging with the EV system  The function may operate when • The hood is opened • The power switch is turned to ACC or continuously driving at high speeds such as driving on highways or free- • The shift position is changed to any posi- tion other than P ways, or during DC charging.
  • Page 45: Charging Tips

    1-3. Charging with the EV system : Various information related to charging Charging tips can also be checked remotely. While charging ■ This section explains methods for When any door is opened during using the charging function for this charging with the power switch off, the vehicle and checking information current charging condition and related to charging.
  • Page 46 1-3. Charging with the EV system the instructions displayed on the Things to know before screen. (P.483) charging Make sure to read the following precautions before charging the traction battery. ■ Safety functions The EV system will not start while the ●...
  • Page 47 1-3. Charging with the EV system (P.154) WARNING  The power switch is turned to OFF. In the unlikely event that the charging (P.140) cable has been damaged, the shift posi- tion may change from P to another posi-  Lights such as the headlights, emer- tion and the vehicle could move, possibly leading to an accident.
  • Page 48 1-3. Charging with the EV system charging will not start even if the AC your Lexus dealer. charging cable is connected. Also, : When this occurs, even if the remaining charging fee may occur due to connec- charge display of the traction battery tion of the AC charging cable.
  • Page 49: How To Use Ac Charging

    1-3. Charging with the EV system is changed in the charging current setting How to use AC charging of the vehicle (P.52) ● When the battery heater operates. This section explains the procedure (P.43) for charging the traction battery ● When the traction battery cooler is oper- ated before charging.
  • Page 50 AC charging inlet ■ Do not disassemble, repair or modify the AC charging inlet. When the AC charging inlet needs to be repaired, con- sult your Lexus dealer. Charging precautions P.47 When charging Prepare the AC charging cable. Open the charging port lid.
  • Page 51 1-3. Charging with the EV system Insert the charging connector into refer to P.534 the AC charging inlet. Align the guide position on the bottom of the charging connector, and push the charging connector straight into the AC charging inlet as far as possible. Once a click sound is heard, check that the charging connector is securely locked.
  • Page 52 1-3. Charging with the EV system release button is pressed and held for sev- ● eral seconds during charging. When The selected upper limit value is common to restarting charging, reinsert the charging AC charging and DC charging. connector after pulling it out, and check If the setting is changed during DC that the charging indicator of the charging charging, charging may stop due to the...
  • Page 53 AC charging When charging while it is raining or ● cable and contact your Lexus dealer. snowing, do not connect or disconnect Continuing to charge the vehicle in that the plug if your hands are wet. Also, do condition may lead to unforeseen acci- not get the plug or socket wet.
  • Page 54 ● Do not disassemble, repair or modify the onboard traction battery charger. When the onboard traction battery charger needs to be repaired, consult your Lexus dealer. Attach the charging connector cap. NOTICE When charging ■ Do not insert the plug into the AC charging inlet.
  • Page 55 1-3. Charging with the EV system check if dirt or dust has accumulated. WARNING After charging ■ Remove the plug if it will not be used for a long time. Dirt and dust may accumulate plug or socket, which could cause a malfunction or fire, possibly leading to death or seri- ous injury.
  • Page 56: How To Use Dc Charging

    1-3. Charging with the EV system Open the DC charging inlet cap. How to use DC charging This section explains the DC charging procedure for the trac- tion battery. When using a DC charger, make sure to check the operation instructions of the DC charger.
  • Page 57 1-3. Charging with the EV system turned to ON with the DC charging con- (stand), etc. nector connected, the charging cable indi- ● It is recommended to avoid frequent DC cator turns on to notify that the DC charging to prevent a decline in the trac- charging connector is connected.
  • Page 58 Failure to charge and have it inspected immedi- do so may cause the hands or clothing ately at your Lexus dealer. to be caught, resulting in serious injury. Do not touch the terminals of the DC ●...
  • Page 59 1-3. Charging with the EV system DC charging connector will be unlocked After DC charging ■ automatically when charging is completed. Even if the traction battery is charged to the Remove the DC charging connec- upper limit value that is set, the level of charge displayed on the DC charger may tor.
  • Page 60: Using The Charging Schedule Function

    1-3. Charging with the EV system ing when charging starts due to the state Using the charging schedule of the traction battery. function Repeated setting ■ The periodic charging schedule can be AC charging can be carried out at set by selecting your desired day of the the desired time by registering the week.
  • Page 61 1-3. Charging with the EV system at set times” and the start time and stop time When the AC charging connector ■ are set to the same time, charging will be remains connected to the vehicle performed for 24 hours from the start time. ●...
  • Page 62 1-3. Charging with the EV system charging schedule are performed on Change the schedule to the the charging schedule screen. desired time. Displaying the charging schedule  Charging mode ■ screen Select “Start at set time” or “Start and stop With the power switch in ON, at set times”...
  • Page 63 1-3. Charging with the EV system the screen. return button. From the items displayed on the When a charging schedule is deleted, its icon is also deleted from the calendar. screen, select Turning “Charge now” on ■ in the row of the charging schedule Display the charging schedule you wish to change.
  • Page 64 1-3. Charging with the EV system are canceled. : Each time is pressed, “Charge ● The power switch is turned off before the now” will turn on/off. settings are confirmed The vehicle starts off ● ■ When the power switch is turned off A display with a higher priority than that ●...
  • Page 65: Using My Room Mode

    1-3. Charging with the EV system ing charge of the traction battery Using My Room Mode increases. Turn off the power switch once, then use My Room Mode after the remaining charge of the traction battery When the charging cable is con- increases.
  • Page 66 1-3. Charging with the EV system WARNING Do not leave children, people who ● need care, or pets inside the vehicle. The temperature inside the vehicle may become high or low due to fea- tures such as the automatic shut-off. The children, people who need care, or pets left inside the vehicle may suf- fer heatstroke dehydration or hypo-...
  • Page 67: Vehicle Load Limits

    150 lb. (68 kg) per person. TWR (Trailer Weight Rating) ■ Lexus does not recommend towing a trailer with your vehicle. Cargo capacity ■ Cargo capacity may increase or decrease depending on the weight and the number of occupants.
  • Page 68: For Safe Driving With Children On Board

    1-5. For safe driving with children on board 1-5.For safe driving with children on board Riding with children Preventing the rear doors from being opened from the inside of the vehicle (child-protector Observe the following precautions lock) when children are in the vehicle. Use a child restraint system appro- priate for the child, until the child The door cannot be opened from...
  • Page 69: Child Restraint Systems

    Table of contents system. General installation instruction is provided in this manual. Points to remember: P.69 Lexus strongly urges the use of a ● Child restraint system: P.70 proper child restraint system that con- forms to the weight and size of the When using a child restraint system: child, installed on the rear seat.
  • Page 70 1-5. For safe driving with children on board WARNING If the vehicle were to receive a strong ● impact from an accident, etc., it is pos- sible that the child restraint system has damage that is not readily visible. In such cases, do not reuse the restraint system.
  • Page 71 1-5. For safe driving with children on board Installation method Page Seat belt attachment P.73 Child restraint LATCH P.77 anchors attachment Anchor brackets (for top P.79 tether strap) attachment  Move the seat fully rearward. When using a child restraint sys- ...
  • Page 72 1-5. For safe driving with children on board remove the head restraint. ● A forward-facing child restraint system may be installed on the front passen- Otherwise, put the head restraint in the ger seat only when it is unavoidable. upper most position. When installing a forward-facing child restraint system on the front passenger seat, raise the seatback as much as...
  • Page 73 1-5. For safe driving with children on board Rear-facing  Infant seat/con- ■ WARNING vertible seat When a booster seat is installed, ● Adjust the rear seat. always ensure that the shoulder belt is positioned across the center of the If there is a gap between the child seat and child’s shoulder.
  • Page 74 1-5. For safe driving with children on board mode. In lock mode, the belt cannot to P.71for the front passenger seat adjust- ment. be extended. When using the rear seat  If there is a gap between the child seat and the seatback, adjust the seatback angle until good contact is achieved.
  • Page 75 1-5. For safe driving with children on board into the buckle. Make sure that the If the child restraint has a top tether belt is not twisted. strap, follow the child restraint man- ufacturer’s operation manual regarding the installation, using the top tether strap to latch onto the top tether strap anchor.
  • Page 76 1-5. For safe driving with children on board Booster type Removing a child restraint system ■  installed with a seat belt Press the buckle release button and fully retract the seat belt. When releasing the buckle, the child restraint system may spring up due to the rebound of the seat cushion.
  • Page 77 1-5. For safe driving with children on board ■ Do not use a seat belt extender WARNING When a booster seat is installed, If a seat belt extender is used when ● always ensure that the shoulder belt is installing a child restraint system, the seat positioned across the center of the belt will not securely hold the child child’s shoulder.
  • Page 78 1-5. For safe driving with children on board raise it to the uppermost position. With rigid lower attachments  Latch the buckles onto the LATCH anchors. For owners in Canada: The symbol on a child restraint sys- tem indicates the presence of a lower connector system.
  • Page 79 1-5. For safe driving with children on board inboard LATCH anchors of the out- ● Never attach two child restraint system board seats, which are 16.5 in. (420 attachments to the same anchor. In a collision, one anchor may not be mm) apart, can be used if the child strong enough to hold two child restraint system manufacturer’s...
  • Page 80 1-5. For safe driving with children on board When installing the child restraint system Anchor brackets with the head restraint being raised, be Top tether strap sure to have the top tether strap pass underneath the head restraint. Rear center seat ...
  • Page 81 1-5. For safe driving with children on board WARNING When installing a child restraint sys- ■ Observe the following precautions. Failure to do so may result in death or serious injury. ● Firmly attach the top tether strap and make sure that the belt is not twisted. ●...
  • Page 82: Entering/Exiting The Vehicle

    (P.84) wipe the battery and terminals. (To remove the battery cover, lightly grasp NOTICE and pull it.) If the battery is corroded, have your Lexus dealer replace the To prevent key damage ■ battery. Observe the following precautions ●...
  • Page 83 ● If the battery cover is not installed and the carried out by your Lexus dealer. battery falls out or if the battery was ● To avoid serious deterioration, do not removed because the key got wet, rein- leave the electronic key within 3 ft.
  • Page 84: Smart Access System With Push-Button Start

    ● Electronic keys that will not be used for Ask your Lexus dealer for details on dis- long periods of time can be set to the bat- abling the entry function. tery-saving mode in advance.
  • Page 85 1-6. Entering/exiting the vehicle on the multi-information display are used to Antenna location ■ prevent theft of the vehicle and accidents resulting from erroneous operation. Take appropriate measures in response to any warning message on the multi-information display. (P.483) The following table describes situations and correction procedures when only an alarm sounds.
  • Page 86 1-6. Entering/exiting the vehicle • Hand warmers made of metal started or power switch modes are • Media such as CDs and DVDs changed. ● When other wireless keys (that emit radio ● Do not leave the electronic key on top of waves) are being used nearby the instrument panel or near the door pockets when exiting the vehicle.
  • Page 87 1-6. Entering/exiting the vehicle stolen.) (P.583) • Set the electronic key to battery-saving mode to disable the smart access system with push-button start. ● If the electronic key is inside the vehicle and a door handle becomes wet during a car wash, a message may be shown on the multi-information display and a buzzer will sound outside the vehicle.
  • Page 88: Digital Key

    If the smartphone is lost or stolen, contact  If the smartphone battery is your Lexus dealer immediately. depleted, the smartphone cannot  When taking your vehicle to a Lexus be used as Digital Key. If the battery dealer for an inspection or repairs,...
  • Page 89: Opening/Closing The Doors

    1-6. Entering/exiting the vehicle make sure to bring an electronic Opening/closing the doors key. WARNING Precautions for when driving ■ Observe the following precautions while driving. ● Make sure that all of the doors are closed and locked. Do not press an inside door opener ●...
  • Page 90 1-6. Entering/exiting the vehicle open door(s) or hood is displayed on the Opening the doors multi-information display. ■ Rear seat reminder function Outside the vehicle  As the first reminder so as not to forget lug- gage, etc. in the rear seat, when the power switch is turned off after any of the following conditions are met, a buzzer will sound and a message will be displayed on the...
  • Page 91 1-6. Entering/exiting the vehicle front side of the door opener switch will open the door. The door will unlock and the door lock indicator will turn off. Passenger doors: Press the door lock switch to unlock If a door cannot be opened using the ■...
  • Page 92: Locking/Unlocking The Doors

    1-6. Entering/exiting the vehicle driver’s door handle for approxi- Locking/unlocking the doors mately 2 seconds unlocks all the doors. Grip any passenger door Impact detection door lock release sys- ■ handle to unlock all the doors. Make sure to touch the sensor on the back If the vehicle is involved in a severe frontal of the handle.
  • Page 93 1-6. Entering/exiting the vehicle When the indicator light on the key sur- Operations using the wireless face is not on, press and hold remote control (if equipped) or approximately 5 seconds while press- Lock/unlock the doors using ing and holding wireless remote control The setting changes each time an oper- ation is performed, as shown below.
  • Page 94: Immobilizer System

    1-6. Entering/exiting the vehicle wireless remote control or door lock Immobilizer system switches. The vehicle’s keys have built-in tran- Locking/unlocking the doors with sponder chips that prevent the EV the door lock switches system from starting if a key has not been previously registered in the vehicle’s on-board computer.
  • Page 95: Alarm

    1-6. Entering/exiting the vehicle If the key is in close proximity to or touch- ● Alarm ing a key registered to the security sys- tem (key with a built-in transponder chip) of another vehicle The alarm uses light and sound to give an alert when an intrusion is NOTICE detected.
  • Page 96 1-6. Entering/exiting the vehicle Alarm-operated door lock ■ In the following cases, depending on the sit- Deactivating or stopping ■ uation, the door may automatically lock to prevent improper entry into the vehicle: Do one of the following to deactivate When a person remaining in the vehicle ●...
  • Page 97: Trailer Towing

    Trailer towing after a few seconds.) Lexus does not recommend towing a trailer with your vehicle. Lexus also does not recommend the installation of a tow hitch or the use of a tow hitch carrier for a wheel- chair, scooter, bicycle, etc.
  • Page 98: Dinghy Towing

    1-6. Entering/exiting the vehicle Dinghy towing Opening and closing the windows Your vehicle is not designed to be din- ghy towed (with 4 wheels on the WARNING ground) behind a motor home. Observe the following precautions. The driver is responsible for all power win- dow operations, including the operation for the passengers.
  • Page 99 The catch protection function may not remote control work if something gets caught just before the window is fully opened. The power windows can be opened using the wireless remote control. : These settings must be customized at your Lexus dealer.
  • Page 100 : This setting must be customized at your Lexus dealer. Push and hold the unlock switch on the wireless remote control. The doors will unlock and the windows will open.
  • Page 101: Loading Luggage

    1-7. Loading luggage 1-7.Loading luggage Loading the vehicle with lug- • On the instrument panel gage • On the dashboard Secure all items in the occupant com- ● Precautions for loading luggage partment. into the luggage compartment Precautions regarding weight capac- ■...
  • Page 102 The cargo capacity can be calculated cle. using the following formula. Lexus does not recommend towing a trailer with your vehicle. Your vehicle is not (Cargo capacity) = (Total load capac- designed for trailer towing.
  • Page 103 1-7. Loading luggage C lb. (kg) − D lb. (kg) = E lb. (kg) ● Never let anyone sit in the luggage compartment. : D = Additional weight of people In the event of sudden braking, sudden : E = Available cargo and luggage load swerving or a collision, they are suscepti- ble to death or serious injury.
  • Page 104 On an incline, the power back door caught and injured. When installing an may suddenly shut after it opens. Make accessory part to the power back sure the power back door is fully open door, using a genuine Lexus part is and secure. recommended.
  • Page 105 , resulting in mal- to be caught and injured. When install- function. ing an accessory part to the power back door, using a genuine Lexus part is recommended. ■ Jam protection function (vehicles with power back door) Observe the following precautions.
  • Page 106 : This setting can be customized by ■ Back door closer (vehicles with the power back door) your Lexus dealer. In the event that the back door is left slightly When closing the power back door using open, the back door closer will automati- the close &...
  • Page 107 1-7. Loading luggage Close & lock (Walk-Away) function Lexus dealer. ■ operating conditions (vehicles with In the following situations, the close & lock power back door) function may not operate properly: This function can be operated when all of the following conditions are met: ●...
  • Page 108 1-7. Loading luggage locked/unlocked while carrying an Locking/unlocking the back door electronic key or the card key.The using the door lock switches driver should always carry the elec- tronic key or the card key. Locking/unlocking the back door using the door lock switches Lock/unlock the back door using smart access system with push-but- ton start...
  • Page 109 1-7. Loading luggage Back door operations using the Press for 1 second. back door operation switch inside The back door will open. the vehicle (vehicles with the power back door) The power back door can be operated whether it is locked or unlocked.
  • Page 110 1-7. Loading luggage Lift the back door while pressing the Back door operations using the back door opener switch. back door operation switch out- side the vehicle Closing the back door using the (vehicles with the power Open the back door automatically back door) using the back door opener switch (vehicles with the power back door)
  • Page 111 & lock (Walk-Away) function will go into standby again. Close the back door and lock all *1,2 doors (close & lock function) : If equipped : This setting can be customized by your Lexus dealer.
  • Page 112 If it does not operate, have the vehicle inspected by your Lexus dealer. ● Do not apply coatings that have a rain clearing (hydrophilic) effect, or other coatings, to the lower center part of the rear bumper.
  • Page 113 1-7. Loading luggage When mud, snow or ice is attached to the ● NOTICE rear bumper Do not paint the rear bumper. ● ● When the vehicle has been parked for a while near objects that may move and ● If a bicycle carrier or similar heavy contact the rear bumper, such as plants object is attached to the power back...
  • Page 114 1-7. Loading luggage When the vehicle is being towed Perform a kick operation by mov- ● ing your foot to within approxi- To prevent unintentional operation, turn the Hands Free Power Back Door (kick sensor) mately 3.9 in. (10 cm) of the rear operation setting off.
  • Page 115 : If equipped kick sensor operates. : This setting can be customized by your If it does not operate, have the vehicle inspected by your Lexus dealer. Lexus dealer. ● Do not subject the kick sensor or its NOTICE surrounding area to a strong impact.
  • Page 116 : If equipped Hands Free Power Back Door operation detection area : This setting can be customized by your Lexus dealer. Smart access system with In the following situations, the function may push-button start operation detec- not operate properly: tion area (P.85)
  • Page 117 1-7. Loading luggage a kick operation again. If the power back door is operated after the back door operation has stopped, the Hands Free close & lock (Walk-Away) function will go into standby again. Back door reserve lock function (vehicles with the power back door) This function reserves the locking of the power back door when the power...
  • Page 118 1-7. Loading luggage tection function, etc., while the back position. door is automatically closing after a reserve lock operation is per- Rear seat seatbacks formed, the reserve lock function is Folding the seat backs can be done canceled and all the doors will with the lever operations.
  • Page 119 1-7. Loading luggage Return the rear seatbacks WARNING Make sure that the rear seatback is ● Raise the rear seatback until it securely locked in position by lightly locks. pushing it back and forth. If the seatback is not securely locked, the red marking will be visible.
  • Page 120: Obtaining The Correct Driving Posture

    1-8. Obtaining the correct driving posture contact the ceiling or a sun visor. 1-8.Obtaining the correct driving posture Adjusting the seats WARNING Adjusting the front seats Observe the following when adjusting the seats. Adjust the seat forward/backward and up/down as necessary to obtain a cor- ●...
  • Page 121 1-8. Obtaining the correct driving posture ● After adjusting the head restraints, push down on them and make sure they are locked in position. Do not drive with the head restraints ● removed. Adjusting the front seat head ■ restraints vertically Reclining adjustment WARNING Observe the following when adjusting...
  • Page 122 1-8. Obtaining the correct driving posture Rear seats  Adjusting the height of the head ■ restraints Make sure that the head restraints are Pull the head restraint up while press- adjusted so that the center of the head restraint is closest to the top of your ears ing the lock release button Adjusting the center rear seat head ■...
  • Page 123: Using The Seat Belts

    1-8. Obtaining the correct driving posture Align the head restraint with the instal- Using the seat belts lation holes and push it down to the lock position. Make sure that all occupants are Press and hold the lock release button wearing their seat belts before driv- when lowering the head restraint.
  • Page 124 ■ as a result of sudden braking or a colli- sion. If your seat belts cannot be fastened securely because they are not long enough, a personalized seat belt extender is avail- able from your Lexus dealer free of charge.
  • Page 125 ● Ensure that the belt and plate are locked and the belt is not twisted. If the seat belt does not function cor- rectly, immediately contact your Lexus dealer.
  • Page 126: Adjusting The Position Of The Steering Wheel And Mirrors

    1-8. Obtaining the correct driving posture Adjusting the position of the Adjusting the height of the front steering wheel and mirrors seat belts Adjusting the position of the steering wheel horizontally/ver- tically WARNING Do not adjust the steering wheel while driving.
  • Page 127 1-8. Obtaining the correct driving posture in accordance with power switch mode and restraints or luggage, ensuring rear vis- the driver’s seat belt condition. ibility. Also, the rear seats are not dis- played and privacy of the passengers is Adjusting the position of the enhanced.
  • Page 128 1-8. Obtaining the correct driving posture Displays icons, adjusting gauge, etc. Digital mirror mode operating Select/adjust button condition Press to change the setting of the item you The power switch is turned to ON. want to adjust. (P.129) When the power switch is changed Menu button from ON to OFF or ACC, the image Press to display the icon display area and...
  • Page 129 Icons Settings Operate the lever, change to optical Select to adjust the mirror mode and have the vehicle brightness of the dis- inspected by your Lexus dealer. play. Select to adjust the area displayed up/down. Select to adjust the area displayed to the left/right.
  • Page 130 1-8. Obtaining the correct driving posture changed while using the digital mirror Icons Settings mode. Select to enable/dis- able the automatic Precautions when adjusting the anti-glare function. Digital Rear-view Mirror Responding to the Display settings (digital mirror ■ brightness of the mode) headlights of vehi- cles behind, the...
  • Page 131 1-8. Obtaining the correct driving posture To prevent the light sensors from ■ Cleaning the Digital Rear-view malfunctioning Mirror To prevent the light sensors from mal- Cleaning the mirror surface ■ functioning, do not touch or cover them. If the mirror surface is dirty, the image on the display may be difficult to see.
  • Page 132 If this happens, have the vehicle • Do not strike or hit the camera or sub- inspected by your Lexus dealer as ject it to a strong impact, as the camera soon as possible. installation position and angle may be changed.
  • Page 133 The camera or its surrounding Change to optical mirror mode and have ment. area has received a strong the vehicle inspected by your Lexus impact. dealer. The display is Change to optical mirror mode and have dim and...
  • Page 134 Mirror will turn off.) the mirror is cool, have the vehicle inspected by your Lexus dealer. Change to optical mirror mode and have the vehicle inspected by your Lexus The lever can- dealer. The lever may be malfunction- not be oper- ing.
  • Page 135 1-8. Obtaining the correct driving posture Linked mirror function when reversing Press it again to extend them to the ■ original position. When the mirror select switch is in the “L” or “R” position, the outside rear view mirrors Setting automatic mode ...
  • Page 136 1-8. Obtaining the correct driving posture WARNING As the mirror surface will be hot, do ● not touch an outside rear view mirror when the mirror heater is operating. ● Both the driver and passenger side mirrors must be extended and prop- erly adjusted before driving.
  • Page 137: Driving The Vehicle

    Starting the EV system.....138 Stopping the EV system ..140 2-2. Driving procedures Driving procedure ..... Breaking in your new Lexus .. Intended use of each shift position ............Changing the shift position ..Starting off........Informing the driver of the vehi- cle’s dynamic conditions through...
  • Page 138: Starting The Ev System

    Power switch illumination ■ be a malfunction. Contact your Lexus According to the situation, the power dealer immediately. switch illumination operates as follows. If a door is open or the power switch is ●...
  • Page 139 “ACCESSORY” does not come on even after performing will be displayed on the meter. the proper procedures for starting the vehi- cle, contact your Lexus dealer immediately. Operation of the power switch ■ All electrical components can be used.
  • Page 140: Stopping The Ev System

    Set the parking brake. (P.154) and pressing the power switch again. Check the parking brake indicator is illumi- If there is a malfunction in the system, have nated. the vehicle inspected by your Lexus dealer immediately. Press the P position switch. (P.145) NOTICE...
  • Page 141 2-1. Starting and stopping the EV system The EV system will automatically shut off ● after approximately 1 hour if it has been left running while the shift position is in P. ● The timer for the automatic EV system shut off feature will reset if the brake pedal is depressed or if the shift position is in a position other than P.
  • Page 142: Driving Procedures

    2-2. Driving procedures 2-2.Driving procedures Driving procedure ● If “Regenerative braking limited. Press brake to decelerate.” appears on the multi-information display, firmly depress the brake pedal to decelerate WARNING  the vehicle. ( P.503) When driving the vehicle ■ Do not adjust the positions of the ●...
  • Page 143 In the event that you drive on a flooded tors) road and the vehicle is flooded, be sure to have your Lexus dealer check the fol- Have the brake pads checked and lowing: replaced by your Lexus dealer as soon as possible.
  • Page 144: Breaking In Your New Lexus

    2-2. Driving procedures Breaking in your new Lexus Intended use of each shift position To extend the life of the vehicle, observing the following precautions is Select the shift position depending recommended: on your purpose and situation.  For the first 200 miles (300 km):...
  • Page 145: Changing The Shift Position

    Immediately stop the vehicle in a safe Doing so may result in an accident or place on level ground, apply the parking brake, and then contact your Lexus damage to the vehicle. dealer. Do not shift the shift position to P while ●...
  • Page 146 2-2. Driving procedures hold it for a while. Shift position display and how to To switch to R or D, hold down the dial shift change the shift position and turn left or right according to the arrow on the shift position indicator. Release the rotary shifter after each shift- ing operation to allow it to return to its reg- ular position.
  • Page 147 2-2. Driving procedures When attempting to change the shift Automatic P position selection function ● ■ position from P with the brake pedal not In the following situations, the shift position depressed is automatically changed to P. ● When attempting to change the shift When pressing the power switch with the ●...
  • Page 148 ● Do not remove the rotary shifter knob Operate the rotary shifter and or use anything but a genuine Lexus change the shift position to N when rotary shifter knob. Also, do not hang the EV system is operating.
  • Page 149: Starting Off

    2-2. Driving procedures Starting off Informing the driver of the vehicle’s dynamic conditions With the brake pedal depressed, through sounds shift the shift position to D. Check that the shift position indicator ASC (Active Sound Control) shows D. The ASC, which generates specialized WARNING sounds and sends them into the cabin from the front and rear, is a system...
  • Page 150: Operations When Turning Left Or Right Or Changing Lanes

    2-2. Driving procedures Operations when turning Changing the regenerative left or right or changing braking power lanes Operating the paddle shift switches enables driving with a fixed regen- By operating the turn signal lever, erative braking power when the the intent of the driver can be accelerator pedal is released or the shown as follows.
  • Page 151 2-2. Driving procedures Using regenerative brake ■ When driving at a high speed, the feeling ● of deceleration with regenerative braking is less than that on conventional vehicles. ● If “Regenerative braking limited. Press brake to decelerate.” appears on the multi-information display, firmly depress the brake pedal to decelerate the vehicle.
  • Page 152: Parking The Vehicle

    2-3. Parking the vehicle 2-3.Parking the vehicle When parking the vehicle ● Do not attach suction cups to the glass parts of the vehicle. Also, do not place air fresheners or other clear contain- Precautions for when the vehicle ers on the instrument panel or dash- board.
  • Page 153: Stopping

    2-3. Parking the vehicle Stopping WARNING ■ When the vehicle is stopped Depress the brake pedal. ● Do not depress the accelerator pedal WARNING unnecessarily. ● Drive more carefully than normal If the vehicle is in any gear other than P when the brakes are wet.
  • Page 154: Parking The Vehicle

    2-3. Parking the vehicle Parking the vehicle Parking brake operation Depress the brake pedal to stop the The parking brake can be applied vehicle completely. or released automatically (auto- matic mode) or manually (manual If the parking brake is released, set mode).
  • Page 155 15 performance and increase brake wear. seconds. This does not indicate a mal- Have the vehicle inspected by your function. Lexus dealer immediately if this occurs. ■ When the parking brake switch mal- functions ■...
  • Page 156 2-3. Parking the vehicle on, the parking brake operates as fol- lows.  When the shift position is shifted from P, the parking brake will be released, and the parking brake indicator light will turn off.  When the shift position is shifted to P, the parking brake will be set, and the parking brake indicator light will turn on.
  • Page 157 HomeLink programming procedure ■ ® HomeLink indicator light The programming procedures can also be found at the following URL. Garage door operation indicators Website: www.homelink.com/lexus ® HomeLink icon ® Illuminates while HomeLink is operating. Buttons Vehicles with Digital Rearview Mir- ...
  • Page 158 2-3. Parking the vehicle equipped with rolling code protec- WARNING tion. If this is the case, you may need ® Do not use the HomeLink compatible a stepladder or other sturdy, safe transceiver with any garage door opener device to reach the “learn” or or device that lacks safety stop and “smart”...
  • Page 159 2-3. Parking the vehicle Vehicles with auto anti-glare inside Vehicles with Digital Rearview Mir-   rear view mirror Vehicles with Digital Rearview Mir-  Programming a device other than  an entry gate (for U.S.A. owners): Press and hold the remote control trans- ®...
  • Page 160 2-3. Parking the vehicle rapidly: The garage door opener forming 2. motor or other device is equipped with a rolling code. To complete programming, firmly press and hold ® the HomeLink button for 2 sec- onds then release it.  If the garage door or other device does not operate, proceed to P.160 Press and hold the desired Home-...
  • Page 161 2-3. Parking the vehicle Vehicles with Digital Rearview Mir- ®  Link button after programming has been completed. ® Press a programmed HomeLink button to operate a garage door. Within 1 minute of pressing the ® HomeLink button, after the garage door operation has stopped, press the “Learn”...
  • Page 162 2-3. Parking the vehicle Vehicles with Digital Rearview Mir- The last recorded status will be displayed  for 3 seconds. ® Reprogram the HomeLink When the following procedure is per- formed, buttons which already have devices registered to them can be overwritten: Press and hold the desired Home- ®...
  • Page 163 2-3. Parking the vehicle Vehicles with Digital Rearview Mir-  Press and hold the 2 outer Home- ® Link buttons for 10 seconds. Check ® that the HomeLink indicator light changes from continuously lit in orange to rapidly flashing in green. All codes registered to memory will be erased.
  • Page 164 2-3. Parking the vehicle...
  • Page 165: Driving According To The Conditions

    Driving according to the conditions 3-7. Utility vehicle precautions 3-1. Driving when the surrounding area is dark Utility vehicle precautions..188 Using the headlights ....3-8. Changing the driving character- istics Automatically changing between the low beam headlights and Driving modes......high beam headlights ....168 Changing the driving mode ..
  • Page 166: Using The Headlights

    3-1. Driving when the surrounding area is dark ning lights and all the lights listed 3-1.Driving when the surrounding area is dark Using the headlights above turn on and off automatically. The headlights can be operated (U.S.A.) The daytime running manually or automatically.
  • Page 167 3-1. Driving when the surrounding area is dark cause the automatic headlight system to will be disabled. malfunction. When any of the following are performed, the 12-volt battery-saving function is can- celed once and then reactivated. All the lights will turn off automatically 20 minutes after the 12-volt battery-saving function has been reactivated: ●...
  • Page 168: Automatically Changing Between The Low Beam Headlights And High Beam Headlights

    3-1. Driving when the surrounding area is dark Automatically changing Operation of the automatic between the low beam head- headlight leveling system (if lights and high beam head- equipped) lights The level of the headlights is automati- cally adjusted according to the number AHS (Adaptive High-beam Sys- of passengers and the loading condi- tem) (if equipped)
  • Page 169 3-1. Driving when the surrounding area is dark nate. Area illuminated by the high beams Area illuminated by the low beams ■ System operating conditions  According to the distance to a pre- ● When all of the following conditions are met, the high beams will illuminate and ceding vehicle, the illuminated area the system will operate:...
  • Page 170 3-1. Driving when the surrounding area is dark a far lane lights or tail lights in the surrounding area • When a vehicle ahead is far away • When headlights or tail lights of vehicles • When a vehicle ahead has no lights ahead are turned off, dirty, changing •...
  • Page 171 3-1. Driving when the surrounding area is dark amount of time. After this, the Adaptive Changing to the low beams High-beam System will operate. Press the Adaptive High-beam Sys- tem switch. AHB (Automatic High Beam) (if equipped) The Automatic High Beam uses a front camera located on the upper portion of the windshield to detect the brightness of the lights of vehi-...
  • Page 172 3-1. Driving when the surrounding area is dark Turn the headlight switch to the detected and then hidden due to repeated curves, road dividers or road- “AUTO” or position. side trees • When a vehicle ahead approaches from a far lane •...
  • Page 173 3-1. Driving when the surrounding area is dark • When headlights or tail lights of vehicles Turning the high beams on/off ahead are turned off, dirty, changing manually color, or not aimed properly • When the headlights are repeatedly changing between the high beams and Changing to the high beams low beams.
  • Page 174 3-1. Driving when the surrounding area is dark Temporarily changing to the low beams It is recommended to switch to the low beams when use of the high beams is inappropriate or when the high beams may cause problems or distress to other drivers or pedes- trians nearby.
  • Page 175: Driving When The Surrounding Area Is Bright

    3-2. Driving when the surrounding area is bright 3-2.Driving when the surrounding area is bright Using the sun visors Inside rear view mirror anti-glare function (vehicles with auto anti-glare inside rear view mirror) Responding to the level of bright- ness of the headlights of vehicles behind, the reflected light is auto- matically reduced.
  • Page 176: Digital Rearview Mirror Anti-Glare Function (Optical Mirror Mode)

    3-2. Driving when the surrounding area is bright Digital Rearview Mirror anti-glare function (optical mirror mode) : If equipped The automatic anti-glare function in the optical mirror mode can be enabled/disabled. The automatic anti-glare function is enabled each time the power switch is changed to ON.
  • Page 177: Driving In The Rain

    3-3. Driving in the rain 3-3.Driving in the rain Precautions for driving in Ensuring visibility in the rain the rain Operate the wiper lever to change Observe the following precautions the operation of wipers between when driving in the rain. manual and automatic operation or to operate the washers.
  • Page 178 3-3. Driving in the rain Changing the speed of the wipers When is selected, the wipers will operate automatically when the sen- sor detects falling rain. The system automatically adjusts wiper timing in accordance with rain volume and vehi- cle speed. (U.S.A.) or (Canada) Off Rain-sensing operation...
  • Page 179 NOTICE However, this function will not operate while driving. If a washer nozzle is blocked, contact your Lexus dealer. If no windshield washer fluid sprays ■ If there is washer fluid in the washer fluid Do not try to clear it with a pin or other tank, check if the washer nozzles are object.
  • Page 180 3-3. Driving in the rain Push the lever. Clean the camera for Lexus parking assist monitor and Digital Rear-view Mirror (if equipped). NOTICE If washer fluid does not spray, do not operate the switch continuously as doing so may damage the rear washer fluid pump.
  • Page 181: Driving When The Windows Or Mirrors Are Fogged Up

    3-4. Driving when the windows or mirrors are fogged up switch to outside air mode if the recir- 3-4.Driving when the windows or mirrors are fogged up Defog the windshield culated air mode is used. (It may switch automatically.) Defoggers are used to defog the To defog the windshield and the side windshield and front side windows.
  • Page 182: Defog The Rear Window

    3-4. Driving when the windows or mirrors are fogged up Defog the rear window Defog the outside rear view mirrors Press the rear windshield and outside rear view mirror defogger switch. Press the rear windshield and outside rear view mirror defogger switch. The rear window defogger and outside rear view mirror defoggers will operate The rear window defogger and outside...
  • Page 183: Driving When It Is Cold

    NOTICE tions and inspections before driving the vehicle in cold weather. Always When having winter tires repaired or replaced, contact your Lexus dealer or a drive the vehicle in a manner legitimate tire retailer. appropriate to the prevailing weather conditions.
  • Page 184 3-5. Driving when it is cold Side chain (0.39 in. [10 mm] in WARNING width) Do not drive in excess of the speed ● limit specified for the tire chains being Side chain (0.98 in. [25 mm] in used, or 30 mph (50 km/h), which- length) ever is lower.
  • Page 185: Cold Weather Driving Tips

    3-5. Driving when it is cold vehicle ahead, and drive at a reduced Cold weather driving tips speed suitable to road conditions. Things to check before driving in Precautions for parking in cold cold weather weather Perform the following according to the ...
  • Page 186 3-5. Driving when it is cold Linked mirror function when reversing ■ When used in cold weather during reverse driving, the door mirror could be frozen and may not automatically point the mirror sur- face downward. In this event, remove any ice and snow from the mirror surface.
  • Page 187: Driving In Low Visibility Conditions

    3-6. Driving in low visibility conditions 3-6.Driving in low visibility conditions Sounding the horn Press on or close to the mark.
  • Page 188: Utility Vehicle Precautions

    3-7. Utility vehicle precautions 3-7.Utility vehicle precautions Utility vehicle precautions ● In a rollover crash, an unbelted person is significantly more likely to die than a person wearing a seat belt. Therefore, This vehicle belongs to the utility the driver and all passengers should always fasten their seat belts.
  • Page 189 3-7. Utility vehicle precautions private property. ● Do not grip the steering wheel spokes when driving off-road. A bad bump  Do not enter areas that are closed. could jerk the wheel and injure your Honor gates, barriers and signs that hands.
  • Page 190 3-7. Utility vehicle precautions NOTICE When you drive through water ■ If driving through water, such as when crossing shallow streams, first check the depth of the water and the bottom of the riverbed for firmness. Drive slowly and avoid deep water. ■...
  • Page 191: Changing The Driving Characteristics

    3-8. Changing the driving characteristics Custom mode ■ 3-8.Changing the driving characteristics Driving modes Driving is possible by setting the desired function for power train con- The following driving modes can be trol, chassis control or air conditioning used according to the driv- operations.
  • Page 192: Changing The Driving Mode

    3-8. Changing the driving characteristics Normal mode and Eco drive mode will ● Changing the driving mode not be canceled automatically until another driving mode is selected, even if the power switch is turned off. Select on the center display. ■...
  • Page 193: Brake Hold System

    3-9. Brake hold system holding the brake, the brake hold oper- 3-9.Brake hold system Brake hold system ated indicator (yellow) comes on. WARNING When the vehicle is on a steep incline ■ Take care when using the brake hold sys- tem on a steep incline, exercise caution.
  • Page 194 (green) does not illuminate even when the brake hold switch is pressed with the brake hold system operating conditions met, the system may be malfunctioning. Have the vehicle checked by your Lexus dealer immediately. ■ If “Brake Hold Malfunction” is displayed on the multi-information display The system may be malfunctioning.
  • Page 195: Interior Features

    (Power easy access system) ............198 Driving position registra- tion/recall/deletion....4-3. Adjusting the temperature/envi- ronment inside the vehicle Comfortable condition to be maintained without adjusting each system (Lexus Climate Concierge) .......203 Air conditioning controls ..204 Heated steering wheel.....210 Seat heaters/Radiant heaters ............
  • Page 196: My Settings

    4-1. Favorite settings Individual identification by face authentica- 4-1.Favorite settings My Settings tion is prioritized than by electronic key/digital key , if the latter has identified : If equipped with another registered driver. By identifying an individual through ®  Bluetooth devices a device, such as an electronic key, the driving position and vehicle set-...
  • Page 197 4-1. Favorite settings tion, turning the power switch to ACC or  Meter displays , head-up dis- *1,2 play , and center display When an individual is identified, the vehicle settings used when the power switch was last turned off are recalled. ...
  • Page 198: Adjusting The Preferred Driving Position

    4-2. Adjusting the preferred driving position 4-2.Adjusting the preferred driving position Enabling easier driver entry Operation of the power easy access sys- ■ and exit (Power easy access When exiting the vehicle, the power easy system) access system may not operate if the seat is already close to the rearmost position, etc.
  • Page 199: Driving Position Registra- Tion/Recall/Deletion

    4-2. Adjusting the preferred driving position button is pressed, press button “1”, Driving position registra- “2” or “3” until the buzzer sounds. tion/recall/deletion If a driving position has already been regis- tered to the selected button, the previously : If equipped registered position will be overwritten.
  • Page 200 Driving position recall procedure  recorded in a certain range. Carry only the key that has been For details, contact your Lexus dealer. assigned and registered in My Set- Jam protection function ■ tings, and then unlock and open the While the driving position is recalled or the driver’s door using the smart...
  • Page 201 4-2. Adjusting the preferred driving position ever, the seat will move to a position slightly already in the registered driving position. behind the recorded position in order to If the driving position is in a position that make entering the vehicle easier. has already been recorded, the driving If the driving position is in a position that position will not move.
  • Page 202 4-2. Adjusting the preferred driving position mately 3 seconds. Check that the shift position is in P. Turn the power switch to ON. While pressing the “SET” button, press and hold the door lock switch (either lock or unlock) until the buzzer sounds twice.
  • Page 203: Adjusting The Temperature/Environment Inside The Vehicle

    4-3.Adjusting the temperature/environment inside the vehicle Comfortable condition to be between the seat heaters and seat ventila- maintained without adjust- tors according to the temperature setting ing each system (Lexus Cli- of the air conditioning system, outside tem- mate Concierge) perature, etc.  Seat ventilatorsP.213...
  • Page 204: Air Conditioning Controls

    Have repair/replacement performed by mode and the fan speed to any setting your Lexus dealer. except off. When a part of the air conditioning sys- tem, such as the evaporator, is to be ■...
  • Page 205 4-3. Adjusting the temperature/environment inside the vehicle air conditioning system is attached to the Requires registered tech- hood at the location shown in the follow- nician to service air condi- ing illustration. tioning system Flammable refrigerant ■ Using the voice control system (if equipped) Air conditioning system can be operated using voice controls.
  • Page 206 4-3. Adjusting the temperature/environment inside the vehicle Select to display shortcut icons for various functions. “Sync” switch Right-hand side temperature control switch “A/C” switch Outside/recirculated air mode switch Fan speed control switch “Off” switch “AUTO” switch Adjusting the temperature speed, select the “-” fan speed adjust- ■...
  • Page 207 4-3. Adjusting the temperature/environment inside the vehicle rear seats Location of air outlets ■  The windshield defogger is not operating The S-Flow switch is (ON) on the option screen. In front seat concentrated airflow mode, directing airflow to the front seats only and to all seats can be switched via switch Switching between outside air and ■...
  • Page 208 4-3. Adjusting the temperature/environment inside the vehicle Eco air conditioning mode Touch the shortcut screen switch ■ on the center display. The air conditioning is controlled with low electricity consumption prioritized (P.205) such as reducing fan speed, etc. Select the “MAX heat” switch. Select the option screen switch.
  • Page 209 4-3. Adjusting the temperature/environment inside the vehicle Cooling the interior quickly (Max When “Climate concierge” is on, if the ● ■ “AUTO” switch is turned on, the seat cool) heaters and seat ventilators of the front When “MAX cool” is turned on, in seats , and the heated steering wheel will order to cool the interior quickly, the...
  • Page 210: Heated Steering Wheel

    4-3. Adjusting the temperature/environment inside the vehicle Front side  Heated steering wheel Direct air flow to the left or right, up or down Warm up the grip of the steering wheel. WARNING Care should be taken if anyone in the fol- lowing categories comes in contact with the steering wheel when the heater is on: ●...
  • Page 211: Seat Heaters/Radiant Heaters

    4-3. Adjusting the temperature/environment inside the vehicle Seat heaters/Radiant heat- Customization ■ The temperature setting of the heated steering wheel can be set through “Vehicle customize” on the center display. (P.595) : If equipped Warm up seat surface and leg area of the front seat occupant.
  • Page 212 4-3. Adjusting the temperature/environment inside the vehicle It may take some time for the heater tem- ● NOTICE perature to rise. To prevent damage to the seat heat- ■ ■ Position of the radiant heaters ers/radiant heaters Do not put heavy objects that have an uneven surface on the seat and do not stick sharp objects (needles, nails, etc.) into the seat.
  • Page 213: Seat Ventilators

    4-3. Adjusting the temperature/environment inside the vehicle lit)  Lo (1 segment lit)  Off Seat ventilators The level indicators (yellow) light up during operation. : If equipped Using fans inside the seats, improved ventilation can be pro- vided at the surface of the seats. NOTICE To prevent damage to the seat venti- ■...
  • Page 214: Using The Panoramic Fixed Moon Roof With One-Touch Frosted Glass Control

    Do not disassemble or repair the pan- oramic fixed moon roof with one-touch frosted glass control because it contains high voltage parts. Contact your Lexus dealer if the panoramic fixed moon roof with one-touch frosted glass control needs repair.
  • Page 215 ■ strong impact The moon roof changes to opaque and can- not be changed back to transparent .Have the vehicle inspected by your Lexus dealer. Changing the moon roof between opaque and transpar- Press the dimming switch. The moon roof is changed between opaque and transparent each time the dimming switch is pressed.
  • Page 216: Illuminating The Interior

    4-4. Illuminating the interior 4-4.Illuminating the interior Using the interior lights Location of the interior lights Rear interior light Front interior light Personal lights Door trim ornament lights Door pocket lights Inside handle lights Door courtesy lights Auxiliary box lights Outer foot lights Footwell lights : The illumination color can also be changed...
  • Page 217 Otherwise, the lights will be damaged. If the lens be controlled by front interior light need to remove, contact your Lexus operations. dealer. ■ To prevent 12-volt battery discharge Do not leave the lights on longer than necessary when the EV system is off.
  • Page 218 4-4. Illuminating the interior Operation of the rear interior light is Linking the opening/closing of linked to the turning on/off of the front the doors to the front interior interior light. light operation When the rear interior light has been turned on by front interior light opera- tion, the rear interior light cannot be turned off by touch the light.
  • Page 219: Using The Interior Features

    4-5. Using the interior features 4-5.Using the interior features Location of the storage features WARNING Do not leave eyeglasses, lighters or spray cans in the storage spaces, as the following may occur when cabin temperature becomes high: ● Eyeglasses may be deformed by heat or cracked if they come into contact with other stored items.
  • Page 220 4-5. Using the interior features Locations of the bottle holders Location of the card holders NOTICE When using a bottle holder, observe the following precautions. ● Do not place open bottles, glass cups, or paper cups containing liquid in the bottle holders.
  • Page 221 4-5. Using the interior features Front  WARNING Failure to do so may cause items to be thrown out of the tray in the event of sud- den braking or steering. In these cases, the items may interfere with pedal opera- tion or cause driver distraction, resulting in an accident.
  • Page 222: Convenient Interior Features

    4-5. Using the interior features Convenient interior features Function and operation of the USB charging port NOTICE To prevent damage to the USB ■ charging ports ● Do not insert foreign objects into the Console box light ■ ports. The console box light turns on when the tail lights are on.
  • Page 223 4-5. Using the interior features manual included with the device On the rear console  before using a USB charging port. The USB charging ports can be used ■ when The power switch is in ACC or ON. Situations in which the USB charging ■...
  • Page 224 4-5. Using the interior features In the luggage compartment  The power outlet can be used when ■ The power switch is in ACC or ON. When stopping the EV system ■ Disconnect electrical devices with charging functions, such as mobile battery packs. If such devices are left connected, the EV system may not stop normally.
  • Page 225 4-5. Using the interior features Function and operation of the NOTICE wireless charger Appliances that may not operate ■ properly (120 VAC) A portable device, such as a smart- The following 120 VAC appliances may phone or mobile battery, can be not operate properly even if their power consumption is under 100 W: charged by just placing it on the...
  • Page 226 4-5. Using the interior features ● Do not perform charging with a con- WARNING tactless smart card, such as a transpor- Do not charge portable devices with ● tation system IC card, between the aluminum stickers or other metallic charging surface of a portable device objects attached to the side which and the charging area.
  • Page 227 4-5. Using the interior features Using the smart access system with ■ Names of the parts of the wireless push-button start charger During charging, when the smart access system with push-button start searches for an electronic key, charging may be tempo- rarily suspended.
  • Page 228 4-5. Using the interior features display will be gray. Charging will resume Use the wireless charger automatically when seek tuning is stopped. Place a portable device on the ■ Recharging function charging tray. If a certain amount of time has elapsed ●...
  • Page 229 ● When there is a gap between the charging side of the portable device and Contact your Lexus dealer. the charge area due to a protrusion of If the smartphone OS has been updated ■ 0.12 in (3 mm) such as a camera on the If the smartphone OS has been updated to charging side of the portable device.
  • Page 230 4-5. Using the interior features : Depending on the portable device, the operation indicator light may stay illuminated (orange) after charging has completed. : While in standby, charging power is not output. If a metal object is placed on the charging tray in this state, the object will not heat up.
  • Page 231 4-5. Using the interior features opened. NOTICE Do not leave the vanity lights on longer than necessary with the EV system stopped. Doing so may lead to the 12-volt battery becoming discharged. ■ Automatic light off function When the power switch is off, if the vanity lights are turned on, they will be turned off automatically after 20 minutes.
  • Page 232: Using The Luggage Compartment

    4-6. Using the luggage compartment 4-6.Using the luggage compartment Using the cargo hooks Using the cargo net hooks The cargo hooks are provided for The cargo net can be hung using securing loose items. the cargo net hooks and rear cargo hooks.
  • Page 233: Using The Grocery Bag Hooks

    4-6. Using the luggage compartment Using the grocery bag hooks Deck board Push the grocery back hook to use. Opening the deck board WARNING If a deck board has been opened or removed, return it to its original position before driving. Otherwise, in the event of sudden braking or an accident, a deck board or stored items may fly out and strike an occupant.
  • Page 234: Stowing The Luggage Cover

    4-6. Using the luggage compartment Stowing the luggage cover Pull the lever upwards and fold the deck board.  Warning reflector Unhook each cord. : A warning reflector itself is not included as an original equipment. Remove the luggage cover.
  • Page 235 4-6. Using the luggage compartment Fold the luggage cover. Stow the luggage cover in the deck under tray. WARNING Do not stow items on the luggage ● cover. The luggage cover may be dam- aged, or the items may fly about and strike an occupant in the event of sud- den braking or swerving.
  • Page 236 4-6. Using the luggage compartment...
  • Page 237: Vehicle Status Information And Indicators

    Vehicle status information and indicators 5-1. Functions and displays of the meter Warning lights and indicators ............238 Gauges and meters ....5-2. Functions of the displays Multi-information display (vehi- cles without a head-up display) ............Multi-information display (vehi- cles with a head-up display) ............
  • Page 238: Functions And Displays Of The Meter

    5-1. Functions and displays of the meter 5-1.Functions and displays of the meter Warning lights and indicators The warning lights and indicators on the instrument cluster and outside rear view mirrors inform the driver of the status of the vehicle’s various systems. For the purpose of explanation, the following illustrations display all warning lights and indicators illuminated.
  • Page 239 EV system is on, or Tire pressure warning after a few seconds. There may be a malfunction in a system if the light does light not come on, or turn off. Have the vehi- cle inspected by your Lexus dealer.
  • Page 240 Have the vehicle inspected by your PDA indicator Lexus dealer immediately if this occurs. (green/white) Intuitive parking assist OFF indicator (if List of indicators...
  • Page 241: Gauges And Meters

    SOC (State of Charge) gauge not come on, or turn off. Have the vehi- cle inspected by your Lexus dealer. Displays the amount of charge remaining in the traction battery. : This light comes on when the system is turned off.
  • Page 242 5-1. Functions and displays of the meter Displays the ambient temperature within Displays the amount of charge remaining the range of -40°F (-40°C) to 141°F in the traction battery. (60°C). Clock Multi-information display Automatically adjusts the time by using the Presents the driver with a variety of vehicle GPS time information (GPS clock).
  • Page 243 5-1. Functions and displays of the meter : Displayed when the meter display type Displays the ambient temperature within setting is set to display type 1 the range of -40°F (-40°C) to 141°F (60°C). : Displayed when the meter display type setting is set to display type 2 Odometer and trip meter display (P.245)
  • Page 244 5-1. Functions and displays of the meter may be malfunctioning. Power meter Take your vehicle to your Lexus dealer. Driving range Power meter displays EV system ■ output or regeneration level. ● When the air conditioning system is operating, and the driving...
  • Page 245 5-1. Functions and displays of the meter area. reset the trip meter. • When the traction battery has a low amount of charge and can no longer output power • When the temperature of the traction batter is extremely high or extremely low : When used in this manual, “regenera- tion”...
  • Page 246: Multi-Information Display (Vehicles Without A Head-Up Display)

    5-2. Functions of the displays 5-2.Functions of the displays Multi-information display Navigation system-linked  (vehicles without a head-up display (P.255) display)  Audio system-linked dis- A variety of driving-related infor- play (P.255) mation can be displayed. Depend- ing on the situation, warning or Driving support system ...
  • Page 247: Multi-Information Display (Vehicles With A Head-Up Display)

    5-2. Functions of the displays Multi-information display WARNING (vehicles with a head-up dis- For example, there is a lag between the play) driver’s shifting and the regenerative braking power appearing on the display. This lag could cause the driver to down- A variety of driving-related infor- shift again, causing rapid and excessive regenerative braking and possibly an...
  • Page 248 5-2. Functions of the displays  Drive information 1 (P.252) For example, there is a lag between the driver’s shifting and the regenerative  Drive information 2 (P.253) braking power appearing on the display. This lag could cause the driver to down- ...
  • Page 249: Head-Up Display

    5-2. Functions of the displays Head-up display : If equipped The head-up display projects a variety of driving-related information and the operating state of the driving support systems on the windshield. The content displayed will differ according to the driving conditions and display mode of the head-up display.
  • Page 250 5-2. Functions of the displays The head-up display is set to display the ● maximum. (P.258) ● LTA (Lane Tracing Assist) is dis- abled.(P.291) ● LDA (Lane Departure Alert) is dis- abled.(P.590) The cruise control, selected by pressing ● the driving assist mode select switch, is canceled.
  • Page 251: Displayed Content

    5-2. Functions of the displays Displayed content : Select menu icons : Change displayed content, Operating the meters/displays scroll up/down the screen and move the cursor up/down Vehicles without a head-up display  Enter/Set Return to the previous screen Start/receive call Linked with the hands-free system, sending or receiving call is displayed.
  • Page 252 5-2. Functions of the displays selected. If the steering wheel switches do not ■ respond when touched (vehicles with a ■ Switching with the steering wheel head-up display) switches ● It is easier to make the steering wheel switches respond by moving your thumb is set as a favorite while touching them.
  • Page 253 5-2. Functions of the displays screen. Blank (No items) ● For Canada Displays no drive information contents Electricity consumption is the consumption on the multi-information display. rate of the electricity and equivalent to the fuel consumption for the gasoline vehicles. For this vehicle, electricity consumed per Current electricity consump- 100 km (“kWh/100 km”) is displayed as...
  • Page 254 5-2. Functions of the displays History electricity consumption ■ Displaying electricity consump- screen tion/history screen on the center display Select on the main menu. Select “Trip information”. Select “Current” or “History”. AWD operation status display Latest electricity consumption AWD operation status display can be Best recorded electricity consump- displayed on the center display.
  • Page 255 5-2. Functions of the displays  RSA (Road Sign Assist) Tire pressure  PDA (Proactive Driving Assist) The tire pressure detected by the  PCS (Pre-Collision System) tire pressure warning system can be displayed on the center display. Display position (vehicles with a ■...
  • Page 256 5-2. Functions of the displays Pop-up display information Hands-free system status Displayed when the hands-free system Pop-up displays will be displayed on is operated. the multi-information display or the head-up display (if equipped) when necessary. Suggestion function When a pop-up display is displayed, a Displays suggestions to the driver in current display may no longer be dis- the following situations.
  • Page 257 5-2. Functions of the displays (P.582) Steering wheel switch operation display Vehicles without a head-up display ■ Displayed when an audio remote con- trol switch or a talk switch on the steer- ing wheel is operated. Vehicles with a head-up display ■...
  • Page 258: Changing The Settings Of The Displays

    5-3. Changing the settings of the displays 5-3.Changing the settings of the displays Changing the instrument Changing settings for the panel light brightness head-up display : If equipped The brightness of the instrument panel lights can be adjusted. WARNING Check that the position and brightness of the head-up display image does not interfere with safe driving.
  • Page 259 5-3. Changing the settings of the displays Select “Vehicle customize”. Select “Head up display”. The following settings for the head-up dis- play can be changed.  Display on/off  Display mode  Height  Brightness  Angle ■ Enabling/disabling of the head-up dis- play If the head-up display is disabled, it will remain disabled when the power switch is...
  • Page 260 5-3. Changing the settings of the displays...
  • Page 261: Driving Support System

    6-1. Features of the safe driving sup- ............port functions EV system output restriction Driving assist systems....when the accelerator pedal and Lexus Safety System + 3 software brake pedal are depressed at the update......... same time ........398 Lexus Safety System + 3 ..268...
  • Page 262: Driving Assist Systems

    6-1. Features of the safe driving support functions Helps to maintain directional stability 6-1.Features of the safe driving support functions Driving assist systems when swerving on slippery road sur- faces by controlling steering perfor- To keep driving safety and perfor- mance.
  • Page 263 When the message is displayed on the ■ system back on. multi-information display showing that TRAC has been disabled even if the switch has not been pressed TRAC is temporary deactivated. If the infor- mation continues to show, contact your Lexus dealer.
  • Page 264 6-1. Features of the safe driving support functions Operating conditions of hill-start assist following cases, but it does not indicate that ■ control a malfunction has occurred. When the following four conditions are met, ● Operating sound heard from the motor the hill-start assist control will operate: compartment when the brake pedal is operated.
  • Page 265 6-1. Features of the safe driving support functions Secondary Collision Brake operating ■ ■ TRAC/VSC may not operate effec- conditions tively when The system operates when the SRS airbag Directional control and power may not sensor detects a collision while the vehicle be achievable while driving on slippery is in motion.
  • Page 266: Lexus Safety System + 3 Software Update

    ■ Make sure that all tires are of the speci- fied size, brand, tread pattern and total When the Lexus Safety System + 3 soft- load capacity. In addition, make sure that ware is updated, the operating methods the tires are inflated to the recom- of functions may change.
  • Page 267 ON. ● Lexus Safety System + 3 can still be used while a software update is being per- formed. What can be checked using the Lexus ■ The following items can be checked or per- formed.
  • Page 268: Lexus Safety System + 3

    6-1. Features of the safe driving support functions Software update ● Lexus Safety System + 3 The Lexus Safety System + 3 con- sists of the driving assist systems and contributes to a safe and com- fortable driving experience. WARNING Lexus Safety System + 3 ■...
  • Page 269 6-1. Features of the safe driving support functions ● When a compact spare tire or tire WARNING chains are installed to the vehicle or an Depending on external noise, the vol- ● emergency tire puncture repair kit has ume of the audio system, etc. it may be been used difficult to hear the warning buzzer.
  • Page 270 P.331 Sensors which detect the driver ■  Driver monitor (if equipped) condition P.276 Sensors used by Lexus Safety System + 3 Various sensors are used to obtain the necessary information for system operation. Sensors which detect the sur- ■...
  • Page 271 If a radar sensor, the front grille, or front When cleaning the radar sensor and bumper has been subjected to a impact, radar sensor cover, use a soft cloth to have the vehicle inspected by your Lexus remove dirt so as to not damage them. dealer. ●...
  • Page 272 Approximately 1.6 in. (4cm) For details, contact your Lexus dealer. ● If the part of the windshield in front of If a surfboard or other long object is to ●...
  • Page 273 ● When the headlights are not illuminated In this case, have the vehicle inspected by while driving in the dark, such as at night your Lexus dealer. or when in a tunnel ● Do not disassemble or modify the When the lens of a headlight is dirty and ●...
  • Page 274 6-1. Features of the safe driving support functions • Metal plates • Roads with deep ruts • Roads which are rough and unmain- ● When near a step or protrusion tained ● When a detectable vehicle is narrow, • Roads which frequently undulate or are such as a small mobility vehicle bumpy When a detectable vehicle has a small...
  • Page 275 6-1. Features of the safe driving support functions Situations in which some or all of the camera, such as when leaned forward or ■ functions of the system cannot operate when their head is outside of the window ● When a malfunction is detected in this ●...
  • Page 276: Driver Monitor

    6-1. Features of the safe driving support functions to identify faces in order to identify an Driver monitor individual. : If equipped For information about how to use the face identification function, priorities Driver monitor among other devices of individual identification, and linked vehicle set- tings, see My Settings.
  • Page 277 6-1. Features of the safe driving support functions tion, or identification. • When face information registration fails frequently or face identification fails fre- quently, the driver cameras should be cleaned or face information should be registered again. • Face information stored in the vehicle computer cannot be decoded or moved to another media.
  • Page 278: Using The Safe Driving Support Functions

    6-2. Using the safe driving support functions 6-2.Using the safe driving support functions Pre-Collision System ● Although the pre-collision system is designed to help avoid or help reduce the impact of a collision, its effective- PCS (Pre-Collision System) ness may change according to various conditions.
  • Page 279 6-2. Using the safe driving support functions If the detectable object is a vehicle, lowing conditions are met, assistance moderate braking will be performed will be provided to help enhance vehi- with the warning. cle stability and prevent lane depar- ture.
  • Page 280 6-2. Using the safe driving support functions Depending on the intersection, assis- tance may not operate correctly.  When turning left/right at an inter- section and crossing the path of an oncoming vehicle Acceleration Suppression at Low ■ Speed When driving at a low speed, if the accelerator pedal is strongly depressed and the system determines that there is a possibility of a collision,...
  • Page 281 6-2. Using the safe driving support functions • While the emergency steering assist is WARNING operating, if the accelerator pedal is The pre-collision braking function may ● depressed strongly, the steering wheel not operate if certain operations are is turned heavily, or the brake pedal is performed by the driver.
  • Page 282 6-2. Using the safe driving support functions Operating conditions of each function of the pre-collision system ■ The pre-collision system is enabled and the system determines that the possibility of a frontal collision with a detected object is high. However, the system will not operate in the following situations: When the vehicle has not been driven a certain amount after a terminal of the 12-volt bat- ●...
  • Page 283 6-2. Using the safe driving support functions Pre-collision braking ● Relative speed between your Detectable objects Vehicle speed vehicle and object Preceding vehicles, stopped Approximately 3 to 110 mph Approximately 3 to 110 mph vehicles (5 to 180 km/h) (5 to 180 km/h) Approximately 20 to 110 Approximately 50 to 130 Oncoming vehicles...
  • Page 284 6-2. Using the safe driving support functions when the turn signal lights are not flashing. Relative speed Oncoming vehicle Detectable objects Vehicle speed between your vehi- speed cle and object Approximately 3 to Approximately 3 to Approximately 7 to Oncoming vehicles 25 mph (5 to 40 45 mph (5 to 75 70 mph (10 to 115...
  • Page 285 6-2. Using the safe driving support functions The Acceleration Suppression at Low Speed function will not operate when the turn signal lights are flashing. Relative speed between your Detectable objects Vehicle speed vehicle and object Preceding vehicles, stopped Approximately 0 to 9 mph Approximately 0 to 9 mph vehicles, Pedestrians, Bicy- (0 to 15 km/h)
  • Page 286 6-2. Using the safe driving support functions Situations in which the system may not ■ • When passing through a location with a operate properly structure above the road (traffic sign, bill- ● In certain situations, such as the following, board, etc.) a detectable object may not be detected by the front sensors, and the system may...
  • Page 287 6-2. Using the safe driving support functions • When a pedestrian is pushing a stroller, uations, such as the following, the emer- wheelchair, bicycle or other vehicle gency steering assist may not operate • When a detectable object blends in with properly: the surrounding area, such as when it is •...
  • Page 288: Lane Tracing Assist

    6-2. Using the safe driving support functions will also be changed. Lane Tracing Assist When “Later” is selected, the emer- gency steering assist (excluding the LTA (Lane Tracing Assist) active steering function) will not operate in most cases. LTA functions ...
  • Page 289 6-2. Using the safe driving support functions  When the function is operating, if WARNING the vehicle is likely to depart from its Before using the LTA system ■ lane, the driver will be alerted via a display and buzzer. Do not overly rely on the LTA system.
  • Page 290 6-2. Using the safe driving support functions cles. not holding the steering wheel, a mes- sage urging the driver to grip the steering ● The dynamic radar cruise control is oper- wheel and the icon shown in the illustra- ating. tion will be displayed on the multi-infor- The lane width is approximately 10 to 13 ●...
  • Page 291 6-2. Using the safe driving support functions • When something other than a hand is • When a wide object or arms are held contacting the steering wheel across the steering wheel Enabling/disabling the system The LTA will change between ON/OFF each time the LTA switch is pressed. When the LTA is ON, the LTA indicator will illuminate.
  • Page 292 6-2. Using the safe driving support functions WARNING When a preceding or surrounding ● vehicle departs from a lane (Your vehi- cle may follow the preceding or sur- rounding vehicle and also depart from the lane) ● When a preceding or surrounding vehicle is being driven extremely close to the left/right lane line (Your vehicle may follow the preceding or surround-...
  • Page 293 6-2. Using the safe driving support functions Indicator Lane display Steering icon Situation LTA is operating Green Green Green The vehicle is departing the lane toward the Yellow side which the lane display is flashing Yellow Flashing Green Flashing...
  • Page 294: Lane Change Assist

    6-2. Using the safe driving support functions WARNING Lane Change Assist Before using the LCA system ■ : If equipped ● Do not overly rely on the LCA system. The LCA system is not a system which LCA (Lane Change Assist) provides automated assistance in driving and it is not a system which reduces the need for checking an adjacent lane for...
  • Page 295 6-2. Using the safe driving support functions When the system can no longer detect • When a steering wheel cover is installed ● lane lines • When the driver is wearing gloves • When foreign matter is attached to the ●...
  • Page 296 6-2. Using the safe driving support functions First position: LCA is operational ● When there is no broken white line between the current lane and the lane Second position: LCA is not opera- to be changed to tional WARNING Enabling/disabling the system ■...
  • Page 297: Lane Departure Alert

    6-2. Using the safe driving support functions Lane Departure Alert LDA (Lane Departure Alert) Basic functions The LDA system warns the driver if the vehicle may deviate from the current lane or course , and also can slightly operate the steering wheel to help avoid deviation from the lane or course The front camera is used to detect lane...
  • Page 298 6-2. Using the safe driving support functions curb, guardrail, etc. WARNING Before using the LDA system ■ ● Do not overly rely on the LDA system. The LDA system is not a system which provides automated assistance in driv- ing. However, as it is not a system which reduces the amount of attention necessary for safe driving.
  • Page 299 6-2. Using the safe driving support functions • When the VSC or TRAC system is not Hands off steering wheel warning oper- ■ turned off. ation : Boundary between the asphalt and In the following situations, a message urging the driver to operate the steering wheel and grass, soil, etc., or structures, such as a an icon will be displayed and a buzzer will curb, guardrail, etc.
  • Page 300 6-2. Using the safe driving support functions Depending on the condition of the vehicle ● When the boundary between the and road surface, the break suggestion asphalt and grass, soil, etc., or struc- function may not operate. tures, such as a curb, guardrail, etc. is not clear or straight Changing LDA settings When the vehicle is struck by a cross-...
  • Page 301 6-2. Using the safe driving support functions Indicator Lane display Steering icon Situation Not illumi- Lane lines are detected by the system nated White White Not illumi- Lane departure alert function is operating Yellow nated for the side which the lane display is flashing Yellow Flashing Flashing...
  • Page 302: Proactive Driving Assist

    6-2. Using the safe driving support functions Proactive driving assist ● The proactive driving assist is not a sys- tem which reduces the amount of attention necessary for safe driving. PDA (Proactive Driving Assist) Even if the system is operating cor- rectly, the surrounding conditions as recognized by the driver and detected When a detectable object...
  • Page 303 6-2. Using the safe driving support functions Function Conditions Operation Detectable objects Assistance with some A detectable object is brake operations is pro-  Pedestrians detected crossing the vided in order to reduce  Bicyclists road the possibility of a colli- sion.
  • Page 304 6-2. Using the safe driving support functions tance WARNING Approximately 15 mph (20 km/h) or more Situations in which the system may ■ Curve deceleration assistance ● not operate properly Approximately 15 mph (20 km/h) or more ● Situations in which the lane may not be ...
  • Page 305 6-2. Using the safe driving support functions ● When a pedestrian is pushing a WARNING stroller, wheelchair, bicycle or other When there is a structure above a ● vehicle detectable object When a detectable object blends in ● ● When part of a detectable object is with the surrounding area, such as hidden by another object (large lug- when it is dim (at dawn or dusk) or...
  • Page 306 6-2. Using the safe driving support functions System operation display Depending on the situation, the following indicators or icons will be displayed. Some icons cannot be displayed unless the display is changed to the driving safety support function information screen. Icon Meaning ...
  • Page 307: Front Cross Traffic Alert

    6-2. Using the safe driving support functions is performed and the system determines Front Cross Traffic Alert the driver is not holding the steering wheel : If equipped If no operations are detected for a certain amount of time, a buzzer will sound, the warning will operate.
  • Page 308 6-2. Using the safe driving support functions Multi-information display The brake pedal is not being strongly ●  depressed ■ Situations in which the system may operate even though no vehicles are approaching In certain situations, such as the following, the system may operate even though no vehicles are approaching: ●...
  • Page 309 6-2. Using the safe driving support functions P.275 Changing FCTA system settings  The FCTA can be enabled/disabled through a customize setting. (P.589) When an oncoming vehicle approaches ●  The following settings of the FCTA and passes can be changed through customize ●...
  • Page 310: Road Sign Assist

    6-2. Using the safe driving support functions  Multiple signs can be displayed. Road Sign Assist Depending on the specifications of the vehicle, the number of displayed signs may RSA (Road Sign Assist) be limited. The RSA system detects specific ■...
  • Page 311 6-2. Using the safe driving support functions detected Types of road signs supported ● When the navigation system map data is out of date  The following types of road signs When the navigation system cannot be ● can be displayed. used The following types of road signs can In this case, the speed limit signs displayed...
  • Page 312: Dynamic Radar Cruise Control

    6-2. Using the safe driving support functions tings.P.591 Dynamic radar cruise con- trol Dynamic radar cruise control This dynamic radar cruise control detects the presence of vehicles ahead, determines the current vehicle-to-vehicle distance, and operates to maintain a suitable dis- tance from the vehicle ahead.
  • Page 313 6-2. Using the safe driving support functions ● Details of support provided for the WARNING driver’s operation Even if the system is operating cor- ● The dynamic radar cruise control does rectly, the condition of a preceding not include functions which will prevent vehicle as recognized by the driver or avoid collisions with vehicles ahead of and detected by the system may differ.
  • Page 314 6-2. Using the safe driving support functions Basic functions Constant speed cruising: When there are no vehicles ahead The vehicle drives at the speed set by the driver. If the set vehicle speed is exceeded while driving down a hill, the set vehicle speed display will blink and a buzzer will sound.
  • Page 315 6-2. Using the safe driving support functions follow-up cruising (start off operation). If a start off operation is not performed, the con- trolled stop will continue. Vehicles with Traffic Jam Assist: While driving on a highway or expressway, if a preceding vehicle stops, your vehicle will stop accordingly.
  • Page 316 6-2. Using the safe driving support functions “+” switch Vehicle-to-vehicle distance switch “-” switch Cancel switch Using the dynamic radar cruise control Setting the vehicle speed Press the driving assist mode select switch to select dynamic radar cruise con- trol. The dynamic radar cruise control indicator will illuminate.
  • Page 317 6-2. Using the safe driving support functions Vehicles without a head-up display  Vehicles with a head-up display  Adjusting the set vehicle speed  Adjusting the set vehicle speed using the switches To change the set vehicle speed, press the “+” switch or “-” switch until the desired speed is displayed.
  • Page 318 6-2. Using the safe driving support functions Vehicles with a head-up display  Increase set vehicle speed Decrease set vehicle speed Short press adjustment: Press the switch Long press adjustment: Press and hold the switch until the desired set vehicle speed is reached.
  • Page 319 6-2. Using the safe driving support functions Vehicles with a head-up display  Press the cancel switch or driving assist switch to cancel control. Control will also be canceled if the brake pedal is depressed. (If the vehicle has been stopped by system control, depressing the brake pedal will not can- cel control.) Press the “RES”...
  • Page 320 6-2. Using the safe driving support functions Vehicles with a head-up display  Illustration Approximate Distance (Vehicle Speed: Vehicle-to-vehicle distance Number 60 mph [100 km/h]) Short Approximately 85 ft. (25 m) Medium Approximately 100 ft. (30 m) Long Approximately 145 ft. (45 m) Extra long Approximately 200 ft.
  • Page 321 6-2. Using the safe driving support functions ated When a preceding vehicle brakes sud- ● denly ● When the vehicle is stopped by system control on a steep incline ● When changing lanes at low speeds, such as in a traffic jam When any of the following are detected ●...
  • Page 322 6-2. Using the safe driving support functions  When the preceding vehicle is trav- Driver Monitor support function eling at an extremely low speed (if equipped)  Immediately after the vehicle speed While a warning of the driver monitor has been set is being displayed, the vehicle acceler- ...
  • Page 323 6-2. Using the safe driving support functions Changing Dynamic radar cruise control settings  The settings of Dynamic radar cruise control can be changed through custom- ize settings. (P.590) Display and system operation state The operating state of Dynamic radar cruise control is indicated. Indicator Multi-information display Situation...
  • Page 324 6-2. Using the safe driving support functions Indicator Multi-information display Situation Vehi- cle-to-vehicle distance set- ting: Orange flashing Approach Set vehicle warning speed: Green Green Preceding vehicle: Orange flash- Vehi- cle-to-vehicle distance set- Accelerating ting: Gray with the accel- Set vehicle erator pedal Green speed: White...
  • Page 325: Cruise Control

    6-2. Using the safe driving support functions Cruise Control System Components Meter display ■ Cruise control The vehicle can be driven at a set speed even if the accelerator pedal is not depressed. Use the cruise control only on high- ways and expressways WARNING Set vehicle speed...
  • Page 326 6-2. Using the safe driving support functions Vehicles with a head-up display: The function of each switch differs  depending on the conditions and settings. When a switch is touched, the function of each switch is displayed on the head-up display.
  • Page 327 6-2. Using the safe driving support functions Vehicles with a head-up display  Using the accelerator pedal, accelerate to the desired vehicle speed (approxi- mately 20 mph [30 km/h] or more), and press the driving assist switch to set the set vehicle speed. The vehicle speed at the moment the switch is released will be the set vehicle speed.
  • Page 328 6-2. Using the safe driving support functions Vehicles without a head-up display  Increase set vehicle speed Decrease set vehicle speed Vehicles with a head-up display  Increase set vehicle speed Decrease set vehicle speed The set vehicle speed will increase or decrease as follows: Fine adjustment: By 0.6 mph (1 km/h) or 1 mph (1.6 km/h) each time the switch is pressed Large adjustment: Increases continuously while the switch is pressed and held ...
  • Page 329 6-2. Using the safe driving support functions Vehicles without a head-up display  Vehicles with a head-up display  Press the “RES” switch to resume control. ● When the brake control or output restric- ■ Automatic cancellation of the cruise tion control of a driving support system control operates (For example: PCS, drive-start...
  • Page 330 6-2. Using the safe driving support functions Indicator Multi-information display Situation Cruise control Blank being OFF White Set vehicle Constant speed: Green speed cruising Green Set vehicle Set vehicle speed: Green speed being in reverse dis- exceeded Green play...
  • Page 331: Traffic Jam Assist

    6-2. Using the safe driving support functions Traffic Jam Assist Extended resume time of Dynamic radar cruise control : If equipped P.314 Traffic Jam Assist Traffic Jam Assist Function The Traffic Jam Assist function, through Function Outline confirmation of the conditions by the Traffic Jam Assist is a system which, driver, provides lane keeping, acceler- through confirmation of the conditions...
  • Page 332 6-2. Using the safe driving support functions ● Even if Traffic Jam Assist is operating WARNING properly, the surrounding conditions For safe use ■ as recognized by the driver and detected by the system may differ. ● Driving safely is solely the responsibil- Therefore, it is necessary for the driver ity of the driver.
  • Page 333 6-2. Using the safe driving support functions ● When driving on an expressway with WARNING no median strips or when driving on an Situations in which Traffic Jam Assist ■ expressway equipped with temporary Function should not be used median markers, such as poles. Do not use Traffic Jam Assist Function in When there is a significant difference ●...
  • Page 334 6-2. Using the safe driving support functions The driver’s door is closed. Brake pedal ● ● ● The driver’s seat belt is fastened. As with normal driving, deceleration can be performed by depressing the brake ● Customized setting of the Traffic Jam Assist is not set to off.
  • Page 335 6-2. Using the safe driving support functions Display Status Action to be taken Traffic Jam Assist function is  operating Traffic Jam Assist function is Hold the steering wheel. about to end (Gray) Traffic Jam Assist function has Hold the steering wheel. ended (Yellow) Operation of either or both of...
  • Page 336: Emergency Driving Stop System

    6-2. Using the safe driving support functions Emergency Driving Stop WARNING System For safe use ■ ● Driving safely is solely the responsibil- Emergency Driving Stop System ity of the driver. Pay careful attention to the surrounding conditions in order to ensure safe driving.
  • Page 337 6-2. Using the safe driving support functions will be canceled: WARNING ● When LTA control has been canceled This system detects the condition of ● (the LTA switch has been pressed, etc.) the driver through the operation of the When the dynamic radar cruise control ●...
  • Page 338 6-2. Using the safe driving support functions Warning phase 2 Restricted functions after the operation ■ is canceled After entering warning phase 2, a After shifting to the deceleration stop buzzer will sound in short intervals and phase, the following functions will not be a message will be displayed to warn the available until the EV system is re-started even though the emergency driving stop...
  • Page 339: Blind Spot Monitor

    6-2. Using the safe driving support functions Outside rear view mirror indica- Blind Spot Monitor tors/buzzer When a vehicle is detected in a blind spot The blind spot monitor is a system of the outside rear view mirrors or that uses rear side radar sensors approaching rapidly from behind into a installed on the inner side of the blind spot, the outside rear view mirror...
  • Page 340 Do not paint the rear bumper any ● color other than an official Lexus color. If a sensor or its surrounding area on the rear bumper is dirty or covered with The sensor is affected by the paint on ●...
  • Page 341 6-2. Using the safe driving support functions Blind Spot Monitor Operation Objects that can be detected while driving The blind spot monitor uses rear side radar sensors to detect the following vehicles traveling in adjacent lanes and advises the driver of the presence of such vehicles via the indicators on the outside rear view mirrors.
  • Page 342 6-2. Using the safe driving support functions : The area between the side of the vehicle and 1.6 ft. (0.5 m) from the side of the vehicle cannot be detected. : While the vehicle is to being overtaken, up to approximately 9.8 ft. (3 m) forward of the rear bumper will be detected.
  • Page 343 6-2. Using the safe driving support functions • When multiple vehicles are approaching • When the distance between your vehicle with only a small gap between each vehi- and a following vehicle is short • When an accessory (such as a bicycle •...
  • Page 344: Safe Exit Assist

    6-2. Using the safe driving support functions Center Display Safe Exit Assist Turning the safe exit assist on/off. Outside rear view mirror indicators The safe exit assist (with door open- ing control) is a system that uses When a vehicle or bicycle which may col- rear side radar sensors installed on lide with a door (other than the back door) when opened is detected, the outside rear...
  • Page 345 6-2. Using the safe driving support functions on the Center Display has been set to off Outside rear view mirror indicator visi- ■ ■ Customization bility Some functions can be customized. In strong sunlight, the outside rear view mir- (P.592) ror indicator may be difficult to see.
  • Page 346 6-2. Using the safe driving support functions Vehicle or bicycle which has a high possibility of colliding with a door (other than the back door) when opened The safe exit assist detection areas The areas that vehicles can be detected in are outlined below. Approximately 145 ft.
  • Page 347 6-2. Using the safe driving support functions ing slowly weather, such as heavy rain, snow, or fog • Vehicles or bicycles which are deter- • When a vehicle or bicycle approaches mined to have a low possibility of colliding from behind a nearby parked vehicle with a door (other than the back door) •...
  • Page 348: Intuitive Parking Assist

    6-2. Using the safe driving support functions • When stopped on a steep slope Intuitive parking assist • When stopped on a curve or at the exit of a curve : If equipped The distance from your vehicle to objects, such as a wall, when paral- lel parking or maneuvering into a garage is measured by the sensors and communicated via the center...
  • Page 349 If sub- Turning intuitive parking assist jected to an impact, have the vehicle on/off inspected by your Lexus dealer. If the front or rear bumper needs to be removed/installed or replaced, con- The intuitive parking assist can be tact your Lexus dealer.
  • Page 350 6-2. Using the safe driving support functions Sensor detection information ■ WARNING ● The sensor’s detection areas are limited A non-genuine Lexus suspension ● to the areas around the vehicle’ front and (lowered suspension, etc.) is installed. rear bumpers. ●...
  • Page 351 6-2. Using the safe driving support functions resolve this problem.) When equipment that may obstruct a ● sensor is installed, such as a towing eye- ● A sensor is frozen. (Thawing the area will let, bumper protector (an additional trim resolve this problem.) strip, etc.), bicycle carrier, or snow plow In especially cold weather, if a sensor is...
  • Page 352 6-2. Using the safe driving support functions When strong winds are blowing ● System detection range Detection range of the sensors ■ (vehicles without Advanced Park) ● When vehicle horns, vehicle detectors, motorcycle engines, air brakes of large vehicles, the clearance sonar of other vehicles or other devices which produce ultrasonic waves are near the vehicle If the front of the vehicle is raised or low-...
  • Page 353 6-2. Using the safe driving support functions Detection range of the sensors ■ Approximately 6.6 ft (200 cm) (vehicles with Advanced Park) The diagram shows the detection range of the sensors. Note that the sensors cannot detect objects that are extremely close to the vehicle.
  • Page 354 6-2. Using the safe driving support functions Approximate distance to obstacle Buzzer 2.0 ft. (60 cm) to 1.5 ft. (45 cm) Medium Side sensor: 2.0 ft. (60 cm) to 1.3 ft. (40 cm) 1.5 ft. (45 cm) to 1.0 ft. (30 cm) Fast Side sensor: 1.3 ft.
  • Page 355 6-2. Using the safe driving support functions Object Calculated vehicle route When the vehicle is moving, the side sensors or side cameras can detect objects. While the vehicle is moving, if a detected object can no longer be detected by the side sensors or side cameras, the location of the object relative to the vehicle is estimated.
  • Page 356 6-2. Using the safe driving support functions cameras. Therefore, after the power ● When the outside rear view mirror is switch is changed to ON, even if an closed, the side sensors or side cam- object is along the side of the vehicle, it eras cannot detect objects.
  • Page 357: Rear Cross Traffic Alert

    6-2. Using the safe driving support functions Display. Rear Cross Traffic Alert If a vehicle approaching from the right or left at the rear of the vehicle is detected, The RCTA function uses the BSM the RCTA icon (P.358) for the detected rear side radar sensors installed side will be displayed on the Center Dis- behind the rear bumper.
  • Page 358 6-2. Using the safe driving support functions ror indicator may be difficult to see. ■ Hearing the RCTA buzzer The RCTA buzzer may be difficult to hear over loud noises, such as if the audio system volume is high. ■ Rear side radar sensors P.339 RCTA function...
  • Page 359 6-2. Using the safe driving support functions The power switch is in ON. ● ● The RCTA function is on. ● The shift position is in R. The vehicle speed is less than approxi- ● mately 9 mph (15 km/h). ●...
  • Page 360 6-2. Using the safe driving support functions When a vehicle turns into the detection ● area ● When backing out of a sharp angle park- ing spot ■ Situations in which the system may operate even if there is no possibility of a collision Instances of the RCTA function unneces- sary detecting a vehicle and/or object may...
  • Page 361: Rcd (Rear Camera Detection)

    If the vicinity is sub- sor is extremely hot or cold. jected to a strong impact, have the vehicle inspected at your Lexus dealer. If the suspension has been modified or ● tires of a size other than specified are ●...
  • Page 362 6-2. Using the safe driving support functions multi-information display. WARNING Each time the power switch is turned to Do not install market protection parts ● ON, the RCD function is enabled. (bumper trim, etc.) to the rear bumper. ● Maintain suitable tire air pressure. Pedestrian detection area ●...
  • Page 363 6-2. Using the safe driving support functions Buzzer: Sounds repeatedly detection area • People riding a bicycle, skateboard, or Pedestrian detection icon: Blinks other light vehicle • Pedestrians wearing oversized clothing such as a rain coat, long skirt, etc., making The rear camera detection function is ■...
  • Page 364 6-2. Using the safe driving support functions causing the rear camera detection func- surrounding area is noisy, the volume of tion to operate. the audio system volume is high, the air • Three dimensional objects, such as a conditioning system is being used, etc. pole, traffic cone, fence, or parked vehi- •...
  • Page 365: Pksb (Parking Support Brake) System

    6-2. Using the safe driving support functions PKSB (Parking Support WARNING Brake) system Cautions regarding the use of the sys- ■ : If equipped Do not overly rely on the system, as The PKSB (Parking Support Brake) doing so may lead to an accident. Always drive while checking the safety of the sur- system consists of the following roundings of the vehicle.
  • Page 366 6-2. Using the safe driving support functions center display. (P.593) WARNING When the PKSB (Parking Support When loading the vehicle onto a boat, ● Brake) function is off, the driving assist truck or other transport vessel information indicator (P.240) will ●...
  • Page 367 6-2. Using the safe driving support functions EV system output restriction con-  Driving assist information indicator: ■ trol is operating (output restricted Illuminated as much as possible)  Buzzer: Intermittent beep  The system has determined that stronger-than-normal brake opera- System overview tion is necessary.
  • Page 368 6-2. Using the safe driving support functions extremely high) If the PKSB (Parking Support Brake) has ■ operated If the vehicle is stopped due to operation of the PKSB (Parking Support Brake), the PKSB (Parking Support Brake) will be dis- abled and the driving assist infomation indi- cator will illuminate.
  • Page 369 6-2. Using the safe driving support functions operation, the vehicle moving the unin- tended direction due to the wrong shift position, or while parking or traveling at low speeds, the system will operate to lessen the impact with the detected static object and reduce the resulting damage.
  • Page 370 6-2. Using the safe driving support functions ■ Notes when washing the vehicle P.349 ■ Operating conditions of Parking Sup- port Brake (Static Objects Front and Rear of the vehicle) The function will operate when the driving assist infomation indicator is not illuminated (P.238, 481) and all of the following con- ditions are met: ●...
  • Page 371 6-2. Using the safe driving support functions Stop operating conditions of Parking and Rear of the vehicle (P.351), objects ■ Support Brake (Static Objects Front may not be detected by the sensors when and Rear of the vehicle/Static Objects your vehicle is moving sideways, such as Around the vehicle) when parallel parking The function will stop operating if any of the...
  • Page 372 6-2. Using the safe driving support functions • Approximately 2 seconds have elapsed WARNING since the vehicle was stopped by brake control. To ensure the system can operate ■ • The brake pedal is depressed after the properly vehicle is stopped by brake control. P.339 ■...
  • Page 373 6-2. Using the safe driving support functions • The shift position is in R. Pedestrians Rear of the Vehicle • A pedestrian is behind the vehicle. display • The system determines that a slightly stronger brake operation than usual is Displays a message to urge the driver needed to avoid a collision.
  • Page 374: Lexus Teammate Advanced Park

    Assistance is provided from the posi- Function description of the tion the vehicle is stopped near the tar- get parking space until the vehicle is in Lexus Teammate Advanced Park the parking space. (P.381) The Advanced Park is a system which Perpendicular exiting (for- ■...
  • Page 375 6-2. Using the safe driving support functions • Tall objects with upper sections pro- WARNING jecting outwards in the direction of As with a normal vehicle, take care to ● your vehicle observe your surroundings while the vehicle is moving. Even if there is an object in the target ●...
  • Page 376 • Parking lot with a device which raises lines or box displayed on the screen to contact the bottom of the vehicle may become incorrect. When replac- ing the tires, contact your Lexus dealer. • When the road surface is frozen, slick, or covered with snow...
  • Page 377 Cameras and sensors are used to Precautions for use ■ detect parked vehicles, making it eas- For details on the following, refer to “Pan- ier to identify parking spaces. oramic view monitor (Vehicles equipped with Lexus Teammate Advanced Park)” of “Peripheral monitoring system” in the...
  • Page 378 6-2. Using the safe driving support functions “MULTIMEDIA OWNER’S MANUAL”. traffic bollard, or other object on the road surface ● Displayable range of the screens • When the color or brightness of the road ● Cameras surface is uneven • When a camera has been splashed by Differences between displayed images ●...
  • Page 379 Have the vehi- The dynamic radar cruise control are not ● cle inspected by your Lexus dealer. operating ● ABS, VSC, TRAC, PCS and PKSB are • Do not install any accessories near the not operating detection area of the sensors.
  • Page 380 6-2. Using the safe driving support functions Guidance screen (When assistance (forward) function  starts) : Change the perpendicular parking (reverse) function Customize setting button Select to display the Advanced Park set- ting screen. (P.395) Registration button Select to begin registering a parking space.
  • Page 381 Approximately 18.0 ft. (5.5 m) or starting the EV system again, have the vehi- cle inspected by your Lexus dealer. more The system can operate even if there is a Perpendicular parking (for- parking space line on only one side of the target parking space.
  • Page 382 6-2. Using the safe driving support functions If there is an adjacent parked vehicle parking space is displayed on the  center display. Approximately 3.3 ft. (1 m) Approximately 9.8 ft. (3 m) or more Approximately 19.7 ft. (6 m) or ...
  • Page 383 6-2. Using the safe driving support functions display, and assistance will begin operating. If you feel that the vehicle is approach- ■ ing close to a surrounding vehicle, object, person, or gutter Depress the brake pedal to stop the vehicle and then shift the shift position to change the direction of travel of the vehicle.
  • Page 384 6-2. Using the safe driving support functions selection screen is displayed on the NOTICE center display. If a detected parked vehicle is narrow ● or parked extremely close to the curb, the position at which assistance will park the vehicle will also be close to the curb.
  • Page 385 6-2. Using the safe driving support functions Perform operations as indicated by When a vehicle which is waiting to park is ● in the exit direction the advice displays until the vehicle is in a position where exit is possi- ble.
  • Page 386 6-2. Using the safe driving support functions If there are parking space lines If there is an adjacent parked vehicle   Approximately 3.3 ft. (1 m) Approximately 3.3 ft. (1 m) Approximately 19.7 ft. (6 m) Approximately 23.0 ft. (7 m) Approximately 14.8 ft.
  • Page 387 6-2. Using the safe driving support functions parking space is displayed on the display, and assistance will begin operating. center display.  When the brake pedal is released, “Moving Forward…” will be dis- played and the vehicle will begin moving forward. ...
  • Page 388 6-2. Using the safe driving support functions ● If an adjacent parked vehicle is narrow If you feel that the vehicle is approach- ■ or parked extremely close to the curb, ing close to a surrounding vehicle, the position at which assistance will object, person, or gutter park the vehicle will also be close to P.383...
  • Page 389 6-2. Using the safe driving support functions is in a position where exit is possi- Leaving a parking space using the ble. parallel exiting function When the vehicle reaches a position where With the brake pedal depressed exit is possible, “You can exit by moving the steering wheel”...
  • Page 390 6-2. Using the safe driving support functions Situations in which the parallel exiting the vehicle ■ function will not operate ● When there is excessive space between In situations such as the following, the paral- the front of the vehicle and a parked vehi- lel exiting function will not operate: ●...
  • Page 391 6-2. Using the safe driving support functions Continuously select and hold Using the arrow buttons, adjust the position of the parking space to be registered, and then select “OK” button. Select perpendicular parking (for- ward/reverse) function or parallel parking function. Only parking spaces for which assist can be performed are displayed.
  • Page 392 6-2. Using the safe driving support functions son, or gutter: P.383  The amount that the position of the parking spot to be registered can be adjusted is limited. When parking in a parking space registered to the memory func- tion Stop the vehicle with it aligned near the center of the target parking...
  • Page 393 6-2. Using the safe driving support functions parking function. When the brakes have been operated ■ P.383 NOTICE When using the memory function ■  P.383, 388) Select the desired parking space, ● The memory function is a function which provides assistance in parking in and then select “Start”...
  • Page 394 6-2. Using the safe driving support functions • When the position the vehicle is NOTICE stopped when assistance is started dif- If a parking space has been registered ● fers from the position when registra- in situations such as the following, tion was performed assistance may not be able to be started later or assistance to the regis-...
  • Page 395 6-2. Using the safe driving support functions  The TRAC, VSC or ABS operates NOTICE  The power switch is pressed When using the memory function, ● make sure to stop immediately in front  The system determines assistance of the stop position. Otherwise the cannot be continued in the current parking space may not be able to be detected correctly or assistance may...
  • Page 396 6-2. Using the safe driving support functions then select “Advanced Park”. parking function can be set. Speed Profile Camera view when exiting ■ ■ The vehicle speed for when assistance The display angle of the camera image is performed can be set. when using the perpendicular exiting (forward/reverse) function or parallel This setting cannot be changed when...
  • Page 397 6-2. Using the safe driving support functions Clear registered parking space If “Not enough space to exit” is dis- ■ ■ played The parking spaces registered to the The parallel parking exit function cannot be memory function can be deleted. Park- used due to a situation such as the distance ing space information cannot be between your vehicle and vehicles parked...
  • Page 398: Ev System Output Restriction When The Accelerator Pedal And Brake Pedal Are Depressed At The Same Time

    6-2. Using the safe driving support functions EV system output restriction Sudden start restraint con- when the accelerator pedal trol and brake pedal are depressed at the same time Sudden start restraint control (Drive-Start Control [DSC]) Purpose of the brake override When the following unusual operation system is performed with the accelerator...
  • Page 399: Reducing Impact To The Occupants In A Collision

    In this situation, the seat belt cannot be used and must be replaced by your Lexus dealer. SRS airbags The SRS airbags deploy when the vehicle is subjected to certain types of severe impact that may cause significant injury to the occupants. The airbags work together with the seat belts to help reduce the risk of death or serious injury.
  • Page 400 6-3. Reducing impact to the occupants in a collision SRS driver airbag/front passenger airbag Help reduce impact to the head and chest of the driver and front passenger SRS knee airbags Help reduce impact to the driver and front passenger SRS side airbags Help reduce impact to the chest of the occupants of the front seats SRS curtain shield airbags...
  • Page 401 6-3. Reducing impact to the occupants in a collision itself may also be hot. Depending on the type of collision, only ● the following may deploy: ● The windshield may crack. • Seat belt pretensioners ● The EV system will be stopped. (P.27) ●...
  • Page 402 ■ When to contact your Lexus dealer In the following situations, the vehicle will require inspection and/or repair. Contact your Lexus dealer as soon as possible. ● When any of the SRS airbags have been deployed When the front of the vehicle is damaged ●...
  • Page 403 6-3. Reducing impact to the occupants in a collision • SRS curtain shield airbags • Slightly recline the seatback. Although vehicle designs vary, many drivers can achieve the 10 in. (251 mm) distance, even with the driver seat all the way forward, simply by reclining the seat- back somewhat.
  • Page 404 An infant or child who is too small to use a seat belt should be properly secured using a child restraint system. Lexus strongly recommends that all infants and children be placed in the rear seats of the vehicle and properly restrained.
  • Page 405 Repair or modification of the following ● is damaged or cracked, have it parts or their surrounding replaced by your Lexus dealer. • Front fender Do not place anything, such as a cush- ● ion, on the front passenger's seat.
  • Page 406 6-3. Reducing impact to the occupants in a collision WARNING Modifications to your vehicle for a per- ● sons with a physical disability...
  • Page 407: Front Passenger Occupant Classifi- Cation System

    6-3. Reducing impact to the occupants in a collision Front passenger occupant classification system Your vehicle is equipped with a front passenger occupant classification system. This system detects the conditions of the front passenger seat and activates or deactivates the following SRS airbags. ...
  • Page 408 Do not let a rear passenger lift the ● In this case, contact your Lexus dealer front passenger seat with their feet or immediately. press on the seatback with their legs.
  • Page 409 6-3. Reducing impact to the occupants in a collision Front passenger occupant classification system conditions and opera- tion Adult ■ “AIR BAG ON” and “AIR BAG OFF” indi- “AIR BAG ON” cator lights Indicator/warning light SRS warning light Front passenger’s seat belt reminder light or flashing Front passenger airbag Devices...
  • Page 410 6-3. Reducing impact to the occupants in a collision Unoccupied ■ “AIR BAG ON” and “AIR BAG OFF” indi- “AIR BAG OFF” cator lights Indicator/warning light SRS warning light Front passenger’s seat belt reminder light Front passenger airbag Devices Deactivated Front passenger knee airbag System malfunction ■...
  • Page 411: Wireless Communication

    Wireless communication 7-1. Connected Services Safety Connect ......
  • Page 412: Safety Connect

     Enhanced Roadside Assistance amended from time to time, a cur- rent copy of which is available at Provides drivers various on-road assis- tance. (P.413) Lexus.com. All use of the Safety Connect service is subject to such Subscription then-applicable Terms and Condi- tions.
  • Page 413 FOSS can be found at the following URL. ● Safety Connect is available beginning Fall 2009 on select Lexus models (in the https://opensource.lge.com/osSch/ contiguous United States only). Contact list?types=ALL&search=TL21BNU with the Safety Connect response center...
  • Page 414 (RF) signals. cumstances, be shared with third par- ties to locate your vehicle. Further In August 1996, the Federal Commu- information is available at Lexus.com. nications Commission (FCC) adopted RF exposure guidelines with safety lev- Emergency Assistance Button ■...
  • Page 415 7-1. Connected Services  NCRP (National Council on Radia- tion Protection and Measurement) Report 86 [1986]  ICNIRP (International Commission on Non-Ionizing Radiation Protec- tion) [1996] Those standards were based on com- prehensive and periodic evaluations of the relevant scientific literature. Over 120 scientists, engineers, and physi- cians from universities, and govern- ment health agencies and industries...
  • Page 416 7-1. Connected Services...
  • Page 417: Maintenance And Care

    Maintenance and care 8-5. Tire maintenance 8-1. Exterior maintenance and care Tire maintenance ...... Washing the vehicle....418 Tire inspection items....8-2. Cleaning and protecting the vehicle interior Operation of the tire pressure warning system ....... Cleaning the vehicle interior ............Checking tire inflation pressure ............
  • Page 418: Washing The Vehicle

    8-1. Exterior maintenance and care 8-1.Exterior maintenance and care Washing the vehicle ■ To prevent damage to the windshield wiper arms When lifting the wiper arms away from WARNING the windshield, pull the driver side wiper Do not apply water to the inside of the arm upward first, and repeat for the pas- motor compartment.
  • Page 419 8-1. Exterior maintenance and care electronic key is within the effective range, washed or causing damage to it. the door may lock and unlock repeatedly. In  When the shift position needs to be that case, follow the following correction procedures to wash the vehicle: held in N, refer to P.148.
  • Page 420 If this When using a high pressure washer, as occurs, consult your Lexus dealer. water may enter the cabin, do not bring ● Lexus Safety System + 3...
  • Page 421 8-1. Exterior maintenance and care Cleaning the exterior lights Front side windows water-repellent ■ coating NOTICE The effectiveness of the water-repellent coating can be extended by paying atten- ● Wash carefully. Do not use organic tion to the following. substances or scrub with a hard brush. ●...
  • Page 422: Cleaning And Protecting The Vehicle Interior

    8-2. Cleaning and protecting the vehicle interior 8-2.Cleaning and protecting the vehicle interior Cleaning the vehicle interior NOTICE Cleaning solvents ■ WARNING ● Do not use the following cleaning sol- vents, as they may discolor the vehicle Water in the vehicle ■...
  • Page 423 8-2. Cleaning and protecting the vehicle interior surface may cause suction marks to NOTICE remain. Cleaning the panoramic fixed moon ■ roof glass (if equipped) When cleaning the panoramic fixed moon roof glass, do not use a compound or abrasive articles, such as a glass cleaner, detergent, wax, etc.
  • Page 424: Cleaning The Synthetic Leather Areas

    8-2. Cleaning and protecting the vehicle interior Cleaning the synthetic leather areas  Remove dirt and dust using a vac- uum cleaner.  Wipe it off with a soft cloth damp- ened with neutral detergent diluted to approximately 1%.  Wring out any excess water from the cloth and thoroughly wipe off remaining traces of detergent and water.
  • Page 425: Maintenance

    ■ It is recommended that genuine Lexus parts be used for repairs to ensure performance of each system. If non-Lexus parts are used in replacement or if a repair shop other than a Lexus dealer performs repairs, confirm the warranty coverage.
  • Page 426: Scheduled Maintenance Outline

    The use of Lexus repair manuals is rec- ommended. For details about war- For details about maintenance items ranty coverage, refer to the separate and schedules, refer to the “Warranty “Owner’s Guide”, “Warranty and Ser-...
  • Page 427: General Maintenance

    Guide” or “Owner’s Manual Sup- Brake fluid the correct level? plement”. This can be done by your- (P.437) self or by a Lexus dealer. It is Is the heater/power recommended that any problem Power control control unit coolant you notice should be brought to the...
  • Page 428: Vehicle Interior Maintenance Items List

    8-3. Maintenance Vehicle interior mainte- Items Check points nance items list Do the head restraints move Head restraints smoothly and lock Items Check points securely? The accelerator Do the indicators pedal should move Indicators/buzzers and buzzers func- smoothly. There Accelerator pedal tion properly? should be no uneven pedal effort or...
  • Page 429: Vehicle Exterior Maintenance Items List

     The tires should not be damaged Your vehicle may not pass the I/M test or excessively and may need to be repaired. Contact worn. your Lexus dealer to service the vehi-  Have the tires Tires cle. been rotated according to the...
  • Page 430 8-3. Maintenance When your vehicle does not pass the I/M test Contact your Lexus dealer to prepare the vehicle for re-testing.
  • Page 431: Inspection Of Consumables

    8-4. Inspection of consumables 8-4.Inspection of consumables Do-it-yourself service pre- With the power switch in ON, the elec- tric cooling fan may automatically start to cautions run if the air conditioning is on and/or the coolant temperature is high. If you perform maintenance by Safety glasses ■...
  • Page 432 8-4. Inspection of consumables fluid) Washer fluid ■ Heater coolant level  Water or washer fluid containing ■ antifreeze (for winter use)  “Toyota Super Long Life Coolant” or a similar high quality ethylene gly-  Funnel (used only for adding water col-based non-silicate, non-amine, or washer fluid) non-nitrite and non-borate coolant...
  • Page 433: Opening The Hood

    8-4. Inspection of consumables Hold the hood open by inserting Opening the hood the supporting rod into the slot. Pull the hood lock release lever. The hood will pop up slightly. Pull up the auxiliary catch lever to the left and lift the hood. WARNING ■...
  • Page 434 8-4. Inspection of consumables NOTICE ■ When closing the hood Be sure to return the support rod to its clip before closing the hood. Closing the hood without returning the support rod properly may cause the hood to be dam- aged.
  • Page 435: Motor Compartment

    8-4. Inspection of consumables Motor compartment Motor compartment components Heater coolant reservoir (P.435) Washer fluid tank (P.440) Power control unit coolant reservoir (P.436) 12-volt battery (P.438) Brake fluid reservoir (P.437) Fuse box (P.560) Radiator (P.436) Condenser (P.436) Electric cooling fan Checking the heater coolant The coolant level is satisfactory if it is between the “MAX”...
  • Page 436 If you cannot find a leak, have your Lexus dealer, test the cap and check for leaks in When the electric cooling fan are ■...
  • Page 437 If the coolant level drops within a short time of replenishing Visually check the hoses, heater coolant reservoir caps, drain cock and water pump. If you cannot find a leak, have your Lexus dealer, test the cap and check for leaks in the cooling system. Reservoir cap...
  • Page 438 8-4. Inspection of consumables 12-volt battery exterior ■ “MIN” line Make sure that the 12-volt battery ter- Adding fluid ■ minals are not corroded and that there Make sure to check the fluid type and are no loose connections, cracks, or prepare the necessary item.
  • Page 439 12-volt battery being disconnected is unknown. If the EV system will not start even after multiple attempts at all the methods above, contact your Lexus dealer. Put the vent plug back on and close it securely. WARNING Chemicals in the 12-volt battery ■...
  • Page 440: Adding Washer Fluid

    8-4. Inspection of consumables Adding washer fluid WARNING Emergency measures regarding ■ If washer fluid does not spray from any electrolyte of the washers or “Windshield Washer ● If electrolyte gets in your eyes Fluid Low” is displayed on the Flush your eyes with clean water for at least 15 minutes and get immediate multi-information display, the washer...
  • Page 441: Air Conditioning Filter Maintenance

    8-4. Inspection of consumables Air conditioning filter main- When installing the filter cover ■ tenance Slide the recessed part of the filter cover on the upper surface of the upper fil- ter case as shown in the figure, and The air conditioning filter must be attach it so that it is lifted toward the inser- changed regularly to maintain air tion part of the cover attachment.
  • Page 442 8-4. Inspection of consumables dure. Unplug the connector. Open the front passenger’s door. By keeping the door open, unexpected operation of the Remote Air Conditioning System can be prevent. Disengage the clips of the passen- ger door side. Remove the panel. While pressing the claw, hold han- and remove the panel.
  • Page 443 8-4. Inspection of consumables Remove the air conditioning filter Hold the filter case and remove from the upper and lower filter case the lower filter case. and replace it with a new one. Hold the filter case and pull Install so that the arrow points to the rear of down the upper filter case.
  • Page 444: Tire Maintenance

    Do not use tire sizes other than those ● themselves, as well as the vehicle’s recommended by Lexus. wheels and body. ● Do not mix differently constructed tires (radial, bias-belted or bias-ply tires).
  • Page 445 All season tires, tion of a cut or other damage. however, do not have adequate traction If you are not sure, consult with your Lexus performance compared with snow tires in dealer. heavy or loose snow. Also, all season tires...
  • Page 446: Operation Of The Tire Pressure Warning System

    8-5. Tire maintenance Snow tires ● Operation of the tire pres- For driving on snow-covered roads or icy sure warning system roads, we recommend using snow tires. If you need snow tires, select tires of the Your vehicle is equipped with a tire same size, construction and load capacity pressure warning system that uses as the originally installed tires.
  • Page 447 • If non-genuine Lexus wheels are used. appearance of the tire due to natural air • A tire has been replaced with a tire that is leakage as well as the pressure lowering not an OE (Original Equipment) tire.
  • Page 448 It is necessary to register the posi- valves and transmitters, contact your Lexus dealer as the tire pressure warn- tion of each wheel after performing ing valves and transmitters may be a tire rotation.
  • Page 449 8-5. Tire maintenance A message indicating that wheel position If the wheel position cannot be regis- ■ registration is being performed will be dis- tered easily played on the multi-information display. ● In the following situations, wheel position “---” will be displayed for the tire inflation registration may take longer than usual to pressure of each tire and wheel position be completed or may not be possible.
  • Page 450 8-5. Tire maintenance forming tire pressure setting. The tire the above procedure, contact your Lexus dealer. pressure warning system operates based on this tire inflation pressure. Setting using the current tire inflation pressure Setting by selecting a specified tire inflation pressure WARNING Start the EV system.
  • Page 451 8-5. Tire maintenance message indicating that setting has been cannot be completed after performing completed will be displayed on the the above procedure, contact your Lexus multi-information display. dealer. ■ Warning performance of the tire pres- Registering ID codes sure warning system ●...
  • Page 452 8-5. Tire maintenance ID codes will be registered to the displayed tration procedure, the procedure may not wheel set. have started. Perform the procedure again from the beginning. To change the wheel set to be registered, select the displayed set, and then select the Drive straight (with occasional left wheel set you wish to register.
  • Page 453 “Set 2(Unregistered)” will be dis- contact your Lexus dealer. played and it will not be possible to If the tire inflation pressure of the change to the selected wheel set.
  • Page 454: Checking Tire Inflation Pressure

    8-5. Tire maintenance each tire on the multi-information display. Checking tire inflation pres- sure You should check tire inflation pres- sure every two weeks, or at least once a month. Do not forget to check the spare. WARNING After approximately 2 minutes, the wheel In order to ensure the performance of set change will complete, the tire pressure the tires, maintain proper tire inflation...
  • Page 455  Reduced tire life due to wear  Reduced safety  Damage to the drive train If a tire needs frequent inflating, have it checked by your Lexus dealer. Instructions for checking tire inflation ■ pressure When checking tire inflation pressure, observe the following: Check only when the tires are cold.
  • Page 456: Lifting The Vehicle With A Floor Jack

    8-5. Tire maintenance If you add too much air, press the center of Lifting the vehicle with a the valve to deflate. floor jack After completing the tire inflation pressure measurement and adjust- When using a floor jack, follow the ment, apply soapy water to the instructions in the manual provided valve and check for leakage.
  • Page 457: Rotating The Tires

    8-5. Tire maintenance Rotating the tires Rear jack point position Tires cannot be rotated.
  • Page 458: Wheels

    ● When replacing wheels, care should wheels to be installed. be taken to ensure that they are equiv- For details, contact your Lexus dealer. alent to those removed in load capac- ■ Wheel bolts ity, diameter, rim width and inset...
  • Page 459: Replacing The Tire

    Preparation for lifting the vehicle Observe the following precautions with a jack when handling the aluminum wheels.  Use only Lexus wheel bolts and Before lifting the vehicle with a jack, wrenches designed for use with perform the following. your aluminum wheels.
  • Page 460 8-5. Tire maintenance Storage position of the tools and jack Tool bag (if equipped) • Jack (if equipped) • Jack handle (if equipped) • Wheel bolt wrench (if equipped) Towing eyelet Guide pin (if equipped) Wheel bolt socket (if equipped) WARNING Improper use of the tire jack may cause the vehicle to fall.
  • Page 461 8-5. Tire maintenance Take out the jack from the tool bag. right tire.  Flat tire: Front right Removing a tire Place the wheel chock behind the rear left tire. WARNING  Flat tire: Rear left Precautions for replacing a tire ■...
  • Page 462 8-5. Tire maintenance Front Install the wheel bolt socket to the  jack handle. Raise the vehicle until the tire is slightly raised off the ground. Rear  WARNING Observe the following precautions when using the jack. ● Do not put any part of your body under the vehicle while it is supported by the jack.
  • Page 463 8-5. Tire maintenance Remove the uppermost wheel bolt to avoid scratching the wheel surface. and install the guide pin hand. Turn the guide pin clockwise to tighten it until it stops. Installing the tire Remove any dirt or foreign matter from the wheel contact surfaces and wheel bolts.
  • Page 464 WARNING they are Lexus genuine parts. If the vehicle does not have wheels that were When removing or installing a tire, make installed to the vehicle when it was sure to use the guide pin.
  • Page 465 After replacing a tire, check the tight- ening torque as soon as possible. If you cannot confirm the tightening torque yourself, have the vehicle inspected at your Lexus dealer. WARNING When lowering the vehicle, make sure that no one is near the vehicle. If there...
  • Page 466: Replacing The Tire

    Adjustment bolt A If the headlight cannot be adjusted using this procedure, take the vehicle to your Adjustment bolt B Lexus dealer to adjust the headlight aim. Checking the headlight aim Before checking the headlight aim, confirm the following.  The area around the headlight is not deformed.
  • Page 467: When Trouble Arises

    When trouble arises 9-5. If a door cannot be opened or 9-1. What to do if a problem occurs locked while driving If a key has been lost....What to do if a problem occurs while driving ......469 When the doors/windows cannot be operated using an electronic 9-2.
  • Page 468 9-7. If an indicator on an interior fea- ture illuminates or flashes When the wireless charger opera- tion indicator light (on the charging tray) flashes ... 9-8. If the vehicle cannot move When a EV system warning mes- sage is displayed and the vehicle does not move......548 If the transmission makes abnormal...
  • Page 469: What To Do If A Problem Occurs While Driving

    9-1. What to do if a problem occurs while driving 9-1.What to do if a problem occurs while driving What to do if a problem Stopping the vehicle in an emer- occurs while driving gency Stop the vehicle using the following Using the emergency flashers to procedure only in an emergency, warn other drivers...
  • Page 470 Do not : Contact your Lexus dealer or aftermar- drive on roads where the roads may ket accessory manufacturer for further be submerged or the water may be information about an emergency ham- rising.
  • Page 471 EV system and blocks the high voltage current. If the emergency shut off system activates, your vehi- cle will not be able to be restarted. To restart the EV system, contact your Lexus dealer.
  • Page 472: If A Warning Is Indicated On The Meter

     The brake fluid level is low; or (U.S.A.) or  The brake system is malfunctioning  Immediately stop the vehicle in a safe place and contact your Lexus dealer. Continuing to drive the vehicle may be dangerous. (red) (Canada)
  • Page 473 Charging system warning light (warning buzzer) Condition Cause / Remedy Indicates a malfunction in the vehicle’s charging system This light illumi-  Immediately stop the vehicle in a safe place and contact your Lexus nates on the dealer. multi-informa- tion display.
  • Page 474 (U.S.A.) or  The ABS; or  The brake assist system  Have the vehicle checked by your Lexus dealer immediately. (Canada) WARNING If both the ABS and the brake system warning lights remain on, stop your vehicle in a safe place immediately and contact your Lexus dealer.
  • Page 475 Indicates a malfunction in:  The Brake Override System  The Drive-Start Control  Have the vehicle checked by your Lexus dealer immediately. When a buzzer sounds: Indicates that the shift position was changed and Drive-Start Control was operated while depressing the accelerator pedal.
  • Page 476 9-2. If a warning is indicated on the meter Driver’s and front passenger’s seat belt reminder light (warning buzzer) Condition Cause / Remedy Warns the driver and/or front passenger to fasten their seat belts  Fasten the seat belt. If the front passenger’s seat is occupied, the front passenger’s seat belt also needs to be fastened to make the warning light (warning buzzer) turn off.
  • Page 477 (P.449) If the warning light does not turn off even after several minutes have elapsed since perform- ing the tire inflation pressure setting procedure, have the vehicle inspected by your Lexus dealer immediately.
  • Page 478 9-2. If a warning is indicated on the meter The tire pressure warning light may come on due to natural causes ■ The tire pressure warning light may come on due to natural causes such as natural air leaks and tire inflation pressure changes caused by temperature. In this case, adjusting the tire inflation pressure will turn off the warning light (after a few minutes).
  • Page 479 9-2. If a warning is indicated on the meter WARNING Your vehicle has also been equipped with a TPMS (tire pressure warning system) mal- function indicator to indicate when the system is not operating properly. The TPMS (tire pressure warning system) malfunction indicator is combined with the low tire pressure telltale (tire pressure warning light).
  • Page 480 9-2. If a warning is indicated on the meter LDA indicator (warning buzzer) Condition Cause / Remedy Indicates a malfunction in the LDA (Lane Departure Alert).  Follow the instructions displayed on the display. (yellow) PDA indicator (warning buzzer) Condition Cause / Remedy Indicates a malfunction in the PDA (Proactive Driving Assist).
  • Page 481 Cause / Remedy Indicates a malfunction in the intuitive parking assist function  Have the vehicle checked by your Lexus dealer immediately. Indicates that the system is temporarily unavailable, possibly due to a sensor being dirty or covered with ice, etc.
  • Page 482 Indicates a malfunction in the parking brake system (Canada)  Have the vehicle checked by your Lexus dealer immediately. (flashes) Brake hold operated indicator (warning buzzer) Condition...
  • Page 483: If A Warning Message Is Displayed

    ■ Warning buzzer In some cases, the buzzer may not be heard due to being in a noisy location or audio sound. A message that indicates the need for visiting your Lexus dealer Cause Remedy The system or part shown on the...
  • Page 484 “12-Volt Battery Charging System Malfunction Stop in a Safe Place See Owner's Manual” Cause Remedy Immediately stop the vehicle and contact your Lexus It may indicate a malfunction. dealer. Continuing to drive the vehicle may be dan- gerous.
  • Page 485  If the EV system does not start, contact your Lexus dealer immediately. “Headlight System Malfunction Visit Your Dealer” Cause Remedy The system may be malfunctioning. Have the vehicle checked by your Lexus dealer.
  • Page 486 If the message ing. remains, have the vehicle inspected by your Lexus dealer immediately. : When stopping the vehicle, do not stop the EV system until the display message has turned off.
  • Page 487 Remedy Immediately stop the vehicle in a safe place and con- It may indicate a malfunction. tact your Lexus dealer. Continuing to drive the vehi- cle may be dangerous. “A New Key has been Registered Contact Your Dealer for Details”...
  • Page 488 Operate the parking brake switch. If the message does not disappear after operating the switch several Have the vehicle checked by your Lexus dealer. times, the system may be malfunc- tioning. “Brake Hold Malfunction Press Brake to Deactivate Visit Your Dealer”...
  • Page 489 If charging cannot be carried out, even though the proper procedures were followed, have the vehicle inspected by your Lexus dealer. Latch release button of AC charging When the latch release button is pressed while AC connector was pressed while charging, charging stops.
  • Page 490 9-2. If a warning is indicated on the meter “Charging Complete Limited Charge Due to Battery Temp” Cause Remedy Charging was stopped to protect the Allow the traction battery to cool down and perform traction battery as it continued to charging again if the charging amount has not remain hot for a certain period of reached the desired amount.
  • Page 491 Furthermore, if the error warning indicator on the CCID (Charging Circuit Interrupting Device) is flashing, there may be an electrical leakage. Consult your Lexus dealer. Charging may be canceled by an interruption of power supply depending on specifications of a charger. Refer to the instructions provided with the charger.
  • Page 492 12-volt battery. “Charging System Malfunction See Owner's Manual” Condition Cause / Remedy Malfunction occurred in charging Have the vehicle checked by your Lexus dealer. system “Check Charging System Close Charging Port Lid See Owner's Man- ual” Condition Cause / Remedy...
  • Page 493 Press the power switch while depressing the brake pedal. The “READY” indicator will turn on. Contact your Lexus dealer if the charging system check is done and the message on the multi-information display does not go off. “Charging Stopped Time Limit Reached”...
  • Page 494 “Shift System Malfunction Shifting Unavailable Drive to a Safe Place and Stop” Cause Remedy There is a malfunction in the shift Have the vehicle checked by your Lexus dealer control system. immediately. “Shift System Malfunction Driving Unavailable” Cause Remedy...
  • Page 495 9-2. If a warning is indicated on the meter “Shift System Unavailable Apply Parking Brake Securely When Parking See Owner's Manual” Cause Remedy Have the vehicle checked by your Lexus dealer It may indicate a malfunction. immediately. “Shift System Malfunction See Owner's Manual” Cause...
  • Page 496  AHB (Automatic High Beam) (if equipped)  AHS (Adaptive High-beam System) (if equipped)  Dynamic radar cruise control Have the vehicle inspected by your Lexus dealer immediately. RSA (Road Sign Assist)   PDA (Proactive Driving Assist) BSM (Blind Spot Monitor) ...
  • Page 497 Follow the following correction methods. equipped)  Check the voltage of the 12-volt battery  Dynamic radar cruise control  Check the sensors that the Lexus Safety System + 3 uses for foreign matter cover- RSA (Road Sign Assist) ...
  • Page 498 9-2. If a warning is indicated on the meter “System Stopped Front Camera Low Visibility See Owner's Manual” Cause Remedy Indicates one of the following systems is dis- abled.  PCS (Pre-Collision System)  LDA (Lane Departure Alert) Follow the following correction methods. ...
  • Page 499 9-2. If a warning is indicated on the meter “System Stopped Front Radar Sensor Blocked Clean Radar Sensor” Cause Remedy Indicates one of the following systems is dis- Follow the following correction methods. abled.  Check if there is any foreign matter ...
  • Page 500 9-2. If a warning is indicated on the meter “System Stopped Front Radar In Self Calibration See Owner's Manual” Cause Remedy Indicates one of the following systems is dis- abled.  PCS (Pre-Collision System) Follow the following correction methods.  LDA (Lane Departure Alert) ...
  • Page 501 9-2. If a warning is indicated on the meter “Unavailable Activation Condition not Satisfied See Owner's Manual” (if equipped) Cause Remedy The LCA function cannot be Operate the turn signal lever again after all of the used as the operating conditions operating conditions are met.
  • Page 502 “EV system malfunction” Cause Remedy Have the vehicle inspected by your Lexus dealer It may indicate a malfunction. immediately. “Accelerator System Malfunction” Cause Remedy Have the vehicle inspected by your Lexus dealer It may indicate a malfunction.
  • Page 503 ■ “Battery Low” is displayed frequently The 12-volt battery may have deteriorated. As the battery may discharge in this state when left unattended, have the battery inspected by your Lexus dealer. “Regenerative braking limited. Press brake to decelerate.” Cause Remedy Regenerative braking may be restricted in the following situations.
  • Page 504: If The Ev System Will Not Start

    If it is, cancel EV system. blown fuse. normally. the mode. There may be a mal- The traction battery Contact your Lexus Charge the traction function in the shift may be completely dealer. battery. control system. discharged.
  • Page 505 (P.138) Touch the Lexus emblem side of the electronic key to the power switch. When the electronic key is detected, a buzzer will sound and the power switch mode will change to ON.
  • Page 506: When The Interior Lights Or Headlights Are Dim And The Ev System Cannot Be Started

    If the EV system cannot be started the EV system cannot be started first time the power switch is pressed after removing and installing the 12-volt battery, touch the Lexus emblem side of Cause Remedy the electronic key to the power switch to start the EV system.
  • Page 507 12-volt bat- tery may discharge and EV system may not be able to start. For details, consult your Lexus dealer. Using the mechanical key, turn the When the doors cannot be locked door lock to the lock side to disable from outside the vehicle after the the door.
  • Page 508 When disconnecting a 12-volt battery To avoid damage, do not apply excessive force to the cover. terminal, contact your Lexus dealer. If a 12-volt battery terminal is discon- nected, the doors will not be able to be opened using the door opener switches and the electronic key may become trapped in the vehicle.
  • Page 509 9-3. If the EV system will not start ● In the event that battery fluid comes WARNING into contact with the skin or eyes, When removing the 12-volt battery ■ immediately wash the affected area terminals with water and seek medical attention. Place a wet sponge or cloth over the Always remove the negative (-) terminal affected area until medical attention can...
  • Page 510: When The Interior Lights Or Headlights Do Not Illuminate And The Ev System Cannot Be Started

    (P.526) jumper (or booster) cables. (P.526) The 12-volt battery The 12-volt battery The 12-volt battery may be discharged. Contact your Lexus terminal connec- terminals may be (P.506) dealer if the problem tions may be loose loose or corroded. cannot be repaired, or corroded.
  • Page 511: When The Horn Does Not Sound And The Ev System Cannot Be Started

    Remedy Restarting the EV system using the jumper (or booster) cables. (P.526) The 12-volt battery may be discharged. Contact your Lexus (P.506) dealer if the problem cannot be repaired, or if repair proce- dures are unknown. Check if a 12-volt battery terminal is loose.
  • Page 512: If A Tire Is Flat

    After temporarily repairing the tire Set the parking brake. with the kit, have the tire repaired Change the shift position to P. or replaced by your Lexus dealer. Stop the EV system. WARNING Turn on the emergency flashers. Do not continue driving with a flat tire.
  • Page 513: If A Tire Is Flat

    9-4. If a tire is flat top of the tire. Storage position of the emergency tire puncture repair kit and tool Emergency tire puncture repair kit Towing eyelet Emergency tire puncture repair Do not use the emergency tire punc- ● ture repair kit for tires that are a differ- kit details/name of each part ent size than the specified ones or for...
  • Page 514 The expiration date is printed on the bottle. The sealant should be replaced before the expiry date. Contact your Lexus dealer. Do not use sealant whose expiry date has already passed. Otherwise, repairs con- Air pressure gauge ducted using the emergency tire puncture repair kit may not be performed properly.
  • Page 515 9-4. If a tire is flat bottle, contact your Lexus dealer or contact ● Do not touch the wheels or the area your local government for information on around the brakes immediately after the appropriate authorized waste disposal the vehicle has been driven.
  • Page 516 When a tire is repaired with liquid seal- ants, the tire pressure warning valve and transmitter may not operate properly. If a liquid sealant is used, contact your Lexus dealer as soon as possible. After use of liquid sealant, make sure to replace the tire pressure warning valve and transmit- ter when repairing or replacing the tire.
  • Page 517 9-4. If a tire is flat Remove the valve cap from the ● Make sure that the valve and hose are valve of the flat tire. securely connected, with the tire installed on the vehicle. If the hose is not properly connected to ●...
  • Page 518 9-4. If a tire is flat Attach the sticker provided with the To inject the sealant and inflate the tire puncture repair kit to a position tire, turn the compressor switch on. easily seen from the driver’s seat. WARNING Observe the following precautions. ●...
  • Page 519 9-4. If a tire is flat Inflate the tire until the specified Lexus dealer. pressure is reached. If the tire inflation pressure exceeds the specified level, let out some air to adjust the tire inflation pressure. (P.521, 564) Make sure that the compressor...
  • Page 520 19 psi (130 kPa, 1.3 The puncture cannot be repaired. kgf/cm or bar) or below, this may indi- Contact your Lexus dealer. cate severe tire damage. If the tire inflation pressure is 20After driving, stop your vehicle in a between 19 psi (130 kPa, 1.3...
  • Page 521 When having the tire repaired or replaced, make sure to tell the Lexus dealer that the sealant is injected. After using the emergency tire puncture repair kit, have the vehicle inspected and the tire pressure warning valve and trans- mitter replaced by your Lexus dealer.
  • Page 522: If A Door Cannot Be Opened Or Locked

    (if equipped) that were pro- NOTICE vided with your vehicle. When taking the vehicle to your Lexus dealer due to a malfunction of the smart access system with push-button start, make sure to bring all registered elec- tronic keys (including the card key).
  • Page 523  Lithium battery CR2032 Use a CR2032 lithium battery ■ ● Batteries can be purchased at your Lexus dealer, local electrical appliance shops or camera stores. ● Replace only with the same or equivalent type recommended by the manufacturer.
  • Page 524 9-5. If a door cannot be opened or locked key cannot be inserted in a lock cylin- WARNING der, turn it over and attempt to insert it If you accidentally swallow a battery or ● again. put a battery into a part of your body, get emergency medical attention After using the mechanical key, return immediately.
  • Page 525 Remove the cover by pressing it on the rear. Closes the windows (turn and hold) : These settings must be customized at your Lexus dealer. WARNING Operate the power window after check- ing to make sure that there is no possibil- ity of any passenger having any of their body parts caught in the window.
  • Page 526 9-5. If a door cannot be opened or locked Restarting the EV system when ● Do not allow the + and - clamps of the jumper cables to come into contact the 12-volt battery is discharged with each other. If you have a set of jumper (or booster) Do not smoke, use matches, cigarette ●...
  • Page 527 9-5. If a door cannot be opened or locked may activate and the doors may lock. Open the hood Open the positive (+) battery terminal cover. While pressing on the claw, open the cover as shown in the illustration. Connect a positive jumper cable clamp to on your vehicle and connect the clamp on the other end of the positive cable to on the second vehicle.
  • Page 528 Once the EV system has started, remove the jumper cables in the exact reverse order from which they were connected. Close the positive (+) battery terminal cover. Once the EV system starts, have the vehicle inspected at your Lexus dealer as soon as pos- sible.
  • Page 529: If A Door Cannot Be Opened Using The Door Opener Switch

    9-5. If a door cannot be opened or locked Inside the vehicle  If a door cannot be opened using the door opener switch If a door cannot be opened using the door opener switch, it can be opened using a manual release handle. Operating a manual release handle Pull the manual release handle...
  • Page 530 9-5. If a door cannot be opened or locked force to the cover. Conditions which manual release han- ■ dle operation is disabled ● Normally, operation of the outside man- ual release handles is disabled, and they Remove the cover by pressing it on cannot be used to open the doors.
  • Page 531: If The Rear Doors Cannot Be Opened From The Inside

    9-5. If a door cannot be opened or locked If the rear doors cannot be If the back door cannot be opened from the inside opened The child-protector lock may be The back door can be unlocked engaged. from the inside. Open the door from outside the vehi- Vehicles with a power back door: ...
  • Page 532 9-5. If a door cannot be opened or locked Using a screwdriver, push the lever. Using a screwdriver, push the lever. When installing, reverse the steps When installing, reverse the steps listed. listed. Vehicles without a power back  door: Using a flathead screwdriver, remove the cover.
  • Page 533: If The Ev System Cannot Be Used Normally

    If the problem persists, have the vehicle 9-6.If the EV system cannot be used normally If the charging port lid can- inspected by your Lexus dealer immedi- not be opened ately if this occurs. If the charging port lids cannot be...
  • Page 534: If Ac Charging Cannot Be Performed Normally

    Building breaker is tripped and If another socket is not available, contact your Lexus power is cut off dealer. If charging is possible, the first socket may have a malfunction.
  • Page 535 Immediately stop charging and contact your Lexus dealer. Traction battery is already fully When the traction battery is fully charged, AC charged charging is not performed.
  • Page 536 9-6. If the EV system cannot be used normally When the charging indicator on the charging port is blinking and charging cannot be carried out Cause Remedy When you wish to charge according to the When charging indicator of the charging charging schedule, wait until the set time.
  • Page 537: If Dc Charging Cannot Be Performed Normally

     If there is not a malfunction with the DC charger, there may be a malfunction in the system. Contact your Lexus dealer. There may be a malfunction with the DC charger or charging system.
  • Page 538  If there is not a malfunction with the DC cle’s system check. charger, there may be a malfunction in the system. Contact your Lexus dealer.  If the EV system cannot be started, con- tact your Lexus dealer. If the temperature of charging related parts High temperature of charging related parts is high, DC charging may not be possible.
  • Page 539 P.492. If the system check cannot be System check is not completed properly completed properly even after these proce- after charging. dures are performed, contact your Lexus dealer. For safety, the EV system cannot be started when the DC charging connector is con- The DC charging connector is still con- nected.
  • Page 540: If The Charging Connector Cannot Be Disconnected From The Charging Inlet

    9-6. If the EV system cannot be used normally gency release wire to the If the charging connector attachment. cannot be disconnected from the charging inlet If the charging connector cannot be unlocked The charging connector can be unlocked by operating the emergency release wire.
  • Page 541: If The Indicator On The Ccid (Charging Circuit Interrupting Device) Of The Ac Charging Cable

    Charging system is a malfunction in the AC error charging cable. Illuminated Flashes  Consult your Lexus dealer There is a malfunction in the plug Plug tempera- temperature detection part. ture detection Flashes Flashes malfunction ...
  • Page 542 AC charging cable is nearing the cable life span Illuminated Flashes end of its usable life span. notice  Consult your Lexus dealer The number of charges using the AC charging cable has exceeded AC charging Illuminated Illuminated its usable number of charges.
  • Page 543: If The Charging Schedule Function Does Not Operate Normally

    9-6. If the EV system cannot be used normally If the charging schedule Charging starts, even though function does not operate charging schedule is registered normally Cause Remedy Cannot charge at desired time When charging according to the “Charge now” is set charging schedule, Cause Remedy...
  • Page 544 9-6. If the EV system cannot be used normally Cause Remedy Cause Remedy When My Room  When traction Mode is operated, battery warming the system will start control operates, charging, even if the the charging charging schedule is schedules are My Room Mode registered.
  • Page 545 9-6. If the EV system cannot be used normally Charging does not start, even though it is time set in “Start at set time” Cause Remedy Connect the AC AC charging cable charging cable was connected after before the time set set time in “Start at set time”.
  • Page 546: If An Indicator On An Interior Feature Illuminates Or Flashes

    9-7. If an indicator on an interior feature illuminates or flashes 9-7.If an indicator on an interior feature illuminates or flashes When the wireless charger operation indicator light (on the charging tray) flashes : If equipped When the wireless charger indicator light continuously flashes once per second (orange / green) Operation indicator light Suspected causes/Handling method...
  • Page 547 9-7. If an indicator on an interior feature illuminates or flashes When the wireless charger indicator light continuously flashes 4 times quickly (orange) Cause Remedy Stop charging, remove the portable device The temperature inside the wireless charger from the charging tray, and wait for the tem- may have become too high.
  • Page 548: If The Vehicle Cannot Move

    There may be a problem with the drive- train. There may be a problem with the drive- train. Contact your Lexus dealer or com- mercial towing service before towing. Contact your Lexus dealer or com- mercial towing service before towing.
  • Page 549: Towing With A Tow Truck

    With- Lexus dealer or a commercial towing out adequate clearance, the vehicle service, using a wheel-lift type truck or could be damaged while being towed.
  • Page 550: Using A Flatbed Truck

    9-8. If the vehicle cannot move From the rear  Using a flatbed truck When using a flat-bed truck to trans- port the vehicle, use tire strapping belts. Refer to the owner’s manual of the flat-bed truck for the tire strapping method.
  • Page 551: Towing With Another Vehicle

    If towing is necessary, we recom- start. (P.522) mend having your vehicle towed by your Lexus dealer or a commercial  The 12-volt battery is discharged. towing service, using a wheel-lift (P.526) type truck or flatbed truck.Use a...
  • Page 552 : Wheel bolt wrench can be purchased at WARNING your Lexus dealer. Do not turn the power switch off while towing the vehicle with another vehicle. This may lead to an accident as the front wheels will be locked by the parking lock.
  • Page 553: Getting Unstuck From Mud, Sand, Or Snow

    9-8. If the vehicle cannot move Getting unstuck from mud, ● If the vehicle remains stuck even after these procedures are performed, the sand, or snow vehicle may require towing to be freed. Stop the EV system. Set the parking If it is difficult to free the vehicle, brake and shift the shift position to press the...
  • Page 554: If You Think Something Is Wrong

     Flat-looking tires or uneven tire pension system wear  Other noises related to the EV sys- Contact your Lexus dealer as soon as possible. Your vehicle probably needs adjustment or repair. Contact your Lexus dealer as soon as possible. Your vehicle probably needs...
  • Page 555: If The Vehicle Behaves Abnormally

     Vehicle pulls heavily to one side when driving on a level road  Loss of brake effectiveness, spongy feeling, pedal almost touches the floor Contact your Lexus dealer as soon as possible. Your vehicle probably needs adjustment or repair.
  • Page 556: By Operating The Power Window

    If the window reverses and cannot be fully opened and closed even when per- closed or opened, have the vehicle forming the above operations, per- inspected by your Lexus dealer. form the procedure for function initialization. (P.556) Initializing the jam protection...
  • Page 557: The Power Switch Is Turned Off Automatically

    When there is no “Toyota Genuine Traction Bat- power switch in ACC or ON for long tery Coolant”, immediately contact your periods of time when the EV system is Lexus dealer. not operating.
  • Page 558 If the message does not disappear, hood, do not open the hood until the steam has subsided. The motor com- call your Lexus dealer. If the fan is partment may be very hot. not operating: Stop the EV system ●...
  • Page 559: If Electrical Components Cannot Be Used Or Do Not Operate When A Switch Is Operated

    If the coolant is insufficient, replen- ish with “Toyota Genuine Traction Battery Coolant”. If you do not have “Toyota Genuine Trac- tion Battery Coolant”, contact your Lexus dealer. Remove the bolt. Open the reservoir cap Have the vehicle inspected at the near-...
  • Page 560: If A Light Does Not Illuminate

     rating than specified, or use any other Remove the lid. object in place of a fuse. Always use a genuine Lexus fuse or ● equivalent. Never replace a fuse with a wire, even as a temporary fix. Do not modify the fuses or fuse boxes.
  • Page 561 LED Lights ■ The lights consist of a number of LEDs. If any of the LEDs burn out, take your vehicle Normal fuse to your Lexus dealer to have the light replaced. Blown fuse Condensation build-up on the inside of ■...
  • Page 562 9-10. Items to check before contacting a dealership...
  • Page 563: Vehicle Specifications

    Vehicle specifications 10-1. Specifications Maintenance data.....564 Tire information......10-2. Customizable features User customization function out- line ..........580 Method to change settings ...580 Customizable features....582 10-3. Initialization Items to initialize ......598...
  • Page 564: Maintenance Data

    ■ The vehicle identification number (VIN) is the legal identifier for your vehicle. This is the primary identification number for your Lexus. It is used in registering the ownership of your vehicle. This number is stamped on the top left of the instrument panel.
  • Page 565 10-1. Specifications This number is also on the Certification Label. Motor model type and motor number ■ The motor model type and the motor number is stamped on the motor as shown. Front electric motor (traction motor) ...
  • Page 566 10-1. Specifications Rear electric motor (traction motor)  Front electric motor (traction motor) Model Type Permanent magnet synchronous motor Maximum output 150 kW Maximum torque 196.4 ft•lbf (266.3 N•m, 27.2 kgf•m) Rear electric motor (traction motor) Model Type Permanent magnet synchronous motor Maximum output 80 kW Maximum torque...
  • Page 567 Lexus cannot guarantee that the use of a product other than “Toyota Genuine Traction Battery Coolant” will prevent risks of battery short circuit or other damage. Never use water as it will cause damage.
  • Page 568 Do not use plain water alone. : The coolant capacity is a reference quantity. If replacement is necessary, contact your Lexus dealer. Electrical system (12-volt battery) 12.0 V or higher Open voltage at 68°F (20°C): (Turn the power switch off and turn on the high beam headlights for 30 seconds.)
  • Page 569 10-1. Specifications : The fluid capacity is a reference quantity. If replacement is necessary, contact your Lexus dealer. NOTICE Rear eAxle fluid type ■ Using transaxle fluid other than the above type may cause abnormal noise or vibration, or ultimately damage the rear eAxle of your vehicle.
  • Page 570 10-1. Specifications Tires and wheels Vehicles with 18-inch wheels  Front tires: 235/60R18 103V Tire size Rear tires: 255/55R18 105V Front  Tire inflation pressure 38 psi (260 kPa, 2.6 kgf/cm or bar) (Recommended cold tire Rear  inflation pressure) 38 psi (260 kPa, 2.6 kgf/cm or bar) Front wheels: 18 ...
  • Page 571: Tire Information

    10-1. Specifications Tire information Typical tire symbols Tire size DOT and Tire Identification Number (TIN) Location of treadwear indicators Tire ply composition and materials Plies are layers of rubber-coated parallel cords. Cords are the strands which form the plies in a tire. Radial tires or bias-ply tires A radial tire has “RADIAL”...
  • Page 572 10-1. Specifications Manufacturing week Typical DOT and Tire Identifica- tion Number (TIN) Manufacturing year : The DOT symbol certifies that the tire Type A  conforms to applicable Federal Motor Vehicle Safety Standards. Tire size Typical tire size information ■ The illustration indicates typical tire size.
  • Page 573 Lexus vehicles with information on uniform tire quality Section width grading. Tire height Your Lexus dealer will help answer any Wheel diameter questions you may have as you read this information. Tire section names DOT quality grades ■...
  • Page 574 10-1. Specifications tions in driving habits, service practices Warning: The temperature grades for and differences in road characteristics this tire are established for a tire that is and climate. properly inflated and not overloaded. Traction AA, A, B, C Excessive speed, underinflation, or ■...
  • Page 575 10-1. Specifications Tire related term Meaning Tire related term Meaning The combined 150 lb. (68 kg) weight (in excess of times the number of those standard items occupants specified Normal occupant which may be in the second col- weight replaced) of trans- umn of Table 1 that mission, power...
  • Page 576 10-1. Specifications Tire related term Meaning Tire related term Meaning The industry manu- The part of the tire Rim type designa- facturer's designa- that is made of steel tion tion for a rim by style wires, wrapped or Bead or code reinforced by ply cords and that is Nominal distance...
  • Page 577 10-1. Specifications Tire related term Meaning Tire related term Meaning A pneumatic tire (a) The sidewall that with an inverted contains a white- flange tire and rim wall, bears white let- system in which the tering, or bears rim is designed with manufacturer, rim flanges pointed brand, and/or model...
  • Page 578 10-1. Specifications Tire related term Meaning Tire related term Meaning The rim on which a A mechanical tire is fitted for physi- device made of rub- Measuring rim cal dimension ber, chemicals, fab- requirements ric and steel or other materials, that, when Any parting at any Pneumatic tire mounted on an...
  • Page 579 10-1. Specifications Tire related term Meaning Tire related term Meaning A tire that attains a The projections traction index equal within the principal to or greater than Treadwear indica- grooves designed to 110, compared to the tors (TWI) give a visual indica- ASTM E-1136 Stan- tion of the degrees dard Reference Test...
  • Page 580: Customizable Features

    The settings of these features can Stop the vehicle in a place where oper- be changed using the center dis- ations can be performed safely, play or at your Lexus dealer. engage the parking brake, and change the shift position to P. NOTICE Select on the center display.
  • Page 581 10-2. Customizable features ■ Using the icon Some vehicle customize settings can also be changed through the icon.
  • Page 582: Customizable Features

     Settings that can be changed using the center display  Settings that can be changed by your Lexus dealer Definition of symbols: O = Available, — = Not available Gauges, meters and multi-information display The language, units of measure, etc. of some items displayed on the meter or multi-information display will be changed according to settings on the center dis- play.
  • Page 583 10-2. Customizable features Steering wheel switches (vehicles with a head-up display) Function Default setting Customized setting Driving mode select Right steering wheel switch switch Display control — favorite functions Custom Climate Left steering wheel switch Audio — favorite functions Custom Switch sensor high sensitivity —...
  • Page 584 10-2. Customizable features Function Default setting Customized setting 0.6 Seconds Operating from inside the cabin: 0.6 Seconds Operating from out- side: Unlatch while push- Inside/outside door opener Unlatch while push- ing switch — switch operating method ing switch Operating from inside the cabin: Unlatch while push- ing switch...
  • Page 585 : If equipped Smart access system with push-button start and wireless remote control Function Default setting Customized setting Operation buzzer Lexus buzzer Normal buzzer — Operation buzzer volume 1 to 7 Operation signal (Emergency flashers)
  • Page 586 10-2. Customizable features Function Default setting Customized setting Time elapsed before automatic door lock function is activated 30 seconds 60 seconds if door is not opened after 120 seconds being unlocked Open door warning buzzer — : This setting changes in accordance with My Settings. Smart access system with push-button start Function Default setting...
  • Page 587 10-2. Customizable features Wireless remote control Function Default setting Customized setting Driver’s door unlocked in one step, All doors unlocked in Unlocking operation all doors unlocked in one step two step Panic function — One short press Push twice Power back door unlocking Press and hold —...
  • Page 588 10-2. Customizable features Power windows Function Default setting Customized setting Mechanical key linked opera- — tion Wireless remote control linked On (open only) — operation ASC (Active Sound Control) Function Default setting Customized setting High ASC (Active Sound Control) Medium —...
  • Page 589 10-2. Customizable features Adaptive High-beam System (if equipped) Function Customized settings Adaptive High-beam System ON/OFF — Brightness and illuminated area 9 mph (15 km/h) / 19 mph (30 km/h) adjustment of the high beams accord- — / 50 mph (80 km/h) ing to the vehicle speed Projection distance adjustment of the low beams according to the distance...
  • Page 590 10-2. Customizable features Lane Departure Alert system Function Customized settings ON/OFF — Lane Departure Alert system Default / Earlier — Alert timing Vibration / Audible — Alert options : This setting changes in accordance with My Settings. Lane Change Assist (if equipped) Function Customized setting ON/OFF...
  • Page 591 10-2. Customizable features Function Customized setting ON/OFF — Deceleration Assist (DA) ON/OFF — Obstacle Anticipation Assist (OAA) : This setting changes in accordance with My Settings. Road Sign Assist Function Customized setting ON/OFF — Road Sign Assist None / Visual / Visual&Audible —...
  • Page 592 10-2. Customizable features : This setting changes in accordance with My Settings. Intuitive parking assist (if equipped) Function Default setting Customized setting — Intuitive parking assist : This setting changes in accordance with My Settings. Parking assist volume (if equipped) Function Default setting Customized setting...
  • Page 593 PKSB (Parking Support Brake) (if equipped) Function Default setting Customized setting PKSB (Parking Support Brake) — : This setting changes in accordance with My Settings. Lexus Teammate Advanced Park (if equipped) Function Default setting Customized setting Slow Vehicle speed during opera- Normal —...
  • Page 594 10-2. Customizable features Function Default setting Customized setting Distance to objects Normal — Preferred parking method Parallel Perpendicular — Preferred parking direction Forward Reverse — Preferred exit direction (per- Right Left — pendicular) Preferred exit direction (paral- Left Right — lel) Camera view when parking Normal...
  • Page 595 10-2. Customizable features Function Default setting Customized setting Steering in custom mode Normal Sport — Air conditioning operation in Normal — customized mode Range Automatic air conditioning system Function Default setting Customized setting Automatic switching between outside air mode and recircu- lated air mode when the AUTO switch is on (AUTO switch linked air mode chang-...
  • Page 596 10-2. Customizable features Function Default setting Customized setting Operation after the power — switch is turned off Operation when you approach the vehicle with the electronic — key on your person Operation when the doors are — unlocked Footwell lights —...
  • Page 597 10-2. Customizable features Charging system Function Default setting Customized setting Charging current — Charging limit Full — 125 kW 100 kW DC charging power — 75 kW 50 kW Connector lock Auto Lock — Auto Lock & Unlock Battery cooler —...
  • Page 598: Initialization

    12-volt due to car- battery Tire pressure ried load,  After warning sys- etc. P.446 Lexus park- Refer to recon-  When the “MULTIME- necting or tire infla- assist-moni- changing tion pres- tor (if OWNER’S...
  • Page 599: For Owners

    For owners 11-1. For owners Reporting safety defects for U.S. owners ........600 Reporting safety defects for Canadian owners....600 Seat belt instructions for Cana- dian owners (in French)..601 SRS airbag instructions for Cana- dian owners (in French)..602 Headlight aim instructions for Canadian owners (in French) ............607...
  • Page 600: Owners

    Recalls, may telephone the toll-free hotline National Highway Traffic Safety Administration (NHTSA) in addition 1-800-333-0510, mail Transport to notifying the Lexus Division of Canada - ASFAD, 330 Sparks Toyota Motor Sales, U.S.A., Inc. Street, Ottawa, ON, K1A 0N5, or (Toll-free: 1-800-25-LEXUS).
  • Page 601: Seat Belt Instructions For Canadian Owners (In French)

    11-1. For owners Seat belt instructions for AVERTISSEMENT Canadian owners (in French) Inspectez le système de ceintures de sécurité régulièrement. Contrôlez l'absence de coupures, d'effilochages et The following is a French explana- de pièces desserrées. N'utilisez pas une tion of seat belt instructions ceinture de sécurité...
  • Page 602: Srs Airbag Instructions For Canadian Owners (In French)

    11-1. For owners SRS airbag instructions for Canadian owners (in French) The following is a French explanation of SRS airbag instructions extracted from the SRS airbag section in this manual. See the SRS airbag section for more detailed SRS airbag instructions in English. Coussins gonflables SRS Coussin gonflable conducteur/coussin gonflable du passager avant SRS Contribuent à...
  • Page 603 11-1. For owners (ECU) régule le déploiement des ● Le coussin gonflable conducteur SRS coussins gonflables sur la base des se déploie avec une force con- sidérable et peut occasionner des informations qu'il reçoit des capteurs, blessures graves, voire mortelles, tout etc., indiqués ci-dessus dans le schéma particulièrement si le conducteur se illustrant les composants du système.
  • Page 604 NHTSA, tout en conservant le con- siège de sécurité enfant. Lexus recom- trôle du véhicule avec les pédales et le mande vivement d'installer tous les volant, et en préservant la vue des nourrissons et enfants sur les sièges...
  • Page 605 11-1. For owners ● Ne fixez rien à des emplacements tels AVERTISSEMENT que les portes, la vitre du pare-brise, Ne vous appuyez pas contre la porte, ● les vitres latérales, les montants avant le rail latéral de toit ou les montants ou arrière, des rails latéraux de toit et avant, latéraux ou arrière.
  • Page 606 Si une zone renfermant un coussin gonflable SRS est endommagée ou • Haut-parleurs de porte avant craquelée, faites-la remplacer par votre concessionnaire Lexus. Modifications des panneaux de portes ● avant (par exemple, perçage de trous Ne placez rien sur le siège du pas- ●...
  • Page 607: Headlight Aim Instructions For Canadian Owners (In French)

    11-1. For owners Headlight aim instructions AVERTISSEMENT for Canadian owners (in Modifications apportées à votre ● French) véhicule pour les personnes atteintes d'un handicap physique The following is a French explana- tion of headlight aim instructions from the headlight aim section in this manual.
  • Page 608 Tournez le boulon B du même nombre de tours dans le même sens qu'à l'étape 1. Si vous n'arrivez pas à régler le phare en procédant de la sorte, confiez le véhicule à votre concessionnaire Lexus pour qu'il règle le faisceau des phares.
  • Page 609: Index

    Index Supplement ........610 Alphabetical Index.....
  • Page 610: Supplement

    (recorded during sys- effect on advanced safety equipment tem operation, includes basic such as Lexus Safety System + 3 and vehicle behavior related data) there is a danger that it will not work properly or the danger that it may work ...
  • Page 611 Herein referred to as the Lexus Safety System + 3 in the fol- “individual services”.) lowing situations. Toyota obtains this Also, this data may be used for cus-...
  • Page 612 If you wish to stop the collection of Lexus where the provider has obtained the Safety System + 3 data by the Toyota serv- user’s consent for providing data to...
  • Page 613 INCORPORATED in Japan and other  Disclosure of the EDR data countries. Lexus will not disclose the data recorded in an EDR to a third party except when: • An agreement from the vehicle’s owner (or the lessee for a leased vehicle) is obtained •...
  • Page 614 Alphabetical Index Alphabetical Index Alarm..............95 Warning buzzer......... 472 Anchor brackets........70, 79 Air conditioning filter .........441 Antennas (smart access system with Front automatic air conditioning system push-button start)........84 .................204 Anti-lock Brake System (ABS)....262 Front seat concentrated airflow mode ABS warning light........474 (S-Flow) ............
  • Page 615 Alphabetical Index Charging methods......... 43 AC charging ...........49 Camera DC charging ...........56 Driver monitor..........276 Charging port lid Card key ............82 If the charging port lid cannot be opened Care ................533 Seat belts............422 Charging ports Wheels and wheel ornaments....420 Charging port lid ..........
  • Page 616 Alphabetical Index Cornering lights Driver’s and front passenger’s seat belt Replacing light bulbs......... 561 reminder light..........476 Courtesy lights Driver’s seat position memory Location............216 Memory recall function......200 Cruise control Drive-Start Control (DSC) Dynamic radar cruise control ....312 Sudden start restraint control..... 398 Curtain shield airbags .......399 Driving Customizable features......580...
  • Page 617 Alphabetical Index Emergency towing........551 Fluid Emergency, in case of Brake............... 569 A warning light turns on/flashes..472 Transmission..........568 If a warning message is displayed..483 Washer ............440 If the battery is discharged....506 Footwell lights ..........216 If the electronic key does not operate Front automatic air conditioning system properly..........
  • Page 618 Alphabetical Index Head restraints..........121 Initialization Headlight Items to initialize ........598 Cleaner.............179 Inside handle lights........216 Replacing light bulbs......... 561 Inside rear view mirror........127 Headlight switch Inspection ............444 Light switches..........166 Interior lights............217 Head-up display........... 249 Intuitive parking assist Heated steering wheel........210 Function ............
  • Page 619 Hood lock release lever......433 Memory recall function ......199 Wiper lever............. 177 Meter Lexus Climate Concierge .......203 Changing the instrument panel light Lexus Safety System + 3 ......268 brightness..........258 Cruise control ..........325 Displayed content........251 Driver monitor..........276 Head-up display.........249 Dynamic radar cruise control ....312...
  • Page 620 Alphabetical Index Overheating ..........557 Power outlets ........224, 225 Power sources...........41 Power steering (Electric power steering system)............262 Paddle shift switches ........150 Power switch Panic mode ............93 Stopping the vehicle in an emergency Parking assist sensors (intuitive parking ................469 assist) .............348 Power windows...
  • Page 621 Alphabetical Index Rear window defogger Sensor Window............182 Automatic headlight system....166 Regenerative braking........22 Inside rear view mirror......175 Replacing Intuitive parking assist......348 Fuses ............... 560 Radar sensor..........345 Light bulbs............561 Raindrop sensor.......... 178 Tire ..............459 Service plug ............24 Replacing the battery ........ 523 Shift position Riding with children Changing the shift ........
  • Page 622 Alphabetical Index Advanced Park main switch....379 Tire information..........571 Door lock............94 Glossary............574 Dynamic radar cruise control switch 315 Size..............572 Emergency flashers........469 Tire identification number......572 Garage door opener ........157 Uniform Tire Quality Grading....573 Ignition switch..........138 Tire pressure warning system ....446 Intuitive parking assist switch....349 Registering ID codes ........
  • Page 623 Parking brake indicator......482 · Audio/visual system PCS warning light ........479 · Panoramic view monitor Proactive Driving Assist indicator..480 · Lexus parking assist monitor Rear passengers’ seat belt reminder light ................. 476 Slip indicator ..........481 Tire pressure warning light....477...
  • Page 624 Certifications Smart access system with push-button start ...
  • Page 627 Digital Key ...
  • Page 629 Tire pressure warning system ...
  • Page 631 Intuitive parking assist  Immobilizer system ...
  • Page 632 Blind Spot Monitor ...
  • Page 634 Safety Connect ...
  • Page 635 Wireless charger ...
  • Page 636 Garage door opener ...
  • Page 637 Millimeter wave radar sensor ...

This manual is also suitable for:

Rz450e 2024Rz300e 2024

Table of Contents

Save PDF
