KAMEHA KA227 Connection Instructions

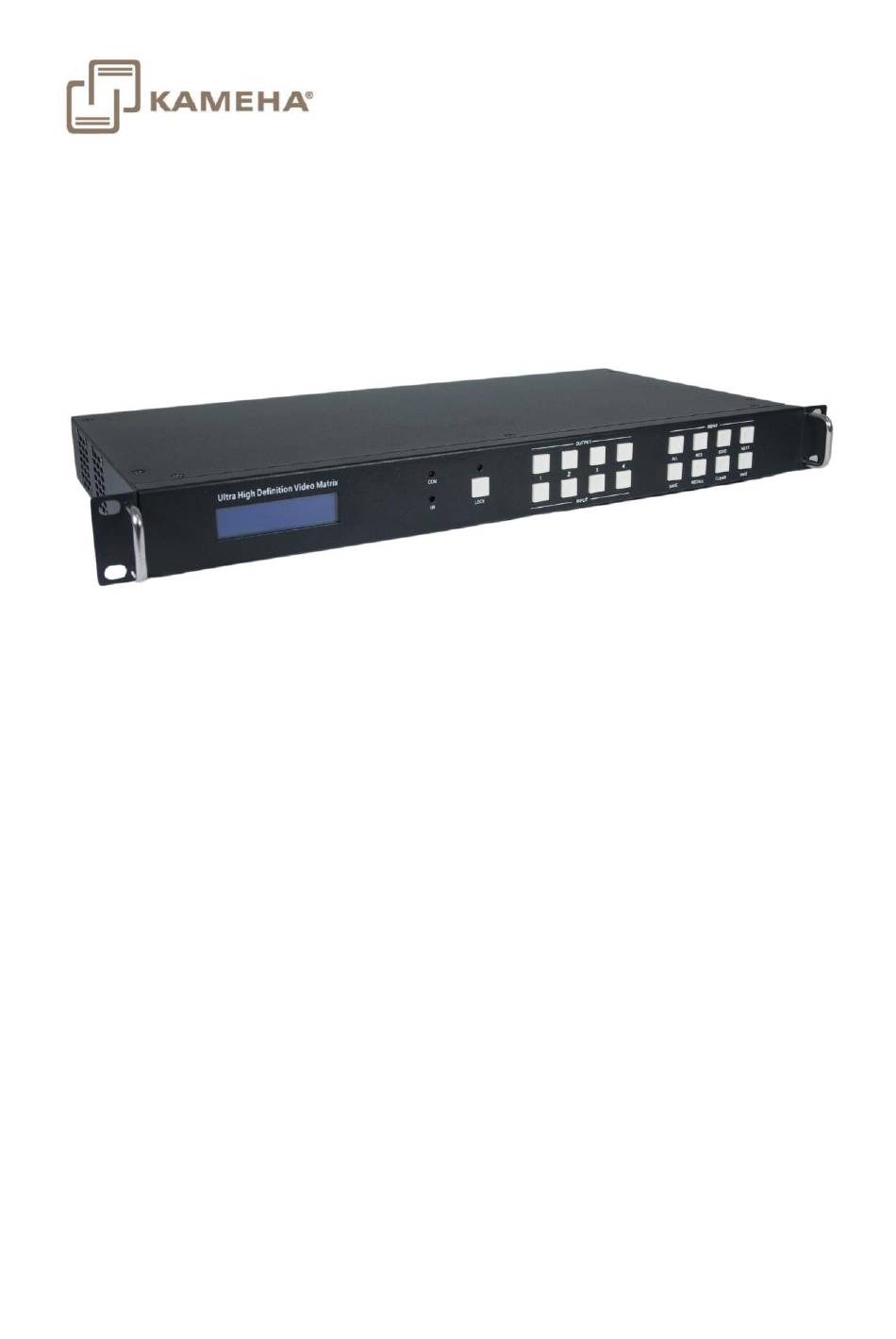

18gbps 4x4 seamless uhd matrix
Hide thumbs
1
2
3

Advertisement

Table of Contents

KA227 18Gbps 4x4 Seamless UHD Matrix–

Introduction

The 18Gbps 4x4 seamless UHD Matrix can connect 4 HDMI sources to 4 HDMI displays. Supported
video resolution is up to 4K60 4:4:4. The product supports IR matrix and Audio matrix. IR matrix
routing follows the video routing. Audio extract and insert are supported. The product supports CEC
management and strong video wall processing.

Feature

-HDMI 2.0 and HDCP 2.2 compliant
-Support 18 Gbps video bandwidth
-Support video resolution up to 4K60 4:4:4
-Color space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
-Support seamless switching, video wall function
-Support CEC management
-Support audio matrix and IR matrix function
-Support external L/R audio insert on HDMI stream
-Support EDID management
-Support front panel, RS232, TCP/IP (LAN 10M/100M) control
