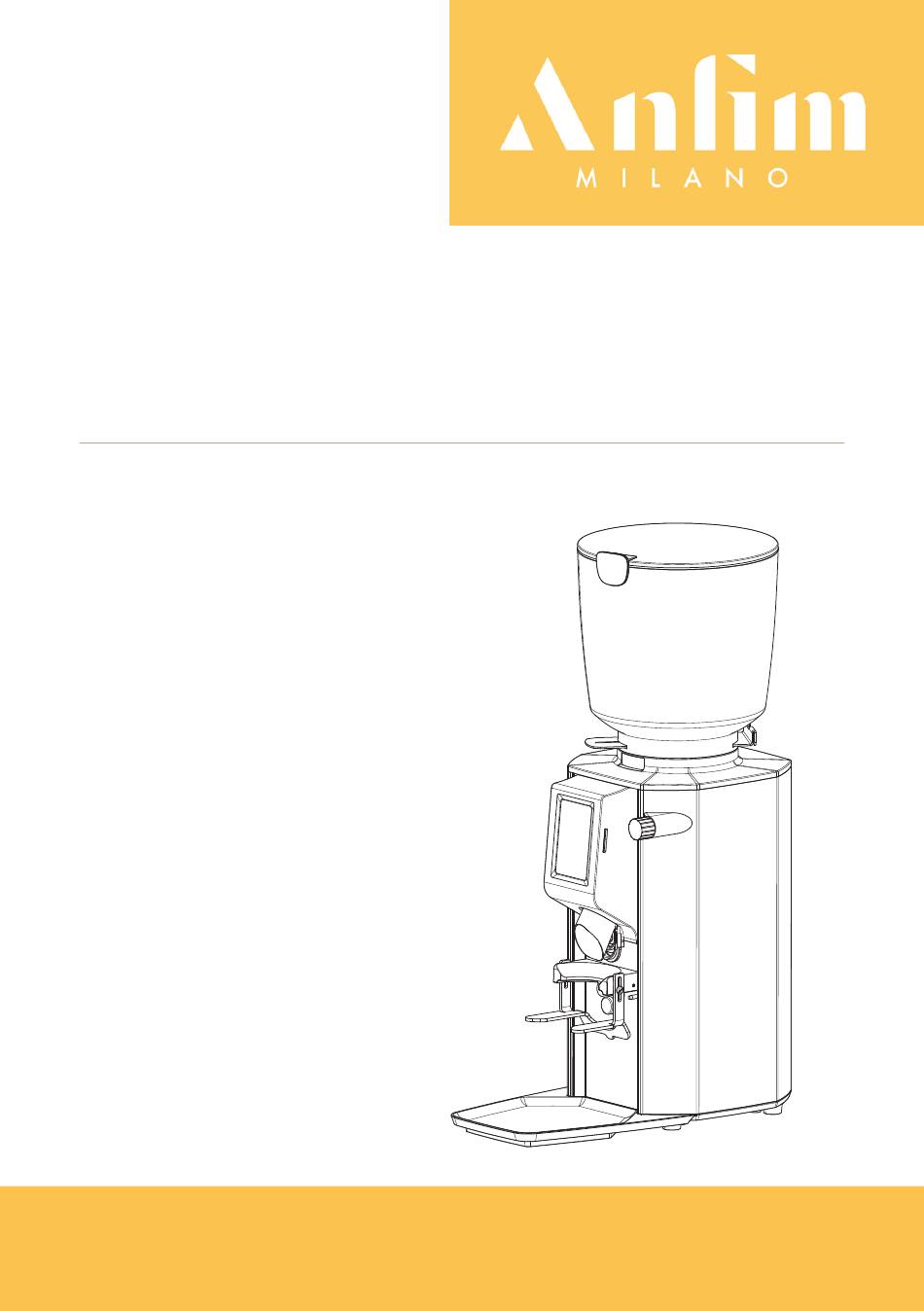

- Page 1 luna ON DEMAND PROFESSIONAL GRINDER Original instructiOns www.anfim-milano.com...
-
Page 2: Table Of Contents
luna | En contents Overview Touchscreen / settings menu Symbols Scope of delivery Opening and using the settings menu General Information Reading and retaining Cleaning the original instructions Cleaning the grinder Explanation of symbols used installation surface Cleaning the housing Safety Cleaning the bean hopper Intended use... -
Page 3: Overview
luna | En Overview... -
Page 4: Scope Of Delivery
luna | En scope of delivery Designation Bean hopper (with lid) Bean hopper intake Grind adjustment system Power cable (with power plug) Spout guide on/off switch Release button (Thermal overcurrent circuit-breaker) Screw for adjusting the portafilter support (left and right), 2× Drip tray Portafilter support Trigger switch... -
Page 5: General Information
luna | En general information reading and retaining the original instructions Before you start using the Single Espresso Grinder luna, read the original operating manual and safety information carefully. only then will you be able to use the Single Espresso Grinder safely and without danger. This operating manual is based on the standards and regulations in force in the European Union. -
Page 6: Safety
luna | En ETl listed seal of approval: Products marked with this symbol meet the requirements of electrical product safety in the United States of america. Products marked with this symbol meet the criteria required by the nSf (national Sanitation foundation) regarding cleanliness and hygiene in the food industry. - Page 7 luna | En » Do not use the grinder if you notice any visible damage or if the power cable or plug is faulty. » if the grinder power cable is damaged, it must be replaced by the manufacturer or by qualified personnel, in order to avoid hazards. »...
- Page 8 luna | En waRninG ! Danger for children and persons with reduced physical, sensory or mental capabil- ities (e.g. partially disabled persons, older persons with limited physical and mental capabilities) or a lack of experience and knowledge (e.g. older children). »...
-
Page 9: Before Putting Into Service
luna | En Before putting into service Function The shot sizes, i.e. the grind quantities per reference, are defined by the grinding time in this grinder. The user can specify up to five different recipes (grinding times) and also has the option of controlling the grinding time manually (manual grinding). -
Page 10: Inserting The Bean Hopper
luna | En inserting the bean hopper 1. Place the bean hopper (1) on the grinder. when placing the bean hopper, make sure to place the nose of the bean hopper in the corresponding recess of the bean hopper intake (2). 2. -
Page 11: Operation
luna | En Operation The grinder has a thermal overcurrent circuit breaker that interrupts the grinder's circuit in the event of an electrical overload. To start the grinder again, set the on/off switch (6) to switch position 0 (off). Then press the release button (7) on the back of the grinder. -
Page 12: Adjusting The Grinding Degree
luna | En adjusting the grinding degree You can use the grinding degree adjustment (3) for the stepless adjustment of the desired grinding degree. Read the set value on the grinder scale (15). » Turn the grinding degree adjustment anti-clockwise to reduce the grinding degree (= finer grind). -
Page 13: Interrupting The Grinding Procedure (Break Function)
luna | En interrupting the grinding procedure (break function) The break function automatically interrupts grinding when you pull the portafilter out of the portafilter intake (12) and resumes grinding when you insert the portafilter back into the portafilter intake before the set break time has elapsed. The preset break time is 5 seconds. -
Page 14: Touchscreen / Settings Menu
luna | En touchscreen / s ettings menu symbols Symbol meaning open settings menu (This symbol only appears in Pro mode .) Edit entry (This symbol only appears in Pro mode .) Switch to Basis mode Switch to Pro mode (The user password is required when switching between modes.) one level back (process is cancelled) Return to home screen ( Recipe selection display) -
Page 15: Opening And Using The Settings Menu
luna | En Opening and using the settings menu 1. Tap the symbol on the touchscreen to open the settings menu. 2. Tap the desired menu item to edit it. The following menu items can be selected: • language • Brightness display •... -
Page 16: Cleaning
luna | En cleaning Risk of injury! caUTion ! when moved, the grinder may fall down and injure you. » always place the grinder on a stable surface that is safe from tipping over. » if necessary, ask another person to help if the grinder is too heavy. Danger of short circuit! noTE ! water entering the grinder can cause a short circuit. -
Page 17: Cleaning The Bean Hopper
luna | En 1. Switch off the grinder (on/off switch (6) in the 0 position) and remove the power plug (4) from the socket. 2. Use a brush to clean the following grinder components: • the spout (13), • the filter holder (12), •... -
Page 18: Cleaning The Grinder Mechanism
luna | En 1. Pull the spout (13) downwards out of the lock. 2. Use a brush to clean the spout on the housing (spout lock). 3. clean the spout with a damp cloth and then dry it. 4. insert the spout again. cleaning the grinder mechanism The manufacturer recommends the use of GRinDZ grinder cleaner. -
Page 19: Troubleshooting
luna | En troubleshooting fault cause Remedy The grinder The mains plug is not » insert the power plug into a properly is not grind- plugged in. installed socket. ing, the The bean hopper has not » insert the bean hopper (see chapter display is been inserted. - Page 20 luna | En fault cause Remedy The grinder The grinding discs are worn » contact your dealer (see chapter is not grind- out or require readjustment. „maintenance and service“). ing fine enough. The grinder The trigger switch is defec- » contact your dealer (see chapter does not tive.
-
Page 21: Technical Data
luna | En technical data model: luna Voltage / frequency: 220–240 V; 50/60 Hz 110–127 V; 60 Hz 100 V; 50/60 Hz Performance: 460 w (50 Hz) 530 w (60 Hz) Protection class: fuse: 16 a, slow-blowing idle speed: 1500 rpm (50 Hz) 1800 rpm (60 Hz) Grinding capacity: ~2.8 g/s @ 250 μm (50 Hz)* ~3.6 g/s @ 250 μm (60 Hz)* max. -
Page 22: Disposal
luna | En Disposal Disposing of the packaging Dispose of the packaging by correctly sorting the recyclable materials. Dispose of card and cardboard as waste paper and film as recyclable material. Disposing of the grinder Electrical appliances labelled with the symbol opposite. - Page 24 Hemro International AG Thurgauerstrasse 80 | 8050 Zurich, Switzerland +41 44 864 18 00 | +41 44 864 18 01 info@hemrogroup.com | www.hemrogroup.com...
