QUICK START GUIDE
HARRIER IP CAMERA INTERFACE BOARD
Introduction
This guide is designed to get you quickly up and running with the Harrier IP Camera Interface Board (AS-
CIB-IP-001-A or AS-CIB-IP-002-A) together with the Harrier Ethernet connection board (AS-CIB-IP-IFETH-
001-A or AS-CIB-IP-IFPOE-001-A). The Harrier IP camera interface solution can be purchased as a pre-
assembled camera module with the Harrier 10x/36x/40x AF-Zoom Camera, the Sony FCB-EV7520 camera
and the Tamron MP1010M camera (AS-CIB-IP-001-1010-A).
This document should be read in conjunction with the datasheets of the Harrier IP Camera Interface Board
and the Harrier Ethernet connection board.

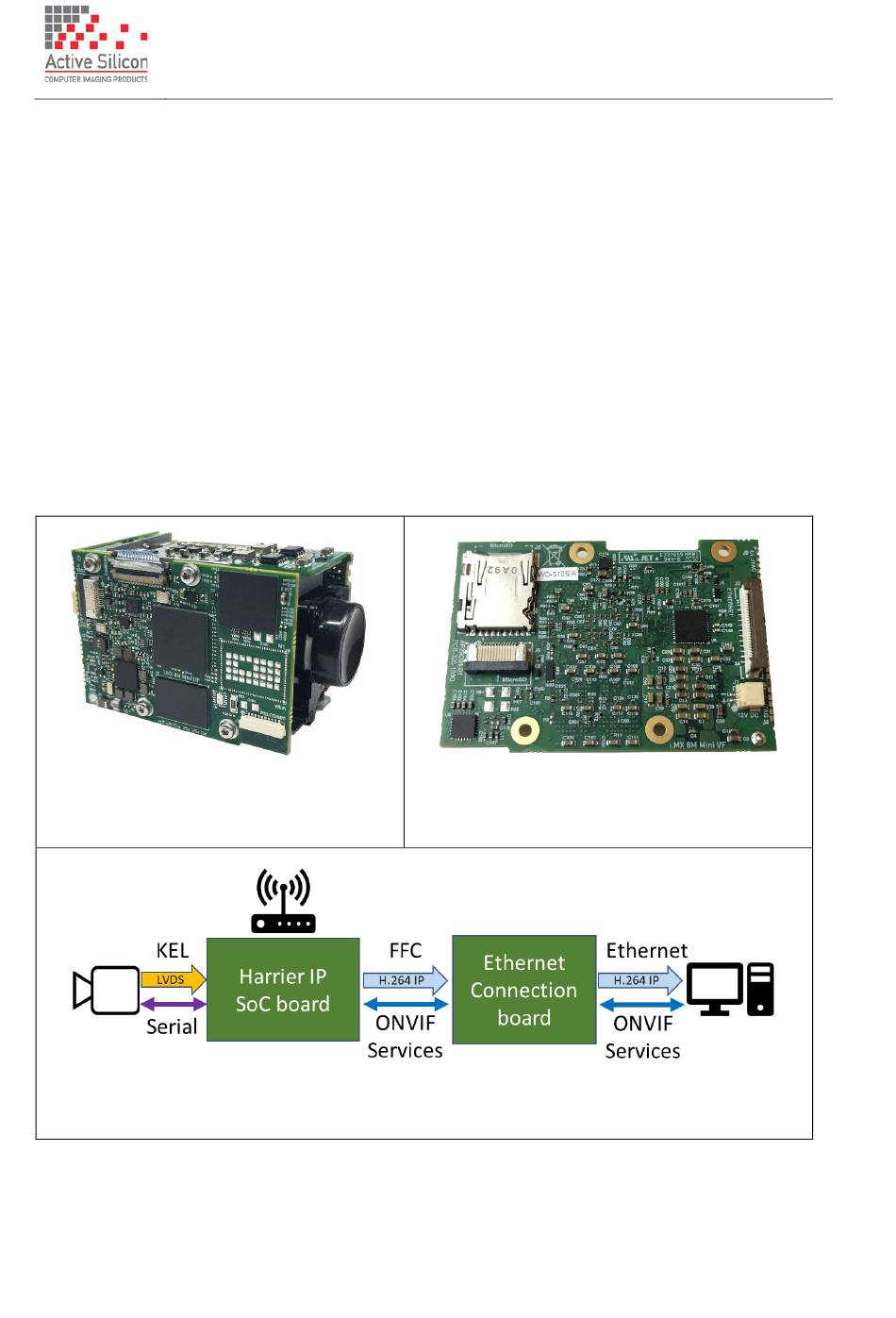

Figure 1. Harrier IP Camera Interface
Board mounted on a Tamron MP1010M
camera
Figure 3. Harrier IP camera system block diagram
(wireless/PoE features are optional).
March 2022
HARRIER IP CAMERA INTERFACE BOARD
Figure 2. Reverse side of Harrier IP Camera
Interface Board
QUICK START GUIDE
Version 1.02 – March 2022
Page 1 of 7
Advertisement
Table of Contents
Related Manuals for Active Silicon AS-CIB-IP-001-EVAL-A
Summary of Contents for Active Silicon AS-CIB-IP-001-EVAL-A
- Page 1 QUICK START GUIDE HARRIER IP CAMERA INTERFACE BOARD Version 1.02 – March 2022 QUICK START GUIDE HARRIER IP CAMERA INTERFACE BOARD Introduction This guide is designed to get you quickly up and running with the Harrier IP Camera Interface Board (AS- CIB-IP-001-A or AS-CIB-IP-002-A) together with the Harrier Ethernet connection board (AS-CIB-IP-IFETH- 001-A or AS-CIB-IP-IFPOE-001-A).
- Page 2 Version 1.02 – March 2022 Evaluation Kit Contents The Evaluation Kit for the Harrier IP (AS-CIB-IP-001-EVAL-A) contains all the parts needed to evaluate the Harrier IP Camera Interface Board. Note that the evaluation kit does not include a Harrier IP Camera Interface Board, FFC cable or camera, these need to be ordered separately.
- Page 3 QUICK START GUIDE HARRIER IP CAMERA INTERFACE BOARD Version 1.02 – March 2022 Quick Start 1. Download the ONVIF Device Manager from https://sourceforge.net/projects/onvifdm/ 2. Connect the correct power socket adapter to the multi-region power supply. 3. Connect the JST connector on the power adapter cable to J3 on the Ethernet connection board. Connect the barrel connector plug on the multi-region power supply to the power adapter cable barrel socket.
- Page 4 QUICK START GUIDE HARRIER IP CAMERA INTERFACE BOARD Version 1.02 – March 2022 Discovering the Camera’s IP Address Finding out the camera’s IP address requires the ONVIF Device Manager. By default, the camera is automatically assigned an IP address using DHCP. To discover the IP address: •...
- Page 5 QUICK START GUIDE HARRIER IP CAMERA INTERFACE BOARD Version 1.02 – March 2022 Controlling the Camera The camera can be controlled using the ONVIF media services or the Harrier IP web pages: • In your web browser, enter: http://<IP Address> to access the website. •...
- Page 6 QUICK START GUIDE HARRIER IP CAMERA INTERFACE BOARD Version 1.02 – March 2022 Downloads ONVIF Device Manager: https://sourceforge.net/projects/onvifdm/ VLC player: https://www.videolan.org/vlc/index.en-GB.html GStreamer: https://gstreamer.freedesktop.org/download/ Getting Started with the ONVIF API The Harrier IP implements the ONVIF Profile S standard (www.onvif.org). The main services and their functions are listed below.
- Page 7 AS-CIB-IP-SOC-001-A and AS-CIB-IP-IFPOE-001-A supplied mounted on a Tamron MP1010M-VC camera (with connecting cables fitted). AS-CIB-IP-EVAL-A Evaluation kit for Harrier IP (does not include boards). More camera options and custom builds are available, please contact Active Silicon for more information. Headquarters: North America: Active Silicon Ltd Active Silicon, Inc.
