Please read this manual carefully prior to installation to follow correct fitting procedure.
Handling precautions
・ Strictly follow the installation manual. Incorrect installation causes damage or loss to your vehicle.
・ No liability is accepted for accidents or damage to your vehicle or product caused by installation methods other
・
than those
・
described in this manual.
・ This product must not be modified in any way.
・ It is recommended that this product be installed by a professional.
・ Installation must be done by two or more persons. Please take care to avoid falling when using a stepladder etc.
・ Turn off the engine and ignition before installation.
・ DO NOT put your weight on the vehicle with your hands. Vehicle body panels, a roof panel in particular, can easily
・
be deformed
・
or damaged by the weight.
・ Take care to avoid falling when using a stepladder.
・ Make sure to protect your vehicle from corrosion with touch-up paint etc., if the installation of this product caused
・
any damage to
・
your vehicle.
・ DO NOT use a rope or belt on the Awning stay. Vibration causes them to move and become loose, and excessive
・
tension can damage the
・ This product is designed for use only with ARB Awnings (PVC bag) or Rhino-Rack Sunseeker Awnings.

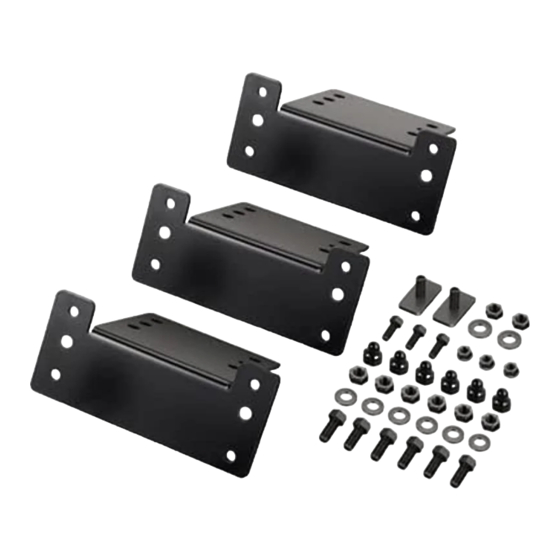

Component parts
①
Note: Be careful not to confuse bolts and nuts.
How to install
Fit the awning stay
onto the side frame
1. Remove the corner cap from EXP roof rack
1. and insert the three hex bolts supplied into
1. the slot as shown in the figure right.
2. Insert the Awning stay into the hex bolts,
2. and set preferred mounting position. Tighten
2. the Awning stay with washers and nuts, and
2. place the corner cap back in place.
Note
Select mounting holes
where the awning
stay will not come
into contact with
your vehicle or
roof rack.
Mounting holes
EXP Roof Rack Awning Stay
Installation Manual
Thank you for purchasing IPF EXP roof rack.
Store this manual in safe location for future reference.
Caution
・
slot channel.
③
②
⑤
⑥
Parts used for ARB Awnings (PVC bag)
⑧
⑨
Parts used for Rhino-Rack Sunseeker Awnings
④
⑦
⑩
Slot channel
Side frame
EXR-08P
P N :
Part name
№
①
Awning stay
②
Hex bolt
M8×20
③
Nut
M8
④
Washer
M8×18
⑤
Nut cap
⑥
Hex bolt
M6×20
⑦
Flange nut
M6
⑧
Plate Bolt
M8×20
⑨
Nut
M8
⑩
Washer
M8×20
Hex bolt
Nut
Washer
Awning stay
No. of pcs
3
6
6
6
6
3
3
2
2
2
UP
③
Advertisement
Table of Contents
Related Manuals for ipf EXP Series
Summary of Contents for ipf EXP Series
- Page 1 EXP Roof Rack Awning Stay Installation Manual EXR-08P P N : Thank you for purchasing IPF EXP roof rack. Please read this manual carefully prior to installation to follow correct fitting procedure. Store this manual in safe location for future reference. Handling precautions Caution ・ Strictly follow the installation manual. Incorrect installation causes damage or loss to your vehicle. ・ No liability is accepted for accidents or damage to your vehicle or product caused by installation methods other ・ than those ・ described in this manual. ・ This product must not be modified in any way. ・ It is recommended that this product be installed by a professional. ・ Installation must be done by two or more persons. Please take care to avoid falling when using a stepladder etc. ・ Turn off the engine and ignition before installation. ・ DO NOT put your weight on the vehicle with your hands. Vehicle body panels, a roof panel in particular, can easily ・ be deformed ・ or damaged by the weight. ・ Take care to avoid falling when using a stepladder. ・ Make sure to protect your vehicle from corrosion with touch-up paint etc., if the installation of this product caused ・...
- Page 2 Awnings fitting ARB Side Awning mounting holes For ARB Side Awnings (PVC bag) For ARB Side Awnings (PVC bag) Use three M6 holes on each stay For Rhino-Rack Sunseeker Awnings For Rhino-Rack Sunseeker Awnings Use two M8 holes on each stay Note ・ Please refer to the instructions for ・ fitting your awning. ・ Use the bolts and nuts (⑥ - ⑩) to Rhino-Rack Awning mounting holes ・ attach to the Awning stay in the center. Awning Awning stay in the center 3. After securing your awning, fit the nut caps onto hex bolts, nuts and washers. Recommended tightening torque for nuts: 10 N-m Nut cap Note Please refer to the instructions of your awning for the length of overhang. ☆ ☆ Overhang Overhang Awning Check after installation 1． Check to see if any bolts or nuts are left untightened or loose. 2. Periodically check all bolts and nuts to see if they are loose, and retighten if needed.
