Please read this manual carefully prior to installation to follow correct fitting procedure.
Handling precautions
・Strictly follow the installation manual. Incorrect installation causes damage or loss to your vehicle.
・No liability is accepted for accidents or damage to your vehicle or product caused by installation methods other than those
・described in this manual.
・This product must not be modified in any way.
・It is recommended that this product be installed by a professional.
・Turn off the engine and ignition before installation.
・DO NOT put your weight on the vehicle with your hands. Vehicle body panels, a roof panel in particular, can easily be deformed
・or damaged by the weight.
・Take care to avoid falling when using a stepladder.
・Make sure to protect your vehicle from corrosion with touch-up paint etc., if the installation of this product caused any damage to
・your vehicle.
・DO NOT use a rope or belt on the rail. Vibration causes them to move and become loose, and excessive tension can damage the
・slot channel.
Component parts
How to install
Rail mounting positions
Adjust mounting positions of the rails according to
intended use.
In addition to the recommended mounting positions,
it is possible to mount the rails on each floor bar and
also in a vertical direction to the bars. Refer to the
figure right.
Advice
Use the spacer plates to match the different
heights of the side frames and floor bars.
520mm
When correctly installed,
the bolts and nuts are hidden from view.
Fit the rail assembly
onto the side frame
1. Remove the corner cap from EXP roof rack and
1.
insert the three hex bolts supplied into the
1.
slot as shown in the figure right.

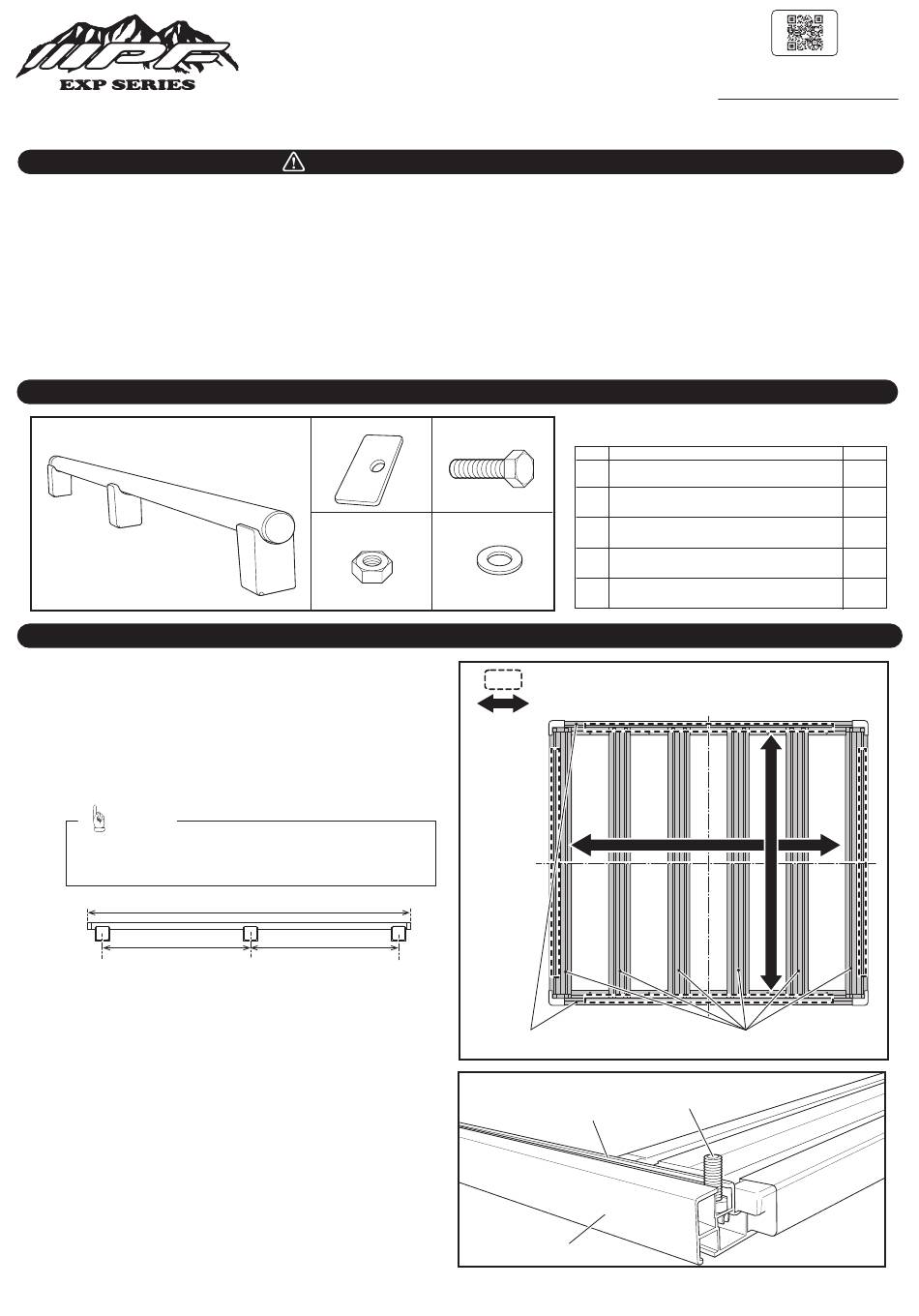

EXP Roof Rack Rail
Installation Manual
Thank you for purchasing IPF EXP roof rack.
Store this manual in safe location for future reference.
Caution
①
②
④
1120mm
520mm
③
№
①
②
⑤
③
④
⑤
：Recommended mounting positions for the rail
：Possible area of rail mounting
Front of
vehicle
Side frame
Slot channel
Side frame
EXR-01P
P N :

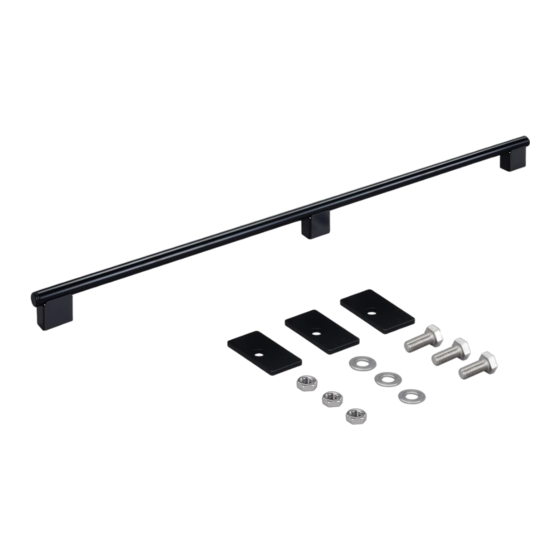

Part name
Rail ASSY
Spacer plate
(for height adjustment)
Hex bolt
Nut
Washer
Floor bar
Hex bolt
No. of pcs
1
3
3
3
3
③
