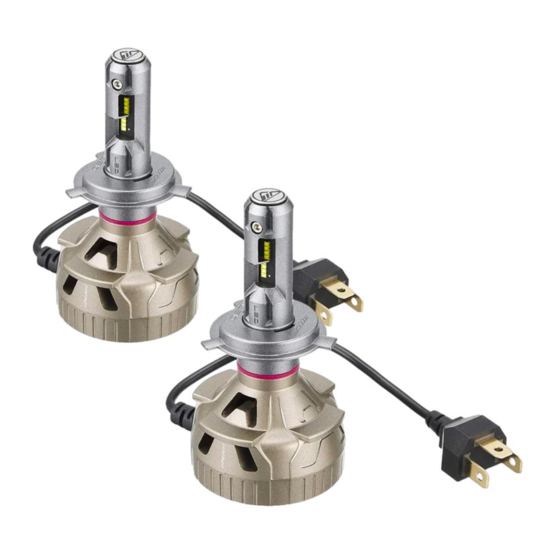

LED Bulb Installation Manual
LED bulb fitting
Space around the bulb
More than 50mm
More than 46mm
from the flange
from the flange
to the shade
to the rear
Allow enough range of
Flange
the LED harness's movement
LED bulb lighting test points
<Test procedure>
1. Connect the new parts
1.
to the vehicle's connector.
2. Turn on the lamp both high beam
2.
and low beam.
2.
Test for correct lighting.
3. Check the high beam indicator
3.
lit normally on the dash.
4. Check the vehicles gauges for any
4.
warning sings. If no warnings,
4.
the test is finished.
(H4, H19) Compact Type
More than 50mm
diameter of space
Confirm there is enough
space to allow full range
of the headlamp's
movement.
(more than 20mm).
Vehicle body
※Do it before installation.
Warning
Do not turn on the switch if the bulb is not
connected.
Vehicle connector
Direct contact with water, dirt or dust
Bad
LED bulb connector
(Non-polarity)
BP070-504331-D
Incorrect
×
①
Advertisement
Table of Contents
Related Manuals for ipf H4
Summary of Contents for ipf H4

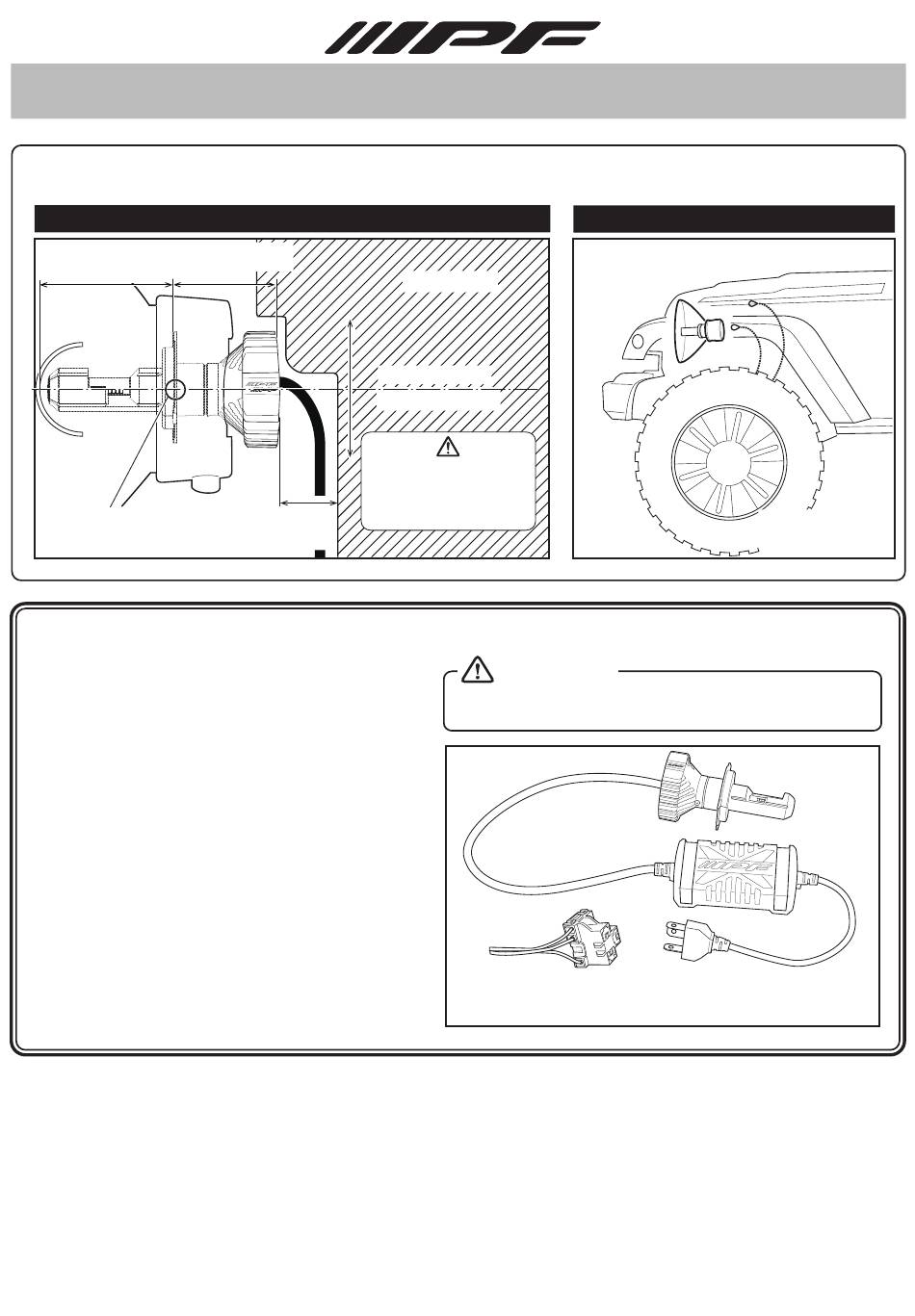

- Page 1 BP070-504331-D LED Bulb Installation Manual (H4, H19) Compact Type LED bulb fitting Space around the bulb Direct contact with water, dirt or dust More than 50mm More than 46mm from the flange from the flange to the shade to the rear Vehicle body More than 50mm diameter of space Confirm there is enough space to allow full range of the headlamp’s...
- Page 2 Components LED bulb assy Protection tape … 1 Cable ties … 4 … 2 Installation procedure Warning Heatsink Wear work gloves to prevent a minor cut with pointed part of the heatsink. Beware LED bulb Wear work gloves 1 Halogen bulb check Check the condition of the halogen bulb attachment.
- Page 3 When installing this product completed to a head lamp for right-hand traffic, “ ” on front edge of the bulb and the sticker “IPF logo” on back face of the bulb slant approximately 15 degrees, though this is in the right position.
- Page 4 Make sure to check connecting terminal and restore if needed Repetitive connecting/disconnecting motion causes a bad fit of vehicle connector and LED bulb connector. Male terminal Check to see if the connection is workable. Vehicle connector Connection should be restored in case that a male terminal lightly can fit in with a vehicle connector's terminal.
