- Page 1 Tobii Pro Nano User Manual...
- Page 2 Copyright © Tobii AB (publ) The information contained in this document is proprietary to Tobii AB. Any reproduction in part or whole without prior written authorization by Tobii AB is prohibited. Products that are referred to in this document may be either trade- marks and/or registered trademarks of the respective owners.
-
Page 3: Table Of Contents
5 Set Up Your Tobii Pro Eye Tracker 5.1 Download and install Tobii Pro Eye Tracker Manager 5.2 Install the eye tracker in Tobii Pro Eye Tracker Manager 5.3 Mount the eye tracker on a laptop or monitor 5.4 Display setup in Tobii Pro Eye Tracker Manager 5.5 Calibration... - Page 4 9 Technical Specifications 9.1 Eye tracking specifications 9.2 Setup 9.3 Software compatibility 9.4 Hardware versions 9.5 Tobii Pro Nano eye tracker specifications 10 Compliance Information 10.1 EU Compliance 10.1.1 CE statement 10.1.2 Other EU directives and regulations 10.2 FCC interference statement 10.3 ISED statement...
-
Page 5: Introduction

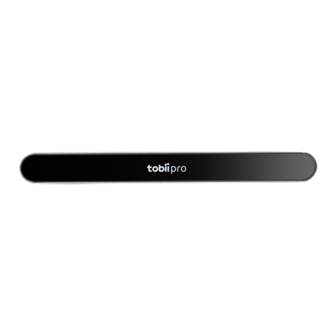

Introduction Tobii Pro Nano welcomes you to the world of eye-tracking studies. Tobii Pro Nano is a small and portable eye tracker that you can use for studies on laptops, monitors up to 24ʺ * (16:9), mobile devices (using the mobile device stand), real-world interfaces, projections, simulators, and TV screens. -
Page 6: Symbols Used In This Document
Tobii Pro Eye Tracker Manager is free software available on Tobii Connect. Tobii Pro Eye Tracker Manager helps you manage your Tobii Pro eye tracker. It lets you see which eye tracker firmware and software versions you are running and also facilitates updates (where applicable). It provides:... - Page 7 Tobii Pro’s website. Gaze visualization in Tobii Pro Eye Tracker Manager lets you quickly evaluate the quality of the eye tracking data. The Gaze visu- alization overlaps data only on the Tobii Pro Eye Tracker Manager screen while Tobii Pro Eye Tracker Manager is open.
-
Page 8: Safety
Emergency warning Tobii Pro eye trackers are designed to be used only for research purposes. Be aware that due to the low, but possible risk of failure or distraction, the eye tracker should not be relied upon or used in dangerous or critical situations. -
Page 9: Magnetic Field Warning
Electricity Do not open the casing of the Tobii Pro eye tracker, this could expose you to poten- tially hazardous electrical voltage. The device contains no user-serviceable parts. Non- compliance will result in loss of warranty! Contact Tobii Customer Care if your eye tracker is not working properly. -
Page 10: Software And System Requirements
Software and System Requirements Tobii Pro Nano is connected to a computer via a standard USB 2.0 interface. All eye tracking processing is done in the internal Eye Chip. System requirements Operating system Windows 10 and 11, Professional or Enterprise editions macOS 10.15 Catalina and 12 Monterey... -
Page 11: Additional Tobii Products & Accessories
This term refers to any application built on Tobii Pro SDK. Compatible accessories Mobile Device Stand Additional Mounting Brackets Tobii Pro Tripod Stand Learn more about Tobii Pro Nano accessories available for purchase on tobii.com. Tobii Pro Nano User Manual v2.3... -
Page 12: Set Up Your Tobii Pro Eye Tracker
3. If your Tobii Pro Nano is connected to the USB port but doesn’t appear in the list of con- nected eye trackers, click the plus (+) symbol in the upper right corner to install (or re- install in some cases) the required drivers. -
Page 13: Mount The Eye Tracker On A Laptop Or Monitor
What to do: 1. Check that your eye tracker is detected and displayed as a “card” in Tobii Pro Eye Tracker Manager. Expand your eye tracker’s “card” in Tobii Pro Eye Tracker Manager to see that the serial number of your eye tracker matches the number displayed. -
Page 14: Display Setup In Tobii Pro Eye Tracker Manager
Figure 2. Place the mounting bracket on the bezel so that Tobii Pro Nano is as close to the bottom of the screen as possible without covering the screen. 6. If Tobii Pro Nano is not connected, plug in the USB cable to the correct USB port in your computer. -
Page 15: Calibration
Tobii Pro Lab. 5.5.2 Additional information for experienced users A participant can be calibrated with Tobii Pro Nano even when only one eye was suc- cessfully calibrated. That calibration gets copied to the “failed” eye as well, and this might cause poor data for that eye. -
Page 16: Detach The Eye Tracker
Use this to slide between the mounting plate and the computer bezel (or whatever it is attached to). As you slide it behind the mounting plate, gently bend the mounting plate backwards so that it detaches. Tobii Pro Nano User Manual v2.3... -
Page 17: Display Setups
Display Setups Standard setup The standard setup for using the Tobii Pro Nano is with a screen up to 24" *. The eye tracker is attached below the screen whether it is a laptop screen or separate monitor. * For larger screens, the limiting parameter is the quality of the gaze accuracy at the upper corners of the screen when the user sits close to the screen. - Page 18 3. Mount the eye tracker on a separate tripod and connect it to the laptop. 4. Use Tobii Pro Eye Tracker Manager’s Advanced Setup to ensure that the eye tracker can detect the participant’s eyes. Select New in the drop-down Display Setup menu and follow the steps.
-
Page 19: Start Experimenting
In addition to offering powerful analysis tools, Tobii Pro Lab is also designed to work with other software commonly used for recording and analyzing data. This is done by synchronizing with recording software using TTL, as well as by enabling data exports in standardized formats, for example for Microsoft Excel, Matlab, and SPSS. - Page 20 Display setup updates Use Pro Eye Tracker Manager whenever you change computers or display setups. All references to Pro Eye Tracker Manager assume that you are using the latest ver- sion of this free software. Tobii Pro Nano User Manual v2.3...
-
Page 21: Product Care
Limitation of liability Except where prohibited by law, Tobii AB is not liable for any loss or damage arising from the use or misuse of a Tobii eye tracker or the mounting plate, whether direct, indirect, special, incidental or consequential, regardless of the legal theory asserted, including warranty, con- tract, negligence, or strict liability. -
Page 22: Technical Specifications
Integrated between the eye tracker time domain and the client com- synchronization puter time domain. *Tobii Pro uses an extensive test method to measure and report performance and quality of data. Please download the Tobii Pro Nano Eye Tracker Data Quality Test Report for more detailed information. -
Page 23: Software Compatibility
Software compatibility Software and framework compatibility Tobii Pro Lab Tobii Pro Eye Tracker Manager Tobii Pro SDK Any application built on the Tobii Pro SDK Operating system Microsoft Windows, macOS Hardware versions Single product version 60 Hz... -
Page 24: Compliance Information
S-182 53 Danderyd, Sweden 10.2 FCC interference statement Tobii Pro Nano has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 25: Ised Statement
Connect Tobii Pro Nano into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Modifications not expressly approved by Tobii AB could void the user’s authority to operate Tobii Pro Nano under FCC rules. -
Page 26: Emc Compliance
Tobii Pro Nano is marked with the crossed-out wheeled bin symbol, which indicates that it must not be disposed of with household waste. You can return your used Tobii Pro Nano to one of the municipality's recycling centers free of charge. -
Page 27: Appendix A Customer Care, Training, And Warranty
Training and education services If you are new to eye tracking, or want to extend your knowledge about eye tracking research, sign up for one of our online sessions, onsite trainings, Tobii Academy, and more on Training and education services. -
Page 28: Appendix B Limitations And Considerations
Limitations and considerations Intended use Tobii Pro eye trackers are intended to be used in research activities about human behavior including eye movements, in a dry and dust free indoor environment. The product should only be used as described in this User’s Manual. Please read the User Manual and other supplied documentation thoroughly before using the product. -
Page 29: Appendix C Glossary
Freedom of head Describes the region in space where the participant may move his/her movement head and still have at least one eye within the eye tracker’s field of view Tobii Pro Nano User Manual v2.3... - Page 30 (Root Mean Square), calculated on raw data. For more details on how precision is calculated, please read your eye tracker's Data Quality Test Report on tobii.com. Sampling frequency The number of data samples per second output for each eye.
- Page 31 This information is then combined with different parameters from a 3D model of the eye and used to map the gaze onto the stim- ulus. Tobii Pro Nano User Manual v2.3...
- Page 32 Copyright ©Tobii AB (publ). Not all products and services offered in each local market. Specifications are subject to change without prior notice. All trademarks are the property of their respective owners. Support for your Tobii product Get help Visit Tobii Connect for help with your Tobii device.
