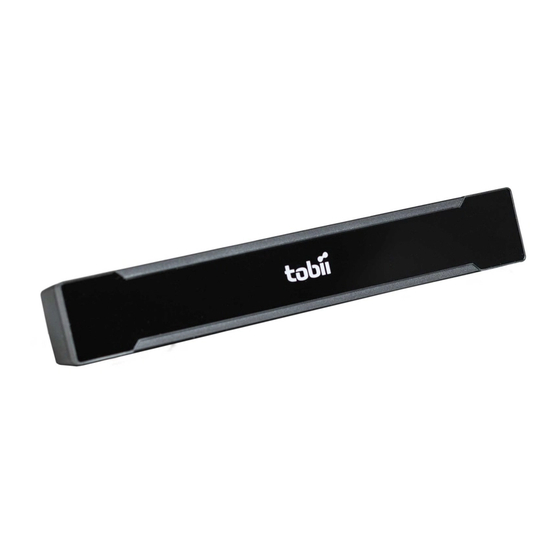

Tobii X2-30 Eye Tracker Compact Edition
Tobii X2-30 Eye Tracker Wide Edition
Tobii X2-60 Eye Tracker Compact Edition
Tobii X2-60 Eye Tracker Wide Edition

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X2-30 Eye Tracker Compact Edition and is the answer not in the manual?

Questions and answers

Summary of Contents for Tobii X2-30 Eye Tracker Compact Edition

  • Page 1 Product Description Tobii X2-30 Eye Tracker Compact Edition Tobii X2-30 Eye Tracker Wide Edition Tobii X2-60 Eye Tracker Compact Edition Tobii X2-60 Eye Tracker Wide Edition...
  • Page 2 © Tobii Technology AB The information contained in this document is proprietary to Tobii Technology. Any reproduction in part or whole without prior written authorization by Tobii Technology is prohibited. Products that are referred to in this document may be either trademarks and/or registered trademarks of the respective owners.
  • Page 3: Table Of Contents

    Typical Tobii X2 Eye Tracker Screen Setups ................9 4.1.1 Local Live Viewer ....................9 Typical Tobii X2 Eye Tracker Physical Object Setup ..............10 4.2.1 External video stimulus recording................10 A A p p p p e e n n d d i i x x A A : : G G l l o o s s s s a a r r y y ................................................. . 1 1 1 1 A A p p p p e e n n d d i i x x B B : : A A c c c c u u r r a a c c y y a a n n d d P P r r e e c c i i s s i i o o n n M M e e a a s s u u r r e e m m e e n n t t s s .
  • Page 5: Overview

    Overview This document describes the features and functionality of the Tobii X2 Eye Trackers. The X2 Eye Tracker is a stand alone eye tracker that can be used in various setups by attaching it to monitors, laptops or for performing eye tracking on physical objects.
  • Page 6: Applications Areas

    Basic Operating Principles During tracking, Tobii Eye Trackers use infrared diodes to generate reflection patterns on the corneas of the subject’s eyes. These reflection patterns, together with other visual data about the subject, are collected by image sensors. Sophisticated image processing algorithms identify relevant features, including the eyes and the corneal reflection patterns.
  • Page 7: 2 T T E E C C H H N N I I C C A A L L S S P P E E C C I I F F I I C C A A T T I I O O N N S

    Appendix B: Accuracy and Precision Measurements . A glos- sary can be found at Appendix A: Glossary . Tobii X2–30 Eye Trackers Table 2.1 Gaze Accuracy (Preliminary) T T o o b b i i i i X X 2 2 - - 3 3 0 0 E E y y e e T T r r a a c c k k e e r r C C o o m m p p a a c c t t E E d d i i t t i i o o n n T T o o b b i i i i X X 2 2 - - 3 3 0 0 E E y y e e T T r r a a c c k k e e r r W W i i d d e e E E d d i i t t i i o o n n ( ( f f i i r r m m w w a a r r e e v v e e r r s s i i o o n n 0 0 .
  • Page 8 As the Tobii X2-30 Eye Trackers have a variable and low sampling rate, they are not suitable for detailed studies of the onset or durations of fixations, saccades or other measures requiring high temporal and stable sampling precision.
  • Page 9: Tobii X2-60 Eye Trackers

    Mounting tape kit USB extension cable Zipper bag Zipper bag Tobii X2-30 Eye Tracker USB memory stick containing the Tobii X2-30 Eye Tracker USB memory stick containing the Tobii Eye Tracker Installer. Tobii Eye Tracker Installer. Tobii X2-30 Eye Tracker user manual...
  • Page 10: D D A A T T A A S S A A M M P P L L E E O O U U T T P P U U T

    Tripod and desks package for Tripod and desks Table 2.5 Tobii X2-60 Eye Tracker external processing unit C C o o n n n n e e c c t t o o r r s s USB 2.0, LAN and power connector S S i i z z e e 116.6 x 112 x 39 mm (4.6 x 4.4 x 1.55’’)
  • Page 11 Mounting tape kit USB extension cable Zipper bag Zipper bag Tobii X2-60 Eye Tracker USB memory stick containing the Tobii X2-60 Eye Tracker USB memory stick containing the Tobii Eye Tracker Installer. Tobii Eye Tracker Installer. Tobii X2-60 Eye Tracker user manual...
  • Page 12 (SDK) product description, version 3.0 or later. Below is a list of data that can be accessed through the output of the eye tracker. In Tobii Studio™ analysis software this data can be accessed through a Data export function, and easily imported into a spreadsheet for further analysis. Please note that some of the parameter names differs between what is delivered from the SDK and what is available in the Tobii Studio™...
  • Page 13: 4 E E Y Y E E T T R R A A C C K K I I N N G G S S E E T T U U P P S

    Tobii Studio. The setups below do not include the user camera and user sound. S S i i n n g g l l e e S S c c r r e e e e n n S S e e t t u u p p s s...
  • Page 14: Typical Tobii X2 Eye Tracker Physical Object Setup

    Tobii Studio and use the Screen Recording option in Tobii Studio. For this setup, the image from the Tobii Studio computer has to be displayed on the screen during calibration (to display the cali- bration points).
  • Page 15 Appendix A: Glossary M M o o n n o o c c u u l l a a r r / / b b i i n n o o c c u u l l a a r r Monocular data shown is based on data from each eye individually.
  • Page 16: B:1 Gaze Precision

    B:1 Gaze Precision Precision measurements are done using artificial eyes to eliminate artifacts from human eye movements. Tobii specifies precision both with and without noise reduction filters. All measurements are done at the default sampling rate of the eye tracker and at the optimum distance between the eye tracker and the subject.
  • Page 17: C:1 Fcc Statement

    The Tobii X2 Eye Trackers should be mounted according to instructions for approved mounts . However, should the device for any reason harm or damage someone or something due to falling or other. Neither Tobii nor any of its representatives will be responsible or liable for any damages or injuries which may arise. The mounting of the Tobii X2 Eye Trackers is done entirely at the user’s own risk.
  • Page 18: C:5 Infrared Warning

    When activated, the Tobii X2 Eye Trackers emits pulsed infrared (IR) light. Certain medical devices are susceptible to disturbance by IR light and/or radiation. Do not use the Tobii X2 Eye Trackers when in the vicinity of such susceptible medical devices as their accuracy or proper functionality could be inhibited.
  • Page 20 CENTRAL EUROPE CHINA JAPAN NORTH AMERICA Tobii Technology AB Tobii Technology GmbH Tobii China - Sales Office Tobii Technology Japan, Ltd Tobii Technology, Inc. Karlsrovägen 2D S-182 53 Danderyd Niedenau 45 D-60325 Frankfurt am Main Room E2, 29/F 3-4-13 Takanawa, Minato-ku...
