USB 300 / USB 300C
USB Gateway for EnOcean Radio

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USB 300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EnOcean USB 300

Summary of Contents for EnOcean USB 300

  • Page 1 USB 300 / USB 300C USB Gateway for EnOcean Radio...
  • Page 2 USB 300 and USB 300C are designed and produced as OEM products. They will be brought to market by local OEM manufacturers. They are not considered to be finished end products in terms of WEEE (elec- tronic waste regulation).

  • Page 3: Table Of Contents

    Block Diagram and Protocol Layers ................8 Documentation of Protocols and EnOcean Profiles ............. 9 Additional Features of USB 300................10 First Steps with USB 300 and DolphinView Basic ............. 11 Restrictions and Hints ....................12 Approvals ......................... 14 CE and R&TTE conformity (European Union) ..............14 FCC (US) ........................

  • Page 4: Introduction

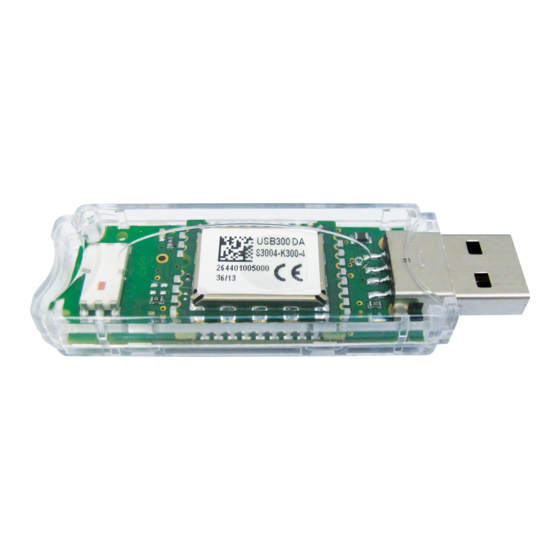

    USB 300 / USB 300C User Manual 1 Introduction USB 300 is a small USB stick which connects PC’s, consumer devices, DSL boxes and other USB master devices to the world of EnOcean based radio products. USB 300 is equipped with the TCM 310 transceiver module and the gateway controller software.
  • Page 5 TCM 310 user manual: http://www.enocean.com/en/enocean_modules/tcm-310 USB 300 is available for 868 MHz and 315 MHz: USB 300 (868MHz) has been CE certified and conforms to the • R&TTE EU directive on radio equipment USB 300C (315MHz) conforms to the FCC / IC requirements •...

  • Page 6: Technical Data & Environmental Conditions

    USB 300 / USB 300C User Manual 2 Technical Data & Environmental Conditions Dimensions: 66 x 23 x 9mm (incl. transport cap 70 x 23 x 9mm) OEM label size: 39 x 12mm Weight: Operation temperature: 0°C +40°C Storage temperature: -25°C -...
  • Page 7 Housing: PCB: Rx/Tx LED (optional) TCM 310(C) Power LED (optional) V1.1 November 2011 Page 7...

  • Page 8: Block Diagram And Protocol Layers

    USB 300 / USB 300C User Manual Block Diagram and Protocol Layers USB 300 Host Sensor/ Actuator EnOcean USB<>UART UART 310(C) Interface Radio FTDI EnOcean FTDI Virtual FT232R Gateway COM Port Host Sensor/ Controller Actuator FTDI Virtual EnOcean COM Port...

  • Page 9: Documentation Of Protocols And Enocean Profiles

    • data communication. A description of ESP 3 is available at: http://www.enocean.com/en/knowledge-base/ USB 300 is based on a TCM 310 radio module, specific features and commands are described at: http://www.enocean.com/en/enocean_modules/tcm-310/ The content of EnOcean radio telegrams is standardized by the EnOcean •...

  • Page 10: Additional Features Of Usb 300

    USB 300 / USB 300C User Manual 5 Additional Features of USB 300 USB 300 can be used as repeater of EnOcean telegrams; this will ex- • pand the range of radio devices. Repeater command has to be sent after every power up.

  • Page 11: First Steps With Usb 300 And Dolphinview Basic

    First Steps with USB 300 and DolphinView Basic Register download and install DolphinView Basic: http://www.enocean.com/en/download/ Plug USB 300 into free USB port the PC. Start DolphinView Basic and connect to COM port Press self-powered switch or learn button of sensor, DolphinView Basic will display telegram V1.1...

  • Page 12: Restrictions And Hints

    USB 300(C) should not be exposed to rapid temperature changes shortly before or during operation. Condensation of moisture might damage the device. USB 300(C) is not intended to be used in rough environment with heavy • vibrations or mechanical shocks.
  • Page 13 Any USB 300 configurations done by ESP3 commands (e.g. repeater on, • filter, maturity time) will be lost in case of power off. If you need these configurations permanent, make sure USB 300 has continues power or resend commands after power down.

  • Page 14: Approvals

    8 Approvals CE and R&TTE conformity (European Union) USB 300 (868Mhz) conforms to CE and to the R&TTE EU directive on radio equipment. The device conforms to the European and national requirements of electromagnetic compatibility. The conformity has been proven and the according documentation has been deposited at EnOcean.
  • Page 15 6.3 RoHS EnOcean certifies that to its knowledge, USB 300 and USB 300C, are RoHS compliant, conforming to the requirements of “Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003 on the restriction of the use of certain hazardous substances in electrical and electronic equip- ment.”...
