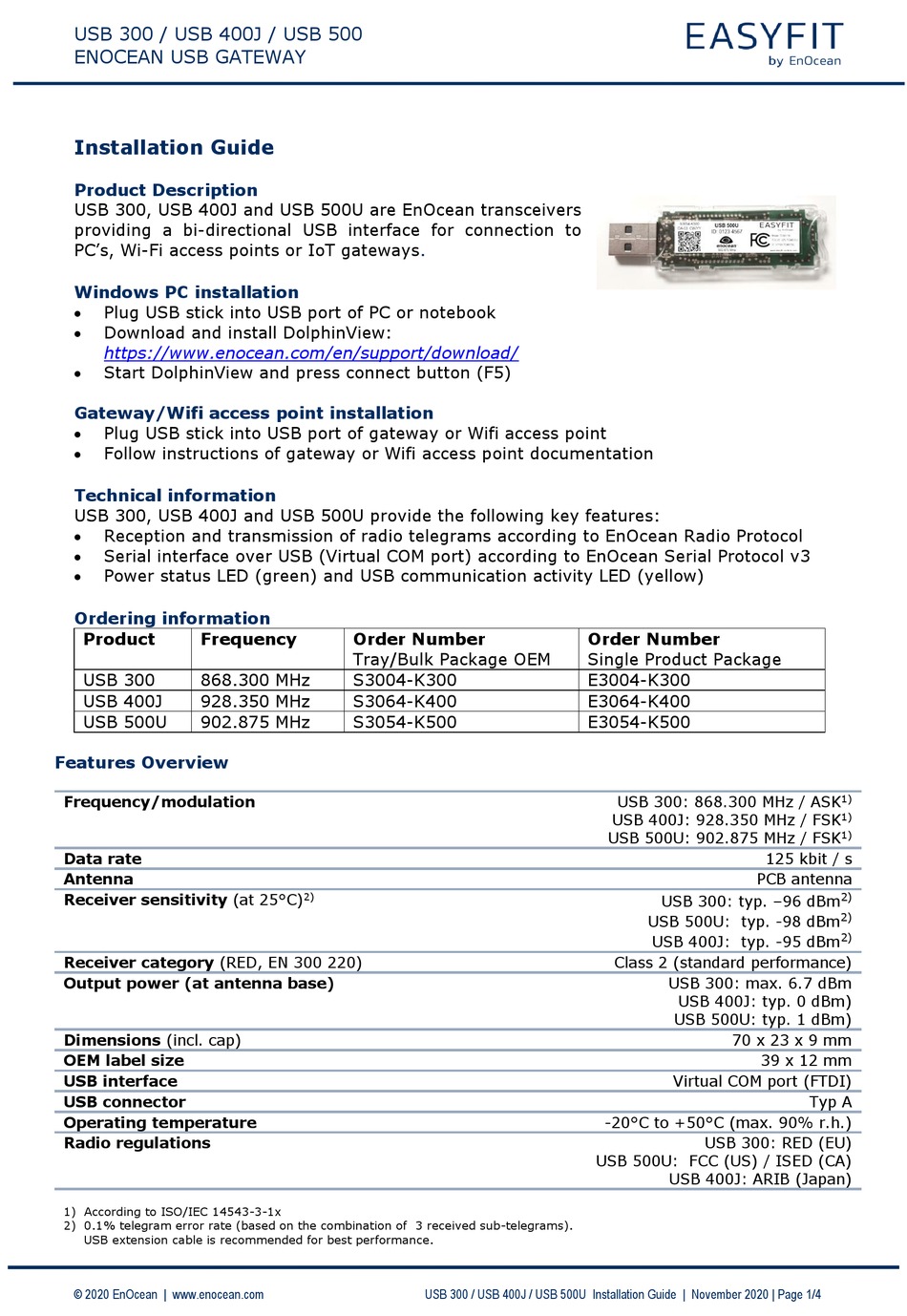

USB 300 / USB 400J / USB 500
ENOCEAN USB GATEWAY
Installation Guide

Product Description

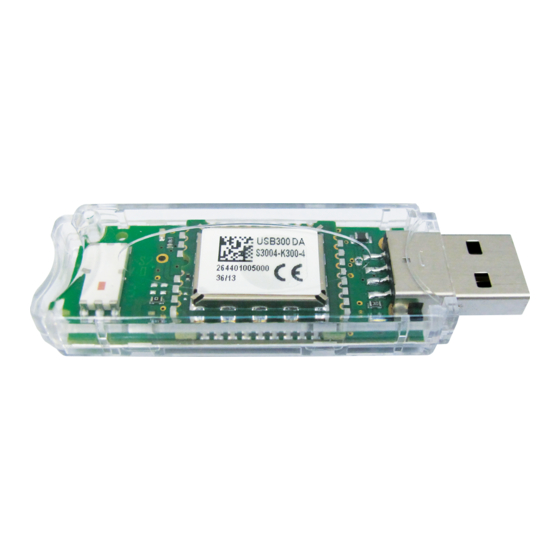

USB 300, USB 400J and USB 500U are EnOcean transceivers
providing a bi-directional USB interface for connection to
PC's, Wi-Fi access points or IoT

Windows PC installation

 Plug USB stick into USB port of PC or notebook
 Download and install DolphinView:
https://www.enocean.com/en/support/download/
 Start DolphinView and press connect button (F5)

Gateway/Wifi access point installation

 Plug USB stick into USB port of gateway or Wifi access point
 Follow instructions of gateway or Wifi access point documentation

Technical information

USB 300, USB 400J and USB 500U provide the following key features:
 Reception and transmission of radio telegrams according to EnOcean Radio Protocol
 Serial interface over USB (Virtual COM port) according to EnOcean Serial Protocol v3
 Power status LED (green) and USB communication activity LED (yellow)

Ordering information

Product Frequency
USB 300 868.300 MHz
USB 400J 928.350 MHz
USB 500U 902.875 MHz

Features Overview

Frequency/modulation
Data rate
Antenna
Receiver sensitivity (at 25°C)
Receiver category (RED, EN 300 220)
Output power (at antenna base)
Dimensions (incl. cap)
OEM label size
USB interface
USB connector
Operating temperature
Radio regulations
1) According to ISO/IEC 14543-3-1x
2) 0.1% telegram error rate (based on the combination of 3 received sub-telegrams).
USB extension cable is recommended for best performance.
© 2020 EnOcean | www.enocean.com
gateways.
Order Number
Tray/Bulk Package OEM
S3004-K300
S3064-K400
S3054-K500
2)
USB 300 / USB 400J / USB 500U Installation Guide | November 2020 | Page 1/4
Order Number
Single Product Package
E3004-K300
E3064-K400
E3054-K500
USB 300: 868.300 MHz / ASK
USB 400J: 928.350 MHz / FSK
USB 500U: 902.875 MHz / FSK
PCB antenna
USB 300: typ. –96 dBm
USB 500U: typ. -98 dBm
USB 400J: typ. -95 dBm
Class 2 (standard performance)
USB 300: max. 6.7 dBm
USB 400J: typ. 0 dBm)
USB 500U: typ. 1 dBm)
70 x 23 x 9 mm
Virtual COM port (FTDI)
-20°C to +50°C (max. 90% r.h.)
USB 300: RED (EU)
USB 500U: FCC (US) / ISED (CA)
USB 400J: ARIB (Japan)
1)
1)
1)
125 kbit / s
2)
2)
2)
39 x 12 mm
Typ A
