Nexcom Peak 703P Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

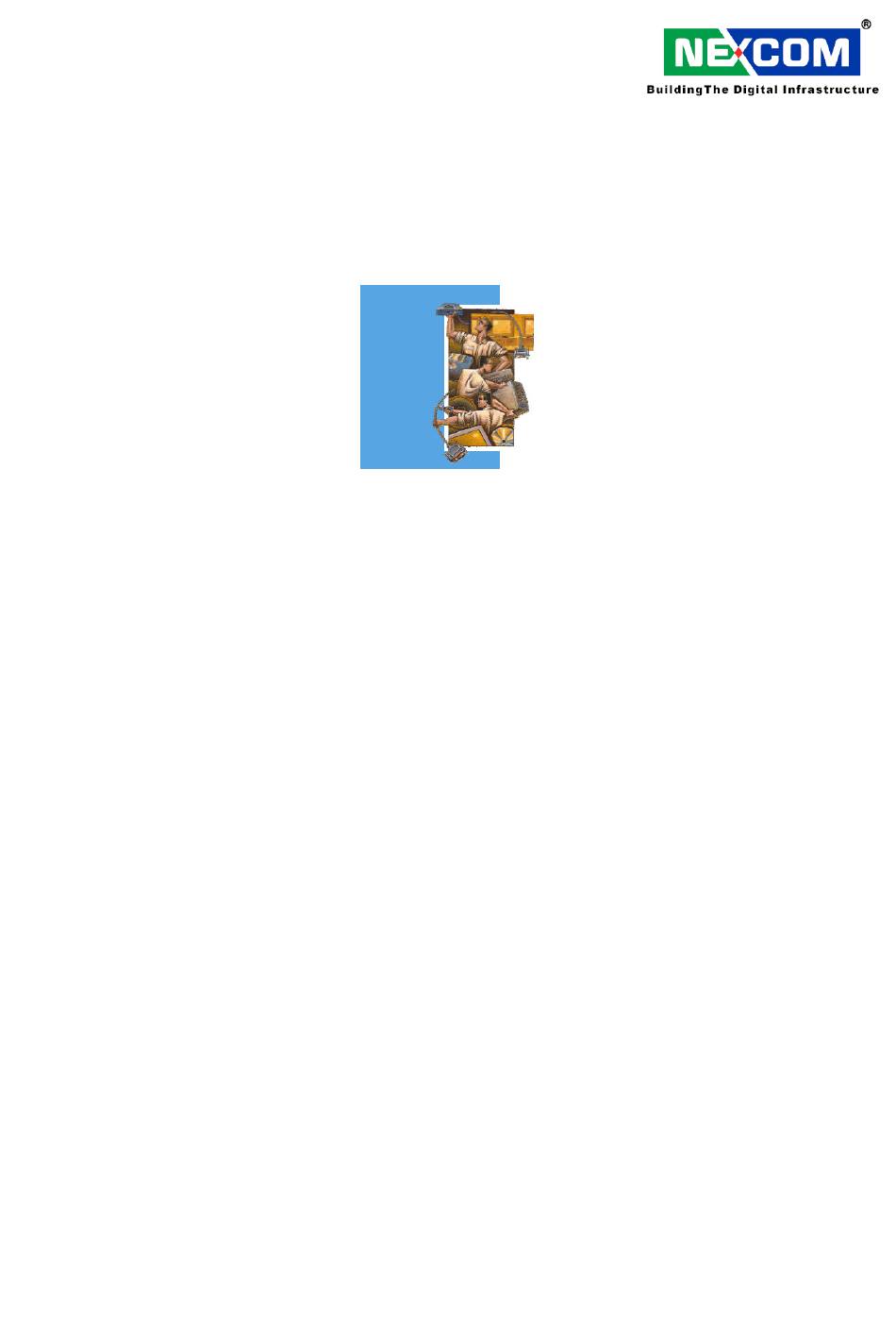

www.nexcom.com
Single Board Computer
Peak 703P Series
User's Manual
2005-08 Edition

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Peak 703P Series and is the answer not in the manual?

Questions and answers

Related Manuals for Nexcom Peak 703P Series

Summary of Contents for Nexcom Peak 703P Series

  • Page 1 Single Board Computer Peak 703P Series User’s Manual 2005-08 Edition...

  • Page 2: Preface

    Any implied warranties of merchantability of fitness for any particular purpose is also disclaimed. Acknowledgements The Peak 703P series is a trademark of NEXCOM international CO., LTD. All other product names mentioned herein are registered trademarks of their respective owners. Regulatory Compliance Statements This section provides the FCC compliance statement for Class A devices and describes how to keep the system CE compliant.

  • Page 3: Ce Certification

    CE Certification The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques. WARNINGS Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory...

  • Page 4: Table Of Contents

    Table of Content Preface ..............................1 Copyright ..............................1 Disclaimer ...............................1 Acknowledgements ...........................1 Regulatory Compliance Statements ..................1 Federal Communications Commission (FCC) For Class A Device ....1 CE Certification ..........................2 Safety Information ..........................2 Table of Content ..........................3 Chapter 1 General Information 1.1 Features.............................7 1.2 Specification .............................7 1.3 Power Consumption Measurement ....................9 1.4 Board Layout ..........................10...
  • Page 5 3.2 Installing Compact Flash ......................29 3.3 Installing Intel Pentium-M CPU and Fan Heatsink..............30 Chapter 4 Award BIOS Setup 4.1 About the BIOS ...........................33 4.2 When to Run BIOS ........................33 4.3 Entering Setup..........................34 4.4 The Main Menu...........................34 4.5 Getting Help ..........................35 4.6 Control Keys ..........................36 4.7 Standard CMOS Features ......................37 4.8 Advanced BIOS Features ......................38...
  • Page 6 Peak 703P User’s Manual...

  • Page 7: Chapter 1 General Information

    Chapter 1 General Information Peak 703P User’s Manual Chapter 1...

  • Page 8: Features

    1.1 Features The Peak 703P is a member of NEXCOM’s P4-based SBC family. The features of this model are as follows: Socket 478 / uFCBGA2 479 for Intel® Pentium® M / Celeron® M Processor up to 2GHz+ with • 400 MHz FSB Intel®...
  • Page 9 - Internal LVDS: Support 18/24bit single pixels or 18-bit dual pixels LVDS panel (Resolution support up to 1280 x 1024) - Dual Display : Simultaneous Scan-CRT + LVDS LCD, Dual View-CRT+LVDS LCD I/O Interface - 5-pin for key lock - Serial port: 40-pin box headerx1 support RS232 x 4 (optional COM2 RS232/422/485 by switch) - USB 2.0 portx4 - HDD: Ultra ATA 100/66/33 support, 40 pin connector x1...

  • Page 10: Power Consumption Measurement

    1.3 Power Consumption Measurement Test Condition : Win2000 HCT9.5 and KPower Test Equipment : Pentium-M 2.0GHz DRAM Model P/N and Size Apacer 78.92046.561\512MB HDD Model P/N DJSA-210 Power Supply Model P/N ST-300GL Power Rail +12V +3.3V Power Consumed 0.12A 6.9A Peak 703P User’s Manual Chapter 1...

  • Page 11: Board Layout

    1.4 Board Layout Figure 1.1: Birdeye’s View of the Peak 703P Peak 703P User’s Manual Chapter 1...

  • Page 12: Board Dimensions

    1.5 Board Dimensions Figure 1.2: Mechanical Drawing of the Peak 703P Peak 703P User’s Manual Chapter 1...

  • Page 13: Chapter 2 Jumper Setting

    Chapter 2 Jumper Setting Peak 703P User’s Manual Chapter 2...

  • Page 14: Before You Begin

    This chapter of the User’s Manual describes how to set jumpers. Note: The procedures that follow are generic for all Peak 703P series. 2.1 Before You Begin Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction.

  • Page 15: Setting Jumpers

    2.3 Setting Jumpers A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is SHORT.

  • Page 16: Location Of Jumpers

    2.4 Location of Jumpers Figure 2-1: Jumper Location 2.5 Function of Jumper Function Function 2x10 Connector for LVDS interface (18bit) JP2 1x3 2.0mm Pin Header for FSB Select 1x6 2.0mm JST Connector for LVDS Inverter JP3 1x2 2.0mm Pin Header for HDD LED 1x6 AT Power Connector JP4 1x3 2.0mm Pin Header for On Board RTC 1x3 JST Connector for FAN...

  • Page 17: Pin Definition

    2.6 Pin Definition 1. J1: 2x10 Connector for LVDS interface (18bit) Pin No. Description Pin No. Description LVDS_DDCPCLK LVDS_DDCPDATA PANEL1_VDD LVDS_YAP0 LVDS_YAP3 LVDS_YAM0 LVDS_YAM3 PANEL1_VDD LVDS_YAP1 LVDS_CLKAP LVDS_YAM1 LVDS_CLKAM PANEL1_BACKLIGHT LVDS_YAP2 PANEL1_BACKLIGHT LVDS_YAM2 2. J2: 1x6 2.0mm JST Connector for LVDS Inverter Pin No Definition PANEL1_BACKLIGHT...
  • Page 18 4. J4: 1x3 JST Connector for FAN Pin No Definition FAN_VCC FAN_TAC 5. J5: 1x3 JST Connector for ATX Power Pin No Definition ATX5VSB PSON# 6. J6: 1x4 2.0mm Pin Header for External Speaker Pin No Definition SPEAKER 7. LAN1: RJ45 Connector for LAN Interface Pin No Definition Pin No...
  • Page 19 Pin No. Description Pin No. Description SP_DCD1 SP_DSR1 SP_RXD1 SP_RTS1 SP_TXD1 SP_CTS1 SP_DTR1 SP_RI1 SP_DCD2 SP_DSR2 SP_RXD2 SP_RTS2 SP_TXD2 SP_CTS2 SP_DTR2 SP_RI2 SP_DCD3 SP_DSR3 SP_RXD3 SP_RTS3 SP_TXD3 SP_CTS3 SP_DTR3 SP_RI3 SP_DCD4 SP_DSR4 SP_RXD4 SP_RTS4 SP_TXD4 SP_CTS4 SP_DTR4 SP_RI4 9. JP2 : 1x3 2.0mm Pin Header for FSB Select Pin No Definition 1, 2 Short...
  • Page 20 Default 11. JP5: 1x2 2.0mm Pin Header for Power Button Pin No Definition PWRBT# 12. JP6: 1x2 2.0mm Pin Header for Hardware Reset Pin No Definition RESET# 13. JP7: 1x6 2.54mm Pin Header for CPLD Programming JTAG Pin No Definition +3.3VSBY 14.
  • Page 21 16. JP10: 2x4 2.0mm Pin Header for Digital IO Pin No. Description Pin No. Description Digital Input 1 Digital Output 1 Digital Input 2 Digital Output 2 Digital Input 3 Digital Output 3 Digital Input 4 Digital Output 4 17. JP11: 2x4 2.0mm Pin Header for USB Port 2-3 Pin No Definition Pin No...
  • Page 22 Pin No Definition Pin No Definition STB# AFD# ERR# INIT# SLIN# ACK# BUSY SLCT 21. JP14: 1x4 2.54mm Pin Header for Audio Line In Pin No Definition Line In Left Audio GND Line In Right 22. JP15: 1x4 2.54mm Pin Header for Audio Mic In Pin No Definition Mic In 1...
  • Page 23 Pin No Definition 1, 2 Short 533MHz *1, 2 Open 400MHz Default 24. JP18: 1x2 2.0mm Pin Header for Thermal Alert LED Pin No Definition VCC5 Thermal Alert 25. USB1: 1x6 2.0mm JST Connector for USB Port 2 Pin No Definition USBP2- USBP2+...
  • Page 24 Pin No Definition LKBDAT LMDAT KGND KB/MS_VCC LKBCLK LMCLK KGND KGND KGND 28. IDE1: 2x20 2.54mm Box Header for IDE Device Pin No Definition Pin No Definition RESET# DDRQ0 IOW# IOR# IORDY# DDACK0 IRQ14 P66DET HDCS1# HDCS3# HDACT# Peak 703P User’s Manual Chapter 2...
  • Page 25 29. VGA1: DB-15 Connector for CRT Interface Definition Pin No Definition ANA-GND ANA-GND GREEN DDCDAT ANA-GND BLUE HSYNC VSYNC DIG-GND DIG-GND DDCCLK Peak 703P User’s Manual Chapter 2...
  • Page 26 Peak 703P User’s Manual...

  • Page 27: Chapter 3 Expansion Capability

    Chapter 3 Expansion Capability Peak 703P User’s Manual Chapter 3...

  • Page 28: Installing Sodimm

    3.1 Installing SODIMM 1. Always turn off your computer and remove the rechargeable battery pack before installing your Kingston memory. 2. Insert the module into the socket at a slight angle (approximately 30 degrees). Note that the socket and module are both keyed, which means the module can be installed one way only. Figure 3-1: How to Install SODIMM (1) 3.
  • Page 29 4. With the module properly seated in the socket, rotate the module downward, as indicated in the illustration. Continue pressing downward until the clips at each end of the socket lock into position. With most sockets, you will hear a distinctive CLICK, indicating the module is correctly locked into position.

  • Page 30: Installing Compact Flash

    3.2 Installing Compact Flash 1. To install a Compact Flash memory card into PEAK 703P, align the notches on the card with the Compact Flash socket in the PEAK 703P. Then firmly insert the card into the socket until it is completely seated.

  • Page 31: Installing Intel Pentium-M Cpu And Fan Heatsink

    3.3 Installing Intel Pentium-M CPU and Fan Heatsink Below is the installation instruction: Note: Prepare a slot type screwdriver before starting the installation process. Step 1: Be sure that the beveled corner of the CPU as shown in the picture is aligned with that of the socket.
  • Page 32 Step 3: Apply the heatsink ointment to the location on the CPU as indicated by the arrow. Figure 3-8: How to Install CPU (3) Step 4: Attach the heatsink onto the CPU. The exhaust opening should face the Northbridge. Connect the power connector to the jumper and tighten the four screws as shown.

  • Page 33: Chapter 4 Award Bios Setup

    Chapter 4 Award BIOS Setup Peak 703P User’s Manual Chapter 4...

  • Page 34: About The Bios

    BIOS modification in the future. User can download any major updated items or reversion from NEXCOM web site http://www.nexcom.com.tw. If any unclear message occurs, please contact NEXCOM customer service representative for help or log onto http://www.nexcom.com.tw/contact/contact.htm.

  • Page 35: Entering Setup

    4.3 Entering Setup When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways: If the error occurs before the display device is initialized, a series of beeps will be transmitted.

  • Page 36: Getting Help

    Use this menu to set the Advanced Features available on the system. Advanced Chipset Features Use this menu to change the values in the chipset registers and optimize the system’s performance. Integrated Peripherals Use this menu to specify your settings for integrated peripherals. Power Management Setup Use this menu to specify your settings for power management.

  • Page 37: Control Keys

    4.6 Control Keys The table below lists the keys that help you navigate the setup program. Up arrow Move to previous item Down arrow Move to next item Left arrow Move to the item to the left Right arrow Move to the item to the right Esc key Main Menu: Quit without saving changes to CMOS Status/Option Page Setup Menus: Exit current page and...

  • Page 38: Standard Cmos Features

    4.7 Standard CMOS Features Selecting Standard CMOS Features on the main program screen displays the following menu: Figure 4-2: BIOS – Standard CMOS Features The Standard CMOS Setup utility is used to configure the following features: Date (mm:dd:yy) The BIOS determines the day of the week from the other data information. This field is for information only.

  • Page 39: Advanced Bios Features

    Cylinder Number of cylinders Head Number of heads Precomp Write pre-compensation cylinder Landing Zone Landing zone Sector Number of sector Refer to your drive’s documentation or look on the drive if you need to obtain this information. If no device is installed, change the value to None. Video Set this field to the type of graphics card installed in your system.
  • Page 40 Figure 4-3: BIOS – Advanced BIOS Features The following explains the options for each feature: Virus Warning Allow you to choose the Virus Warning feature for IDE Hard Disk boot sector protection. If this function is enabled and someone attempts to write data into this area, BIOS will show a warning message on screen and an alarm will beep.

  • Page 41: Advanced Chipset Features

    This BIOS feature is used to enable or disable the processor' s Level 1, Level 2 and Level 3 cache. Naturally, the default and recommended setting is Enabled. Note: This field will be available only if your CPU supports this function. First/Second/Third Boot Device BIOS attempts to load the operating system from the devices in the sequence selected.
  • Page 42 default settings have been chosen because they provide the best operating conditions for your system. The only time you might consider making any changes would be if you discovered that data was being lost while using your system. The first chipset settings deal with CPU access to dynamic random access memory (DRAM). The default timings have been carefully chosen and should only be altered if data is being lost.

  • Page 43: Integrated Peripherals

    On-Chip VGA By default, the On-Chip VGA or chipset-integrated VGA is Enabled. On-Chip Frame Buffer Size The On-Chip Frame Buffer Size can be set as 1, 4, 8, 16 or 32MB. This memory is shared with the system memory. Boot Display Boot Display determines the display output device where the system boots.
  • Page 44 This feature allows you to manually select the I/O address and IRQ for the first, second, third and forth serial ports. It is recommended that you leave it as Auto so that the BIOS can select the best settings for it. But if you need a particular I/O port or IRQ that' s been taken up by this serial port, you can manually select an alternative I/ O port or IRQ for it.
  • Page 45 Onboard Device USB Controller Select Enabled if your system contains a Universal Serial Bus controller and you have USB peripherals. USB 2.0 Controller Select Enabled if your system contains a Universal Serial Bus 2.0 controller and you have USB 2.0 peripherals.

  • Page 46: Power Management Setup

    UR2 Duplex Mode In an infrared port mode, this field appears. Full-duplex mode permits simultaneous two-direction transmission. Half-duplex mode permits transmission in one direction only at a time. Select the value required by the IR device connected to the IR port. Onboard Parallel Port This feature allows you to select the I/O address and IRQ for the onboard parallel port.
  • Page 47 Power-Supply Type Switch to ATX if it is an ATX power supply type. Auto Power-Failure Resume This setting specifies whether your system reboots after a power failure. There are three selections: Off: The system will remain off when power comes back after a power failure. On: The system will switch on when power comes back after a power failure.
  • Page 48 synchronization port and write blanks to the video buffer. 2. Blank Screen: This option only writes blanks to the video buffer. 3. DPMS Support: Select this option if your monitor supports the Display Power Management signaling (DPMS) standard of the Video Electronics Standard to select video power management values. Video Off In Suspend This determines the manner in which the monitor is blanked.

  • Page 49: Pnp/Pci Configurations

    After you have made your selections in the Power Management setup, press the <ESC> key to go back to the main program screen. 4.12 PnP/PCI Configurations This section describes configuring the PCI bus system. Peripheral Component Interface is a system which allows I/O devices to operate at speeds nearing the speed the CPU itself uses when communicating with its own special components.

  • Page 50: Pc Health Status

    4.13 PC Health Status When main boards support hardware monitoring, this item lets you monitor the parameters for critical voltages, critical temperatures, and fan speeds. These are the read only items. After you have read the PC Health Status, press the <ESC> key to go back to the main program screen. Figure 4-8: PC Health Status 4.14 Load Fail-Safe Defaults This option opens a dialog box that lets you install fail-safe defaults for all appropriate items in the whole...

  • Page 51: Set Password

    4.16 Set Password The User Password utility sets the password. The main board is shipped with the password disabled. If you want to change the password, you must first enter the current password, then at the prompt enter your new password. The password is case sensitive. You can use up to eight alphanumeric characters. Press <Enter>...
  • Page 52 Peak 703P User’s Manual Chapter 4...

  • Page 53: Appendix Aio Port Address Map

    Appendix A IO Port Address Map Peak 703P User’s Manual Appendix A...

  • Page 54: Io Port Address Map

    A.1 IO PORT ADDRESS MAP ADDRESS RANGE Function [00000022 - 0000003F] Motherboard resources [00000040 - 00000043] System timer [00000044 - 0000005F] Motherboard resources [00000060 - 00000060] Standard 101/102-Key or Microsoft Natural PS/2 Keyboard [00000061 - 00000061] System Speaker [00000062 - 00000063] Motherboard resources [00000064 - 00000064] Standard 101/102-Key or Microsoft Natural PS/2 Keyboard...
  • Page 55 [00000290 - 0000029F] Motherboard resources [000002E0 - 000002E0] Motherboard resources [000002E8 - 000002EF] Communications Port(COM4) [000002F8 - 000002FF] Communications Port (COM2) [00000376 - 00000376] Secondary IDE Channel [00000378 - 0000037F] Print Port (LTP1) [000003B0 - 000003BB] Inter®82852/82855 GM/GME Graphics Controller [000003C0 - 000003DF] Inter®82852/82855 GM/GME Graphics Controller [000003E8 - 000003EF]...
  • Page 56 Peak 703P User’s Manual...

  • Page 57: Appendix Bgpi/O Programming

    Appendix B GPI/O Programming Peak 703P User’s Manual Appendix B...

  • Page 58: Programming The Gpi/O

    B.1 Programming the GPI/O This appendix provides definitions for the four GPI/O pins in the Peak 703P series. GPI/O (General Purpose Input/Output) pins are provided for custom system design. The pin programming as input mode (GPI) or output mode (GPO) is depending on the configuration. The GPIO of Peak703P is JP10 2x4 2.0mm Pin Header.

  • Page 59: Appendix C Watchdog Timer

    Appendix C Watchdog Timer Peak 703P User’s Manual Appendix C...

  • Page 60: Watchdog Timer Working Procedure

    C.1 Watchdog Timer Working Procedure The Watchdog Timer (WDT) is a special hardware device that monitors the computer system during normal operation. The WDT has a clock circuit that times down from a set number to zero. If a monitored item occurs before the timer reaches zero, the WDT resets and counts down again.

  • Page 61: Watchdog Timer Control Register

    C.2 Watchdog Timer Control Register The Watchdog Timer Control Register controls the EDT working mode. Write the value to the WDT Configuration Port. The following table describes the Control Register bit definition. Table C-2 : WDT Control Register Bit Definition C.3 Watchdog Timer Programming Procedure Power On or Reset the System The initial value of WDT Control Register (D4~D0) is zero, when power is on or reset the system.
  • Page 62 Clear the WDT The WDT counter internal cannot be longer than the preset time; otherwise, the WDT generates a NMI (Non Maskable Interrupt) or sends a reset signal to the system. Note: Before running WDT, clear the WDT to make sure the initial value is zero before enabling the WDT.
