Dimplex B075E Instruction Manual

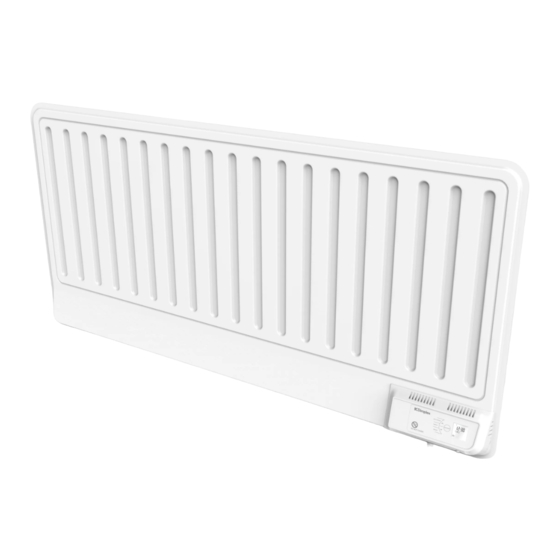

Mk1 oil-filled panel radiator
Hide thumbs Also See for B075E:
Table of Contents

Advertisement

Quick Links

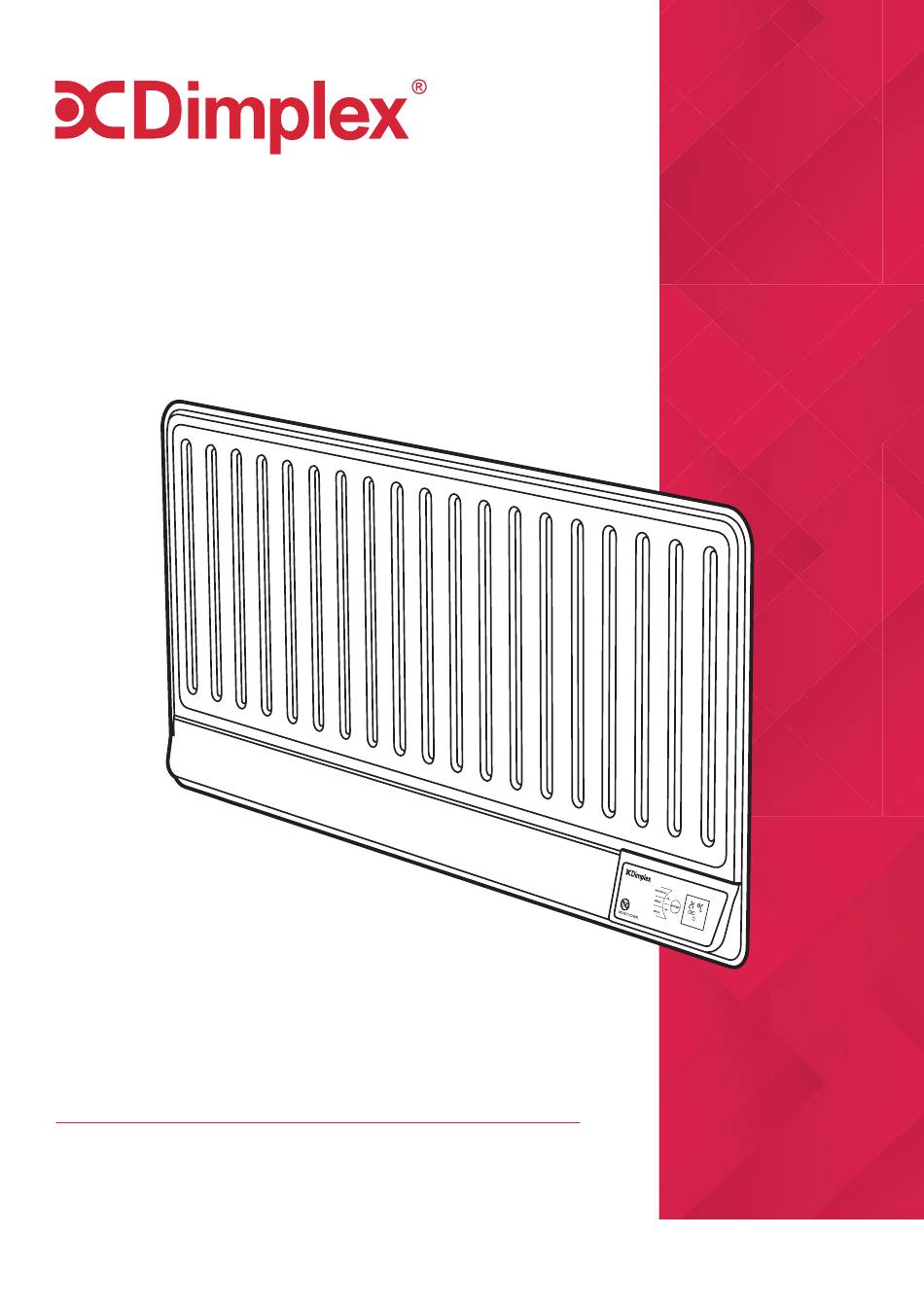

INSTRUCTION MANUAL
Installation and Operating
Mk1 Oil-filled Panel Radiator
Models: B075E / C100E / D150E / E200E
These instructions should be read carefully
and retained for future use. Note also the
information presented on the appliance.
08/53950/0
ISSUE: 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B075E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dimplex B075E

Summary of Contents for Dimplex B075E

  • Page 1 INSTRUCTION MANUAL Installation and Operating Mk1 Oil-filled Panel Radiator Models: B075E / C100E / D150E / E200E These instructions should be read carefully and retained for future use. Note also the information presented on the appliance. 08/53950/0 ISSUE: 2...

  • Page 2: Suitable Applications

    IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. Note also the information presented on the appliance CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/ OR DAMAGE AND MAY INVALIDATE YOUR GUARANTEE IMPORTANT SAFETY ADVICE When using electrical heaters, basic precautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons, including the following: IMPORTANT –...

  • Page 3: Electrical Installation

    ELECTRICAL INSTALLATION WARNING - Minimum clearances and IP zone requirements must be adhered to in accordance with the current wiring regulations. WARNING: THIS APPLIANCE MUST BE EARTHED This heater must be used on an AC supply only and the voltage marked on the heater must correspond to the supply voltage.

  • Page 4: Technical Details

    This product complies with Lot20 of the Energy Efficiency Directive (2015/1188). Type of heat output/ room temperature control With electronic room temperature control Electronic room temperature control plus week timer With open window detection Technical Details Model Identifier(s): B075E C100E D150E E200E Nominal heat Pnom 0.75 kW 1 kW 1.25 kW...
  • Page 5 All Models Digitally controlled, Electronic Thermostat Timer modes: Controls 7 Day Programmable User Timer Continuous heat modes: Manual, Frost Protect, Off, Setback Mode •Icon-based display with white backlight Controller UI •Capacitive buttons with audio feedback •User replaceable battery (Coin-Type) •Open window detection Controller •Advance time period Functions...

  • Page 6: General Information

    General Information Please read the instructions closely before first using the product. There is also a quick-start guide on page 10 if you need a reminder of how to use the basic functions in the future. The heater may be used wall-mounted or freestanding. The necessary wall mounting brackets are provided with the product as a standard.

  • Page 7: Wall Mounting Instructions

    Wall Mounting Instructions THE RADIATOR MUST ONLY BE WALL MOUNTED USING THE KIT SUPPLIED. WARNING: This product is heavy and care should be taken in installation Select a suitable position on a wall, near to a mains power outlet. The radiator should not be mounted closer than 75mm from the floor - see Fig.
  • Page 8 Fig. 1 Fig. 1 Shelf (min) (min) ‘A’ (min) ‘B’ Minimum front clearance mm (min) MODEL Watts B075E 570mm 659mm 405mm 507mm C100E 1000 840mm 659mm 675mm 507mm D150E 1500 1105mm 659mm 940mm 507mm Fig. 2 E200E 2000 1373mm 659mm...
  • Page 9 Fig. 3 ‘C’ ‘Y’ (min) (min) Fig. 4 Fig. 5 Fig. 6 (max) (min)
  • Page 10 Quick Start Guide How does the heater control work? The control allows you to choose when you want heat and at what temperature. When using a timer mode (see below) will display on the home screen to tell you when the heater is maintaining the temperature displayed.
  • Page 11 The controls are located on the top of the heater. The heater is fi tted with an adjustable electronic controller consisting of a display screen and six touch sensitive buttons. DO NOT COVER Back Button Schedule Open Window Menu Button Lock Manual Mode Advance Button...

  • Page 12: Control Functions

    Control Functions The heater controls can be easily adjusted by using the six buttons on the user interface. 1. The Display Screen shows the options available at each stage of adjustment 2. Menu - displays the main options list Schedule: Set the program times and temperatures Manual Mode: Toggle between Manual / Standby Frost Protect: Set the frost protect temperature Set Time &...

  • Page 13: Main Screen

    Main Screen After 30 seconds the heater will default back to the Main Screen. Here the chosen temperature is displayed along with the mode of operation. Any use of the Advance function will be displayed here. When left inactive for a long period of time this display will “sleep” and the text will disappear. Press any button for its return.

  • Page 14: Setting The Date And Time

    Setting the Date and Time The heater incorporates a real time clock with calendar function. The clock has a battery backup that will keep the clock running in the event of a mains power outage. To adjust the date and time follow the steps below •...

  • Page 15: Mode Of Operation

    Mode of Operation User Timer Provides greatest flexibility to the user. Four time slots are available throughout the day and these can be customised for each day of the week. See ‘Setting a Timer’ on page 15 for instructions on adjusting these from the factory default time periods & temperatures. The heater can also maintain a constant room temperature using the following modes: Manual Mode - Heats the room to a comfortable temperature of 21 Frost Protect - Maintains a room temperature of 7...

  • Page 16: Selecting A Timer

    Selecting a Timer User Timer - To activate User timer mode: • Press Menu Button Schedule Icon is highlighted Press Enter • When the • With highlighted press the Enter Button to activate User Timer, the backlight will fl ash and the screen will return to the home screen.
  • Page 17 1. P1 will be displayed on screen 2. Press Enter to select P1, to navigate to P2, P3 or P4 press Up and press Enter to select will be highlighted, press Enter to set the on Time 4. Press Down or Up to adjust the on Hour time, press Enter to Confi rm 5.

  • Page 18: Setting Modes

    Setting Modes Manual Mode - To choose a constant heat mode. This mode ignores the User Timer and maintains the displayed temperature. • Press Menu Button • Press Up to highlight the Hand icon • Press Enter Button • Ensure is highlighted •...
  • Page 19 Advance Sometimes you may be at home when you had not planned to be or need to leave when you had planned to have heating on. You can change the way you use your heating temporarily; this temporary change is achieved using the Advance function. When a timer has been selected, the Advance function allows you to begin the next period early.
  • Page 20 Sound - Audio feedback can be enabled or disabled. • Press the Menu, Back and Enter buttons and hold for 10 seconds • Press Up button 2 times • Press Enter when the Sound Icon is highlighted • Press Down or Up to toggle audio feedback on/off •...

  • Page 21: Child Lock

    Child Lock To Lock the controls press Back and Enter together for 3 seconds. The Lock icon will appear on the screen. To unlock the control, repeat the action of Back and Enter together for 3 seconds. NOTE: The controls cannot be adjusted when Child Lock is active.
  • Page 22 Open Window - The heater comes with a feature that will detect if a window is open and heat is being lost, so the heater will enter a reduced-power mode instead of using unnecessary energy. Open Window detection is activated by default. To activate/deactivate this feature: •...
  • Page 23 NOTE: In environments where the product may read sudden decreases in temperature, this feature may activate in error. This can occur in drafty or poorly insulated environments as well as if the heater is undersized for the room. This feature should be disabled using the instructions above if activating for reasons other than the intended purpose.

  • Page 24: Error Messages

    Service/User Info – Service info is displayed: UI rev, product ID • Press & hold Enter button for 5 seconds • Press Enter to view Info screen • Press Enter to view UI revision number • Press Back to return to UI screen •...

  • Page 25: Battery Replacement

    Battery Replacement This product is fitted with a replaceable battery in the controls. To replace the battery, follow the steps below, shown in Fig. 7 1. Unhinge the heater from the wall using the clips shown in Fig. 2 and locate the battery module 2.
  • Page 26 The Dimplex Guarantee Period is two calendar years from the date of purchase of your Dimplex product, or the date of delivery of the product, if later. The Dimplex Guarantee is conditional upon you providing the original purchase receipt as proof of purchase.
  • Page 27 • You must provide to Dimplex or its authorised agents on request the original receipt as proof of purchase and - if required by Dimplex - proof of delivery. If you are unable to provide this documentation, you will be required to pay for any repair work required.
  • Page 28 ROI Customer Helpline: +353(0)1 842 833 Website: www. dimplex.co.uk/support E-mail: gdhv.customersupport@glendimplex.com © Glen Dimplex UK Limited. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex.

This manual is also suitable for:

C100eD150eE200e
