Warning! Ignoring the safety and assembly instructions may result in SERIOUS OR FATAL INJURIES
from tip over or the falling of the product and the electrical appliances. Opening the package represents
your undertaking to closely read and follow the instructions. This product is not intended for use in public
places. For Safety Instructions, warranty and further information, go to: www.barkanmounts.com ›
Support › Safety Instructions & Warranty
If you are satisfied with the product, please give us a 5 stars rating on the website you bought it from. If you
are not satisfied please contact us at
TV Size
13"-70"
33cm-178cm
CAUTION
This Mount is intended for use only
with the maximum weight indicated.
Using heavier products might cause injury.

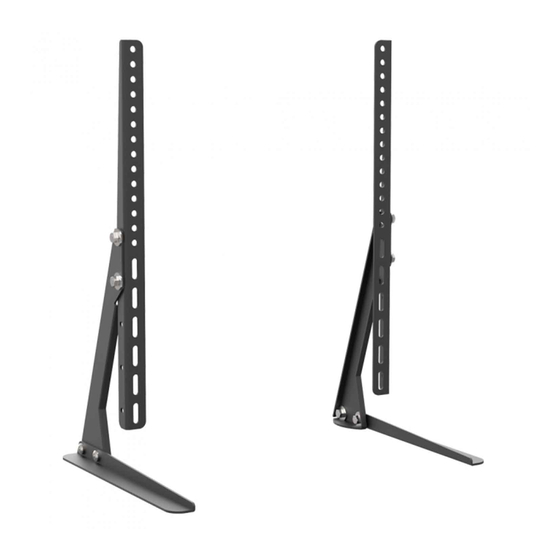

TV Mount Tabletop Stand Legs
For more information: barkanmounts.com
https://www.barkanmounts.com/support
TV Weight
US
EU
110lbs
50kg
and user manual
Download Assembly Instructions with Text
and we will solve the problem for you.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Barkan S40
Summary of Contents for Barkan S40
- Page 1 and user manual TV Mount Tabletop Stand Legs Download Assembly Instructions with Text Warning! Ignoring the safety and assembly instructions may result in SERIOUS OR FATAL INJURIES from tip over or the falling of the product and the electrical appliances. Opening the package represents your undertaking to closely read and follow the instructions.
- Page 2 Page Warnings! Tip Over Hazard! Keep children under the age of 15 away from the product Anchor to the Wall- using 2 strong cables Collision Hazard- place the product in a position that will prevent people from colliding with it...
-
Page 3: Included Parts
Page Included Parts Not to scale Inch 3/8” 3/8” 5/8” 3/4” 3/4” 1-3/4” Required Tools No. 2+3 Full Tightening – Whenever the full tightening icon is displayed, make sure to place a nut inside the hexagonal slot and that the endpoint of the screw crosses the edge of the nut. Wrong Right FULL TIGHTENING... - Page 4 Page Wrong Right Purchase Purchase spacers in order to adjust longer screws the screws length inside the TV NO FORCE Z9/Z10 Z7/ Z8 Right Wrong Wrong Wrong center center center center If your TV’s back screen holes are on an indented surface, turn to step 2b...
- Page 5 Page If the TV back is flat or if the TV’s back holes are located on the lower part of the TV back that protrudes, connect part B to part C. Place nuts inside the hexagonal slots. FULL TIGHTENING If the lower part of the back of the TV protrudes and the TV’s back holes are on the upper indented surface connect part Y1 to part C.
- Page 6 Page Connect part B to part Y1. Place nuts inside the hexagonal slot. FULL TIGHTENING Connect part A to part B. Place nuts inside the hexagonal slot. FULL TIGHTENING Paste the anti-scratch stickers Y2 on to the bottom of part A.
- Page 7 Page Right Wrong Right Wrong Wrong Wrong Wrong...
- Page 8 Page With the help of another person place the stand on the table. Carefully rock the screen and make sure that all the screws are fully tightened. Right Wrong FULL TIGHTENING Full Tightening – Whenever the full tightening icon is displayed, make sure to place a nut inside the hexagonal slot and that the endpoint of the screw crosses the edge of the nut.
