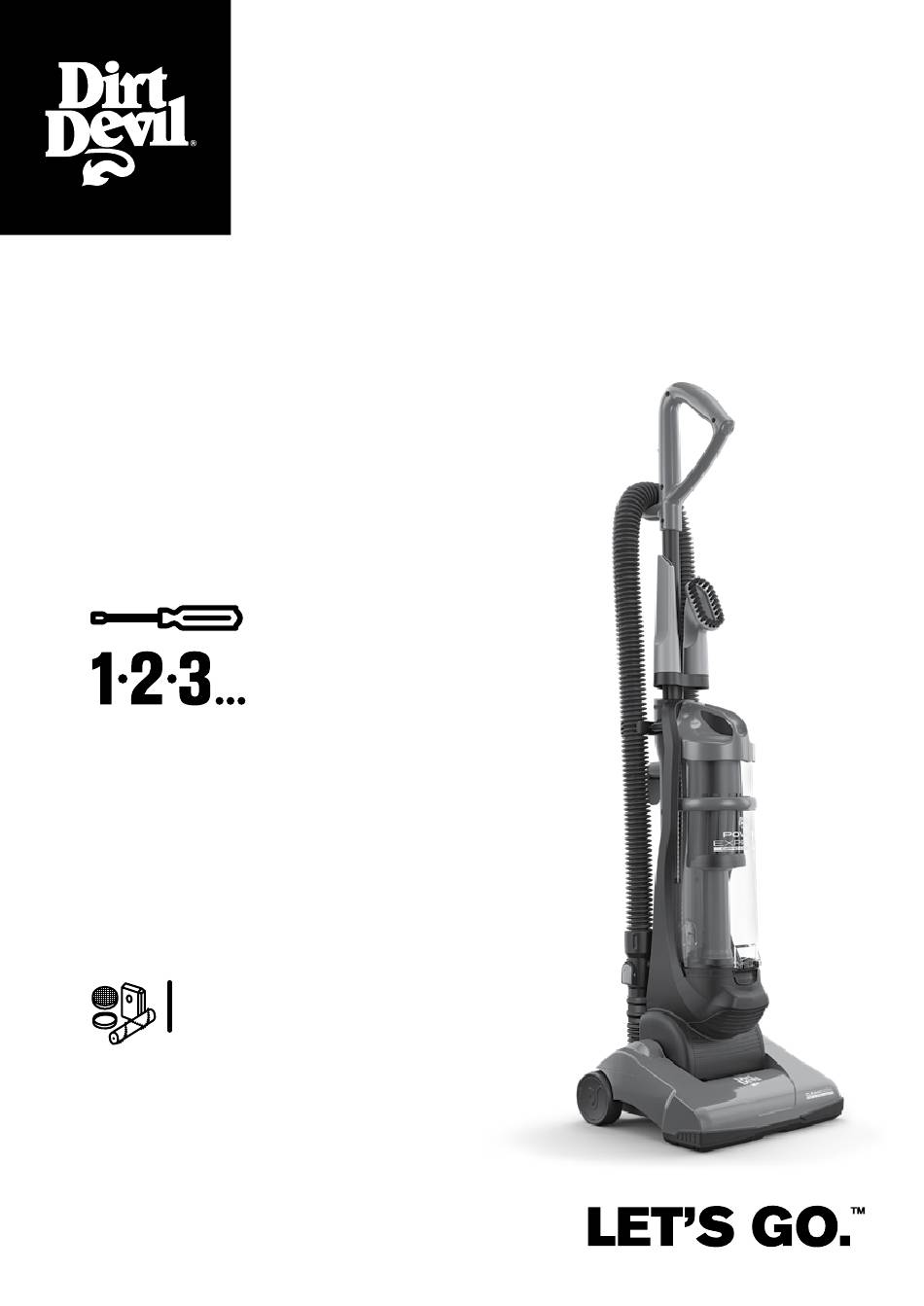

Dirt Devil
Compact Upright
Model # UD20120 / UD20121
REFURBISHED
USER MANUAL
#961152120 / R4
©2020 All rights reserved
REPLACEMENT PARTS
• BELT STYLE 15
• FILTER TYPE F112
THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY.
IF USED COMMERICALLY WARRANTY IS VOID.
®
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dirt Devil Compact Upright
Summary of Contents for Dirt Devil Compact Upright
- Page 1 Dirt Devil ® Compact Upright Model # UD20120 / UD20121 REFURBISHED USER MANUAL #961152120 / R4 ©2020 All rights reserved REPLACEMENT PARTS • BELT STYLE 15 • FILTER TYPE F112 THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY. IF USED COMMERICALLY WARRANTY IS VOID.
- Page 2 HI. WELCOME. Congrats on purchasing your new Dirt Devil ® Compact Upright Vacuum. Inside, you'll find everything you'll need to know about your latest purchase. So what are you waiting for? LET’S GO. ™ PRODUCT REGISTRATION If you need further assistance, please contact Refurb Product Support via the website at www.RefurbProductSupport.com.
- Page 3 TABLE OF CONTENTS Quick Start Assembly Tool How to 12-17 Troubleshooting Limited Warranty...
- Page 4 IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INTRUCTIONS! When you use an appliance, basic precautions should always be followed, including the following: • READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE. • ALWAYS FOLLOW THESE SAFETY INSTRUCTIONS. • BRING VACUUM CLEANER TO UPRIGHT POSITION WHEN USING THE HOSE AND ATTACHMENTS. •...
- Page 5 • Vacuum cleaner must be in the upright position to lift the rotating brush off the carpet when doing above floor cleaning. • Brushroll continues to turn while product is turned on and handle is in the upright position. To avoid damage to carpet, rugs, and flooring, avoid tipping cleaner or setting it on furniture, fringed area rugs, or carpeted stairs during tool use.
- Page 6 QUICK START *Not all models have this feature. TOOL REQUIRED: PHILLIPS OR FLAT HEAD SCREWDRIVER ATTACH FIXED HANDLE* REMOVE DIRT CUP FROM SLIDE HANDLE INTO HOLE ON BODY OF CLEANER. TOP OF CLEANER.
- Page 7 3). PLACE BOLT ONTO END OF SCREW COMING diagram THROUGH BACK PANEL AND TIGHTEN TO SECURE HANDLE ( diagram YOUR DIRT DEVIL NEED HELP? IS READY If you need further assistance, please contact Refurb Product Support via the website at TO CLEAN! www.RefurbProductSupport.com.
- Page 8 HOW TO ASSEMBLE SECURE BACK HOSE: Wrap hose around back of hose caddy. Push hose wand down into the right side of cleaner. BACK...
- Page 9 HOW TO ASSEMBLE TOOL STORAGE: Attach crevice tool INSTALL DIRT CUP: Replace dirt and dust brush to tool caddy. cup by tilting back until it snaps into place.
- Page 10 HOW TO OPERATE CORD RELEASE: Turn quick cord ON/OFF PEDAL: Plug cord into release for easy cord removal. To electrical outlet. Turn cleaner on by Use: Plug into electrical outlet. For depressing foot pedal located on the convenient storage: Wrap cord on back left side of the cleaner.
- Page 11 HOW TO OPERATE CARRY HANDLE: Use the carry handle to move the cleaner from room to room.
- Page 12 WARNING HOW TO HOW TO TO REDUCE THE RISK OF INJURY FROM MOVING PARTS, UNPLUG BEFORE REMOVING OR REPLACING FILTER. DIRT CUP & FILTER: REMOVAL & REPLACEMENT 1. EMPTY DIRT CUP: Press dirt cup 2. Hold dirt cup over garbage can release button on top of dirt cup and press dirt cup bottom release to remove dirt cup.
- Page 13 HOW TO HOW TO DIRT CUP & FILTER: REMOVAL & REPLACEMENT 5. REMOVE FOAM FILTER: Twist 6. CLEAN PLEATED FILTER: Rinse separator counter clockwise to filter under under running water. access filter. Allow to dry at last 24 hours before replacing in dirt cup. REGULAR MAINTENANCE: Each time the dirt cup is emptied, the filter should be cleaned.
- Page 14 WARNING HOW TO HOW TO To reduce the risk of injury from moving parts - Unplug before changing belt or brushroll. TOOL REQUIRED: PHILLIPS SCREWDRIVER BELT OR BRUSHROLL: REMOVAL & REPLACEMENT 1. TO REMOVE BELT: Lay the 2. Pull and lift the nozzle guard off. cleaner flat and flip it to expose the nozzle base.
- Page 15 HOW TO HOW TO BELT OR BRUSHROLL: REMOVAL & REPLACEMENT 4. TO REPLACE BELT OR 5. Place new belt in area of brushroll BRUSHROLL: Slide belt onto without bristles motorshaft. MOTOR SHAFT 6. With new belt in place, pull and 7.
- Page 16 HOW TO HOW TO BELT OR BRUSHROLL: REMOVAL & REPLACEMENT 8. Secure by aligning the three (3) 9. Replace all five (5) screws to tabs in the base slots. secure nozzle guard. SLOTS TABS...
- Page 17 CAUTION TOOL Do not lift unit from floor to use hose, loose items may become entangled in the rotating brushroll. HOSE AND TOOL USAGE 1. TO USE HOSE AND 2. Choose any of the handy ATTACHMENTS: accessories or use the hose alone. Remove the hose from hose caddy.
- Page 18 TROUBLESHOOTING WARNING To reduce the risk of personal injury - Unplug before cleaning or servicing. If a minor problem occurs, it usually can be solved quite easily when the cause is found by using the checklist below. This product contains no serviceable parts. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, call customer service at 1-800-321-1134 prior to continuing use.
- Page 19 WARRANTY Remanufactured, refurbished, or reconditioned products have a limited warranty as determined by the retailer selling the product to you. This product is warranted against failure due to a defect in materials or workmanship from the date of original purchase. Proof of the original purchase date is needed to make a warranty request or claim.
- Page 20 This product uses the following parts: BELT STYLE F112 FILTER TYPE If you need further assistance, please contact Refurb Product Support via the website at www.RefurbProductSupport.com. Support agents are available Monday through Friday from 8am to 4pm EST. Always identify your vacuum by the complete model number when requesting information.
