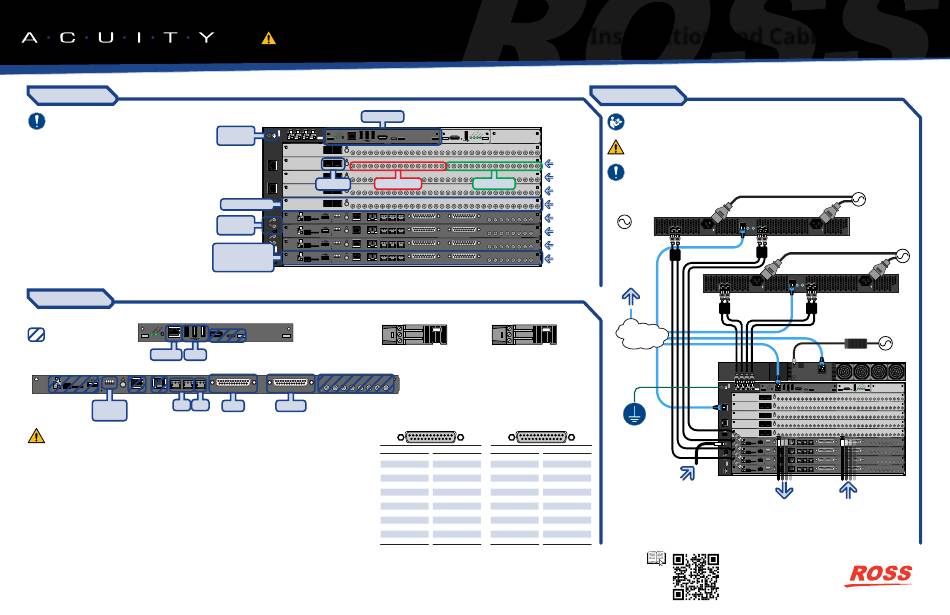

Ross ACUITY Ultrix Installation And Cabling Manual

Ultrix 5RU Frame
NOTICE Adequate ventilation within a rack
frame must be maintained. Ensure side to side
ventilation is not compromised. Refer to the
Ultrix Installation Guide for more information.
Notes:
• The Ultrix 5RU frame supports the Acuity switcher platform
with up to 4 MEs.
• The switcher uses the Reference input to Ultrix for timing.
• All 4 power supplies must be connected to operate the
switcher.
• The Input and Output HD-BNCs on the SDPE blade are not
used at this time.
• Physical sources and destinations on the router must be
mapped internally to inputs and outputs on the switcher.
• The Ultrix SDI I/O blade is used to provide the sources and
destinations that the switcher can access.
• The REF B connection is not supported at this time.
• A 1GbE ethernet connection is required for Ultrix.
• An Ultricool may be required, depending on your
installation.
• The Protective Earth Stud may not be present on all
frames.
Acuity Switcher
Acuity CPU
Not Used at this time.
CPU
ETHERNET
Power
Network
SDPE
SDPE
SD
1 2 3 4
PWR 8-10in-lbs
UPGD ETHERNET EDITOR AES1 AES2
AES LTC
DIP
Switches
CAUTION!
Electrical shock hazard. The Power connector (PWR) must
always be disconnected when the SDPE blade is not installed in the frame.
Notes:
• The switcher is made up of a single Acuity CPU board, and a number of SDPE blades. Each SDPE blade provides a
single HD/UHD ME.
• The number of SDPE blades a system can have depends on the size of the Ultrix frame and the other blades that
are installed.
• Only the Ethernet port on the Acuity CPU card can be used to connect to the Acuity software.
• The Power, Ethernet, USB, SD, and Input/Output HD-BNCs on the SDPE blade are not used at this time.
• The GPI and Tally ports on each SDPE blade are independent of each other. As you add more SDPE blades, each
ME has an independent set of GPIs and Tallies.
© 2022 Ross Video Limited. Ross®, Acuity™, Ultrix, Ultripower, and any related marks are trademarks or registered trademarks of Ross Video Limited. All other trademarks are the property of their respective companies. PATENTS ISSUED and PENDING. All rights reserved. No
part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, mechanical, photocopying, recording or otherwise, without the prior written permission of Ross Video. While every precaution has been taken in the
preparation of this document, Ross Video assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein.
CAUTION!
Before you set up and operate your device, see the
"Important Safety Instructions" in your switcher and router manuals.
Acuity CPU
Ultrix 5RU
Protective
1 2 3 4
PWR
Earth Stud
CPU
ETHERNET
Power
FLEX Ultrix-HDBNC-IO
SLOT
AUX A AUX B
ENET 1
1
Ultrix-HDBNC-IO
AUX A AUX B
2
Ultrix-HDBNC-IO
Aux SFP+
ENET 2 AUX A AUX B
3
Ultrix-HDBNC-IO
AUX A AUX B
Ultrix SDI I/O 4 Ultrix-HDBNC-IO
AUX A AUX B
5
SDPE
SD
Reference 1 2 3 4
PWR 8-10in-lbs
UPGD ETHERNET
REF A
In/Loop
6 SDPE
LOOP A TERM SD
1 2 3 4
B
8-10in-lbs
PWR UPGD ETHERNET
REF B
7
SDPE
SD
1 2 3 4
Software Defined
PWR 8-10in-lbs
UPGD ETHERNET
Production ALARM
8 SDPE
SD
1 2 3 4
8-10in-lbs
Engine (SDPE) PWR UPGD ETHERNET
Note: The placement of the SDPE blades shown (slots 8,7,6,5) is only
supported by Acuity 11.2a or higher.
CPU
LTC+
HDMI
USB
OUTPUT INPUT
1 2 3 4 1
LTC TALLY GPIO
Tally GPI I/O
CPU Ultrix-UCCI
HDMI
Output BNCs Input BNCs
OUTPUT INPUT
1 2 3 4 1 2 3 4
EDITOR AES1 AES2 LTC TALLY GPIO
OUTPUT INPUT
1 2 3 4 1 2 3 4
EDITOR AES1 AES2 LTC TALLY GPIO
OUTPUT INPUT
1 2 3 4 1 2 3 4
EDITOR AES1 AES2 LTC TALLY GPIO
OUTPUT INPUT
1 2 3 4 1 2 3 4
EDITOR AES1 AES2 LTC TALLY GPIO
LTC- AES+
GND
LTC- AES-
2 3 4
Tally GPI I/O
(female DB25) (female DB25)
13 12 11 10 9 8 7 6 5 4 3 2 1 13 12 11 10 9 8 7 6 5
25 24 23 22 21 20 19 18 17 16 15 14 25 24 23 22 21 20 19 18
Pin Tally Pin Tally Pin GPI Pin
1 1 14 14 1 I/O 1
2 2 15 15 2 I/O 2
3 3 16 16 3 I/O 3
4 4 17 17 4 I/O 4
5 5 18 18 5 I/O 5
6 6 19 19 6 I/O 6
7 7 20 20 7 I/O 7
8 8 21 21 8 I/O 8
9 9 22 22 9 I/O 9
10 10 23 23 10 I/O 10
11 11 24 24 11 I/O 11
12 12 25 Common 12 I/O 12
13 13 13 I/O 13
Installation and Cabling
Power and Cabling
Read the instruction manual for your Ultripower and Ultrix FR5
before starting work or operating equipment.
CAUTION! Risk of electrical shock. Enclosure shall be connected to earth
ground via protective earth stud and 18AWG conductor or larger.
Slot 1
NOTICE The Ultrix frame and SDPE blades do not have power switches. Ensure that
the Ultripower is not connected to mains power before connecting the power cables
Slot 2
from the Ultripower to the Ultrix.
Slot 3
Slot 4
Slot 5 (ME 4)
Slot 6 (ME 3) OUT
Mains
1 2
Power
Slot 7 (ME 2)
Slot 8 (ME 1)
To
DashBoard
OUT
1 2
Ethernet
1GbE
FLEX
SLOT
ENET 1
ENET 2
Protective
4 3 2 1
Earth
17 16 15 14
Ground
GPI REF A
LOOP A TERM
B
14 I/O 14
REF B
15 I/O 15
Connect ALARM
16 I/O 16
17 I/O 17 external
18 I/O 18
reference
19 I/O 19
20 I/O 20
21 I/O 21
22 I/O 22 Note: Terminate the REF LOOP connector
23 I/O 23
and set the DIP to TERM if the router is the
24 I/O 24
last device in the reference chain.
25 Ground
Ultripower - Acuity
ETHERNET
RESTART RESET
3 4
Ultripower - Ultrix
ETHERNET
RESTART RESET 3 4
Note: Ensure that the end
of the power cable with the
ferrite bead is connected to
the Ultripower.
Ultricool (optional)
5
1
6 NO C NC
PWR 1 ENET
ALARM
7 2
PWR 2
8 3
4
1 2 3 4
CPU Ultrix-UCCI
PWR
CPU
Power ETHERNET HDMI
Ultrix-HDBNC-IO
AUX A AUX B
1
Ultrix-HDBNC-IO
AUX A AUX B
2
Ultrix-HDBNC-IO
AUX A AUX B
3
Ultrix-HDBNC-IO
AUX A AUX B
4 Ultrix-HDBNC-IO
AUX A AUX B
OUTPUT INPUT
5 SDPE
1 2 3 4 1 2 3 4
SD
1 2 3 4
PWR 8-10in-lbs
UPGD ETHERNET EDITOR AES1 AES2 LTC TALLY GPIO
OUTPUT INPUT
6 SDPE
1 2 3 4 1 2 3 4
SD
1 2 3 4
PWR 8-10in-lbs
UPGD ETHERNET EDITOR AES1 AES2 LTC TALLY GPIO
OUTPUT INPUT
7 SDPE
1 2 3 4 1 2 3 4
SD
1 2 3 4
PWR 8-10in-lbs
UPGD ETHERNET EDITOR AES1 AES2 LTC TALLY GPIO
OUTPUT INPUT
8 SDPE
1 2 3 4 1 2 3 4
SD 1 2 3 4
PWR 8-10in-lbs
UPGD ETHERNET EDITOR AES1 AES2 LTC TALLY GPIO
Connect video Connect video
outputs as inputs as
needed needed
(destinations) (sources)
