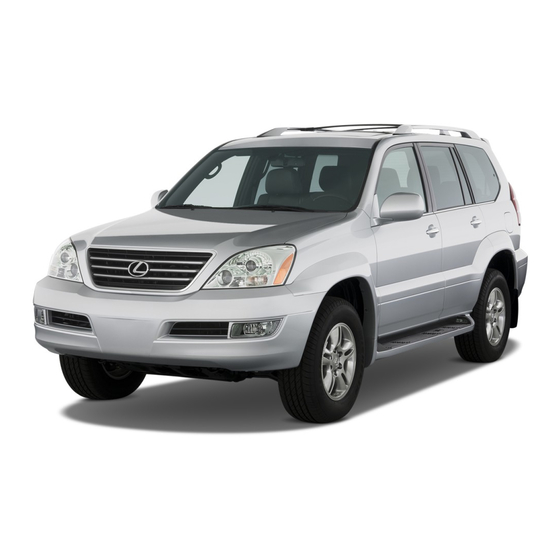

Lexus GX470 2008 Service Manual

Lexus GX470 2008 Service Manual

Rear seat entertainment system blank screen

Advertisement

L-SB-0013-08

Rear Seat Entertainment System Blank Screen

Service
Audio/Visual/Telematics
Category
Audio/Video
Section
Applicability
YEAR(S)
2007 – 2008

Introduction

On vehicles equipped with the new factory 9-inch rear seat DVD video screen, the Rear Seat
Entertainment (RSE) Lock function may cause the DVD screen to be blank if this function is turned
on. Additionally, a DVD cannot be inserted or ejected from the system when the rear lock is turned
on. Use the following procedure to unlock the Rear Seat Entertainment.

Warranty Information

OP CODE
N/A

Repair Procedure

1. Confirm the customer's complaint of DVD RSE system inoperative.
2. For vehicles with Lexus Navigation System , perform the following procedure to turn OFF the
RSE Lock function:
A. Press the INFO button to display the "Information" screen on the navigation unit.
B. Press the "Screen Setting" touch button on the navigation display.
C. Under the "Rear Lock" option, press the "OFF" touch button and then press "OK" in the
upper right part of the display.
D. Press the DVD switch on the RSE system, (If a DVD is NOT already in the player, insert one)
and confirm screen is "ON" and the system will play DVD's.
March 17, 2008
MODEL(S)
GX470, RX350,
RX400H
DESCRIPTION
Not Applicable to Warranty
© 2008 Lexus, a division of Toyota Motor Sales, USA
USA
Market
ADDITIONAL INFORMATION
TIME
OFP
T1
Page 1 of 2
T2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GX470 2008 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lexus GX470 2008

  • Page 1 Repair Procedure 1. Confirm the customer’s complaint of DVD RSE system inoperative. 2. For vehicles with Lexus Navigation System , perform the following procedure to turn OFF the RSE Lock function: A. Press the INFO button to display the “Information” screen on the navigation unit.
  • Page 2 Rear Seat Entertainment System Blank Screen Repair Procedure (Continued) 3. For vehicles without Lexus Navigation System, perform the procedure to turn “OFF” the RSE Lock function. A. Push the audio control knob multiple times to cycle through the various options (Bass, Mid, Treble, etc.) until “Rear Lock”...
