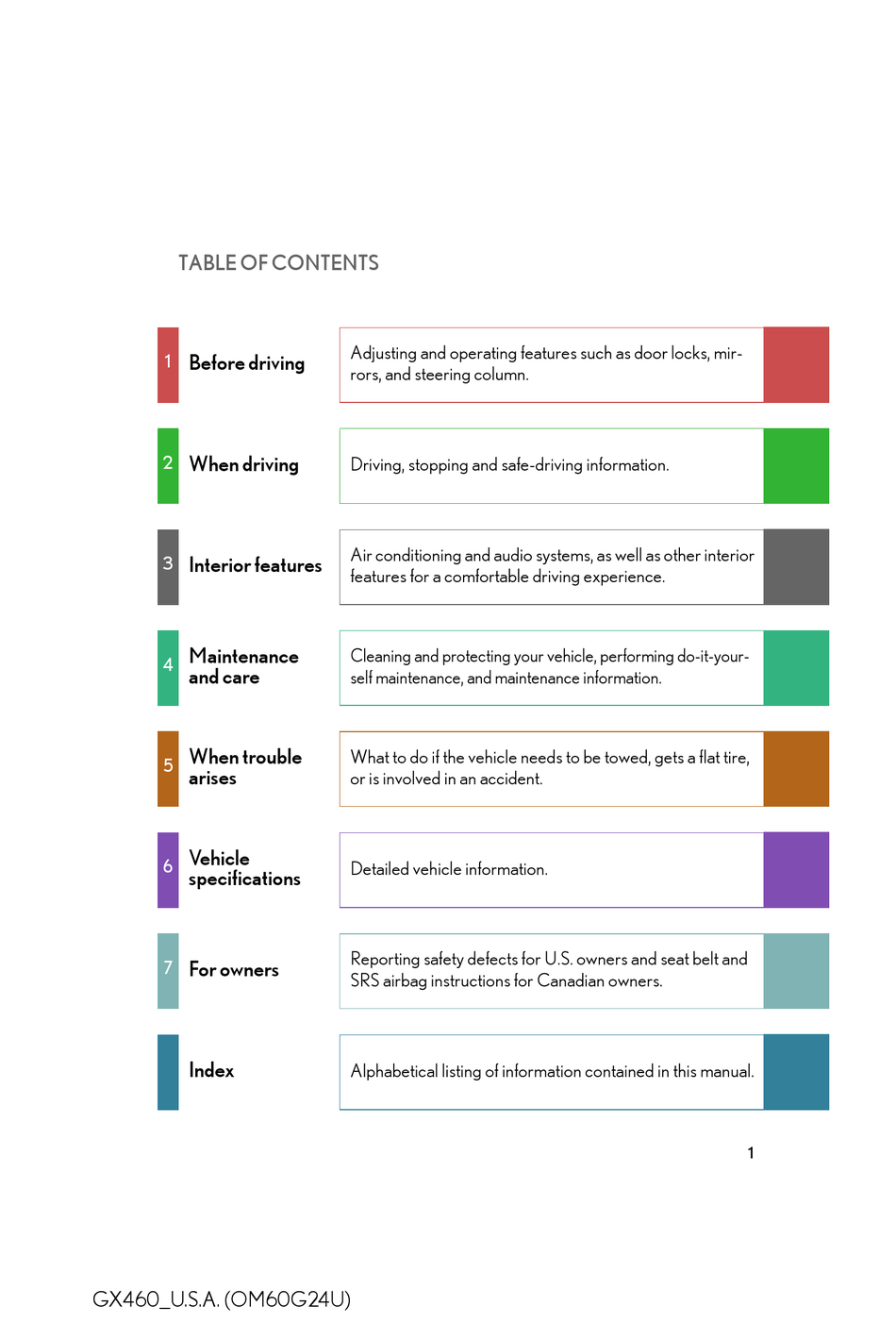

TABLE OF CONTENTS

Before driving

1

When driving

2

Interior features

3

Maintenance

4

and care

When trouble

5

arises

Vehicle 

6

specifications

For owners

7

Index

GX460_U.S.A. (OM60G24U)

Adjusting and operating features such as door locks, mir-

rors, and steering column.

Driving, stopping and safe-driving information.

Air conditioning and audio systems, as well as other interior

features for a comfortable driving experience.

Cleaning and protecting your vehicle, performing do-it-your-

self maintenance, and maintenance information.

What to do if the vehicle needs to be towed, gets a flat tire,

or is involved in an accident.

Detailed vehicle information.

Reporting safety defects for U.S. owners and seat belt and

SRS airbag instructions for Canadian owners.

Alphabetical listing of information contained in this manual.

1

Table of Contents

Advertisement

Table of Contents

Need help?

Need help?

Do you have a question about the GX460 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lexus GX460

Page 1 TABLE OF CONTENTS Adjusting and operating features such as door locks, mir- Before driving rors, and steering column. When driving Driving, stopping and safe-driving information. Air conditioning and audio systems, as well as other interior Interior features features for a comfortable driving experience. Maintenance Cleaning and protecting your vehicle, performing do-it-your- and care...
Page 2: Table Of Contents
TABLE OF CONTENTS Index 1-4. Opening and closing the windows  Before driving and moon roof Power windows......102 1-1. Key information Moon roof ........105 Keys ............26 1-5. Refueling 1-2. Opening, closing and locking  Opening the fuel tank cap..110 the doors 1-6.
Page 3 2-4. Using other driving systems When driving Cruise control ....... 244 Dynamic radar cruise  control..........248 2-1. Driving procedures Intuitive parking assist ....262 Driving the vehicle......170 LDA  Engine (ignition) switch ....181 (Lane Departure Alert) .... 271 Automatic transmission....
Page 4 TABLE OF CONTENTS Index ® audio  3-3. Using the Bluetooth Interior features system ® Bluetooth audio system ..459 ® 3-1. Using the air conditioning system   Using the Bluetooth audio system........ 463 and defogger ® enabled  Operating a Bluetooth Front automatic air ...
Page 5 3-6. Using the storage features Maintenance and care List of storage features....518 • Glove box ........519 • Console box....... 520 4-1. Maintenance and care • Coin holder........522 Cleaning and protecting  • Bottle holders/door  the vehicle exterior....592 pockets ..........
Page 6 TABLE OF CONTENTS Index When trouble arises Vehicle specifications 5-1. Essential information 6-1. Specifications Maintenance data  Emergency flashers..... 678 (fuel, oil level, etc.)..... 756 If your vehicle needs  to be towed........679 Fuel information......768 If you think something is  Tire information.......
Page 7 Index Abbreviation list ....... 824 Alphabetical index ....826 What to do if....... 836 GX460_U.S.A. (OM60G24U)
Page 8 Pictorial index Exterior Moon roof P. 105 Front turn signal lights P. 194 Outside rear view mirrors P. 98 Side turn signal lights Windshield wipers P. 237 P. 194 Hood P. 611 Headlights (high beam) Parking/front side marker lights P. 222 and daytime running lights P.
Page 9  Roof luggage carrier P. 356 Rear window defogger P. 406 Glass hatch P. 59 Rear turn signal lights P. 194 Rear window wiper  P. 241 Side doors P. 51 Fuel filler door P. 110 Back door P. 54 Tire License plate lights P.
Page 10 Pictorial index Interior  Console box P. 520 SRS driver airbag P. 123  Cool box P. 531 Seat belts P. 86 SRS knee airbag P. 123 Head restraints P. 83 SRS front passenger  Cup holders P. 525 airbag P.
Page 11 Auxiliary box P. 528 Conversation mirror P. 537 Personal/interior lights P. 516 Personal/interior lights P. 515 Garage door opener switches P. 570  “SOS” button P. 583 Vanity lights P. 535 Vanity mirrors SRS curtain shield airbags P. 535 P. 123 Sun visors P.
Page 12 Pictorial index Interior Door lock switches P. 51 Inside door lock button P. 51 Window lock switch P. 102 Power window switches P. 102 Driving position memory switches P. 79 GX460_U.S.A. (OM60G24U)
Page 13 Front seat heater/ventilator switch P. 554  Height control switch P. 313  AUX/USB port  AVS switch P. 319 P. 435, 443, 454 Cup holders P. 525 Power outlet  P. 538 Four-wheel drive control switch P. 320 Front seat heater/ventilator  switch P.
Page 14 Pictorial index Instrument panel Windshield wipers and washer switch P. 237 Rear window wiper and washer switch P. 241 Gauge and meters P. 197 Engine (ignition) switch P. 181  Headlight switch P. 222  Turn signal lever Emergency flasher switch P.
Page 15 Instrument cluster light control switch P. 198 Outside rear view mirror ODO/TRIP button P. 198 switches P. 98  Heated steering wheel switch   Headlight cleaner switch P. 552 P. 243  Power outlet main switch P. 545 Fuel filler door opener P.
Page 16 Pictorial index Instrument panel Telephone switches P. 485  Wide view front & side monitor switch P. 282 Audio remote control switches P. 455 “ENTER” switch P. 207 Menu switch P. 207 Horn P. 196 Talk switch  “LDA” switch P.
Page 17 Vehicles without a navigation system Security indicator P. 115, 117  Accessory meter P. 214 Rear window defogger switch P. 406 Windshield wiper de-icer P. 407 Air conditioning system P. 386 Vehicles with a navigation system Security indicator P. 115, 117 Navigation system Rear window defogger switch Air conditioning system...
Page 18 Pictorial index Luggage compartment Cargo hooks P. 561 Cargo net hook P. 562 Power outlet P. 540, 545 GX460_U.S.A. (OM60G24U)
Page 19 Back door handle Tools P. 724 Warning reflector holder P. 561 GX460_U.S.A. (OM60G24U)
Page 20: For Your Information
All specifications provided in this manual are current at the time of printing. How- ever, because of the Lexus policy of continual product improvement, we reserve the right to make changes at any time without notice. Depending on specifications, the vehicle shown in the illustration may differ from your vehicle in terms of color and equipment.
Page 21 SRS airbag sys- tem and seat belt pretensioner system, be sure to check with your Lexus dealer for precautionary measures or special instructions regarding installation.
Page 22 CAUTION General precautions while driving ■ Driving under the influence: Never drive your vehicle when under the influence of alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol and certain drugs delay reaction time, impair judgment and reduce coordination, which could lead to an accident that could result in death or serious injury.
Page 23 This is a warning against something which, if ignored, may cause damage to the vehi- cle or its equipment. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your Lexus and its equipment. Symbols used in illustrations Safety symbol The symbol of a circle with a slash through it means “Do not”,...
Page 24 GX460_U.S.A. (OM60G24U)
Page 25: Before Driving
Before driving 1-4. Opening and closing  1-1. Key information the windows and moon roof Keys..........26 Power windows......102 Moon roof ......... 105 1-2. Opening, closing and locking  the doors Smart access system with  1-5. Refueling push-button start....29 Opening the fuel tank cap ..
Page 26: Keys
1-1. Key information Keys The following keys are provided with the vehicle. Electronic keys • Operating smart access system with push- button start (P. 29) • Operating the wireless remote control function (P. 48) Mechanical keys Key number plate Using the mechanical key To take out the mechanical key, slide the release lever and take the key out.
Page 27 Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that a mechanical key is lost, a new key can be made at your Lexus dealer using the key number plate. (P. 741) When riding in an aircraft ■...
Page 28 Take your vehicle with all the electronic keys provided with your vehicle to your Lexus dealer. When a vehicle key is lost ■ If the key remains lost, the risk of vehicle theft increases significantly. Visit your Lexus dealer immediately with all remaining electronic keys that was provided with your vehicle. GX460_U.S.A. (OM60G24U)
Page 29: Smart Access System With Push-Button Start
1-2.Opening, closing and locking the doors Smart access system with push-button start The following operations can be performed simply by carrying the elec- tronic key on your person, for example in your pocket. (The driver should always carry the electronic key.) Locks and unlocks the doors (P.
Page 30 1-2. Opening, closing and locking the doors Locks and unlocks the back door (P. 31) Opens the glass hatch  (P. 32) GX460_U.S.A. (OM60G24U)
Page 31 1-2. Opening, closing and locking the doors Unlocking and locking the doors (front door handles only) Grip the handle to unlock the doors. Make sure to touch the sensor on the back of the handle. The doors cannot be unlocked for 3 seconds after the doors are locked.
Page 32 1-2. Opening, closing and locking the doors Opening the glass hatch Press the button to open the glass hatch. The glass hatch will pop up. The glass hatch can be opened only when the back door is closed. Antenna location and effective range ■...
Page 33 1-2. Opening, closing and locking the doors ■ Effective range (areas within which the electronic key is detected) When locking or unlocking the doors The system can be operated when the electronic key is within about 2.3 ft. (0.7 m) of either of the outside front door handle.
Page 34 1-2. Opening, closing and locking the doors Operation signals ■ A buzzer sounds and the emergency flashers flash to indicate that the doors have been locked/unlocked. (Locked: once; Unlocked: twice) When the door cannot be locked by the lock sensor on the upper part of the door ■...
Page 35 1-2. Opening, closing and locking the doors Alarm Situation Correction procedure An attempt was made to lock Retrieve the electronic the doors using the entry key from the passenger function while the electronic compartment and lock key was still inside the pas- Interior alarm pings the doors again senger compartment...
Page 36 1-2. Opening, closing and locking the doors Alarm Situation Correction procedure The “ENGINE START STOP” switch was turned to ACCESSORY mode while Turn the “ENGINE Interior alarm pings the driver’ s door was open START STOP” switch continuously (or the driver’ s door was OFF and close the opened while the “ENGINE driver’...
Page 37 1-2. Opening, closing and locking the doors Alarm Situation Correction procedure When the “ENGINE START STOP” switch is in IGNI- Shift the shift lever to P, Interior and exte- TION ON or ACCESSORY turn the “ENGINE rior alarms sound mode, the driver’ s door was START STOP”...
Page 38 1-2. Opening, closing and locking the doors Alarm Situation Correction procedure The driver’ s door was closed Turn the “ENGINE after the key was carried out- START STOP” switch side the vehicle, and the OFF and close the “ENGINE START STOP” Interior alarm pings driver’...
Page 39 1-2. Opening, closing and locking the doors Switching the door unlock function ■ It is possible to set which doors the entry function unlocks. Turn the “ENGINE START STOP” switch OFF. STEP When the indicator on the key surface is turned off, press and hold STEP for approximately 5 seconds while pressing on the key.
Page 40 1-2. Opening, closing and locking the doors Battery-saving function ■ The battery-saving function will be activated in order to prevent the electronic key battery and the vehicle battery from being discharged while the vehicle is not in operation for a long time. In the following situations, the smart access system with push-button start may ●...
Page 41 1-2. Opening, closing and locking the doors When the electronic key battery is depleted ● Near a TV tower, electric power plant, gas station, radio station, large display, ● airport or other facility that generates strong radio waves or electrical noise When carrying a portable radio, cellular phone, cordless phone or other wire- ●...
Page 42 1-2. Opening, closing and locking the doors Note for the entry function ■ Even when the electronic key is within the effective range (detection areas), the ● system may not operate properly in the following cases: • The electronic key is too close to the window, near the ground, or in a high place when the doors are locked or unlocked.
Page 43 1-2. Opening, closing and locking the doors Note for locking the doors ■ Touching the door lock sensor while wearing gloves may delay or prevent lock ● operation. Remove the gloves and touch the lock sensor again. When the lock operation is performed using the lock sensor, recognition signals ●...
Page 44 1-2. Opening, closing and locking the doors Note for the unlocking function ■ Gripping the door handle when wearing a glove may not unlock the door. ● A sudden approach to the effective range or door handle may prevent the ●...
Page 45 1-2. Opening, closing and locking the doors Electronic key battery depletion ■ The standard battery life is 1 to 2 years. ● If the battery becomes low, an alarm will sound in the cabin when the engine ● stops. (P. 34) As the electronic key always transmits radio waves, the battery will become ●...
Page 46 1-2. Opening, closing and locking the doors Certification for the smart access system with push-button start ■ U.S.A. FCC ID: NI4TMIMB-2 FCC ID: NI4TMLF8-21 FCC ID: HYQ14ACX FCC ID: HYQ14ADF FCC ID: HYQ13CZM FCC ID: HYQ13CZN NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the fol- lowing two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 47 The radio waves may affect the operation of such devices. If necessary, the entry function can be disabled. Ask your Lexus dealer for details, such as the frequency of radio waves and timing of emitting the radio waves. Then, consult your doctor to see if you should disable the entry function.
Page 48: Wireless Remote Control
Opens the glass hatch (press and hold) The glass hatch can be opened only when the back door is closed. Sounds the alarm (press and hold) (P. 49) : This setting must be customized at your Lexus dealer. GX460_U.S.A. (OM60G24U)
Page 49 1-2. Opening, closing and locking the doors Operation signals ■ Doors: A buzzer sounds and the emergency flashers flash to indicate that the doors have been locked/unlocked. (Locked: Once; Unlocked: Twice) Windows and moon roof: A buzzer sounds to indicate that the windows and moon roof are operating.
Page 50 1-2. Opening, closing and locking the doors Conditions affecting operation ■ P. 40 If the wireless remote control does not operate properly ■ Locking and unlocking the doors: Use the mechanical key. (P. 742) Key battery depletion ■ P. 45 When the electronic key battery is fully depleted ■...
Page 51: Side Doors
1-2. Opening, closing and locking the doors Side doors The vehicle can be locked and unlocked using the entry function, wireless remote control or door lock switch. ■ Entry function P. 31 ■ Wireless remote control P. 48 ■ Door lock switch Locks all the doors Unlocks all the doors ■...
Page 52: Gx460_U.s.a. (Om60G24U
1-2. Opening, closing and locking the doors Locking the driver’s door from the outside without a key Move the inside lock button to the lock position. STEP Close the door. STEP The door cannot be locked if the “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode, or the electronic key is left inside the vehicle.
Page 53: Gx460_U.s.a. (Om60G24U
1-2. Opening, closing and locking the doors Impact detection door lock release system ■ In the event that the vehicle is subject to a strong impact, all the doors are unlocked. Depending on the force of the impact or the type of accident, however, the system may not operate.
Page 54: Back Door
1-2. Opening, closing and locking the doors Back door The back door can be locked/unlocked and opened by the following proce- dures. ■ Locking and unlocking the back door Entry function P. 31 Wireless remote control P. 48 Door lock switch P.
Page 55: Gx460_U.s.a. (Om60G24U
1-2. Opening, closing and locking the doors ■ Keeping the back door open Unlocks the back door stop- Locks the back door stopper The back door stopper can only be operated when the back door is fully open. When closing the back door, check that the back door stop- per is unlocked.
Page 56: Gx460_U.s.a. (Om60G24U
1-2. Opening, closing and locking the doors CAUTION While driving ■ Keep the back door closed while driving. ● If the back door is left open, it may hit near-by objects while driving or luggage may be unexpectedly thrown out, causing an accident. In addition, exhaust gases may enter the vehicle, causing death or a serious health hazard.
Page 57: Gx460_U.s.a. (Om60G24U
1-2. Opening, closing and locking the doors CAUTION Operating the back door ■ Observe the following precautions. Failure to do so may cause parts of the body to be caught, resulting in death or seri- ous injury. When opening or closing the back door, thoroughly check to make sure the sur- ●...
Page 58: Gx460_U.s.a. (Om60G24U
Failure to do so may cause damage to the back door damper stay, resulting in mal- function. Do not attach any accessories other than ● genuine Lexus parts to the back door. Do not lean against, climb on or place lug- ● gage on the damper stay, or apply lateral forces to it.
Page 59: Glass Hatch
1-2. Opening, closing and locking the doors Glass hatch The glass hatch can be opened using the glass hatch opener, entry function or wireless remote control. ■ Entry function P. 32 ■ Wireless remote control P. 48 ■ Glass hatch opener Press the button to pop up the glass hatch.
Page 60 1-2. Opening, closing and locking the doors When opening the glass hatch ■ Open the glass hatch slowly and carefully. ● Use the glass hatch opener when the back door is closed. ● Opening the glass hatch while the rear window wiper is in operation ■...
Page 61 1-2. Opening, closing and locking the doors CAUTION While driving ■ Keep the glass hatch closed while driving. ● If the glass hatch is left open, it may hit near-by objects while driving or luggage may be unexpectedly thrown out, causing an accident. In addition, exhaust gases may enter the vehicle, causing death or a serious health hazard.
Page 62 1-2. Opening, closing and locking the doors CAUTION Operating the glass hatch ■ Observe the following precautions. Failure to do so may cause parts of the body to be caught, resulting in death or seri- ous injury. Remove any heavy loads, such as snow and ice, from the glass hatch before ●...
Page 63 Doing so may cause hands to be caught or the glass hatch damper stay to break, causing an accident. Do not attach any accessories other than genuine Lexus parts to the glass hatch. ● Such additional weight on the glass hatch may cause the glass hatch to fall closed again after it is opened, resulting in death or serious injury.
Page 64: Adjustable Components
1-3. Adjustable components (seats, mirrors, steering wheel, etc.) Front seats Seat position adjustment switch Seatback angle adjustment switch Seat cushion (front) angle adjustment switch Vertical height adjustment switch Lumber support adjustment switch GX460_U.S.A. (OM60G24U)
Page 65: Gx460_U.s.a. (Om60G24U
1-3. Adjustable components (seats, mirrors, steering wheel, etc.) Power easy access system When the driver enters and exits the vehicle, the driver’ s seat and steer- ing wheel will automatically perform the following operations: Exiting the vehicle: When all of the following actions have been per- formed, the steering wheel will move up and back to the point far-...
Page 66: Gx460_U.s.a. (Om60G24U
1-3. Adjustable components (seats, mirrors, steering wheel, etc.) Active head restraints When the occupant’ s lower back presses against the seatback dur- ing a rear-end collision, the head restraint moves slightly forward and upward to help reduce the risk of whiplash on the seat occupant. The auto away function for exiting the driver seat ■...
Page 67: Gx460_U.s.a. (Om60G24U
1-3. Adjustable components (seats, mirrors, steering wheel, etc.) Customization ■ The distance that the driver’ s seat moves backward during the auto away function can be changed. (Customizable features P. 787) CAUTION Seat adjustment ■ To reduce the risk of sliding under the lap belt during a collision, do not recline the seat more than necessary....
Page 68: Rear Seats
1-3. Adjustable components (seats, mirrors, steering wheel, etc.) Rear seats Second seats (without third seats) Seatback angle adjustment lever Second seats (with third seats) Seatback angle adjustment lever Seat position adjustment lever Third seats (if equipped) Seatback angle adjustment switch GX460_U.S.A.
Page 69 1-3. Adjustable components (seats, mirrors, steering wheel, etc.) Moving a second seat for third seat access (with third seats) ■ Getting in the vehicle (right side only) Pull the seatback angle adjustment lever and fold down the seatback. The seat will slide forward. Move the seat to the front-most position ■...
Page 70 1-3. Adjustable components (seats, mirrors, steering wheel, etc.) Folding down the second seatbacks (without third seats) ■ Before folding down the second seatbacks Stow the center seat belt buckle with the hook-and-loop fastener and lower the head restraints to the lowest position. ■...
Page 71 1-3. Adjustable components (seats, mirrors, steering wheel, etc.) Push the seatback lock release STEP button and fold them down. To return the second seatbacks to their original positions, lift them up until they lock. Folding down the second seatbacks (with third seats) ■...
Page 72 1-3. Adjustable components (seats, mirrors, steering wheel, etc.) Folding down second center seatback only ■ Pull the center seatback lock release lever behind the seatback and fold it down. To return the center seatback to its original position, lift it up until it locks. If you cannot raise the second seatback ■...
Page 73 1-3. Adjustable components (seats, mirrors, steering wheel, etc.) Folding down the third seats R: Right seat return switch R: Right seat fold switch L: Left seat return switch L: Left seat fold switch The switches can be operated from both the rear door side and the back door side.
Page 74 1-3. Adjustable components (seats, mirrors, steering wheel, etc.) ■ Folding down the third seats Press and hold . Two beeps STEP sound and the seatback will rise. When operating is completed, two beeps sound again. Press and hold again. Two STEP beeps sound, the head restraints will fold forward, and the seat will...
Page 75 1-3. Adjustable components (seats, mirrors, steering wheel, etc.) ■ Returning the third seats Press and hold . STEP Two beeps sound and seatback and seat cushion begin to move. When operating is completed, two beeps sound again. Lift the head restraints up until they STEP lock.
Page 76 1-3. Adjustable components (seats, mirrors, steering wheel, etc.) Enlarging the luggage compartment (vehicles with third seats) ■ The third seat can be used for sitting when it is in the position shown in STEP the folding down the third seats. (P. 73) This can be convenient for enlarging the luggage compartment, for instance when the luggage is against the back of the seatback.
Page 77 1-3. Adjustable components (seats, mirrors, steering wheel, etc.) CAUTION When folding the seatbacks down ■ Observe the following precautions. Failure to do so may result in death or serious injury. Do not fold the seatbacks down while driving. ● Stop the vehicle on level ground, set the parking brake and shift the shift lever to ●...
Page 78 1-3. Adjustable components (seats, mirrors, steering wheel, etc.) CAUTION When stowing the third seats ■ Observe the following precautions. Failure to do so may result in death or serious injury. Check that there is no luggage and that there are no other people around the ●...
Page 79: Driving Position Memory (Driver's Seat)
1-3. Adjustable components (seats, mirrors, steering wheel, etc.) Driving position memory (driver’s seat) Your preferred driving position (the position of the driver’s seat, steering wheel and angle of the outside rear view mirrors) can be memorized and recalled with the touch of a button. It is also possible to set this function to activate automatically when the driver’s door is unlocked.
Page 80: Gx460_U.s.a. (Om60G24U
1-3. Adjustable components (seats, mirrors, steering wheel, etc.) ■ Recalling the memorized position Check that the shift lever is in P. STEP Turn the “ENGINE START STOP” switch to IGNITION ON STEP mode. Press button 1 or 2 to recall the STEP desired position.
Page 81: Gx460_U.s.a. (Om60G24U
1-3. Adjustable components (seats, mirrors, steering wheel, etc.) ’ Linking driving position memory with door unlock operation Record your driving position to button 1 or 2 before performing the fol- lowing: Carry only the key to which you want to link the driving position. If 2 or more keys are in the vehicle, the driving position cannot be linked prop- erly.
Page 82: Gx460_U.s.a. (Om60G24U
1-3. Adjustable components (seats, mirrors, steering wheel, etc.) Operating the driving position memory after turning the engine off ■ Memorized positions (except the steering wheel position) can be activated up to 180 seconds after the driver’ s door is opened and another 60 seconds after it is closed again, even after turning the “ENGINE START STOP”...
Page 83: Head Restraints
1-3. Adjustable components (seats, mirrors, steering wheel, etc.) Head restraints Head restraints are provided for all seats. Front and second seats Vertical adjustment Lock release button Pull the head restraints up. Down Push the head restraint down while pushing the lock release button.
Page 84: Gx460_U.s.a. (Om60G24U
1-3. Adjustable components (seats, mirrors, steering wheel, etc.) Adjusting the height of the head restraints ■ Make sure that the head restraints are adjusted so that the center of the head restraint is closest to the top of your ears. Using the second center seat head restraint ■...
Page 85: Gx460_U.s.a. (Om60G24U
1-3. Adjustable components (seats, mirrors, steering wheel, etc.) Installing the head restraints ■ Align the head restraint with the installation holes and push it down to the lock position. Press and hold the lock release button when lowering the head restraint. CAUTION Head restraint precautions ■...
Page 86: Seat Belts
1-3. Adjustable components (seats, mirrors, steering wheel, etc.) Seat belts Make sure that all occupants are wearing their seat belts before driving the vehicle. ■ Correct use of the seat belts Extend the shoulder belt so that it comes fully over the shoulder, but does not come into contact with the neck or slide off the shoulder.
Page 87: Gx460_U.s.a. (Om60G24U
1-3. Adjustable components (seats, mirrors, steering wheel, etc.) ■ Adjusting the seat belt shoulder anchor height (front and outer second seats) Push the seat belt shoulder anchor down while pressing the release button. Push the seat belt shoulder anchor up. Move the height adjuster up and down as needed until you hear a click.
Page 88: Gx460_U.s.a. (Om60G24U
1-3. Adjustable components (seats, mirrors, steering wheel, etc.) Pre-collision seat belts (front seats of vehicles with pre-collision system) If the pre-collision sensor detects that a collision is unavoidable, the pre- collision system will retract the seat belt, thus enhancing the effectiveness of the seat belt pretensioner in a crash.
Page 89: Gx460_U.s.a. (Om60G24U
1-3. Adjustable components (seats, mirrors, steering wheel, etc.) Pregnant women ■ Obtain medical advice and wear the seat belt in the proper way. (P. 86) Women who are pregnant should position the lap belt as low as possible over the hips in the same manner as other occupants.
Page 90: Gx460_U.s.a. (Om60G24U
Each seat belt should be used by one person only. Do not use a seat belt for more ● than one person at once, including children. Lexus recommends that should be seated in the rear seat and always use a seat ● belt and/or an appropriate child restraint system.
Page 91: Gx460_U.s.a. (Om60G24U
If the pretensioner has activated, the SRS warning light will come on. In that case, ● the seat belt cannot be used again and must be replaced at your Lexus dealer. Adjustable shoulder anchor ■...
Page 92: Gx460_U.s.a. (Om60G24U
Ensure that the belt and plate are locked and the belt is not twisted. ● If the seat belt does not function correctly, immediately contact your Lexus dealer. Replace the seat assembly, including the belts, if your vehicle has been involved in ●...
Page 93: Gx460_U.s.a. (Om60G24U
1-3. Adjustable components (seats, mirrors, steering wheel, etc.) CAUTION Using a seat belt extender ■ Do not wear the seat belt extender if you can fasten the seat belt without the ● extender. Do not use the seat belt extender when installing a child restraint system because ●...
Page 94: Steering Wheel
1-3. Adjustable components (seats, mirrors, steering wheel, etc.) Steering wheel The steering wheel can be adjusted to a comfortable position. Operating the switch moves the steering wheel in the following direc- tions: Down Away from the driver Toward the driver Auto tilt away When the “ENGINE START STOP”...
Page 95: Gx460_U.s.a. (Om60G24U
1-3. Adjustable components (seats, mirrors, steering wheel, etc.) The steering wheel can be adjusted when ■ The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode *: If the driver’ s seat belt is fastened, the steering wheel can be adjusted regardless of “ENGINE START STOP”...
Page 96: Inside Rear View Mirror
1-3. Adjustable components (seats, mirrors, steering wheel, etc.) Inside rear view mirror In automatic mode, sensors are used to detect the headlights of vehicles behind and the reflected light is automatically reduced. Turns automatic mode on/off The indicator comes on when automatic mode is turned on.
Page 97: Gx460_U.s.a. (Om60G24U
1-3. Adjustable components (seats, mirrors, steering wheel, etc.) To prevent sensor error ■ To ensure that the sensors operate properly, do not touch or cover them. CAUTION Caution while driving ■ Do not adjust the position of the mirror while driving. Doing so may lead to mishandling of the vehicle and may cause an accident, result- ing in death or serious injury.
Page 98: Outside Rear View Mirrors
1-3. Adjustable components (seats, mirrors, steering wheel, etc.) Outside rear view mirrors Mirror angle can be adjusted using the switch. To select a mirror to adjust, STEP press the switch. Left Right To adjust the mirror, press the STEP switch. Right Down Left...
Page 99: Gx460_U.s.a. (Om60G24U
1-3. Adjustable components (seats, mirrors, steering wheel, etc.) Folding the mirrors Manual type Push the mirror back in the direc- tion of the vehicle’ s rear. Auto type Extends the mirrors Folds the mirrors GX460_U.S.A. (OM60G24U)
Page 100: Gx460_U.s.a. (Om60G24U
1-3. Adjustable components (seats, mirrors, steering wheel, etc.) Mirror angle can be adjusted when ■ The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode. When the mirrors are fogged up ■ Turn on the mirror heaters to defog the mirrors. (P. 406) Linked mirror function when reversing ■...
Page 101: Gx460_U.s.a. (Om60G24U
1-3. Adjustable components (seats, mirrors, steering wheel, etc.) CAUTION When driving the vehicle ■ Observe the following precautions while driving. Failing to do so may result in loss of control of the vehicle and cause an accident, resulting in death or serious injury. Do not adjust the mirrors while driving.
Page 102: Opening And Closing The Windows And Moon Roof
1-4. Opening and closing the windows and moon roof Power windows The power windows can be opened and closed using the switches. Operating the switch moves the windows as follows: Closing One-touch closing Opening One-touch opening : Pushing the switch in the opposite direction will stop window travel partway.
Page 103: Gx460_U.s.a. (Om60G24U
If you release the switch while the window is moving, start again from the beginning. If the window continues to close but then re-open slightly even after performing the above procedure correctly, have the vehicle inspected by your Lexus dealer. GX460_U.S.A. (OM60G24U)
Page 104: Gx460_U.s.a. (Om60G24U
1-4. Opening and closing the windows and moon roof Door lock linked window operation ■ The power windows can be opened and closed using the mechanical key.  ● (P. 742) The power windows can be opened using the wireless remote control.  ●...
Page 105: Moon Roof
1-4. Opening and closing the windows and moon roof Moon roof Use the overhead switches to open and close the moon roof and tilt it up and down. ■ Opening and closing Opens the moon roof The moon roof stops slightly before the fully open position to reduce wind noise.
Page 106 1-4. Opening and closing the windows and moon roof The moon roof can be operated when ■ The “ENGINE START STOP” switch is in IGNITION ON mode. Operating the moon roof after turning the engine off ■ The moon roof can be operated for approximately 45 seconds even after the “ENGINE START STOP”...
Page 107 1-4. Opening and closing the windows and moon roof Moon roof open reminder function ■ An alarm will sound when the driver’ s door is opened with the moon roof not fully closed and the “ENGINE START STOP” switch off. When the moon roof does not close normally ■...
Page 108 Check to make sure that the moon roof is completely closed and then release the switch. If the moon roof does not fully close even after performing the above procedure correctly, have the vehicle inspected by your Lexus dealer. GX460_U.S.A. (OM60G24U)
Page 109 1-4. Opening and closing the windows and moon roof Customization ■ Settings (e.g. linked door lock operation) can be changed.  (Customizable features P. 787) CAUTION Opening the moon roof ■ Observe the following precautions. Failing to do so may cause death or serious injury. Do not allow any passengers to put their hands or heads outside the vehicle while ●...
Page 110: Refueling
1-5. Refueling Opening the fuel tank cap Perform the following steps to open the fuel tank cap. ■ Before refueling the vehicle Turn the “ENGINE START STOP” switch off and ensure that all the doors and windows are closed. ■ Opening the fuel tank cap Press the opener to open the STEP...
Page 111 1-5. Refueling Hang the fuel tank cap on the STEP back of the fuel filler door. Closing the fuel tank cap After refueling, turn the fuel tank cap until you hear a click. Once the cap is released, it will turn slightly in the opposite direction.
Page 112 1-5. Refueling If the fuel filler door opener is inoperable ■ The lever can be used to open the fuel filler door if the fuel filler door cannot be opened using the inside switch. Fuel types ■ Use premium unleaded gasoline. (Octane Rating 91 [Research Octane Number 96] or higher) Fuel tank capacity ■...
Page 113 1-5. Refueling CAUTION When refueling the vehicle ■ Observe the following precautions while refueling the vehicle. Failure to do so may result in death or serious injury. After exiting the vehicle and before opening the fuel door, touch an unpainted ●...
Page 114 When replacing the fuel cap ■ Do not use anything but a genuine Lexus fuel tank cap designed for your vehicle. Doing so may cause a fire or other incident which may result in death or serious injury.
Page 115: Theft Deterrent System
1-6. Theft deterrent system Engine immobilizer system The vehicle’s keys have built-in transponder chips that prevent the engine from starting if a key has not been previously registered in the vehicle’s on- board computer. Never leave the keys inside the vehicle when you leave the vehicle. Vehicles without a navigation system The indicator light flashes after the “ENGINE START STOP”...
Page 116 1-6. Theft deterrent system System maintenance ■ The vehicle has a maintenance-free type of engine immobilizer system. Conditions that may cause the system to malfunction ■ If the grip portion of the key is in contact with a metallic object. ●...
Page 117: Alarm
1-6. Theft deterrent system Alarm The system sounds the alarm and flashes the lights when forced entry is detected. ■ Triggering of the alarm The alarm is triggered in the following situations when the alarm is set: ● A locked door or glass hatch is unlocked or opened in any way other than using the entry function, wireless remote control or mechanical key.
Page 118 1-6. Theft deterrent system Vehicles with a navigation system Close the doors, glass hatch and hood, and lock all the doors. The system will be set automati- cally after 30 seconds. The indicator light changes from being on to flashing when the system is set.
Page 119 1-6. Theft deterrent system System maintenance ■ The vehicle has a maintenance-free type alarm system. Items to check before locking the vehicle ■ To prevent unexpected triggering of the alarm and vehicle theft, make sure of the following: Nobody is in the vehicle. ●...
Page 120 1-6. Theft deterrent system Alarm-operated door lock ■ When the alarm is operating, the doors are locked automatically to prevent ● intruders. Do not leave the key inside the vehicle when the alarm is operating, and make ● sure the key is not inside the vehicle when recharging or replacing the battery. Alarm memory function ■...
Page 121: Safety Information
1-7. Safety information Correct driving posture Drive with a good posture as follows: Sit upright and well back in the seat. (P. 64) Adjust the position of the seat forward or backward to ensure the pedals can be reached easily depressed to the extent required.
Page 122 1-7. Safety information CAUTION While driving ■ Do not adjust the position of the driver’ s seat. ● Doing so could cause the driver to lose control of the vehicle. Do not place a cushion between the driver or passenger and the seatback. ●...
Page 123: Srs Airbags
1-7. Safety information SRS airbags The SRS airbags inflate when the vehicle is subjected to certain types of severe impacts that may cause significant injury to the occupants. They work together with the seat belts to help reduce the risk of death or serious injury.
Page 124 1-7. Safety information SRS side and curtain shield airbags Front SRS side airbags Can help protect the torso of the front seat occupants Rear SRS side airbags (if equipped) Can help protect the torso of the outer second seat occupants SRS curtain shield airbags...
Page 125 1-7. Safety information SRS airbag system components Occupant detection system Rear side (if equipped) and (ECU and sensors) curtain shield airbag sensor Knee airbag Rear side airbag (outer second seat) (if equipped) Curtain shield airbag Driver airbag Front passenger airbag Driver’...
Page 126 1-7. Safety information Your vehicle is equipped with ADVANCED AIRBAGS designed based on the US motor vehicle safety standards (FMVSS208). The airbag sys- tem controls airbag deployment power for the driver and front passen- ger. The driver airbag system consists of the driver’ s seat belt buckle switch etc.
Page 127 1-7. Safety information If the SRS airbags deploy (inflate) ■ Bruising and slight abrasions may result from contact with a deploying (inflating) ● SRS airbag. A loud noise and white powder will be emitted. ● Parts of the airbag module (steering wheel hub, airbag cover and inflator) as ●...
Page 128 1-7. Safety information SRS airbag deployment conditions (SRS front airbags) ■ The SRS front airbag will deploy in the event of an impact that exceeds the set ● threshold level (the level of force corresponding to an approximately 12 - 18 mph [20 - 30 km/h] frontal collision with a fixed wall that does not move or deform).
Page 129 1-7. Safety information Conditions under which the SRS airbags may deploy (inflate), other than a colli- ■ sion The SRS front airbags may also deploy if a serious impact occurs to the underside of your vehicle. Some examples are shown in the illustration. Hitting a curb, edge of pavement or hard ●...
Page 130 1-7. Safety information Types of collisions that may not deploy the SRS airbags (SRS front airbags) ■ The SRS front airbags are generally not designed to inflate if the vehicle is involved in a side or rear collision, if it rolls over, or if it is involved in a low-speed frontal colli- sion.
Page 131 1-7. Safety information The SRS side airbags are not generally designed to inflate if the vehicle is involved in a frontal or rear collision, if it rolls over, or if it is involved in a low-speed side colli- sion. Collision from the front ●...
Page 132 1-7. Safety information When to contact your Lexus dealer ■ In the following cases, contact your Lexus dealer as soon as possible. Do not dis- connect the battery cables before contacting your Lexus dealer. Any of the SRS airbags have been inflated.
Page 133 1-7. Safety information The pad section of the steering wheel, ● dashboard near the front passenger airbag or lower portion of the instrument panel is scratched, cracked, or otherwise dam- aged. The surface of the seats with the side air- ●...
Page 134 1-7. Safety information CAUTION SRS airbag precautions ■ Observe the following precautions regarding the SRS airbags. Failure to do so may cause death or serious injury. The driver and all passengers in the vehicle must wear their seat belts properly. ●...
Page 135 An infant or child who is too small to use a seat belt should be properly secured using a child restraint system. Lexus strongly recommends that all infants and children be placed in the rear seats of the vehicle and properly restrained.
Page 136 1-7. Safety information CAUTION SRS airbag precautions ■ Do not sit on the edge of the seat or lean ● against the dashboard. Do not allow a child to stand in front of the ● SRS front passenger airbag unit or sit on the knees of a front passenger.
Page 137 1-7. Safety information CAUTION SRS airbag precautions ■ Do not allow anyone to kneel on the pas- ● senger seat toward the door or put their head or hands outside the vehicle. Do not attach anything to or lean anything ●...
Page 138 If the areas where the SRS airbags are stored, such as the steering wheel pad and ● front, center and rear pillar garnishes, are damaged or cracked, have them replaced by your Lexus dealer. GX460_U.S.A. (OM60G24U)
Page 139 ■ Do not dispose of your vehicle or perform any of the following modifications with- out consulting your Lexus dealer. The SRS airbag may malfunction or deploy (inflate) accidentally, causing death or serious injury. Installation, removal, disassembly and repair of the SRS airbags ●...
Page 140 1-7. Safety information Deactivating the curtain shield airbags in a vehicle rollover ON/OFF (Hold for a few seconds) The “RSCA OFF” indicator light turns on. (Only when the engine switch is in the “ON” position.) GX460_U.S.A. (OM60G24U)
Page 141 1-7. Safety information The switch only should be used ■ In a situation where inflation is not desired (such as during extreme off-road driv- ing). Operating conditions when the “RSCA OFF” indicator is on ■ The curtain shield airbag and seat belt pretensioner will not activate in a vehicle ●...
Page 142: Front Passenger Occupant Classification System
1-7. Safety information Front passenger occupant classification system Your vehicle is equipped with a front passenger occupant classification sys- tem. This system detects the conditions of the front passenger seat and activates or deactivates the devices for the front passenger. SRS warning light Front passenger’...
Page 143 1-7. Safety information Condition and operation in the front passenger occupant classification system ■ Adult “AIR BAG ON” and “AIR BAG OFF” “AIR BAG indicator lights ON” Indicator/ SRS warning light warning light Front passenger’ s seat belt reminder light Flashing Front passenger airbag Side airbag on the front passenger seat...
Page 144 1-7. Safety information ■ Child or child restraint system “AIR BAG ON” and “AIR BAG OFF” “AIR BAG indicator lights OFF” Indicator/ SRS warning light warning light Front passenger’ s seat belt reminder light Flashing Front passenger airbag Deactivated Side airbag on the front passenger seat Activated Curtain shield airbag Devices...
Page 145 1-7. Safety information ■ Unoccupied “AIR BAG ON” and “AIR BAG OFF” indicator lights illuminated Indicator/ warning light SRS warning light Front passenger’ s seat belt reminder light Front passenger airbag Deactivated Side airbag on the front passenger seat Activated Curtain shield airbag Devices in the front passenger side...
Page 146 1-7. Safety information : The system judges a person of adult size as an adult. When a smaller adult sits in the front passenger seat, the system may recognize him/ her as a child depending on his/her physique and posture. : In the event the front passenger does not wear a seat belt.
Page 147 1-7. Safety information CAUTION Front passenger occupant classification system precautions ■ Make sure the “AIR BAG OFF” indicator light is not illuminated when using the ● seat belt extender for the front passenger seat. If the “AIR BAG OFF” indicator light is illuminated, disconnect the extender tongue from the seat belt buckle, and reconnect the seat belt.
Page 148 Do not kick the front passenger seat or subject it to severe impact. Otherwise, ● the SRS warning light may come on to indicate a malfunction in the detection sys- tem. In this case, contact your Lexus dealer immediately. Child restraint systems installed on the second seat should not contact the front ●...
Page 149: Child Restraint Systems
1-7. Safety information Child restraint systems A child restraint system for a small child or baby must itself be properly restrained on the seat with the lap portion of the lap/shoulder belt. The laws of all 50 states of the U.S.A. and Canada now require the use of child restraint systems.
Page 150 1-7. Safety information Types of child restraints Child restraint systems are classified into the following 3 types according to the age and size of the child; Rear facing  Infant seat/convertible seat Forward facing  Convertible seat Booster seat GX460_U.S.A. (OM60G24U)
Page 151 In an accident, the child can be crushed against the wind- shield, or between you and the vehicle’ s interior. Lexus strongly urges the use of a proper child restraint system that conforms to ● the size of the child, installed on the rear seat. According to accident statistics, the child is safer when properly restrained in the rear seat than in the front seat.
Page 152 1-7. Safety information CAUTION Child restraint precautions ■ A forward-facing child restraint system may be installed on the front passenger ● seat only when it is unavoidable. A child restraint system that requires a top tether strap should not be used in the front passenger seat since there is no top tether strap anchor for the front passenger seat.
Page 153 1-7. Safety information CAUTION Child restraint lock function belt precaution ■ Do not allow children to play with the child restraint lock function belt. If the belt becomes twisted around a child’ s neck, it will not be possible to pull the belt out leading to choking or other serious injuries that could result in death....
Page 154: Installing Child Restraints
1-7. Safety information Installing child restraints Follow the child restraint system manufacturer’s instructions. Firmly secure child restraints to the seats using the LATCH anchors or a seat belt. Attach the top tether strap when installing a child restraint. The lap/shoulder belt can be used if your child restraint system is not com- patible with the LATCH (Lower Anchors and Tethers for Children) system.
Page 155 1-7. Safety information Anchor bracket (for top tether strap) Anchor brackets are provided for each second seats. Installation with LATCH system Fold the seatback forward. Then STEP return the seatback and secure it at the first lock position (most upright position). (P. 68) GX460_U.S.A.
Page 156 1-7. Safety information Type A Flip the cover (vehicles with third STEP seats), and latch the hooks of lower straps onto the LATCH anchors. If the child restraint has a top tether strap, the top tether strap should be latched onto the top tether strap anchor.
Page 157 1-7. Safety information Installing child restraints using a seat belt (child restraint lock function belt) Rear facing Infant seat/convertible seat ■ Fold the seatback forward. Then STEP return the seatback and secure it at the first lock position (most upright position). (P. 68) Place the child restraint system on STEP the rear seat facing the rear of the...
Page 158 1-7. Safety information Fully extend the shoulder belt and STEP allow it to retract to put it in lock mode. In lock mode, the belt can- not be extended. While pushing the child restraint STEP system down into the rear seat, allow the shoulder belt to retract until the child restraint system is securely in place.
Page 159 1-7. Safety information Forward facing Convertible seat ■ Fold the seatback forward. Then STEP return the seatback and secure it at the first lock position (most upright position). (P. 68) Place the child restraint system on STEP the seat facing the front of the vehi- cle.
Page 160 1-7. Safety information Fully extend the shoulder belt and STEP allow it to retract to put it in lock mode. In lock mode, the belt can- not be extended. While pushing the child restraint STEP system into the rear seat, allow the shoulder belt to retract until the child restraint system is securely in place.
Page 161 1-7. Safety information ■ Booster seat Fold the seatback forward. Then STEP return the seatback and secure it at the first lock position (most upright position). (P. 68) Place the child restraint system on STEP the seat facing the front of the vehi- cle.
Page 162 1-7. Safety information Sit the child in the child restraint STEP system. Fit the seat belt to the child restraint system according to the manufacturer’ s instructions and insert the plate into the buckle. Make sure that the belt is not twisted.
Page 163 1-7. Safety information Child restraint systems with a top tether strap Secure the child restraint using a seat belt or the LATCH anchors, STEP and do the following. Move the head restraint in place at the upmost position. Open the anchor bracket cover, STEP latch the hook onto the anchor bracket and tighten the top strap.
Page 164 1-7. Safety information Laws and regulations pertaining to anchorages ■ The LATCH system conforms to FMVSS225 or CMVSS210.2. Child restraint systems conforming to FMVSS213 or CMVSS213 specifications can be used. This vehicle is designed to conform to the SAE J1819. CAUTION When installing a booster seat ■...
Page 165 1-7. Safety information CAUTION When installing a child restraint system ■ Follow the directions given in the child restraint system installation manual and fix the child restraint system securely in place. If the child restraint system is not correctly fixed in place, the child or other passen- gers may be seriously injured or even killed in the event of sudden braking or an accident.
Page 166 1-7. Safety information CAUTION When installing a child restraint system ■ When installing a child restraint system in the second center seat, adjust both ● seatbacks at the same angle. When using the LATCH anchors for a child restraint system, move the seat as far ●...
Page 167 1-7. Safety information CAUTION To correctly attach a child restraint system to the anchors ■ When using the LATCH anchors, be sure that there are no foreign objects ● around the anchors and that the seat belt is not caught behind the child restraint. Make sure the child restraint system is securely attached, or it may cause death or serious injury to the child or other passengers in the event of a sudden stop or accident.
Page 168: When Driving
When driving 2-1. Driving procedures Driving the vehicle ....170 Engine (ignition) switch ..181 Automatic transmission..188 Turn signal lever....... 194 Parking brake......195 Horn..........196 2-2. Instrument cluster Gauges and meters....197 Indicators and warning  lights........200 Multi-information display ...
Page 169 When driving 2-4. Using other driving systems 2-5. Driving information Cruise control......244 Off-road precautions .... 351 Dynamic radar cruise  Cargo and luggage ....356 control ........248 Vehicle load limits....362 Intuitive parking assist ..262 Winter driving tips....364 LDA ...
Page 170: Driving The Vehicle
2-1. Driving procedures Driving the vehicle The following procedures should be observed to ensure safe driving: ■ Starting the engine P. 181 ■ Driving With the brake pedal depressed, shift the shift lever to D.  STEP (P. 188) Release the parking brake. (P. 195) STEP Gradually release the brake pedal and gently depress the STEP...
Page 171 Breaking in your new Lexus ■ To extend the life of the vehicle, observing the following precautions is recom- mended: For the first 200 miles (300 km):...
Page 172 Your vehicle has a drum-in-disc type parking brake system. This type of brake sys- tem needs bedding-down of the brake shoes periodically or whenever the parking brake shoes and/or drum are replaced. Have your Lexus dealer perform the bed- ding down operation.
Page 173 2-1. Driving procedures CAUTION When starting the vehicle ■ Always keep your foot on the brake pedal while stopped with the engine running. This prevents the vehicle from creeping. When driving the vehicle ■ Do not drive if you are unfamiliar with the location of the brake and accelerator ●...
Page 174 Large amounts of exhaust in the vehicle can cause driver drowsiness and an acci- dent, resulting in death or a serious health hazard. Have the vehicle inspected by your Lexus dealer immediately. Do not under any circumstances shift the shift lever to P while the vehicle is mov- ●...
Page 175 2-1. Driving procedures CAUTION When driving the vehicle ■ Always check that all passengers’ arms, heads or other parts of their body are not ● outside the vehicle, as this may result in death or serious injury. Do not drive in excess of the speed limit. Even if the legal speed limit permits it, do ●...
Page 176 If you hear a squealing or scraping noise (brake pad wear limit indicators) ■ Have your Lexus dealer check and replace the brake pads as soon as possible. Rotor damage may result if the pads are not replaced when needed.
Page 177 2-1. Driving procedures CAUTION When the vehicle is parked ■ Do not leave glasses, cigarette lighters, spray cans, or soft drink cans in the vehi- ● cle when it is in the sun. Doing so may result in the following: •...
Page 178 Lexus dealer. Failure to do so may allow exhaust gases to enter the vehicle, resulting in death or a serious health hazard.
Page 179 2-1. Driving procedures CAUTION When braking ■ When the brakes are wet, drive more cautiously. ● Braking distance increases when the brakes are wet, and this may cause one side of the vehicle to brake differently than the other side. Also, the parking brake may not securely hold the vehicle.
Page 180 Engine damage caused by water immersion ● In the event that you drive on a flooded road and the vehicle is flooded, be sure to have your Lexus dealer check the following: Brake function ● Changes in quantity and quality of oil and fluid used for the engine, transmission, ●...
Page 181: Engine (Ignition) Switch
2-1. Driving procedures Engine (ignition) switch Performing the following operations when carrying the electronic key on your person starts the engine or changes “ENGINE START STOP” switch modes. ■ Starting the engine Check that the parking brake is set. STEP Check that the shift lever is set in P.
Page 182 2-1. Driving procedures ■ Stopping the engine Stop the vehicle. STEP Shift the shift lever to P. STEP Set the parking brake. (P. 195) STEP Press the “ENGINE START STOP” switch. STEP Release the brake pedal and check that the indicator on the STEP “ENGINE START STOP”...
Page 183 2-1. Driving procedures ■ Changing “ENGINE START STOP” switch modes Modes can be changed by pressing the “ENGINE START STOP” switch with brake pedal released. (The mode changes each time the switch is pressed.) The emergency flashers can be used. ACCESSORY mode Some electrical components such as the audio system can be...
Page 184 2-1. Driving procedures When stopping the engine with the shift lever in a position other than P If the engine is stopped with the shift lever in a position other than P, the “ENGINE START STOP” switch will not be turned off but instead be turned to ACCESSORY mode.
Page 185 2-1. Driving procedures Electronic key battery depletion ■ P. 45 Conditions affecting operation ■ P. 40 Notes for the entry function ■ P. 42 If the engine does not start ■ The engine immobilizer system may not have been deactivated. (P. 115) Steering lock ■...
Page 186 After about 10 seconds, the steering lock motor will resume functioning. When the “ENGINE START STOP” switch indicator flashes in amber ■ The system may be malfunctioning. Have the vehicle inspected by your Lexus dealer immediately. If the electronic key battery is depleted ■...
Page 187 Symptoms indicating a malfunction with the “ENGINE START STOP” switch ■ If the “ENGINE START STOP” seems to be operating somewhat differently than usual, such as the switch sticking slightly, there may be a malfunction. Contact your Lexus dealer immediately. GX460_U.S.A. (OM60G24U)
Page 188: Automatic Transmission
2-1. Driving procedures Automatic transmission Select a shift position appropriate for the driving conditions. ■ Shifting the shift lever While the “ENGINE START STOP” switch is in IGNITION ON mode, move the shift lever with the brake pedal depressed. When shifting the shift lever between P and D, make sure that the vehicle is completely stopped.
Page 189 2-1. Driving procedures ■ Shift position purpose Shift position Function Parking the vehicle/starting the engine Reversing Neutral Normal driving S mode driving (P. 191) : To improve fuel efficiency and reduce noises, set the shift lever in the D position for normal driving. : Selecting shift ranges using S mode restricts the upper limit of the possible gear ranges, controls engine braking forces, and prevents unnecessary upshifting.
Page 190 2-1. Driving procedures ■ Selecting second start mode Use second start mode for accelerating and driving on slippery road surfaces such as snow. Press the menu switch. STEP The multi-information display will change modes to electronic features control mode. Press the “ENTER” switch upwards or downwards until “2ND START”...
Page 191 2-1. Driving procedures Changing shift ranges in S mode When the shift lever is in the S position, the shift lever can be operated as follows: For upshifting For downshifting The initial shift range in S mode is set automatically to 5 or 4 according to vehicle speed.
Page 192 If the “S” indicator does not come on even after shifting the shift lever to S ■ This may indicate a malfunction in the automatic transmission system. Have the vehicle inspected by Lexus dealer immediately. (In this situation, the transmission will operate in the same manner as when the shift lever is in D.) Downshift restriction warning buzzer (S mode) ■...
Page 193 2-1. Driving procedures CAUTION When driving on slippery road surfaces ■ Do not accelerate or shift gears suddenly. Sudden changes in engine braking may cause the vehicle to spin or skid, resulting in an accident. GX460_U.S.A. (OM60G24U)
Page 194: Turn Signal Lever
2-1. Driving procedures Turn signal lever The turn signal lever can be used to show the following intentions of the driver: Right turn Left turn Lane change to the right (push and hold the lever part- way) The right hand signals will flash until you release the lever.
Page 195: Parking Brake
2-1. Driving procedures Parking brake To set the parking brake, fully depress the parking brake pedal with your left foot while U.S.A. Canada depressing the brake pedal with your right foot.  (Depressing the pedal again releases the parking brake.) Usage in winter time ■...
Page 196: Horn
2-1. Driving procedures Horn To sound the horn, press on or close to the mark. GX460_U.S.A. (OM60G24U)
Page 197: Instrument Cluster
2-2. Instrument cluster Gauges and meters Tachometer Displays the engine speed in revolutions per minute. Engine coolant temperature gauge Displays the engine coolant temperature. Multi-information display P. 206 Fuel gauge Displays the quantity of fuel remaining in the tank. Speedometer Displays the vehicle speed.
Page 198 2-2. Instrument cluster Odometer and trip meter display Odometer: Displays the total distance the vehicle has been driven. Trip meter: Displays the distance the vehicle has been driven since the meter was last reset. Trip meters A and B can be used to record and display different distances independently.
Page 199 2-2. Instrument cluster The meters and display illuminate when ■ The “ENGINE START STOP” switch is in IGNITION ON mode. Instrument cluster brightness adjustment ■ The instrument cluster brightness levels when the tail lights are on and off can be adjusted.
Page 200: Indicators And Warning Lights
2-2. Instrument cluster Indicators and warning lights The indicators and warning lights on the instrument cluster and center panel inform the driver of the status of the vehicle’s various systems. Instrument cluster Center panel (vehicles without a navigation system) GX460_U.S.A. (OM60G24U)
Page 201 2-2. Instrument cluster Center panel (vehicles with a navigation system) GX460_U.S.A. (OM60G24U)
Page 202 2-2. Instrument cluster ■ Indicators The indicators inform the driver of the operating state of the vehi- cle’ s various systems. Turn signal indicator  Cruise control indicator (P. 194) (P. 244, 248) Headlight high beam  “SET” indicator  indicator (P.
Page 203 They will turn off after the engine is on, or after a few seconds. There may be a malfunction in a system if the lights do not come on, or turn off. Have the vehicle inspected by your Lexus dealer. : The light flashes to indicate that the system is operating.
Page 204 They will turn off after the engine is on, or after a few seconds. There may be a malfunction in a system if a light does not come on, or if the lights do not turn off. Have the vehicle inspected by your Lexus dealer.
Page 205 Have the vehicle inspected by your Lexus dealer immediately if this occurs.
Page 206: Multi-Information Display (Optitron Meters)
2-2. Instrument cluster Multi-information display (Optitron meters) The multi-information display presents the driver with a variety of driving- related data. ● Trip information contents (P. 207) Displays driving range, fuel consumption and other cruising-related infor- mation. ● Electronic features control contents (P.
Page 207 2-2. Instrument cluster Switching the display Menu switch Changes modes to electronic fea- tures control mode, customization mode or back to normal display mode. “ENTER” switch Changes trip information items. This switch is also used to turn on/ off electronic features controls and to change customization settings.
Page 208 2-2. Instrument cluster ● Driving range Displays the estimated maximum distance that can be driven with the quantity of fuel remaining • This distance is computed based on your average fuel consumption. As a result, the actual distance that can be driven may differ from that displayed. •...
Page 209 2-2. Instrument cluster ● Average fuel consumption and Eco Driving Indicator Zone Display (P. 212) Displays the average fuel consumption since the function was reset The function can be reset by pressing the “ENTER” switch for longer than 1 second when the average fuel consumption is displayed.
Page 210 2-2. Instrument cluster ■ Electronic features control contents ● Multi-terrain Select (if equipped) (P. 293) ● Intuitive parking assist (if equipped) (P. 262) ● AFS (Adaptive Front-lighting System) (if equipped) (P. 225) ● Second start mode (P. 190) ■ Other contents ●...
Page 211 2-2. Instrument cluster Electronic features control can be turned on/off when ■ “ENGINE START STOP” switch is in IGNITION ON mode. System check display ■ After turning the “ENGINE START STOP” switch to IGNITION ON mode, “CHECKING” is displayed while system operation is checked. When the system check is complete, the normal screen will return.
Page 212 2-2. Instrument cluster Eco Driving Indicator ■ Eco Driving Indicator Light During Eco-friendly acceleration (Eco driving), Eco Driving Indicator Light will turn on. Eco Driving Indicator Zone Display Suggests Zone of Eco driving with current Eco driving ratio based on acceleration. Zone of Eco driving Eco driving ratio based on acceleration...
Page 213 2-2. Instrument cluster When disconnecting and reconnecting battery terminals ■ The following information data will be reset: Average fuel consumption after refueling ● Average fuel consumption ● Average vehicle speed ● Elapsed time ● CAUTION The multi-information display at low temperatures ■...
Page 214: Multi-Information Display (Accessory Meters)
2-2. Instrument cluster  Multi-information display (Accessory meters) The multi-information display presents the driver with a variety of driving- related data including the current outside air temperature. ● Clock (P. 536) Indicates the time. ● Outside temperature Indicates the outside temperature. The temperature range that can be displayed is from -40 F (-40 C) to 122 F (50 C).
Page 215 2-2. Instrument cluster ● Trip information (P. 216) Displays driving range, fuel consumption and other cruising-related infor- mation. ● Intuitive parking assist display (if equipped) (P. 262) Switching the display Items displayed can be switched by pressing the “MODE” switch. “MODE”...
Page 216 2-2. Instrument cluster Display items ■ Driving range Displays the estimated maximum distance that can be driven with the quantity of fuel remaining This distance is computed based on your average fuel consumption. As a result, the actual distance that can be driven may differ from that displayed.
Page 217 2-2. Instrument cluster ■ Average fuel consumption Displays the average fuel con- sumption since the function was reset The function can be reset by press- ing and holding the “RESET” switch when the average fuel consump- tion is displayed. ■ Average vehicle speed Displays the average vehicle speed since the function was reset...
Page 218 2-2. Instrument cluster Setting up the display ■ Setting up the information display To set up the display, press the “DISP” switch until the desired item appears. If left idle for approximately 10 seconds, the display will revert to the previous screen.
Page 219 2-2. Instrument cluster ● Setting the day mode Press the display adjustment switch (“” or “”) to select ON or OFF. ■ Setting up the display of the monitors To set up the display, press the “DISP” switch when the camera image is being displayed until the desired item appears.
Page 220 When the outside temperature has changed suddenly (at the entrance/exit of a ● garage, tunnel, etc.) When “--” or “E” is displayed on the outside temperature display ■ The system may be malfunctioning. Take your vehicle to your Lexus dealer. GX460_U.S.A. (OM60G24U)
Page 221 2-2. Instrument cluster When disconnecting and reconnecting battery terminals ■ The following information data and settings will be reset: Average fuel consumption after refueling ● Average fuel consumption ● Average vehicle speed ● Elapsed time ● Customization ■ Setting of available languages can be changed.  (Customizable features P.
Page 222: Operating The Lights And Windshield Wipers
2-3. Operating the lights and windshield wipers Headlight switch The headlights can be operated manually or automatically. Turning the end of the lever turns on the lights as follows: U.S.A. The daytime running lights turn off. The headlights, park- ing lights and so on turn on and off auto- matically (when the “ENGINE...
Page 223 2-3. Operating the lights and windshield wipers Canada The daytime running lights turn on. side marker, parking, tail, license plate and instrument panel lights turn on. The headlights and all lights listed above turn on. The headlights, park- ing lights and so on turn on and off auto- matically (when the “ENGINE...
Page 224 2-3. Operating the lights and windshield wipers Turning on the high beam headlights With the headlights on, push the lever away from you to turn on the high beams. When the light switch is in “AUTO” position, the Automatic High Beam system will be activated.
Page 225 2-3. Operating the lights and windshield wipers AFS (Adaptive Front-lighting System) (if equipped) AFS (Adaptive Front-lighting System) secures excellent visibility at inter- sections and on curves by automatically adjusting the direction of the light axis of the headlights according to vehicle speed and the degree of the tire’...
Page 226 2-3. Operating the lights and windshield wipers Daytime running light system ■ To make your vehicle more visible to other drivers, the headlights turn on auto- ● matically (at a reduced intensity) whenever the engine is started and the parking brake is released.
Page 227 If the “AFS OFF” indicator flashes (if equipped) ■ It may indicate a malfunction in the system. Contact your Lexus dealer. Customization ■ Settings (e.g. light sensor sensitivity) can be changed. ...
Page 228: Automatic High Beam
2-3. Operating the lights and windshield wipers  Automatic High Beam The Automatic High Beam uses an in-vehicle camera sensor to assess the brightness of streetlights, the lights of oncoming and preceding vehicles, etc., and automatically turns high beam on or off as necessary. ■...
Page 229 2-3. Operating the lights and windshield wipers Push the lever away from you. STEP The Automatic High Beam indi- cator will come on when the headlights are turned on auto- matically to indicate that the sys- tem is active. ■ Turning the high beam on/off manually Switching to low beam Pull the lever to original posi-...
Page 230 2-3. Operating the lights and windshield wipers ■ High beam automatic turning on or off conditions When all of the following conditions are fulfilled, high beam will be automatically turned on (after approximately 1 second): ● Vehicle speed is above approximately 20 mph (32 km/h). ●...
Page 231 2-3. Operating the lights and windshield wipers Limitations of the Automatic High Beam ■ Do not rely on the Automatic High Beam. Always drive safely, taking care to observe your surroundings and turning high beam on or off manually if necessary. Camera sensor detection information ■...
Page 232 2-3. Operating the lights and windshield wipers In the situations below, the system may not be able to correctly detect the sur- ● rounding brightness levels, and may flash or expose nearby pedestrians to the high beam. Therefore, you should consider turning the high beam on or off manually rather than relying on the Automatic High Beam system.
Page 233 2-3. Operating the lights and windshield wipers If the Automatic High Beam indicator flashes... ■ It may indicate a malfunction in the system. Contact your Lexus dealer. Temporary lowering sensor sensitivity ■ The sensitivity of the sensor can be temporarily lowered....
Page 234 Do not install a parking tag or any other accessories near or around the inside ● rear view mirror and the camera sensor. Do not overload the vehicle. ● Do not modify the vehicle. ● Do not replace windshield with a non-genuine windshield.  ● Contact your Lexus dealer. GX460_U.S.A. (OM60G24U)
Page 235: Fog Light Switch
2-3. Operating the lights and windshield wipers Fog light switch The fog lights secure excellent visibility in difficult driving conditions, such as in rain or fog. U.S.A. Turns the fog lights off Turns the fog lights on GX460_U.S.A. (OM60G24U)
Page 236 2-3. Operating the lights and windshield wipers Canada Turns the fog lights off Turns the fog lights on Fog lights can be used when ■ The head lights are on in low beam. NOTICE To prevent battery discharge ■ Do not leave the lights on longer than necessary when the engine is not running. GX460_U.S.A.
Page 237: Windshield Wipers And Washer
2-3. Operating the lights and windshield wipers Windshield wipers and washer When “AUTO” is selected, the wipers will operate automatically when the sensor detects falling rain. The system automatically adjusts wiper timing according to rain volume and vehicle speed. When “AUTO” is selected, the sensor sensitivity can be adjusted as fol- lows by turning the switch ring: Rain-sensing wiper...
Page 238 2-3. Operating the lights and windshield wipers Increases the sensitivity Decreases the sensitivity Washer/wiper dual operation The wipers operate automati- cally. (After operating several times, the wipers operate one more time after a short delay to prevent dripping.) Vehicles with the headlight cleaners: If the headlights are on, the headlight cleaners will operate once.
Page 239 2-3. Operating the lights and windshield wipers The windshield wipers and washer can be operated when ■ The “ENGINE START STOP” switch is in IGNITION ON mode. Rain drop sensor ■ The raindrop sensor judges the amount of ● raindrops. An optical sensor is adopted.
Page 240 2-3. Operating the lights and windshield wipers CAUTION Caution regarding the use of windshield wipers in “AUTO” mode ■ The windshield wipers may operate unexpectedly if the sensor is touched or the windshield is subject to vibration in “AUTO” mode. Take care that your fingers etc. anything else does not become caught in the windshield wipers.
Page 241: Rear Window Wiper And Washer
2-3. Operating the lights and windshield wipers Rear window wiper and washer The wiper operation is selected by moving the lever as follows: Intermittent window wiper operation Normal window wiper operation Washer/wiper dual operation Washer/wiper dual operation GX460_U.S.A. (OM60G24U)
Page 242: Gx460_U.s.a. (Om60G24U
2-3. Operating the lights and windshield wipers The rear window wiper and washer can be operated when ■ The “ENGINE START STOP” switch is in IGNITION ON mode. ● The glass hatch is closed. ● If no windshield washer fluid sprays ■...
Page 243: Headlight Cleaner Switch
2-3. Operating the lights and windshield wipers  Headlight cleaner switch Washer fluid can be sprayed on the headlights. Press the switch to clean the headlights. The headlight cleaners can be operated when ■ The “ENGINE START STOP” switch is in IGNITION ON mode and the headlight switch is turned on.
Page 244: Using Other Driving Systems
2-4. Using other driving systems  Cruise control Use cruise control to maintain a set speed without depressing the acceler- ator pedal. Indicators Cruise control switch ■ Setting the vehicle speed Press the “ON-OFF” button to STEP activate the cruise control. Press the button again to deacti- vate the cruise control.
Page 245: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems ■ Adjusting the set speed Increases the speed Decreases the speed Hold the lever until the desired speed setting is obtained. Fine adjustment of the set speed can be made by lightly pushing the lever up or down and releas- ing it.
Page 246: Gx460_U.s.a. (Om60G24U
If the cruise control speed cannot be set or if the cruise control cancels immediately after being activated, there may be a malfunction in the cruise control system. Have the vehicle inspected by your Lexus dealer. GX460_U.S.A. (OM60G24U)
Page 247: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems CAUTION To avoid operating the cruise control by mistake ■ Switch the cruise control off using the “ON-OFF” button when not in use. Situations unsuitable for cruise control ■ Do not use cruise control in any of the following situations. Doing so may result in loss of control and could cause an accident resulting in death or serious injury.
Page 248: Dynamic Radar Cruise Control
2-4. Using other driving systems  Dynamic radar cruise control Dynamic radar cruise control supplements conventional cruise control with a vehicle-to-vehicle distance control. In vehicle-to-vehicle distance control mode, the vehicle automatically accelerates or decelerates in order to maintain a set following distance from vehicles ahead. Display Indicators Vehicle-to-vehicle distance...
Page 249: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems Selecting conventional con- stant speed control mode: Press the “ON-OFF” button to activate the cruise control. Press the button again to deacti- vate the cruise control. Vehicle-to-vehicle distance con- trol mode is always reset when the “ENGINE START STOP”...
Page 250: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems ■ Driving in the selected cruise control mode Accelerate or decelerate to the desired speed, and push the lever down to set the speed. “SET” indicator will come on. ■ Adjusting the set speed Increases the speed Decreases the speed Hold the lever until the desired speed setting is displayed.
Page 251: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems ■ Canceling and resuming the constant speed control Pulling the lever toward you cancels the constant speed control. The speed setting is also can- celed when the brakes are applied. Pushing the lever up resumes the constant speed control.
Page 252: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems Driving in vehicle-to-vehicle distance control mode This mode employs a sensor to detect the presence of vehicles up to approximately 400 ft. (120 m) ahead and to judge the distance between your vehicle and the vehicle ahead of you. Note that vehicle-to-vehicle distance will close in when traveling on long downhill slopes.
Page 253: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems Example of constant speed cruising When there are no vehicles ahead The vehicle travels at the speed set by the driver. The desired vehicle-to-vehi- cle distance can also be set by operating the vehicle-to-vehicle distance con- trol.
Page 254: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems Approach warning When your vehicle is too close to a vehicle ahead, and sufficient auto- matic deceleration via the cruise control is not possible, the display will flash and the buzzer will sound to alert the driver. An example of this would be if another driver cuts in front of you while you are following a vehicle.
Page 255: Gx460_U.s.a. (Om60G24U
● dynamic radar cruise control system is on. If vehicle-to-vehicle distance control driving is automatically canceled for any other reason, there may be a malfunction in the system. Contact your Lexus dealer. Automatic cancelation of constant speed control ■ The cruise control will stop maintaining the vehicle speed in the following situations: Actual vehicle speed is more than approximately 10 mph (16 km/h) below the ●...
Page 256: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems Vehicle-to-vehicle distance settings ■ Select a distance from the table below. Note that the distances shown correspond to a vehicle speed of 50 mph (80 km/h). Vehicle-to-vehicle distance increases/ decreases in accordance with vehicle speed. Distance options Vehicle-to-vehicle distance Long...
Page 257: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems Certification ■ For vehicles sold in the U.S.A. FCC ID: HYQDNMWR004 This device complies with Part 15 of the FCC Rules. Operation is subject to the fol- lowing two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 258: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems CAUTION Before using dynamic radar cruise control ■ Do not overly rely on vehicle-to-vehicle distance control.  Be aware of the set speed. If automatic deceleration/acceleration is not appropri- ate, adjust the vehicle speed, as well as the distance between your vehicle and vehi- cles ahead by applying the brakes etc.
Page 259: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems CAUTION To avoid inadvertent cruise control activation ■ Switch the cruise control off using the “ON-OFF” button when not in use. Situations unsuitable for the dynamic radar cruise control ■ Do not use dynamic radar cruise control in any of the following situations. Doing so may result in inappropriate speed control and could cause an accident resulting in death or serious injury.
Page 260: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems CAUTION When the sensor may not be correctly detecting the vehicle ahead ■ Apply the brakes as necessary when any of the following types of vehicles are in front of you. As the sensor may not be able to correctly detect these types of vehicles, the approach warning (P.
Page 261: Gx460_U.s.a. (Om60G24U
If the sensor moves even slightly off position, the system may malfunction. If the sensor or surrounding area is subject to a strong impact, always have the area inspected and adjusted by your Lexus dealer. Do not disassemble the sensor.
Page 262: Intuitive Parking Assist
2-4. Using other driving systems  Intuitive parking assist The distance from your vehicle to nearby obstacles when parallel parking or maneuvering into a garage is measured by the sensors and communi- cated via the multi-information display and a buzzer. Always check the sur- rounding area when using this system.
Page 263: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems ■ Intuitive parking assist switch Press the menu switch. STEP The multi-information display will change modes to elec- tronic features control mode. Press the “ENTER” switch upwards or downwards until the Intuitive parking assist mark appears in the multi- information display.
Page 264: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems Display When the sensors detect an obstacle, a graphic is shown on the multi- information display depending on the position and distance to the obsta- cle. ■ Optitron meter Front corner sensor operation Front center sensor operation Front tire angle Rear corner sensor operation Rear center sensor operation...
Page 265: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems The distance display and buzzer When a sensor detects an obstacle, the direction of and the approximate distance to the obstacle are displayed and the buzzer sounds. ■ Distance display Corner sensor Accessory meter Approximate distance to obstacle Optitron meter (insert display) Front:...
Page 266: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems Center sensors Accessory meter Approximate distance to obstacle Optitron meter (insert display) Front: 3.3 ft. (100 cm) to 1.6 ft. (50 cm) Rear: 4. 9 ft. (150 cm) to 2.1 ft. (65 cm) (continuous) (blinking slowly) Front:...
Page 267: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems ■ Buzzer operation and distance to an obstacle A beep sounds when the corner sensors and center sensors are operat- ing. ● The buzzer beeps faster as the vehicle approaches an obstacle.  When the vehicle comes within the following distance of the obstacle, the buzzer sounds continuously.
Page 268: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems ■ Sensors that operate Forward Backward ■ Detection range of the sensors Approximately 3.3 ft. (100 cm) Approximately 4. 9 ft. (150 cm) Approximately 2.0 ft. (60 cm) Approximately 1.8 ft. (55 cm) The diagram shows the detection range of the sensors.
Page 269: Gx460_U.s.a. (Om60G24U
• The vehicle is approaching a tall or right-angled curb. • In harsh sunlight or intense cold weather. • A non-genuine Lexus suspension (lowered suspension etc.) is installed. In addition to the examples above, there are instances in which, because of their shape, signs and other objects may be judged by a sensor to be closer than they are.
Page 270: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems When there is a malfunction ■ In the following cases, have the vehicle inspected by your Lexus dealer If the bumper is damaged. ● If the distance display remains on without a buzzer sound. ●...
Page 271: (Lane Departure Alert)
2-4. Using other driving systems  LDA (Lane Departure Alert) While driving on a freeway or motor highway that has lane markers, this system recognizes the lanes using a camera as a sensor to alert the driver when the vehicle deviates from its lane. If the system judges that the vehicle may deviate from its lane, it alerts the driver using rapid beeping and indications on the multi-information display.
Page 272: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems Indication on the multi-information display While the LDA system is on, a lane line display is shown on the multi- information display to inform the driver that the LDA system is on. ● When thin lines are shown: Lane markers are not recog- nized by the system, or the LDA system is temporarily canceled.
Page 273: Gx460_U.s.a. (Om60G24U
If a malfunction occurs in the system, the driver will be alerted by a buzzer and a dis- play, and LDA operation will be temporarily suspended. However, this does not present a problem to normal driving. If the alert is displayed even after restarting the engine, have your vehicle inspected by your Lexus dealer. GX460_U.S.A. (OM60G24U)
Page 274: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems CAUTION Turn the LDA off while driving in any of the following situations ■ Do not use LDA in any of the following situations. Otherwise, the system may not function correctly and could result in an accident. When driving with snow tires, tire chains, a spare tire, or similar equipment.
Page 275: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems NOTICE In the following situations, the LDA will not work, or will not perform reliably ■ When the lane markers are interrupted or are not present, such as before a toll- ● booth. When the lane markers are only on one side of the road. ●...
Page 276: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems NOTICE Camera sensor ■ Observe the following to ensure that the LDA system functions correctly. Keep the windshield clean at all times. ● LDA performance may deteriorate due to the presence of raindrops, condensa- tion, ice or snow on the windshield. Do not subject the camera sensor to strong impact or force, and do not disas- ●...
Page 277: Rear View Monitor System
2-4. Using other driving systems Rear view monitor system The rear view monitor assists the driver by displaying an image of the area behind the vehicle while reversing. The image is displayed in reverse on the screen. This reversed image is a similar image to the one on the inside rear view mirror.
Page 278: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems The rear view monitor can be operated when ■ The “ENGINE START STOP” switch is in IGNITION ON mode. Displayed area ■ The area covered by the camera is limited. Objects which that are close to either corner of the bumper or under the bumper cannot be seen on the screen.
Page 279: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems Rear view monitor camera ■ The rear view monitor camera is located on the back door as shown in the illustration. The camera uses a special lens. The distance of the image that appears on the screen differs from the actual distance.
Page 280: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems Smear effect ■ If a bright light, such as sunlight reflected off the vehicle body, is picked up by the camera, a smear effect characteristic to the camera may occur. : Smear effect  A phenomenon that occurs when a bright light is picked up by the camera;...
Page 281: Gx460_U.s.a. (Om60G24U
If the back of the vehicle has been hit, the camera’ s position and mounting angle ● may have changed. Have the vehicle inspected by your Lexus dealer. As the camera has a water proof construction, do not detach, disassemble or ●...
Page 282: Wide View Front & Side Monitor
2-4. Using other driving systems  Wide view front & side monitor This system can display the wide view front monitor and the side monitor. The wide view front monitor uses a super-wide angle lens to display on screen the areas to the left and right of the vehicle and the blind spots to the front of the vehicle.
Page 283: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems ■ Changing the display The screen changes as follows with each press of the wide view front & side monitor switch. Wide view front monitor (Side monitor) Trip information Side monitor (Wide view front monitor) The wide view front monitor display and trip information are not accessi- ble when the shift lever is in R.
Page 284: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems Range covered by each camera Wide view front monitor Side monitor The illustration shown here is an example. As such, the actual visible area may be different. See P. 287 for information about the visual range of each camera.
Page 285: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems Display ■ Wide view front monitor The image from the front camera is displayed. Use this monitor to help check the area in front of the vehicle for safety, for example in intersec- tions with poor visibility. ■...
Page 286: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems The wide view front & side monitor can be operated when ■ The “ENGINE START STOP” switch is in IGNITION ON mode. ● The vehicle speed is less than approximately 6 mph (10km/h). ● Automatic system cancelation ■...
Page 287: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems Displayed area ■ The area covered by the camera is limited. Objects which are close to either corner of the bumper or under the bumper cannot be seen on the screen. The area displayed on the screen may vary depending on vehicle orientation or road conditions.
Page 288: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems Side camera Camera’ s field of view Objects visible to the camera Right side of vehicle GX460_U.S.A. (OM60G24U)
Page 289: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems Wide view front & side monitor cameras ■ Side camera Front camera In the following cases, it may be difficult to see images on the screen even when the system is functioning correctly: The vehicle is in a dark area, such as at night. ●...
Page 290: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems Smear effect ■ If a bright light, such as sunlight reflected off the vehicle body, is picked up by the camera, a smear effect characteristic to the camera may occur. : Smear effect  A phenomenon that occurs when a bright light is picked up by the camera;...
Page 291: Gx460_U.s.a. (Om60G24U
If the front of the vehicle or the passenger side outside rear view mirror has been ● hit, the camera’ s position and mounting angle may have changed. Have the vehi- cle inspected by your Lexus dealer. As the camera has a water proof construction, do not detach, disassemble or ●...
Page 292: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems NOTICE When using the wide view front & side monitor ■ Even if an obstacle is no longer visible on the side monitor, do not turn the steering wheel further in the direction the vehicle is turning until the vehicle has moved com- pletely past the obstacle.
Page 293: Multi-Terrain Select
2-4. Using other driving systems  Multi-terrain Select Multi-terrain Select is a system that improves drivability in off-road situa- tions. Select a mode that most closely matches the type of terrain on which you are driving from among 4 modes.  Engine control and brake control can be optimized in accordance with the selected mode.
Page 294: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems ■ Selectable modes A mode which matches the road conditions can be selected from among the following 4 modes. Mode Road Conditions Suitable for muddy roads, sandy roads, snow-covered MUD & SAND roads, dirt trails and other slippery or dirty conditions LOOSE Suitable for slippery conditions consisting of mixtures of ROCK...
Page 295: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems Press the “ENTER” switch STEP upwards or downwards until “MULTI-TERRAIN SELECT” appears and then press the “ENTER” switch. The mode selection screen is displayed. Press the “ENTER” switch STEP upwards or downwards to select a desired mode and then press the “ENTER”...
Page 296: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems Statement on the multi-information display ■ After mode selection Turn the system off MODE SELECTION Change the mode (P. 294) CAM. POSITION Switch the displayed image when using the Multi-terrain Monitor (P. 301) DISP. GUIDANCE Explain other necessary opera- tions when selecting a mode (P.
Page 297: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems ■ Operation guidance Operation guidance is shown on the multi-information display when you cannot set a mode.  When the operation guidance is shown on the multi-information dis- play, follow the instructions in the table. GX460_U.S.A.
Page 298: Gx460_U.s.a. (Om60G24U
The vehicle speed exceeds approxi- Reduce vehicle speed  MULTI-TERRAIN mately 7 mph (12 km/h) or the VSC, SELECT NOT EFI, 4WD and/or Multi-terrain If the system is still AVAILABLE Select system may be malfunction- not available, contact your Lexus dealer GX460_U.S.A. (OM60G24U)
Page 299: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems The Multi-terrain Select can be operated when ■ Vehicle speed is less than 7 mph (12 km/h) ● Crawl Control is off ● When using Multi-terrain Select ■ The following functions cannot be switched on or off. ●...
Page 300: Gx460_U.s.a. (Om60G24U
L4, TRAC OFF will be shown on the multi-information display. When there is a malfunction in the system ■ The Multi-terrain Select indicator light will blink. Have the vehicle inspected by your Lexus dealer immediately. CAUTION When using the Multi-terrain Select ■...
Page 301: Multi-Terrain Monitor
2-4. Using other driving systems  Multi-terrain Monitor The Multi-terrain Monitor displays the vehicle surroundings when driving at low speeds, thus assisting off-road driving and helping the driver to check the vehicle surroundings. The Multi-terrain Monitor displays the vehicle surroundings automati- cally when a mode is being selected on the Multi-terrain Select.
Page 302: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems ■ Switching the image Select any mode using the Multi-terrain Select system. STEP (P. 293) Move the “ENTER” switch STEP upwards or downwards to select “CAM. POSITION”, and press the “ENTER” switch. The camera view can be STEP switched moving...
Page 303: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems Range covered by each camera Front monitor Side-front simultaneous display monitor Side-rear simultaneous display monitor Rear monitor The illustration shown here is an example. As such, the actual visible area may be different. See P. 306 for information about the visual range of each camera. Display ■...
Page 304: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems ■ Side-front simultaneous display monitor The image from both side cameras is displayed. Use this monitor to help check the area on both sides of the vehicle at the same time, and to check for objects near the tires or the sides of the vehicle.
Page 305: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems ■ Rear monitor The image from the rear camera is displayed. Use this monitor to help check the area in rear of the vehi- cle for safety. The Multi-terrain Monitor can be operated when ■ Any Multi-terrain Select mode is selected.
Page 306: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems Displayed area ■ The area covered by the camera is limited. Objects which are close to either corner of the bumper or under the bumper cannot be seen on the screen. The area displayed on the screen may vary depending on vehicle orientation or road conditions.
Page 307: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems Side camera (side-front simultaneous display monitor) Camera’ s field of view Objects visible to the camera Right side of vehicle Left side of vehicle GX460_U.S.A. (OM60G24U)
Page 308: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems Side camera (side-rear simultaneous display monitor) Camera’ s field of view Objects visible to the camera Right side of vehicle Left side of vehicle Rear camera P. 277 GX460_U.S.A. (OM60G24U)
Page 309: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems Multi-terrain Monitor cameras ■ Side cameras Front camera Rear camera In the following cases, it may be difficult to see images on the screen even when the system is functioning correctly: The vehicle is in a dark area, such as at night. ●...
Page 310: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems Smear effect ■ If a bright light, such as sunlight reflected off the vehicle body, is picked up by the camera, a smear effect characteristic to the camera may occur. : Smear effect  A phenomenon that occurs when a bright light is picked up by the camera;...
Page 311: Gx460_U.s.a. (Om60G24U
If the front or the rear of the vehicle or the outside rear view mirror has been hit, ● the camera’ s position and mounting angle may have changed. Have the vehicle inspected by your Lexus dealer. As the camera has a water proof construction, do not detach, disassemble or ●...
Page 312: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems NOTICE When using the Multi-terrain Monitor ■ Even if an obstacle is no longer visible on the side monitor, do not turn the steer- ● ing wheel further in the direction the vehicle is turning until the vehicle has moved completely past the obstacle.
Page 313: Rear Height Control Air Suspension
2-4. Using other driving systems  Rear height control air suspension The rear height control air suspension allows the driver to control vehicle rear height in order to adjust driving conditions. Select the desired height with the height control switch. Height control OFF switch Height control switch Selecting vehicle height...
Page 314: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems ■ Height modes ● N mode (normal mode): For ordinary driving Normal height ● HI mode (high mode): For driving on bumpy roads 1.6 in. (40 mm) higher than the normal rear height HI mode cannot be selected when vehicle speed exceeds 18 mph (30 km/h).
Page 315: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems Disabling the height control When the height control OFF switch is pressed with the vehicle stopped, the vehicle height is fixed at the current height. This status is memorized in the sys- tem even after the engine is stopped.
Page 316: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems When HI mode is selected ■ The vehicle height will change to N mode when driving at the speeds of 18 mph (30 km/h).  Even if vehicle speed is then reduced to under 18 mph (30 km/h), height will not return to HI mode.
Page 317: Gx460_U.s.a. (Om60G24U
Stop the engine and start it again. If the warning message turns off, the system is operating correctly. If the warning message continues to be displayed, have your vehicle inspected by your Lexus dealer as soon as possible. CAUTION The rear height control air suspension must be turned off when ■...
Page 318: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems CAUTION Selecting the correct height mode ■ Observe the following precautions.  Failure to do so may cause damage to parts of the vehicle and dangerous handling characteristics which may lead to an accident resulting in death or serious injury. Before lowering vehicle height, check that there is no one under the vehicle.
Page 319: Avs (Adaptive Variable Suspension System)
2-4. Using other driving systems  AVS (Adaptive Variable Suspension System) AVS controls the suspension according to the road and driving conditions. Selecting an optimum driving mode allows good riding comfort and stabil- ity. Sport mode For winding mountain road driv- ing or high speed driving Normal mode For normal driving...
Page 320: Four-Wheel Drive System
2-4. Using other driving systems Four-wheel drive system Use the four-wheel drive control switch and center differential lock/unlock switch to select the following transfer and center differential modes. ■ Four-wheel drive control switch H4 (high speed position) Normal driving on all types of roads.
Page 321: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems ■ Center differential lock/unlock switch Lock the center differential when your vehicle’ s wheels get stuck in a ditch or when driving on a slippery or bumpy surface. The center differential lock indi- cator will come on. Unlock the center differential after the wheels have been freed, or after moving to a flat,...
Page 322: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems Shifting between H4 and L4 ■ Shifting from H4 to L4 Stop the vehicle completely with brake pedal held down. STEP Shift the shift lever to N. STEP Push and shift the four-wheel drive control switch to L4. STEP Maintain this condition until the low speed four-wheel drive indicator light turns on.
Page 323: Gx460_U.s.a. (Om60G24U
When the engine is warmer operate the switch again. If the indicator continue to blink even if doing so, have the vehicle inspected by your Lexus dealer as soon as possible. There may be a trouble in the four-wheel drive system.
Page 324: Gx460_U.s.a. (Om60G24U
If the indicator continue to blink even if doing so, have the vehicle inspected by your Lexus dealer as soon as possible. There may be a trouble in the four-wheel drive system. Locking/unlocking the center differential ■...
Page 325: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems CAUTION While driving ■ Observe the following precautions. Failure to do so may cause an accident result- ing in death or serious injury. Never move the four-wheel drive control switch if the wheels have lost traction. ●...
Page 326: Crawl Control
2-4. Using other driving systems  Crawl Control Allows travel on extremely rough off-road surfaces at a fixed low speed without pressing the accelerator or brake pedal. Minimizes loss of traction or vehicle slip when driving on slippery road surfaces, allowing for stable driving.
Page 327: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems ■ Speed modes ● LO (low mode) Effective when traveling on rocks, or descending a slope of mogul and rubble. ● MED (medium mode) Effective when ascending a slope of mogul. ● HI (high mode) Effective when ascending a slope of mogul and rubble, or travel- ing on snow, dirt, mud, sand, gravel, grass etc.
Page 328: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems Automatic system cancelation ■ In the following situations, the system is canceled automatically: At that time, the buzzer will sound, the slip indicator turns off, and the Crawl Con- trol indicator flashes. A notification will be displayed on the multi-information display for several seconds. (P.
Page 329: Gx460_U.s.a. (Om60G24U
• Vibrations may be felt through the vehicle body and steering. • A motor sound may be heard after the vehicle comes to a stop. If the slip indicator comes on... ■ It may indicate a malfunction in the system. Consult your Lexus dealer. CAUTION When using Crawl Control ■...
Page 330: Dac (Downhill Assist Control System)
2-4. Using other driving systems  DAC (Downhill Assist Control system) The DAC helps to prevent excessive speed on steep downhill slopes.  The system will operate when the vehicle is traveling under 15 mph (25 km/h) and the four-wheel drive control switch is in the L4 position. ■...
Page 331: Gx460_U.s.a. (Om60G24U
IGNITION ON mode. The “DAC” indicator does not come on when the “DAC” switch is pressed. ● The slip indicator comes on. ● In the above cases, have your vehicle checked by your Lexus dealer. GX460_U.S.A. (OM60G24U)
Page 332: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems CAUTION When using downhill assist control ■ Do not rely overmuch on the downhill assist control. This function does not extend the vehicle’ s performance limitations. Always thoroughly check the road conditions, and drive safely. The system may not operate on the following surfaces, which may lead to an acci- ■...
Page 333: Driving Assist Systems
2-4. Using other driving systems Driving assist systems To help enhance driving safety and performance, the following systems operate automatically in response to various driving situations. Be aware, however, that these systems are supplementary and should not be relied upon too heavily when operating the vehicle. ■...
Page 334: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems ■ TRAC (Traction Control) for H4 mode Helps to maintain drive power and prevent the drive wheels from spinning when starting the vehicle or accelerating on slippery roads ■ Active TRAC (Traction Control) for L4 mode Helps to maintain drive power and prevent the 4 wheels from spinning when starting the vehicle or accelerating on slippery roads, or in off-road conditions...
Page 335: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems When the VSC/TRAC or Active TRAC/hill-start assist control systems are operating If the vehicle is in danger of slip- ping or rolling backward when starting on an incline, or if any of the drive wheels spins, the slip indi- cator light flashes to indicate that the VSC/TRAC or Active TRAC/ hill-start assist control systems are...
Page 336: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems Disabling the TRAC or Active TRAC/VSC systems If the vehicle gets stuck in fresh snow or mud, the TRAC or Active TRAC/ VSC systems may reduce power from the engine to the wheels. You may need to turn the system off to enable you to rock the vehicle in order to free it.
Page 337: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems Hill-start assist control operation conditions ■ The shift lever is in D or S. ● The brake pedal is not depressed. ● Sounds and vibrations caused by the ABS/Multi Terrain ABS, brake assist, VSC, ■ TRAC/Active TRAC and hill-start assist control systems A sound may be heard from the engine compartment when the engine is ●...
Page 338: Gx460_U.s.a. (Om60G24U
(There is no problem with continuing normal driving.) If the slip indicator comes on... ■ It may indicate a malfunction in the VSC, TRAC/Active TRAC or hill-start assist control system. Consult your Lexus dealer. CAUTION The ABS/Multi Terrain ABS does not operate effectively when ■...
Page 339: Gx460_U.s.a. (Om60G24U
In addition, make sure that the tires are inflated to the recommended tire inflation pressure level. The ABS/Multi Terrain ABS and VSC systems will not function correctly if different tires are installed on the vehicle. Contact your Lexus dealer for further information when replacing tires or wheels. GX460_U.S.A. (OM60G24U)
Page 340: Gx460_U.s.a. (Om60G24U
2-4. Using other driving systems CAUTION Handling of tires and suspension ■ Using tires with any kind of problem or modifying the suspension will affect the driv- ing assist systems, and may cause the system to malfunction. GX460_U.S.A. (OM60G24U)
Page 341: (Pre-Collision System)
2-4. Using other driving systems  PCS (Pre-Collision System) When the radar sensor detects that a frontal collision is highly likely or even unavoidable, safety systems such as the brakes and seat belts are automatically engaged to lessen impact and injuries to occupants as well as vehicle damage.
Page 342 2-4. Using other driving systems ■ AVS (Adaptive Variable Suspension System) control (if equipped) When the system determines that there is a high possibility of a colli- sion, the AVS optimizes the damping effect (P. 319) ■ Driver monitor system (if equipped) When the system determines that there is a possibility of a collision, and the driver is not facing forward, PCS warnings are given in advance to warn the driver.
Page 343 2-4. Using other driving systems Radar sensor The radar sensor detects vehicles or other obstacles on or near the road ahead and determines whether a collision is imminent based on the position, speed, and heading of the obstacles. Driver monitor sensor (if equipped) The driver monitor sensor detects the direction the driver is facing.
Page 344 2-4. Using other driving systems The pre-collision system is operational when ■ Pre-collision warning ● • Vehicle speed is greater than about 9 mph (15 km/h). • The speed at which your vehicle is approaching the obstacle or oncoming vehicle is greater than about 9 mph (15 km/h). Pre-collision seat belts (linked to the radar sensor): ●...
Page 345 2-4. Using other driving systems Pre-collision alert braking (vehicle with driver monitor system): ● • The pre-collision braking off switch is not pressed. • The system determines that the driver is not facing forward. • Vehicle speed is greater than about 9 mph (15 km/h). •...
Page 346 2-4. Using other driving systems Obstacles not detected ■ The system cannot detect plastic obstacles such as pylons. There may also be occa- sions when the system cannot detect pedestrians, animals, bicycles, motorcycles, trees, or snowdrifts. When there is a malfunction in the system ■...
Page 347 2-4. Using other driving systems CAUTION Limitations of the pre-collision system ■ Do not overly rely on the pre-collision system. Always drive safely, taking care to observe your surroundings and checking for any obstacles or other road hazards. Cautions regarding the assist contents of the system ■...
Page 348 If the sensor moves even slightly off position, the system may malfunction. If the sensor or surrounding area is subject to a strong impact, always have the area inspected and adjusted by your Lexus dealer. Do not disassemble the sensor.
Page 349 2-4. Using other driving systems CAUTION Handling the driver monitor sensor (vehicles with driver monitor sensor) ■ Observe the following to ensure the driver monitor sensor can function effectively. Failure to do so may result in a malfunction or may prevent the system from cor- rectly determining the direction the driver is facing, resulting in an unexpected acci- dent.
Page 350 2-4. Using other driving systems NOTICE Precautions for cleaning the driver monitor sensor (vehicles with driver monitor ■ sensor) Gently wipe the sensor with a soft cloth to prevent damage. ● Wipe any excess dirt with a cloth dampened with neutral detergent, all liquids ●...
Page 351: Driving Information
2-5. Driving information Off-road precautions This vehicle belongs to the utility vehicle class, which has higher ground clearance and narrower tread in relation to the height of its center of grav- ity to make it capable of performing in a wide variety of off-road applica- tions.
Page 352: Gx460_U.s.a. (Om60G24U
2-5. Driving information CAUTION Off-road vehicle precautions ■ Always observe the following precautions to minimize the risk of death, serious injury or damage to your vehicle: In a rollover crash, an unbelted person is significantly more likely to die than a ●...
Page 353: Gx460_U.s.a. (Om60G24U
2-5. Driving information Off-road driving When driving your vehicle off-road, please observe the following precau- tions to ensure your driving enjoyment and to help prevent the closure of areas to off-road vehicles: ● Drive your vehicle only in areas where off-road vehicles are permitted to travel.
Page 354: Gx460_U.s.a. (Om60G24U
2-5. Driving information CAUTION Off-road driving precautions ■ Always observe the following precautions to minimize the risk of death, serious injury or damage to your vehicle: Drive carefully when off the road. Do not take unnecessary risks by driving in ●...
Page 355: Gx460_U.s.a. (Om60G24U
2-5. Driving information NOTICE To prevent the water damage ■ Take all necessary safety measures to ensure that water damage to the engine or other components does not occur. Water entering the engine air intake will cause severe engine damage. ●...
Page 356: Cargo And Luggage
2-5. Driving information Cargo and luggage Take notice of the following information about storage precautions, cargo capacity and load: ● Stow cargo and luggage in the luggage compartment whenever possible. ● Be sure all items are secured in place. ● To maintain vehicle balance while driving, position luggage evenly within the luggage compartment.
Page 357: Gx460_U.s.a. (Om60G24U
2-5. Driving information Capacity and distribution Cargo capacity depends on the total weight of the occupants. (Cargo capacity) = (Total load capacity) — (Total weight of occupants) Steps for Determining Correct Load Limit — (1) Locate the statement “The combined weight of occupants and cargo should never exceed XXX kg or XXX lbs.
Page 358: Gx460_U.s.a. (Om60G24U
2-5. Driving information Example based on your vehicle Cargo capacity Total load capacity When 2 people with the combined weight of 366 lb. (166 kg) are riding in your vehicle, the available amount of cargo and luggage load capacity will be as follows: Vehicles without rear height control air suspension —...
Page 359: Gx460_U.s.a. (Om60G24U
2-5. Driving information Vehicles without rear height control air suspension With third seats 949 lb. - 388 lb. = 561 lb. (429 kg - 176 kg = 253 kg) Without third seats 1159 lb. - 388 lb. = 771 lb. (524 kg - 176 kg = 348 kg) Vehicles with rear height control air suspension 914 lb.
Page 360: Gx460_U.s.a. (Om60G24U
■ To use the roof rails as a roof luggage carrier, you must fit the roof rails with two or more genuine Lexus cross rails or their equivalent. Follow the manufacturer’ s instructions and precautions when installing the cross rails or their equivalent.
Page 361: Gx460_U.s.a. (Om60G24U
2-5. Driving information CAUTION Capacity and distribution ■ Do not exceed the maximum axle weight rating or the total vehicle weight rating. ● Even if the total load of occupant’ s weight and the cargo load is less than the total ●...
Page 362: Vehicle Load Limits
2-5. Driving information Vehicle load limits Vehicle load limits include total load capacity, seating capacity, towing capacity and cargo capacity. ■ Total load capacity: Vehicles without rear height control air suspension With third seats — 1315 lb. (595 kg) Without third seats — 1525 lb. (690 kg) Vehicles with rear height control air suspension 1280 lb.
Page 363: Gx460_U.s.a. (Om60G24U
2-5. Driving information Total load capacity and seating capacity ■ These details are also described on the tire and loading information label.  (P. 638) CAUTION Overloading the vehicle ■ Do not overload the vehicle. It may not only cause damage to the tires, but also degrade steering and braking ability, resulting in an accident.
Page 364: Winter Driving Tips
2-5. Driving information Winter driving tips Carry out the necessary preparations and inspections before driving the vehicle in winter. Always drive the vehicle in a manner appropriate to the prevailing weather conditions. ■ Pre-winter preparations ● Use fluids that are appropriate to the prevailing outside tempera- tures.
Page 365: Gx460_U.s.a. (Om60G24U
2-5. Driving information ■ When driving the vehicle Accelerate the vehicle slowly and drive at a reduced speed suitable to road conditions. ■ When parking the vehicle Park the vehicle and move the shift lever to P without setting the parking brake.
Page 366: Gx460_U.s.a. (Om60G24U
2-5. Driving information Tire chain installation ■ Observe the following precautions when installing and removing chains: Install and remove tire chains in a safe location. ● Install tire chains on the rear tires only. Do not install tire chains on the front tires. ●...
Page 367: Gx460_U.s.a. (Om60G24U
NOTICE Repairing or replacing snow tires ■ Request repairs or replacement of snow tires from Lexus dealers or legitimate tire retailers. This is because the removal and attachment of snow tires affects the operation of the tire pressure warning valves and transmitters.
Page 368: Trailer Towing
Lexus warranties do not apply to damage or malfunction caused by towing a trailer for commercial purposes. Contact your Lexus dealer for further information about additional requirements such as a towing kits, etc.
Page 369: Gx460_U.s.a. (Om60G24U
2-5. Driving information ■ Gross vehicle weight The gross vehicle weight must not exceed the Gross Vehicle Weight Rating (GVWR) indicated on the Certification Label. The gross vehicle weight is the sum weight of the unloaded vehicle, driver, pas- sengers, luggage, hitch and trailer tongue load. Also included is the weight of any special equipment installed on your vehicle.
Page 370: Gx460_U.s.a. (Om60G24U
2-5. Driving information ■ Trailer tongue load ● A recommended tongue load varies in accordance with the types of trailers or towing as described below. ● In order to ensure the recommended values shown below, the trailer must be loaded by referring to the following instructions. The trailer cargo load should be distributed so that the tongue load is 9 to 11 % of the total trailer weight, not exceeding 650 lb.
Page 371: Gx460_U.s.a. (Om60G24U
2-5. Driving information Towing related term Towing related term Meaning The maximum allowable gross vehicle weight. The gross vehicle weight is the total weight of the vehicle. When towing a GVWR (Gross Vehicle Weight trailer, it is the sum of the vehicle weight Rating) (including the occupants, cargo and any optional equipment installed on the vehi-...
Page 372: Gx460_U.s.a. (Om60G24U
Tongue load The load placed on the trailer hitch ball. Towing a trailer Contact your Lexus dealer for further information about additional requirements such as a towing kit etc. Hitch Trailer hitch assemblies have different weight capacities established by the hitch manufacturer.
Page 373: Gx460_U.s.a. (Om60G24U
2-5. Driving information Selecting a trailer ball Use the correct trailer ball for your application. Trailer ball load rating Matches or exceeds the gross trailer weight rating of the trailer. Ball diameter Matches the size of the trailer cou- pler. Most couplers are stamped with the required trailer ball size.
Page 374: Gx460_U.s.a. (Om60G24U
2-5. Driving information When connecting and disconnecting a trailer ■ Connecting ● Set the rear height control air suspension to N mode. STEP STEP Turn off the “ENGINE START STOP” switch or the rear height control air STEP STEP suspension. Connect the trailer.
Page 375: Gx460_U.s.a. (Om60G24U
2-5. Driving information Before towing ■ Check that the following conditions are met: The vehicle’ s tires are properly inflated. (P. 766) ● Trailer tires are inflated according to the trailer manufacturer’ s recommenda- ● tion. All trailer lights work. ●...
Page 376: Gx460_U.s.a. (Om60G24U
Break-in schedule ■ Lexus recommends that you do not use a new vehicle or a vehicle with any new power train components (engine, transmission, differential, wheel bearings, etc.) to tow a trailer for the first 500 miles (800 km) of driving.
Page 377: Gx460_U.s.a. (Om60G24U
2-5. Driving information CAUTION To avoid accident or injury ■ The total trailer weight (trailer weight plus the weight of cargo) must not exceed ● 6500 lb. (2948 kg). If a trailer and cargo weigh over 2000 lbs. (900 kg), use a sway control device of ●...
Page 378: Gx460_U.s.a. (Om60G24U
This could cause the brakes to overheat and result in reduced braking efficiency. Hitches ■ If you wish to install a trailer hitch, contact your Lexus dealer. ● Use only a hitch that conforms to the total trailer weight requirement.
Page 379: Gx460_U.s.a. (Om60G24U
NOTICE When installing a trailer hitch ■ Use only the position recommended by your Lexus dealer. Do not install the ● trailer hitch on the bumper; this may cause body damage. Do not use axle-mounted hitches, as they can cause damage to the axle housing, ●...
Page 380: Gx460_U.s.a. (Om60G24U
2-5. Driving information Trailer towing tips Your vehicle will handle differently when towing a trailer. In order to avoid accident, death or serious injury, keep the following in mind when towing: ● Before starting out, check the trailer lights and the vehicle-trailer con- nections.
Page 381: Gx460_U.s.a. (Om60G24U
2-5. Driving information ● Avoid jerky starts or sudden acceleration. ● Avoid jerky steering and sharp turns, and slow down before making turns. ● Note that when making a turn, the trailer wheels will be closer than the vehicle wheels to the inside of the turn. Compensate by making a larger than normal turning radius.
Page 382: Gx460_U.s.a. (Om60G24U
2-5. Driving information ● Always place wheel blocks under both the vehicle and the trailer wheels when parking. Apply the parking brake firmly, and put the transmission in P. Avoid parking on a slope, but if unavoidable, do so only after performing the following: Apply the brakes and keep them applied.
Page 383: Dinghy Towing
2-5. Driving information Dinghy towing Your vehicle is not designed to be dinghy towed (with 4 wheels on the ground) behind a motor home. NOTICE To avoid serious damage to your vehicle ■ Do not tow your vehicle with four wheels on the ground. GX460_U.S.A.
Page 384: Using The Air Conditioning System  And Defogger
Interior features 3-1. Using the air conditioning  3-2. Using the audio system system and defogger Audio system......408 Front automatic air  Using the radio ......410 conditioning system... 386 Using the CD player....418 Rear automatic air  Playing MP3 and ...
Page 385: Gx460_U.s.a. (Om60G24U
Interior features 3-4. Using the hands-free system  3-7. Other interior features (for cellular phone) Cool box ........531 Hands-free system for  Sun visors ......... 534 cellular phones....480 Vanity mirror ......535 Using the hands-free system  Clock......... 536 (for cellular phones) ..
Page 386: Front Automatic Air Conditioning System
3-1. Using the air conditioning system and defogger Front automatic air conditioning system Air outlets and fan speed are automatically adjusted according to the tem- perature setting. Vehicles with a navigation system Refer to the “Navigation System Owner’ s Manual”. Vehicles without a navigation system Control panel (vehicles without a rear automatic air conditioning system)
Page 387: Gx460_U.s.a. (Om60G24U
3-1. Using the air conditioning system and defogger Control panel (vehicles with a rear automatic air conditioning sys- tem) Cooling and dehumidification function on/off button Air outlet selector button Driver’ s side temperature  Micro dust and pollen filter mode button control button Off button Rear automatic air ...
Page 388: Gx460_U.s.a. (Om60G24U
3-1. Using the air conditioning system and defogger Multi-information display (Accessory meters) Rear passenger’ s side temperature display  (vehicles with a rear automatic air conditioning system) Driver’ s side temperature display Front passenger’ s side temperature display Air outlet display Fan speed display Cooling and dehumidification function on/off display GX460_U.S.A.
Page 389: Gx460_U.s.a. (Om60G24U
3-1. Using the air conditioning system and defogger Using the automatic air conditioning system Vehicles without a rear automatic air conditioning system Press the “AUTO” button. STEP The air conditioning system begins to operate. Air outlets and fan speed are automatically adjusted according to the temperature setting.
Page 390: Gx460_U.s.a. (Om60G24U
3-1. Using the air conditioning system and defogger Vehicles with a rear automatic air conditioning system Press the “AUTO” button. STEP The air conditioning system begins to operate. Air outlets and fan speed are automatically adjusted according to the temperature setting.
Page 391: Gx460_U.s.a. (Om60G24U
3-1. Using the air conditioning system and defogger Adjusting the settings manually ■ Basic setting Vehicles without a rear automatic air conditioning system To turn on the air conditioning system and adjust the fan speed, STEP press “” on to increase the fan speed and “” to decrease the fan speed.
Page 392: Gx460_U.s.a. (Om60G24U
3-1. Using the air conditioning system and defogger Vehicles with a rear automatic air conditioning system To turn on the air conditioning system and adjust the fan speed, STEP press “” on to increase the fan speed and “” to decrease the fan speed.
Page 393: Gx460_U.s.a. (Om60G24U
3-1. Using the air conditioning system and defogger Air flows to the upper body. : Only the in automatic mode (Air may not always flow.) : Vehicles without a rear automatic air conditioning system Air flows to the upper body and feet.
Page 394: Gx460_U.s.a. (Om60G24U
3-1. Using the air conditioning system and defogger Air flows to the feet. : Vehicles without a rear automatic air conditioning system Air flows to the feet and the wind- shield defogger operates. The air intake is automatically switched to (outside air) mode.
Page 395: Gx460_U.s.a. (Om60G24U
3-1. Using the air conditioning system and defogger ■ Switching between outside air and recirculated air modes Vehicles without a rear automatic air conditioning system Press The mode switches between (recirculated air mode) and (out- side air mode) modes each time the button is pressed. Vehicles with a rear automatic air conditioning system Press The mode switches among...
Page 396: Gx460_U.s.a. (Om60G24U
3-1. Using the air conditioning system and defogger Defogging the windshield Defogging The air intake is automatically switched to (outside air) mode. It is not possible to recircu- lated air mode when the switch is The air conditioning system oper- ates automatically.
Page 397: Gx460_U.s.a. (Om60G24U
3-1. Using the air conditioning system and defogger Adjusting the sensitivity of the air intake control in automatic mode (vehicles with a rear automatic air conditioning system) Press for 2 or more STEP seconds. Press “” (increase) or “” STEP (decrease) on the temperature control button on the driver’...
Page 398: Gx460_U.s.a. (Om60G24U
3-1. Using the air conditioning system and defogger Adjusting the position of and opening and closing the air outlets Front center outlets Direct air flow to the left or right, up or down Turn the knob to open or close the vent Front side outlets Direct air flow to the left or right,...
Page 399: Gx460_U.s.a. (Om60G24U
3-1. Using the air conditioning system and defogger Rear outlets (vehicles without a rear automatic air conditioning sys- tem) Direct air flow to the left or right, up or down. Turn the knob to open or close the vent. Air conditioning system settings ■...
Page 400: Gx460_U.s.a. (Om60G24U
Press the “A/C” button and turn off the cooling and dehumidification function and turn it on again. There may be a problem in the air conditioning system if the indica- tor light continues to flash. Turn the air conditioning system off and have it inspected by your Lexus dealer. GX460_U.S.A. (OM60G24U)
Page 401: Gx460_U.s.a. (Om60G24U
3-1. Using the air conditioning system and defogger Air conditioning odors ■ During use, various odors from inside and outside the vehicle may enter into ● and accumulate in the air conditioning system. This may then cause odor to be emitted from the vents.
Page 402: Rear Automatic Air Conditioning System
3-1. Using the air conditioning system and defogger  Rear automatic air conditioning system Air outlets and fan speed are automatically adjusted according to the tem- perature setting. Air outlet display Fan speed display Temperature display Fan speed control button Temperature control ...
Page 403: Gx460_U.s.a. (Om60G24U
3-1. Using the air conditioning system and defogger Adjusting the settings manually ■ Adjusting the temperature setting Press “” on the “TEMP” button to increase the temperature and “” to decrease the temperature. ■ Changing the air outlets Press the air outlet selector button. The air outlets used are switched each time either side of the button is pressed.
Page 404: Gx460_U.s.a. (Om60G24U
3-1. Using the air conditioning system and defogger Air flows to the upper body and feet. Air flows to the feet. ■ Adjusting the fan speed Press “” (increase) or “” (decrease) on Pressing turns off the fan. GX460_U.S.A. (OM60G24U)
Page 405: Gx460_U.s.a. (Om60G24U
3-1. Using the air conditioning system and defogger Adjusting the position and opening and closing the air outlets Roof side outlets Direct air flow to the left or right, up or down. Turn the knob fully to the back of the vehicle to close the vent.
Page 406: Rear Window Defogger Switch
3-1. Using the air conditioning system and defogger Rear window defogger switch Defoggers are used to defog the rear window, and to remove raindrops, dew and frost from the outside rear view mirrors. Vehicles with a navigation system Refer to the “Navigation System Owner’ s Manual”. Vehicles without a navigation system Turns the rear window and out- side rear view mirror defoggers...
Page 407: Windshield Wiper De-Icer
3-1. Using the air conditioning system and defogger Windshield wiper de-icer This feature is used to prevent ice from building up on the windshield and wiper blades. Vehicles with a navigation system Refer to the “Navigation System Owner’ s Manual”. Vehicles without a navigation system Turns the windshield wiper de- icer on/off...
Page 408: Using The Audio System
3-2. Using the audio system Audio system Vehicles with a navigation system Refer to the “Navigation System Owner’ s Manual”. Vehicles without a navigation system CD player with a changer and AM/FM radio Title Page Using the radio P. 410 Using the CD player P.
Page 409: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system Using cellular phones ■ Interference may be heard through the audio system’ s speakers if a cellular phone is being used inside or close to the vehicle while the audio system is operating. CAUTION Certification ■...
Page 410: Using The Radio
3-2. Using the audio system Using the radio Power Volume Adjusting the frequency Scanning for receivable stations Station selector Traffic information button AM•FM/SAT mode buttons Changing the program type Displaying text message Seeking the frequency GX460_U.S.A. (OM60G24U)
Page 411: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system ® Setting station presets (excluding XM Satellite Radio) Search for the desired stations by turning the “TUNE/SEL” knob STEP or pressing “” or “” on the “SEEK•TRACK” button. Press and hold the button (from the 1 button to the 6 button) the STEP station is to be set to until you hear a beep.
Page 412: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system RDS (Radio Data System) This feature allows your radio to receive station identification information and program information (classical, jazz, etc.) from radio stations which broadcast this information. ■ Receiving RDS broadcasts Press “” or “” on the “TYPE•DISC” button during FM recep- STEP tion.
Page 413: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system ■ Displaying radio station names Press the “TEXT” button. ■ Displaying radio text messages Press the “TEXT” button twice. A text message is displayed when “MSG” is shown on the screen. If the text continues past the end of the display, is displayed.
Page 414: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system ® ■ Setting XM Satellite Radio channel presets Select the desired channel. Press and hold the button (from the 1 but- ton to the 6 button) the channel is to be set to until you hear a beep. ■...
Page 415: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system When the battery is disconnected ■ All preset stations are erased. Reception sensitivity ■ Cargo loaded on the roof luggage carrier, especially metal objects, may ● ® adversely affect the reception of XM Satellite Radio. It is difficult to maintain perfect radio reception at all times due to the continually ●...
Page 416: Gx460_U.s.a. (Om60G24U
XM antenna cable is attached securely. ANTENNA There is a short-circuit in the antenna or the surround- ing antenna cable. See a Lexus certified dealer. ® You have not subscribed to the XM Satellite Radio. The radio is being updated with the latest encryption ®...
Page 417: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system The channel you selected is not broadcasting any pro- OFF AIR gramming. Select another channel. There is no song/program title or artist name/feature ----- associated with the channel at that time. No action needed. The channel you selected is no longer available. Wait for about 2 seconds until the radio returns to the previ- CH UNAVL ous channel or “CH001”.
Page 418: Using The Cd Player
3-2. Using the audio system Using the CD player Repeat play Power Volume Playback/pause CD insert Search play Random playback CD selection CD eject Playback Displaying text message Selecting a track GX460_U.S.A. (OM60G24U)
Page 419: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system Loading a CD ■ Loading a CD Press the “LOAD” button. STEP “WAIT” is shown on the display. When the indicator on the slot turns from amber to green, insert a STEP The display changes from “WAIT” to “LOAD”. ■...
Page 420: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system Ejecting CDs ■ Ejecting a CD To select the CD to be ejected, STEP press “” “” “TYPE•DISC” button. The selected disc number is shown on the display. Press and remove the CD. STEP ■ Ejecting all the CDs Press and hold until you hear a beep, and then remove the CDs.
Page 421: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system Selecting a CD ■ Selecting a CD to play To select the desired CD, press “” or “” on the “TYPE•DISC” button. ■ Scanning loaded CDs Press and hold the “SCAN” button until you hear a beep. STEP The first ten seconds of the first track on each CD will be played.
Page 422: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system Repeat play ■ Repeating a track Press the 2 (RPT) button. To cancel, press the 2 (RPT) button again. ■ Repeating all of the tracks on a CD Press and hold the 2 (RPT) button until you hear a beep. To cancel, press the 2 (RPT) button again.
Page 423: Gx460_U.s.a. (Om60G24U
“WAIT”: This indicates that operation is stopped due to a high temperature inside the player. Wait for a while and then press the “CD” button. If the CD still cannot be played back, contact your Lexus dealer. Discs that can be used ■...
Page 424: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system NOTICE CDs and adapters that cannot be used ■ Do not use the following types of CDs, 3 in. (8 cm) CD adapters or Dual Discs. Doing so may damage the CD player and/or the CD load/eject function. CDs that have a diameter that is not 4.7 in.
Page 425: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system NOTICE CD player precautions ■ Failure to follow the precautions below may result in serious damage to the CDs or the player itself. Do not insert anything other than CDs into the CD slot. ● Do not apply oil to the CD player.
Page 426: Playing Mp3 And Wma Discs
3-2. Using the audio system Playing MP3 and WMA discs Repeat play Power Volume Folder selection CD insert Playback/ Search play Random playback pause File selection CD eject CD selection Playback Displaying text message File selection GX460_U.S.A. (OM60G24U)
Page 427: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system Loading and ejecting MP3 and WMA discs P. 419, 420 Selecting MP3 and WMA discs P. 421 Selecting and scanning a folder ■ Selecting a folder one at a time Press the 6 () or 5 () button to select the desired folder. ■...
Page 428: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system Fast-forwarding and reversing files To fast-forward or reverse, press and hold “” or “” on the “SEEK•TRACK” button until you hear a beep. Selecting and scanning files ■ Selecting a file Turn the “TUNE/SEL” knob or press “” or “” on the “SEEK•TRACK” button to select the desired file.
Page 429: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system Random playback ■ Playing files from a folder in random order Press the 1 (RAND) button. To cancel, press the 1 (RAND) button again. ■ Playing all the files from a disc in random order Press and hold the 1 (RAND) button until you hear a beep.
Page 430: Gx460_U.s.a. (Om60G24U
“WAIT”: This indicates that operation is stopped due to a high temperatures inside the player. Wait for a while and then press the “CD” button. If the CD still cannot be played back, contact your Lexus dealer. “NO MUSIC”: This indicates that an MP3/WMA file is not included in the CD.
Page 431: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system MP3 and WMA files ■ MP3 (MPEG Audio LAYER 3) is a standard audio compression format. Files can be compressed to approximately 1/10 of their original size by using MP3 compression. ® WMA (Windows Media Audio) is a Microsoft audio compression format.
Page 432: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system Compatible media ● Media that can be used for MP3 and WMA playback are CD-Rs and CD-RWs. Playback in some instances may not be possible if the CD-R or CD-RW is not finalized. Playback may not be possible or the audio may jump if the disc is scratched or marked with fingerprints.
Page 433: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system Discs containing multi-session recordings ● As the audio system is compatible with multi-sessions, it is possible to play discs that contain MP3 and WMA files. However, only the first session can be played. ID3 and WMA tags ●...
Page 434: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system Playback ● • To play MP3 files with steady sound quality, we recommend a fixed bit rate of at least 128 kbps and a sampling frequency of 44.1 kHz. • CD-R or CD-RW playback may not be possible in some instances, depend- ing on the characteristics of the disc.
Page 435: Operating An Ipod
3-2. Using the audio system Operating an iPod Connecting an iPod enables you to enjoy music from the vehicle speakers. ■ Connecting an iPod Slide the auxiliary box lid. STEP Open the cover and connect an STEP iPod using an iPod cable. Turn on the power of the iPod if it is not turned on.
Page 436: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system ■ Control panel Repeat play Power Volume Playback/pause Go back Shuffle playback iPod menu/song selection Displaying text message Playback Song selection GX460_U.S.A. (OM60G24U)
Page 437: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system Selecting a play mode Press the “TUNE/SEL” knob to select iPod menu mode. STEP Turning the “TUNE/SEL” knob changes the play mode in the fol- STEP lowing order: “PLAYLISTS” “ARTISTS” “ALBUMS” “SONGS”  “PODCASTS”  “GENRES”“COMPOSERS”  “AUDIOBOOKS”...
Page 438: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system ■ Selecting a list Turn the “TUNE/SEL” knob to display the first selection list. STEP Press the “TUNE/SEL” knob to select the desired item. STEP Pressing the knob changes to the second selection list. Repeat the same procedure to select the desired song name. STEP To return to the previous selection list, select “GO BACK”...
Page 439: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system Shuffle playback ■ Playing songs from one playlist or album in random order Press the 1 (RAND) button. To cancel, press the 1 (RAND) button again. ■ Playing songs from all the playlists or albums in random order Press and hold the 1 (RAND) button until you hear a beep.
Page 440: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system About iPod ■ Apple is not responsible for the operation of this device or its compliance with ● safety and regulatory standards. iPod is a trade mark of Apple inc., registered in the U.S. and other countries. ●...
Page 441: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system Compatible models ■ Model Generation Software version iPod 5th generation Ver. 1.2.0 or higher 1st generation Ver. 1.3.0 or higher iPod nano 2nd generation Ver. 1.1.2 or higher 3rd generation Ver. 1.0.0 or higher iPod touch 1st generation Ver.
Page 442: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system CAUTION Caution while driving ■ Do not connect iPod or operate the controls. NOTICE To prevent damage to iPod ■ Do not leave iPod in the vehicle. The temperature inside the vehicle may become ● high, resulting in damage to the player.
Page 443: Operating A Usb Memory
3-2. Using the audio system Operating a USB memory Connecting a USB memory enables you to enjoy music from the vehicle speakers. ■ Connecting a USB memory Slide the auxiliary box lid. STEP Open the cover and connect a STEP USB memory.
Page 444: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system ■ Control panel Repeat play Power Volume Folder selection Playback/ Search play pause Random playback File selection Displaying text message Playback Selecting a file GX460_U.S.A. (OM60G24U)
Page 445: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system Selecting and scanning a folder ■ Selecting folders one at a time Press the 6 () or 5 () button to select the desired folder. ■ Returning to the first folder Press and hold the 5 () button until you hear a beep. ■...
Page 446: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system Playing and pausing files To play or pause a file, press the 3 ( ) button. Fast-forwarding and rewinding files To fast-forward or rewind, press and hold “” or “” on the “SEEK•TRACK” button until you hear a beep. Random playback ■...
Page 447: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system Switching the display Press the “TEXT” button. Each time the button is pressed, the display changes in the following order: Elapsed time  Folder name  File name  Album title (MP3 only)   Track title ...
Page 448: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system USB memory ■ Compatible devices ● USB memory that can be used for MP3 and WMA playback Compatible device formats ● The following device formats can be used: • USB communication formats: USB2.0 FS (12mbps) •...
Page 449: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system MP3 file compatibility ● • Compatible standards MP3 (MPEG1 AUDIO LAYERII, III, MPEG2 AUDIO LAYERII, III, MPEG2.5) • Compatible sampling frequencies MPEG1 AUDIO LAYERII, III: 32, 44.1, 48 (kHz) MPEG2 AUDIO LAYERII, III: 16, 22.05, 24 (kHz) MPEG2.5: 8, 11.025, 12 (kHz) •...
Page 450: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system ID3 and WMA tags ● ID3 tags can be added to MP3 files, making it possible to record the track title, artist name, etc. The system is compatible with ID3 Ver. 1.0, 1.1, and Ver. 2.2, 2.3, 2.4 ID3 tags. (The number of characters is based on ID3 Ver.
Page 451: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system Playback ● • To play MP3 files with steady sound quality, we recommend a fixed bit rate of at least 128 kbps and a sampling frequency of 44.1 kHz. • There is a wide variety of freeware and other encoding software for MP3 and WMA files on the market, and depending on the status of the encoding and the file format, poor sound quality or noise at the start of playback may result.
Page 452: Optimal Use Of The Audio System
3-2. Using the audio system Optimal use of the audio system Displays the current mode Changes the following set- tings: • Sound quality and volume balance  P. 453 The sound quality and balance setting can be changed to pro- duce the best sound.
Page 453: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system ■ Adjusting sound quality Turning the “TUNE/SEL” knob adjusts the level. Mode Sound Turn counter- Turn Level displayed quality mode clockwise clockwise “BAS” Bass -5 to 5 “MID” Mid-range -5 to 5 High “TRE” Treble -5 to 5 Front/rear “FAD”...
Page 454: Using The Aux Port
3-2. Using the audio system Using the AUX port This port can be used to connect a portable audio device and listen to it through the vehicle’s speakers. Slide the auxiliary box lid. STEP Open the cover and connect STEP the portable audio device.
Page 455: Using The Steering Wheel Audio Switches
3-2. Using the audio system Using the steering wheel audio switches Some audio features can be controlled using the switches on the steering wheel. Increases/decreases volume Radio mode: Selects a radio station CD mode: Selects a track, file (MP3 and WMA) and disc ®...
Page 456: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system Turning the power on Press the “MODE” button when the audio system is turned off. The audio system can be turned off by holding the switch down for 1 second or more. Changing the audio source Press the “MODE”...
Page 457: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system Selecting a track/file or song ® Press the “MODE” button to select CD, Bluetooth audio, iPod STEP or USB memory mode. Press “” or “” on to select the desired track/file or STEP song. Selecting an album ®...
Page 458: Gx460_U.s.a. (Om60G24U
3-2. Using the audio system Canceling automatic selection of a radio station ■ Press again. CAUTION To reduce the risk of an accident ■ Exercise care when operating the audio switches on the steering wheel. GX460_U.S.A. (OM60G24U)
Page 459: Using The Bluetooth ® Audio  System
® 3-3. Using the Bluetooth audio system ® Bluetooth audio system ® The Bluetooth audio system enables you to enjoy music played on a por- table digital audio player (portable player) from the vehicle speakers via wireless communication. ® This audio system supports Bluetooth , a wireless data system capable of playing portable audio music without cables.
Page 460: Gx460_U.s.a. (Om60G24U
® 3-3. Using the Bluetooth audio system Conditions under which the system will not operate ■ ® If using a portable player that does not support Bluetooth ● If the portable player is switched off ● If the portable player is not connected ●...
Page 461 ® 3-3. Using the Bluetooth audio system Compatible models ■ ® Bluetooth specifications: ● Ver. 1.2, or higher (Recommended: Ver. 2.0+EDR or higher) Following Profiles: ● • A2DP (Advanced Audio Distribution Profile) Ver. 1.0 or higher • AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher (Ver. 1.3 or higher recommended) Portable players must correspond to the above specifications in order to be con- ®...
Page 462: Gx460_U.s.a. (Om60G24U
® 3-3. Using the Bluetooth audio system CAUTION FCC WARNING ■ Changes or modifications not expressly approved by the party responsible for compliance could void the user’ s authority to operate the equipment. Radio Frequency Radiation Exposure. This equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio fre- quency (RF) Exposure Guidelines in Supplement C to OET65.
Page 463: Using The Bluetooth Audio System
® 3-3. Using the Bluetooth audio system ® Using the Bluetooth audio system ■ Audio unit Display  A message, name, number, etc. is displayed. Lower-case characters and special characters cannot be displayed. Displays information that is too long to be displayed at one time on the display (press and hold) Selects items such as menu...
Page 464 ® 3-3. Using the Bluetooth audio system Operating the system using voice commands By following voice guidance instructions output from the speaker, voice ® commands enable to the operation of the Bluetooth audio system with- out the need to check the display or operate the “TUNE/SEL” knob. ■...
Page 465 ® 3-3. Using the Bluetooth audio system ® Using the Bluetooth audio system for the first time ® Before using the Bluetooth audio system, it is necessary to register a ® Bluetooth enabled portable player in the system. Follow the procedure below to register (pair) a portable player: Press the “TUNE/SEL”...
Page 466 ® 3-3. Using the Bluetooth audio system Select “Confirm” using a voice command or the “TUNE/SEL” STEP knob. A passkey is displayed and heard, and a voice guidance instruction for inputting the passkey into the portable player is heard. Input the passkey into the portable player. STEP Refer to the manual that comes with the portable player for the opera- tion of the portable player.
Page 467 ® 3-3. Using the Bluetooth audio system ® Menu list of the Bluetooth audio system ■ Normal operation Second First menu Third menu Operation detail menu “Pair Audio” Registering a portable player Selecting a portable player to “Connect” be used Changing the registered name “Change Name”...
Page 468 ® 3-3. Using the Bluetooth audio system When using a voice command ■ For numbers, say a combination of single digits from zero to nine. Say the command correctly and clearly. Situations that the system may not recognize your voice ■...
Page 469: Operating A Bluetooth ® Enabled  Portable Player
® 3-3. Using the Bluetooth audio system ® Operating a Bluetooth enabled portable player Repeat play Power Volume Selecting an album Playback/ pause Random playback Search play BT•A menu knob Display text message Playback Selecting a track GX460_U.S.A. (OM60G24U)
Page 470: Gx460_U.s.a. (Om60G24U
® 3-3. Using the Bluetooth audio system Selecting an album To select the desired album, press the 5 () or 6 () button. Selecting tracks Press “” or “” on the “SEEK•TRACK” button to select the desired track. Playing and pausing tracks To play or pause a track, press the 3 ( ) button.
Page 471: Gx460_U.s.a. (Om60G24U
® 3-3. Using the Bluetooth audio system Scanning tracks Press the “SCAN” button. To cancel, press the “SCAN” button again. Switching the display Press the “TEXT” button. Each time the button is pressed, the display changes in the following order: Elapsed time ...
Page 472: Setting Up A Bluetooth ® Enabled Portable Player
® 3-3. Using the Bluetooth audio system ® Setting up a Bluetooth enabled portable player ® Registering a portable player in the Bluetooth audio system allows the system to function. The following functions can be used for registered por- table players: ■...
Page 473 ® 3-3. Using the Bluetooth audio system Pattern B Press the “TUNE/SEL” knob to select “BT•A MENU”. STEP Press the talk switch or select “BT•A Setup” using the “TUNE/ STEP SEL” knob. Select one of the following functions using a voice command STEP or the “TUNE/SEL”...
Page 474 ® 3-3. Using the Bluetooth audio system Registering a portable player Select “Pair Audio Player (Pair Audio)” using a voice command or the “TUNE/SEL” knob, and perform the procedure for registering a portable player. (P. 465) Selecting a portable player to be used Select “Connect Audio Player (Connect)”...
Page 475 ® 3-3. Using the Bluetooth audio system Pattern A Press the talk switch and say “From Car” or “From Audio player”, STEP and select “Confirm” by using a voice command or the “TUNE/ SEL” knob. Pattern B Select “From Car” or “From Audio”, using the “TUNE/SEL” knob. STEP If “From Car”...
Page 476 ® 3-3. Using the Bluetooth audio system Pattern B Select the desired portable player name to be changed using the STEP “TUNE/SEL” knob. Press the talk switch or select “Record Name” using the “TUNE/ STEP SEL” knob, and say the new name. Select “Confirm”...
Page 477 ® 3-3. Using the Bluetooth audio system Changing the passkey Select “Set Passkey” using a voice command or the “TUNE/SEL” STEP knob. Pattern A Press the talk switch, say a 4 to 8-digit number, and select “Con- STEP firm” using a voice command or the “TUNE/SEL” knob. Pattern B Select a 4 to 8-digit number using the “TUNE/SEL”...
Page 478 ® 3-3. Using the Bluetooth audio system Pattern A Select the portable player to be deleted by either of the following STEP methods and select “Confirm” using a voice command or the “TUNE/SEL” knob: a. Press the talk switch and say the name of the desired portable player.
Page 479: Setup
® 3-3. Using the Bluetooth audio system ® Bluetooth audio system setup ■ System setup items and operation procedures Pattern A To enter the menu for each function, follow the steps below using a voice command or the “TUNE/SEL” knob: (P.
Page 480: Using The Hands-Free System
3-4. Using the hands-free system (for cellular phone) Hands-free system for cellular phones The hands-free system is a function that allows you to use your cellular phone without touching it. ® ® This system supports Bluetooth cellular phones. Bluetooth is a wireless data system that allows the cellular phone to wirelessly connect to the hands-free system and make/receive calls.
Page 481: Gx460_U.s.a. (Om60G24U
3-4. Using the hands-free system (for cellular phone) Conditions under which the system will not operate ■ ® If using a cellular phone that does not support Bluetooth ● If the cellular phone is switched off ● If you are outside service range ●...
Page 482: Gx460_U.s.a. (Om60G24U
3-4. Using the hands-free system (for cellular phone) When transferring ownership of the vehicle ■ Be sure to initialize the system to prevent personal data from being improperly accessed. (P. 504) ® About Bluetooth ■ Bluetooth is a registered trademark of  Bluetooth SIG.
Page 483: Gx460_U.s.a. (Om60G24U
3-4. Using the hands-free system (for cellular phone) CAUTION FCC WARNING ■ Changes or modifications not expressly approved by the party responsible for compliance could void the user’ s authority to operate the equipment. Radio Frequency Radiation Exposure. This equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio fre- quency (RF) Exposure Guidelines in Supplement C to OET65.
Page 484: Using The Hands-Free System (For Cellular Phones)
3-4. Using the hands-free system (for cellular phone) Using the hands-free system (for cellular phones) ■ Audio unit Display  A message, name, phone number, etc. is displayed. Lower-case characters and special characters cannot be displayed. Selects speed dials Displays information that is too long to be displayed at one time on the display (press and hold)
Page 485: Gx460_U.s.a. (Om60G24U
3-4. Using the hands-free system (for cellular phone) ■ Steering wheel switches Volume The voice guidance volume can- not be adjusted using this but- ton. Off-hook switch  Turns the hands-free system on/starts a call On-hook switch  Turns the hands-free system off/ends a call/refuses a call Talk switch...
Page 486: Gx460_U.s.a. (Om60G24U
3-4. Using the hands-free system (for cellular phone) Operating the system using voice commands By following voice guidance instructions output from the speaker, voice commands enable to the operation of the hands-free phone system with- out the need to check the display or operate the “TUNE/SEL” knob. ■...
Page 487: Gx460_U.s.a. (Om60G24U
3-4. Using the hands-free system (for cellular phone) Select “Pair Phone” using a voice command or the “TUNE/SEL” STEP knob. Register a phone name by either of the following methods: STEP a. Select “Record Name” using the “TUNE/SEL” knob, and say the name to be registered.
Page 488: Gx460_U.s.a. (Om60G24U
3-4. Using the hands-free system (for cellular phone) Menu list of the hands-free phone system ■ Normal operation Second First menu Third menu Operation detail menu Dialing a number stored in the “Callback” incoming call history memory Dialing a number stored in the “Redial”...
Page 489: Gx460_U.s.a. (Om60G24U
3-4. Using the hands-free system (for cellular phone) Second First menu Third menu Operation detail menu “Set PIN” Setting a PIN code “Security” “Phbk Lock” Locking the phone book “Phbk Unlock” Unlocking the phone book Registering the cellular phone “Pair Phone” to be used Selecting a cellular phone to be “Connect”...
Page 490: Gx460_U.s.a. (Om60G24U
3-4. Using the hands-free system (for cellular phone) ■ Using a short cut key First menu Second menu Operation detail Dialing a name registered in the “Dial XXX (name)” phone book “Phone book add Adding a new phone number Entry” “Phone book Change Changing a registered name in name”...
Page 491: Gx460_U.s.a. (Om60G24U
3-4. Using the hands-free system (for cellular phone) Automatic volume adjustment ■ When vehicle speed reaches 50 mph (80 km/h) or more, the volume automati- cally increases. The volume returns to the previous volume setting when vehicle speed drops to 43 mph (70 km/h) or less. When using a voice command ■...
Page 492: Making A Phone Call
3-4. Using the hands-free system (for cellular phone) Making a phone call ■ Making a phone call ● Dialing by inputting a number “Dial by number” ● Dialing by inputting a name “Dial by name” ● Speed dialing ● Dialing a number stored in the outgoing history memory “Redial”...
Page 493: Gx460_U.s.a. (Om60G24U
3-4. Using the hands-free system (for cellular phone) Dialing by inputting a number Press the talk switch and say “Dial by number”. STEP Press the talk switch and say the phone number. STEP Dial by one of the following methods: STEP a.
Page 494: Gx460_U.s.a. (Om60G24U
3-4. Using the hands-free system (for cellular phone) Speed dialing Press the off-hook switch. STEP Press the preset button in which the desired number is registered. STEP Press the off-hook switch. STEP When receiving a phone call ■ Answering the phone Press the off-hook switch.
Page 495: Gx460_U.s.a. (Om60G24U
3-4. Using the hands-free system (for cellular phone) Call waiting When a call is interrupted by an incoming call from a third party, the fol- lowing options will become available: ● Answer the incoming call: Press the off-hook switch. (Press the off- hook switch again as necessary to switch back and forth between calls.) ●...
Page 496: Gx460_U.s.a. (Om60G24U
3-4. Using the hands-free system (for cellular phone) Call waiting ■ If your phone does not support HFP Ver. 1.5, this function cannot be used. ● Call waiting operation may differ depending on your cellular phone and service ● provider. Call history ■...
Page 497: Setting A Cellular Phone
3-4. Using the hands-free system (for cellular phone) Setting a cellular phone Registering a cellular phone in the hands-free phone system allows the sys- tem to function. The following functions can be used for registered cellular phones: ■ Functions and operation procedures To enter the menu for each function, follow the steps below using a voice command or the “TUNE/SEL”...
Page 498: Gx460_U.s.a. (Om60G24U
3-4. Using the hands-free system (for cellular phone) Registering a cellular phone Select “Pair Phone” using a voice command or the “TUNE/SEL” knob, and perform the procedure for registering a cellular phone. (P. 486) Selecting a cellular phone to be used Select “Connect Phone (Connect)”...
Page 499: Gx460_U.s.a. (Om60G24U
3-4. Using the hands-free system (for cellular phone) Changing the registered name of a cellular phone Select “Change Name” using a voice command or the “TUNE/ STEP SEL” knob. Pattern A Select the name of the cellular phone to be changed by either of STEP the following methods, and select “Confirm”...
Page 500: Gx460_U.s.a. (Om60G24U
3-4. Using the hands-free system (for cellular phone) Listing the registered cellular phones Select “List Phones” using a voice command or the “TUNE/SEL” knob. The list of registered cellular phones will be read aloud. When listing is complete, the system returns to “Phone Setup”. Pressing the talk switch while the name of a cellular phone is being read aloud selects the cellular phone, and the following functions will become available:...
Page 501: Gx460_U.s.a. (Om60G24U
3-4. Using the hands-free system (for cellular phone) Deleting a registered cellular phone Select “Delete Phone” using a voice command or the “TUNE/ STEP SEL” knob. Pattern A Select the cellular phone to be deleted by either of the following STEP methods and select “Confirm”...
Page 502: Security And System Setup
3-4. Using the hands-free system (for cellular phone) Security and system setup ■ Security setting items and operation procedures To enter the menu for each function, follow the steps below using a voice command or the “TUNE/SEL” knob: ● Setting or changing the PIN (Personal Identification Number)  1.
Page 503: Gx460_U.s.a. (Om60G24U
3-4. Using the hands-free system (for cellular phone) Setting or changing the PIN ■ Setting a PIN Select “Set PIN” using a voice command or the “TUNE/SEL” STEP knob. Enter a PIN using a voice command or the “TUNE/SEL” knob. STEP When using the “TUNE/SEL”...
Page 504: Gx460_U.s.a. (Om60G24U
3-4. Using the hands-free system (for cellular phone) Setting voice guidance volume Select “Guidance Vol” using the “TUNE/SEL” knob. STEP Change the voice guidance volume. STEP To decrease the volume: Turn the “TUNE/SEL” knob counterclockwise. To increase the volume: Turn the “TUNE/SEL” knob clockwise. ®...
Page 505: Gx460_U.s.a. (Om60G24U
3-4. Using the hands-free system (for cellular phone) Initialization ■ The following data in the system can be initialized: ● • Phone book • Outgoing and incoming call history • Speed dials • Registered cellular phone data • Security code ®...
Page 506: Using The Phone Book
3-4. Using the hands-free system (for cellular phone) Using the phone book To enter the menu for each function, follow the steps below using a voice command or the “TUNE/SEL” knob: ● Adding a new phone number  1. “Phonebook”  2. “Add Entry” ●...
Page 507 3-4. Using the hands-free system (for cellular phone) Adding a new phone number The following methods can be used to add a new phone number: ● Inputting a phone number using a voice command ● Transferring data from the cellular phone ●...
Page 508 3-4. Using the hands-free system (for cellular phone) Transferring data from the cellular phone: STEP2-1 Select “By Phone” and then “Confirm” using a voice command or the “TUNE/SEL” knob. STEP2-2 Transfer the data from the cellular phone. Refer to the manual that comes with the cellular phone for the details of transferring data.
Page 509 3-4. Using the hands-free system (for cellular phone) Selecting a phone number from outgoing or incoming call history: STEP2-1 Select “Call History” using a voice command or the “TUNE/SEL” knob. STEP2-2 Select “Outgoing” or “Incoming” using a voice com- mand or the “TUNE/SEL” knob. STEP2-3 Select the data to be registered by either of the follow- ing methods: a.
Page 510 3-4. Using the hands-free system (for cellular phone) Changing the registered name in the phone book Select “Change Name” using a voice command or the “TUNE/ STEP SEL” knob. Pattern A Select the name to be changed by either of the following meth- STEP ods, and select “Confirm”...
Page 511 3-4. Using the hands-free system (for cellular phone) Listing the registered data Select “List Names” using a voice command or the “TUNE/SEL” knob. The list of the registered data will be read aloud. When listing is complete, the system returns to the “Phonebook”. Pressing the talk switch while the desired data is being read aloud selects the data, and the following function will become available: ●...
Page 512 3-4. Using the hands-free system (for cellular phone) Setting speed dials Select “Set Speed Dial (Speed Dial)” using a voice command or STEP the “TUNE/SEL” knob. Pattern A Select the data to be registered as a speed dial by either of the STEP following methods, and select “Confirm”...
Page 513 3-4. Using the hands-free system (for cellular phone) Deleting the registered data Select “Delete Entry” using a voice command or the “TUNE/ STEP SEL” knob. Pattern A Select the data to be deleted by either of the following methods, STEP and select “Confirm”...
Page 514: Using The Interior Lights
3-5. Using the interior lights Interior lights list Personal/interior lights (P. 516) Inside door handle lights Shift lever light (when the “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode) “ENGINE START STOP” switch light Scuff lights (if equipped) Footwell lights Door courtesy lights Running board lights...
Page 515: Personal/Interior Light Main Switch
3-5. Using the interior lights Personal/interior light main switch Personal/interior light main switch OFF The personal/Interior lights and interior light can be individually turned on or off. Door position personal/interior lights come on when a door is opened. They turn off when the doors are closed.
Page 516: Personal/Interior Lights
3-5. Using the interior lights Personal/interior lights Personal/interior lights Front Turns the lights on/off Rear Turns the lights on/off GX460_U.S.A. (OM60G24U)
Page 517: Gx460_U.s.a. (Om60G24U
3-5. Using the interior lights Illuminated entry system ■ The lights automatically turn on/off according to “ENGINE START STOP” switch mode, the presence of the electronic key, whether the doors are locked/unlocked, and whether the doors are open/closed. To prevent battery discharge ■...
Page 518: Using The Storage Features
3-6. Using the storage features List of storage features Cup holders Auxiliary boxes Bottle holders/door pockets Glove box Console box (if equipped) Coin holder (if equipped) GX460_U.S.A. (OM60G24U)
Page 519: Glove Box
3-6. Using the storage features Glove box CAUTION Items that should not be left in the storage spaces ■ Do not leave glasses, lighters or spray cans in the storage spaces, as this may cause the following when cabin temperature becomes high: Glasses may be deformed by heat or cracked if they come into contact with ●...
Page 520: Console Box
3-6. Using the storage features Glove box and console box Glove box light ■ The glove box light turns on when the tail lights are on. CAUTION Caution while driving ■ Keep the glove box closed. In the event of sudden braking or sudden swerving, an accident may occur due to an occupant being struck by the open glove box or the items stored inside.
Page 521 3-6. Using the storage features Console box Console box light ■ The console box light turns on when the tail lights are on. When using the console box lid as an armrest ■ Slide the console box lid forward or back- ward as needed.
Page 522: Coin Holder
3-6. Using the storage features Console box and coin holder CAUTION Caution while driving ■ Keep the console box closed. In the event of sudden braking or sudden swerving, an accident may occur due to an occupant being struck by the open console box or the items stored inside.
Page 523: Bottle Holders/Door Pockets
3-6. Using the storage features Bottle holders/door pockets Bottle holders/door pockets Front Rear GX460_U.S.A. (OM60G24U)
Page 524 3-6. Using the storage features Bottle holders/door pockets When using the holder as a bottle holder ■ When storing a bottle, close the cap. ● The bottle may not be stored depending on its size or shape. ● NOTICE Items that should not be stowed in the bottle holders ■...
Page 525: Cup Holders
3-6. Using the storage features Cup holders Cup holders For front seats Press down and release the cup holder lid. You can remove the holder inside. For second seats (vehicles without third seats) Pull the armrest down. GX460_U.S.A. (OM60G24U)
Page 526 3-6. Using the storage features Cup holders For second seats (vehicles with third seats) Pull the armrest down and press in and release the button. For third seats (except for left side seat of the vehicles with a DVD changer) Cup holder insert ■...
Page 527 3-6. Using the storage features Cup holders Removing the adapter ■ For second seats (vehicles without third seats) Pull up the adapter. CAUTION Items unsuitable for the cup holder ■ Do not place anything other than cups, mugs or beverage cans in the cup holders. Other items may be thrown out of the holders in the event of sudden braking, sud- den swerving or an accident, cause injury.
Page 528: Auxiliary Boxes
3-6. Using the storage features Auxiliary boxes Auxiliary boxes Type A Press in the button and then pull down the lid. The overhead con- sole is useful for temporarily stor- ing sunglasses and similar small items. Type B Slide the auxiliary box lid. GX460_U.S.A.
Page 529 3-6. Using the storage features Auxiliary boxes Type C (for third left side seat of the vehicles with a DVD changer) Closing the auxiliary box lid ■ Slide the auxiliary box lid forward. GX460_U.S.A. (OM60G24U)
Page 530 3-6. Using the storage features Auxiliary boxes CAUTION Caution while driving ■ Keep the auxiliary boxes closed. In the event of sudden braking or sudden swerv- ● ing, an accident may occur due to an occupant being struck by an open auxiliary box or the items stored inside.
Page 531: Other Interior Features
3-7. Other interior features  Cool box Lift the lid while pulling up the STEP lower lever to release the lock. Turns the cool box on/off STEP When on, the indicator light comes on. The cool box can be operated when ■...
Page 532 If the indicator light continues to flash, there may be a malfunction in the system. Turn the air conditioning system off and have it inspected by your Lexus dealer. When using the cool box lid as an armrest ■...
Page 533 3-7. Other interior features CAUTION Caution while driving ■ Keep the cool box closed. In the event of sudden braking or sudden swerving, an accident may occur due to an occupant being struck by the open cool box or the items stored inside.
Page 534: Sun Visors
3-7. Other interior features Sun visors To set the visor in the forward position, flip it down. To set the visor in the side position, flip down, unhook, and swing it to the side. To use the side extender, place the visor in the side position, then slide it back- ward.
Page 535: Vanity Mirror
3-7. Other interior features Vanity mirror Slide the cover to open. The light turns on when the cover is opened. NOTICE To prevent battery discharge ■ Do not leave the vanity lights on for extended periods while the engine is off. GX460_U.S.A.
Page 536: Clock
3-7. Other interior features Clock Vehicles with a navigation system Refer to the “Navigation System Owner’ s Manual”. Vehicles without a navigation system Adjusts the hours Adjusts the minutes The clock is displayed when ■ The “ENGINE START STOP” switch is in IGNITION ON mode. When disconnecting and reconnecting battery terminals ■...
Page 537: Conversation Mirror
3-7. Other interior features Conversation mirror The conversation mirror can provide the driver and the front passenger with a view of the rear seat area without the need to turn around. Press in the button. To use the overhead console from the conversation mirror state ■...
Page 538: Power Outlet (12 V Dc)
3-7. Other interior features Power outlet (12 V DC) The power outlet can be used for 12 V accessories that run on less than 10 Center cluster Slide the auxiliary box lid. STEP STEP GX460_U.S.A. (OM60G24U)
Page 539 3-7. Other interior features The power outlet can be used when ■ The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode. NOTICE To avoid damaging the power outlet ■ Close the power outlet lid when the power outlet is not in use.  Foreign objects or liquids that enter the power outlet may cause a short circuit.
Page 540: Power Outlet (120 V Ac [Type A])
3-7. Other interior features  Power outlet (120 V AC [type A]) The power outlet can be used for 120 V AC accessories that run on less than 100 W. Luggage compartment (vehicles without third seats) Luggage compartment (vehicles with third seats) ...
Page 541 Once it reaches the normal temperature, turn the “ENGINE START STOP” switch to IGNITION ON mode again. If the power supply does not resume even after the above procedure has been per- formed, have the vehicle inspected by your Lexus dealer. GX460_U.S.A. (OM60G24U)
Page 542 Do not modify, disassemble or repair the power outlet or its inverter in any way. ● Doing so may result in unexpected malfunctions or accidents, which could cause serious damage or injuries. Contact your Lexus dealer for any necessary repairs. To prevent injuries and accidents, secure all electric appliances before use and ■...
Page 543 3-7. Other interior features CAUTION To prevent unexpected accidents, such as electric shocks, do not perform any of ■ the following actions: Using the power outlet for electric heaters while sleeping. ● Contaminating the power outlet with liquid substances or mud. ●...
Page 544 If the power outlet is loose when an electrical appliance plug is connected ■ Replace the outlet. Contact your Lexus dealer for any necessary replacements. If the power outlet gets dirty ■...
Page 545: Power Outlet (120 V Ac [Type B])
3-7. Other interior features  Power outlet (120 V AC [type B]) The power outlet can be used for electrical appliances. Main switch To use the power outlet, turn on the main switch. The power supply starts a few seconds after the main switch is pressed.
Page 546 3-7. Other interior features Maximum available capacity of the power outlet ■ While the vehicle is being driven The maximum capacity of the power outlet is always 120 V AC/100 ■ When the vehicle is stationary The maximum capacity of the power outlet varies depending on the position of the shift lever.
Page 547 3-7. Other interior features The power outlet can be used when ■ The engine is running. The indicator light changes according to the maximum available capacity as fol- ■ lows: 120 V AC/400 W 120 V AC/100 W When the power outlet is in operation ■...
Page 548 Do not modify, disassemble or repair the power outlet or its inverter in any way. ● Doing so may result in unexpected malfunctions or accidents, which could cause serious damage or injuries. Contact your Lexus dealer for any necessary repairs. GX460_U.S.A. (OM60G24U)
Page 549 3-7. Other interior features CAUTION To prevent injuries and accidents, secure all electric appliances before use and ■ do not use any appliances that may do any of the following: Distract the driver while driving, or hamper safe driving. ● Result in a fire or burn injuries due to the appliance rolling, falling or overheating ●...
Page 550 3-7. Other interior features NOTICE To avoid damaging the power outlet and the plug ■ Close the power outlet lid when not in use. ● Do not allow foreign objects or liquids to enter the power outlet, as this may ●...
Page 551 If the power outlet is loose when an electrical appliance plug is connected ■ Replace the outlet. Contact your Lexus dealer for any necessary replacements. If the power outlet gets dirty ■...
Page 552: Heated Steering Wheel
Press the button to turn the heated steering wheel off and then press the button again. If the indicator light still flashes, a malfunction may be occurring. Turn the heated steering wheel off and have the vehicle inspected by your Lexus dealer. ...
Page 553 3-7. Other interior features CAUTION Burns ■ Care should be taken to prevent injury if anyone in the following categories comes in contact with the steering wheel when the heated steering wheel is on: Babies, small children, the elderly, the sick and the physically challenged ●...
Page 554: Seat Heaters And Ventilators
3-7. Other interior features Seat heaters and ventilators The seat heaters and ventilators heat the seats and maintain good airflow by blowing air from the seats. ■ Front seat heaters/ventilators Turns the seat heater on The indicator light comes on. The higher the number of dots, the warmer the seat becomes.
Page 555 3-7. Other interior features ■ Outer second seat heaters (if equipped) For left second seat For right second seat High heating temperature Low heating temperature To turn on the seat heater, press “HI” or “LO”. The indicator light on “HI” or “LO”...
Page 556 3-7. Other interior features CAUTION Burns ■ Use caution when seating the following persons in a seat with the seat heater on ● to avoid the possibility of burns: • Babies, small children, the elderly, the sick and the physically challenged •...
Page 557: Armrest
3-7. Other interior features Armrest Fold down the armrest for use. NOTICE To prevent damage to the armrest ■ Do not apply too much load on the armrest. GX460_U.S.A. (OM60G24U)
Page 558: Coat Hooks
3-7. Other interior features Coat hooks CAUTION Items that cannot be hung on the coat hook ■ Do not hang coat hangers or other hard or sharp objects on the hook. If the SRS curtain shield airbags deploy, these items may become projectiles, causing death or serious injury.
Page 559: Floor Mat
■ Do not use floor mats designed for other models or different model year vehicles, ● even if they are Lexus Genuine floor mats. Only use floor mats designed for the driver’ s seat. ● Always install the floor mat securely using the retaining hooks (clips) provided.
Page 560 3-7. Other interior features CAUTION Before driving ■ Check that the floor mat is securely fixed in ● the right place with all the provided retain- ing hooks (clips). Be especially careful to perform this check after cleaning the floor. With the engine stopped and the shift lever ●...
Page 561: Luggage Compartment Features
3-7. Other interior features Luggage compartment features ■ Cargo hooks Vehicles without third seats Raise the hook to use. The cargo hooks are provided for securing loose items. Vehicles with third seats Raise the hook to use. The cargo hooks are provided for securing loose items.
Page 562 3-7. Other interior features Secure the warning reflector. STEP The warning reflector itself is not included as an original equip- ment. ■ Cargo net hooks Vehicles without third seats Vehicles with third seats To hang the cargo net, use the cargo net hooks.
Page 563 3-7. Other interior features ■ Auxiliary box (if equipped) Remove the cover. ■ Luggage cover (if equipped) Vehicles without third seats Attach the hooks to the head STEP restraints. Vehicles with third seats Attach the hooks to the head STEP restraints.
Page 564 3-7. Other interior features Pull out the luggage cover and STEP hook it on the anchors. Removing the luggage cover The luggage cover can be removed by following the procedure below. Retract the cover and release both ends, then lift it out. Vehicles without third seats: After removing the luggage cover, place it somewhere other than the pas-...
Page 565 3-7. Other interior features Push the case until it locks. STEP Check that the lock release button can be seen. Vehicles without a rear automatic air conditioning system: Shorten one side only. Vehicles with a rear automatic air Lock release button conditioning system: Shorten both sides.
Page 566 3-7. Other interior features Stow the hooks. STEP Fold over the sub cover. STEP Extending the case Push the lock release button. STEP Lock release button GX460_U.S.A. (OM60G24U)
Page 567 3-7. Other interior features Pull the case until it locks. STEP Check that the lock release button can be seen. Lock release button Adjusting the sub cover (vehicles with third seats) ■ Fasten the button when the second seats are in the rear-most position.
Page 568 3-7. Other interior features CAUTION When the cargo hooks are not in use ■ To avoid injury, always return the cargo hooks to their stowed positions. Caution while driving ■ Keep the auxiliary box closed. In the event of sudden braking or sudden swerv- ●...
Page 569 3-7. Other interior features NOTICE To prevent damage to the luggage cover (vehicles without third seats) ■ When stowing the luggage cover, do not put luggage on the luggage cover. ● Do not insert coins etc. into the area shown ●...
Page 570: Garage Door Opener
3-7. Other interior features Garage door opener The garage door opener can be programmed to operate garage doors, gates, entry doors, door locks, home lighting systems, and security systems, and other devices. ® The garage door opener (HomeLink Universal Transceiver) is manufactured ®...
Page 571 3-7. Other interior features ® ■ Programming HomeLink Point the remote control transmit- STEP ter for the device 1 in. (25 mm) ® from the HomeLink buttons. ® Keep the HomeLink indicator light in view while programming. Press and hold one of the STEP ®...
Page 572 3-7. Other interior features ® Test the HomeLink operation by STEP pressing the newly programmed button. ® If a HomeLink button has been programmed for a garage door, check to see if the garage door opens and closes. If the garage door does not operate, see if your garage transmitter is of the rolling code type.
Page 573 3-7. Other interior features ■ Programming a rolling code system (for U.S. owners) If your device is rolling code equipped, follow the steps under the ® heading “Programming HomeLink ” before proceeding with the steps listed below. Locate the learn button on the ceiling mounted garage door STEP opener motor.
Page 574 HomeLink buttons. ■ Programming other devices To program other devices such as home security systems, home door locks or lighting, contact your Lexus dealer for assistance. ■ Reprogramming a button ® The individual HomeLink buttons cannot be erased but can be reprogrammed.
Page 575 3-7. Other interior features ® Operating HomeLink ® ® Press the appropriate HomeLink button. The HomeLink indicator light should come on. ® The HomeLink compatible transceiver in your vehicle continues to send a signal for up to 20 seconds as long as the button is pressed. ®...
Page 576 3-7. Other interior features Before programming ■ Install a new battery in the remote control transmitter. ● The battery side of the remote control transmitter must be pointed away from ●  the HomeLink button. Certification for the garage door opener ■...
Page 577 3-7. Other interior features CAUTION When programming a garage door or other remote control device ■ The garage door or other devices may operate, so ensure people and objects are out of danger to prevent potential harm. Conforming to federal safety standards ■...
Page 578: Compass
3-7. Other interior features  Compass The compass on the inside rear view mirror indicates the direction in which the vehicle is heading. ■ Operation To turn the compass on or off, press “AUTO” for more than 3 seconds. ■ Displays and directions Display Direction...
Page 579 3-7. Other interior features Calibrating the compass The direction display deviates from the true direction determined by the earth’ s magnetic field. The amount of deviation varies according to the geographic position of the vehicle. If you cross over one of the map boundaries shown in illustration, the com- pass will deviate....
Page 580 3-7. Other interior features ■ Deviation calibration Stop the vehicle in a place where it is safe to drive in a circle. STEP Press and hold “AUTO”. STEP A number (1 to 15) appears on the compass display. Referring to the map above, press “AUTO” to select the number STEP of the zone you are in.
Page 581 3-7. Other interior features Conditions unfavorable to correct operation ■ The compass may not show the correct direction in the following conditions: The vehicle is stopped immediately after turning. ● The vehicle is on an inclined surface. ● The vehicle is in a place where the earth’ s magnetic field is subject to interfer- ●...
Page 582 3-7. Other interior features NOTICE To avoid the compass malfunctions ■ Do not place magnets or any metal objects near the inside rear view mirror.  Doing this may cause the compass sensor to malfunction. To ensure normal operation of the compass ■...
Page 583: Safety Connect
Telematics Subscription Service Agreement and its Terms and Conditions, as in effect and amended from time to time, a current copy of which is avail- able at Lexus.com. All use of the Safety Connect service is subject to such then-applicable Terms and Conditions.
Page 584 After you have signed the Telematics Subscription Service Agree- ment and are enrolled, you can begin receiving services. A variety of subscription terms is available for purchase. Contact your Lexus dealer, call 1-800-25-LEXUS (1-800-255-3987) or push the “SOS” button in your vehicle for further subscription details.
Page 585 ● ing Safety Connect. Safety Connect is available beginning Fall 2009 on select Lexus models. Con- ● tact with the Safety Connect response center is dependent upon the telematics device being in operative condition, cellular connection availability, and GPS satellite signal reception, which can limit the ability to reach the response center or receive emergency service support.
Page 586 ● Green indicator light flashing = Safety Connect call in process ● Red indicator light (except at vehicle start-up) = System malfunction (contact your Lexus dealer) ● No indicator light (off) = Safety Connect service not active Safety Connect services ■...
Page 587 After filing a police report, call the Safety Connect response center at 1-800-25- LEXUS (1-800-255-3987) and follow the prompts for Safety Con- nect to initiate this service. In addition to assisting law enforcement with recovery of a stolen vehi- cle, Safety-Connect-equipped vehicle location data may, under cer- tain circumstances, be shared with third parties to locate your vehicle.
Page 588 3-7. Other interior features Safety information for Safety Connect Important! Read this information before using Safety Connect. ■ Exposure to radio frequency signals The Safety Connect system installed in your vehicle is a low-power radio transmitter and receiver. It receives and also sends out radio fre- quency (RF) signals.
Page 589 4, 9 01,307 5,490,165 5,056,109 5,504,773 5,101,501 5,506,865 5,109,390 5,511,073 5,228,054 5,535,239 5,267,261 5,544,196 5,267,262 5,568,483 5,337,338 5,600,754 5,414,796 5,657,420 5,416,797 5,659,569 5,710,784 5,778,338 Certification for Lexus Enform with Safety Connect ■ FCC ID: O9EGTM1 FCC ID: O6Y-CDMRF101 NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-...
Page 590 3-7. Other interior features GX460_U.S.A. (OM60G24U)
Page 591: Maintenance And Care
Maintenance and care 4-1. Maintenance and care 4-2. Maintenance Cleaning and protecting  Maintenance  the vehicle exterior..... 592 requirements......599 Cleaning and protecting  General maintenance... 601 the vehicle interior....596 Emission inspection and  maintenance (I/M)  programs ....... 605 4-3.
Page 592: Cleaning And Protecting The Vehicle Exterior
4-1. Maintenance and care Cleaning and protecting the vehicle exterior Perform the following to protect the vehicle and maintain it in prime condi- tion: ● Working from top to bottom, liberally apply water to the vehicle body, wheel wells and underside of the vehicle to remove any dirt and dust.
Page 593 4-1. Maintenance and care Automatic car washes ■ Fold the mirrors back before washing the vehicle. Start washing from the front ● of the vehicle. Make sure to extend the mirrors before driving. Brushes used in automatic car washes may scratch the vehicle surface and ●...
Page 594 4-1. Maintenance and care CAUTION When washing the vehicle ■ Do not apply water to the inside of the engine compartment. Doing so may cause the electrical components etc. to catch fire. Precautions regarding the exhaust pipe ■ Exhaust gasses cause the exhaust pipe to become quite hot. When washing the vehicle, be careful not to touch the pipe until it has cooled suffi- ciently, as touching a hot exhaust pipe can cause burns.
Page 595 4-1. Maintenance and care NOTICE Cleaning the exterior lights ■ Wash carefully. Do not use organic substances or scrub with a hard brush.  ● This may damage the surfaces of the lights. Do not apply wax on the surfaces of the lights. ●...
Page 596: Cleaning And Protecting The Vehicle Interior
4-1. Maintenance and care Cleaning and protecting the vehicle interior The following procedures will help protect your vehicle’s interior and keep it in top condition: ■ Protecting the vehicle interior Remove dirt and dust using a vacuum cleaner. Wipe dirty surfaces with a cloth dampened with lukewarm water.
Page 597 4-1. Maintenance and care Caring for leather areas ■ Lexus recommends cleaning the interior of the vehicle at least twice a year to main- tain the quality of the vehicle’ s interior. Shampooing the carpets ■ There are several commercial foaming-type cleaners available. Use a sponge or brush to apply the foam.
Page 598 4-1. Maintenance and care NOTICE Cleaning detergents ■ Do not use the following types of detergent, as they may discolor the vehicle inte- ● rior or cause streaks or damage to painted surfaces. • Non-seat portions: Organic substances such as benzene or gasoline, alkaline or acidic solutions, dye, or bleach.
Page 599: Maintenance
It is recommended that genuine Lexus parts be used for repair to ensure perfor- mance of each system. If non-Lexus parts are used in replacement or if a repair shop other than a Lexus dealer performs repairs, confirm the warranty coverage.
Page 600 4-2. Maintenance Allow inspection and repairs to be performed by a Lexus dealer ■ Lexus technicians are well-trained specialists and are kept up to date with the ● latest service information. They are well informed about the operation of all sys- tems on your vehicle.
Page 601: General Maintenance
“Warranty and Service Guide” or “Owner’s Manual Supplement”. It is recommended that any problem you notice should be brought to the attention of your Lexus dealer or qualified service shop for advice. Engine compartment...
Page 602 4-2. Maintenance Vehicle interior Items Check points • The accelerator pedal should move Accelerator pedal smoothly (without uneven pedal effort or catching). • When parked on a slope and the Automatic transmission “Park” shift lever is in P, is the vehicle mechanism securely stopped? •...
Page 603 4-2. Maintenance Items Check points • Do the head restraints move Head restraints smoothly and lock securely? • Do the indicators and buzzers Indicators/buzzers function properly? Lights • Do all the lights come on? • Does the parking brake lever or pedal move smoothly? Parking brake •...
Page 604 4-2. Maintenance Vehicle exterior Items Check points Doors • Do the doors operate smoothly? • Does the engine hood lock system Engine hood work properly? • There should not be any signs of Fluid leaks fluid leakage after the vehicle has been parked.
Page 605: Emission Inspection And Maintenance (I/M) Programs
If the malfunction indicator lamp comes on The OBD system determines that a problem exists somewhere in the emission control system. Your vehicle may not pass the I/M test and may need to be repaired. Contact your Lexus dealer to service the vehicle. ■...
Page 606: Do-It-Yourself Maintenance
4-3. Do-it-yourself maintenance Do-it-yourself service precautions If you perform maintenance yourself, be sure to follow the correct proce- dure given in these sections. Items Parts and tools • Warm water • Baking soda Battery condition (P. 626) • Grease • Conventional wrench (for terminal clamp bolts) •...
Page 607 4-3. Do-it-yourself maintenance Items Parts and tools • “Toyota Super Long Life Coolant” or similar high quality ethylene gly- col based non-silicate, non-amine, non-nitrite and non-borate coolant with long-life hybrid organic acid technology For the U.S.A.: “Toyota Super Long Life Coolant” Engine coolant level (P.
Page 608 4-3. Do-it-yourself maintenance Items Parts and tools • Fuse with same amperage rating as Fuses (P. 649) original Headlight aim (P. 662) • Phillips-head screwdriver • Bulb with same number and watt- age rating as original Light bulbs (P. 664) •...
Page 609 4-3. Do-it-yourself maintenance CAUTION The engine compartment contains many mechanisms and fluids that may move sud- denly, become hot, or become electrically energized. To avoid death or serious injury, observe the following precautions: When working on the engine compartment ■ Keep hands, clothing, and tools away from the moving fan and engine drive belt.
Page 610 4-3. Do-it-yourself maintenance NOTICE If you remove the air cleaner filter ■ Driving with the air cleaner filter removed may cause excessive engine wear due to dirt in the air. Also a backfire could cause a fire in the engine compartment. GX460_U.S.A.
Page 611: Hood
4-3. Do-it-yourself maintenance Hood Release the lock from the inside of the vehicle to open the hood. Pull the hood lock release lever. STEP The hood will pop up slightly. Move the auxiliary catch lever STEP to side direction and lift the hood.
Page 612: Engine Compartment
4-3. Do-it-yourself maintenance Engine compartment Engine coolant reservoir Fuse box (P. 649) (P. 619) Battery (P. 626) Engine oil level dipstick Radiator (P. 621) (P. 614) Condenser (P. 621)  Engine oil filler cap Electric cooling fan (P. 615) Washer fluid tank (P. 630) Brake fluid reservoir...
Page 613 4-3. Do-it-yourself maintenance Engine compartment cover ■ Removing the engine compartment cover ■ Installing the clips GX460_U.S.A. (OM60G24U)
Page 614 4-3. Do-it-yourself maintenance Engine oil With the engine at operating temperature and turned off, check the oil level on the dipstick. ■ Checking the engine oil Park the vehicle on level ground. After turning off the engine wait STEP more than five minutes for the oil to drain back into the bottom of the engine.
Page 615 4-3. Do-it-yourself maintenance ■ Adding engine oil If the oil level is below or near the low level mark, add engine oil of the same type as already in the engine. Make sure to check the oil type and prepare the items needed before adding oil.
Page 616 Oil consumption: Max. 1.1 qt./600 miles, 0. 9 lmp.qt./600 miles (1.0 L per 1000 ● km). If your vehicle consumes more than 1.1 qt. (1.0 L, 0. 9 lmp.qt.) every 600 miles ● (1000 km), contact your Lexus dealer. GX460_U.S.A. (OM60G24U)
Page 617 4-3. Do-it-yourself maintenance After changing the engine oil (U.S.A. only) ■ The engine oil maintenance data should be reset. Perform the following proce- dures: Press the Menu switch (P. 214) to change the multi-information display STEP to blank. Turn the “ENGINE START STOP” switch off. STEP While pressing the ODO/TRIP button (P.
Page 618 ● pose of used oil and filters in household trash, in sewers or onto the ground. Call your Lexus dealer, service station or auto parts store for information con- cerning recycling or disposal. Do not leave used engine oil within the reach of children.
Page 619 (Minimum temperature: -31 F [-35 C]) Canada: “Toyota Super Long Life Coolant” is a mixture of 55 % coolant and 45 % deionized water. (Minimum temperature: -44 F [-42 C]) For more details about coolant, contact your Lexus dealer. GX460_U.S.A. (OM60G24U)
Page 620 ■ Visually check the radiator, hoses, engine coolant reservoir caps, drain cock and water pump.  If you cannot find a leak, have your Lexus dealer test the cap and check for leaks in the cooling system. CAUTION When the engine is hot ■...
Page 621 Check the radiator and condenser and clear any foreign objects.  If either of the above parts is extremely dirty or you are not sure of their condition, have your vehicle checked by your Lexus dealer. CAUTION When the engine is hot ■...
Page 622 4-3. Do-it-yourself maintenance Brake fluid ■ Checking fluid level The brake fluid level should be between the “MAX” and “MIN” lines on the tank. ■ Adding fluid Make sure to check the fluid type and prepare the necessary item. Fluid type FMVSS No.116 DOT 3 or SAE J1703 brake fluid Items Clean funnel...
Page 623 4-3. Do-it-yourself maintenance Brake fluid can absorb moisture from the air ■ Excess moisture in the fluid can cause a dangerous loss of braking efficiency. Use only newly opened brake fluid. CAUTION When filling the reservoir ■ Take care because brake fluid can harm your hands or eyes and damage painted surfaces....
Page 624 4-3. Do-it-yourself maintenance Power steering fluid ■ Fluid level The fluid level should be within the appropriate range. Full (when cold) Add fluid (when cold) Full (when hot) Add fluid (when hot) Hot: The vehicles has been driven around 50 mph (80 km/h) for 20 minutes, or slightly longer in frigid temperatures.
Page 625 4-3. Do-it-yourself maintenance ■ Checking the fluid level Make sure to check the fluid type and prepare the necessary items. ® Fluid type Automatic transmission fluid DEXRON II or III Items Rag or paper, clean funnel (only for adding fluid) Clean all dirt off the reservoir.
Page 626 ■ Checking battery condition Check the battery condition by indicator color. Blue: Good condition White: Charging is necessary. Have the vehicle inspected by your Lexus dealer. Red: Not working properly. Have the battery checked by your Lexus dealer. GX460_U.S.A. (OM60G24U)
Page 627 Take extra care when con- necting the battery if the “ENGINE START STOP” switch mode prior to dis- charge is unknown. If the system will not start even after multiple attempts, contact your Lexus dealer. GX460_U.S.A. (OM60G24U)
Page 628 4-3. Do-it-yourself maintenance CAUTION Chemicals in the battery ■ Batteries contain poisonous and corrosive sulfuric acid and may produce hydrogen gas which is flammable and explosive. To reduce the risk of death or serious injury, take the following precautions while working on or near battery: Do not cause sparks by touching the battery terminals with tools.
Page 629 4-3. Do-it-yourself maintenance CAUTION Emergency measures regarding electrolyte ■ If electrolyte gets in your eyes ● Flush your eyes with clean water for at least 15 minutes and seek immediate med- ical attention. If possible, continue to apply water with a sponge or cloth while traveling to the nearest medical facility.
Page 630 4-3. Do-it-yourself maintenance Washer fluid If any washer does not work or the warning message appears on the multi-information display, washer tank may be empty. Add washer fluid. CAUTION When refilling the washer fluid ■ Do not refill the washer fluid when the engine is hot or running, as the washer fluid contains alcohol and may catch fire if spilled on the engine etc.
Page 631: Tires
■ The tire pressure warning system Your Lexus is equipped with a tire pressure warning system that uses tire pressure warning valves and transmitters to detect low tire infla- tion pressure before serious problems arise. (P. 695)
Page 632 ID codes must be registered in the tire pressure warning computer and the tire pressure warning system must be initialized. Have tire pres- sure warning valve and transmitter ID codes registered by your Lexus dealer. (P. 632) Registering ID codes The tire pressure warning valve and transmitter is equipped with a unique ID code.
Page 633 A tire goes flat repeatedly or cannot be properly repaired due to the size or ● location of a cut or other damage If you are not sure, consult with your Lexus dealer. Replacing tires and wheels ■ If the ID code of the tire pressure warning valve and transmitter is not registered, the tire pressure warning system will not work properly.
Page 634 4-3. Do-it-yourself maintenance ’ Tire types ■ 1 Summer tires Summer tires are high-speed performance tires best suited to highway driving under dry conditions. Since summer tires do not have the same traction perfor- mance as snow tires, summer tires are inadequate for driving on snow-covered or icy roads.
Page 635 4-3. Do-it-yourself maintenance Tire pressure warning system certification ■ TPMS Transmitter FCC ID: PAXPMV107J TPMS Receiver FCC ID: HYQ13BCX For vehicles sold in the U.S.A. NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the fol- lowing two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 636 Do not mix tires of different makes, models, tread patterns or treadwear. ● Do not use tire sizes other than those recommended by Lexus. ● Do not mix radial, bias-belted, or bias-ply tires.
Page 637 When removing or fitting the wheels, tires or the tire pressure warning valve and ● transmitter, contact your Lexus dealer as the tire pressure warning valve and transmitter may be damaged if not handled correctly. When replacing tire valve caps, do not use tire valve caps other than those speci- ●...
Page 638: Tire Inflation Pressure
4-3. Do-it-yourself maintenance Tire inflation pressure ■ Tire inflation pressure The recommended cold tire inflation pressure and tire size is dis- played on the tire and loading information label. (P. 766) GX460_U.S.A. (OM60G24U)
Page 639 4-3. Do-it-yourself maintenance ■ Inspection and adjustment procedure Tire valve Tire pressure gauge Remove the tire valve cap. STEP Press the tip of the tire pressure gauge onto the tire valve. STEP Read the pressure using the graduations of the gauge. STEP If the tire inflation pressure is not within the recommended lev- STEP...
Page 640 Reduced safety ● Damage to the drive train ● If a tire needs frequent refilling, have it checked by your Lexus dealer. Instructions for checking tire inflation pressure ■ When checking tire inflation pressure, observe the following: Check only when the tires are cold....
Page 641 4-3. Do-it-yourself maintenance CAUTION Proper inflation is critical to save tire performance ■ Keep your tires properly inflated. Otherwise, the following conditions may occur and result in an accident causing death or serious injury. Excessive wear ● Uneven wear ● Poor handling ●...
Page 642: Wheels
● Lexus wheels with after market chrome plating ■ Aluminum wheel precautions ● Use only Lexus wheel nuts and wrenches designed for use with your aluminum wheels. ● When rotating, repairing or changing your tires, check that the wheel nuts are still tight after driving 1000 miles (1600 km).
Page 643 When replacing wheels ■ The wheels of your Lexus are equipped with tire pressure warning valves and trans- mitters that allow the tire pressure warning system to provide advanced warning in the event of a loss in tire inflation pressure. Whenever wheels are replaced, the tire pressure warning valves and transmitters must be installed.
Page 644: Air Conditioning Filter
4-3. Do-it-yourself maintenance Air conditioning filter The air conditioning filter must be changed regularly to maintain air condi- tioning efficiency. ■ Removal method Turn the “ENGINE START STOP” switch off. STEP Open the glove box and STEP remove the glove box cover. Remove the filter cover.
Page 645 2 minutes at 72 psi (500 kPa, 5.0 kgf/cm bar). If an air gun is not available, have the filter cleaned by your Lexus dealer. Changing interval ■ Inspect and replace the air conditioning filter according to the maintenance sched- ule.
Page 646: Electronic Key Battery
4-3. Do-it-yourself maintenance Electronic key battery Replace the battery with a new one if it is depleted. ■ You will need the following items: ● Flathead screwdriver ● Small Phillips-head screwdriver ● Lithium battery (CR1632) ■ Replacing the battery Take out the mechanical key. STEP Remove the cover.
Page 647 Insert a new battery with the “+” terminal facing up. Use a CR1632 lithium battery ■ Batteries can be purchased at your Lexus dealer, local electrical appliance ● shops or camera stores. Replace only with the same or equivalent type recommended by the manufac- ●...
Page 648 4-3. Do-it-yourself maintenance CAUTION Removed battery and other parts ■ Keep away from children. These parts are small and if swallowed by a child, they can cause choking. Failure to do so could result in death or serious injury. NOTICE For normal operation after replacing the battery ■...
Page 649: Checking And Replacing Fuses
4-3. Do-it-yourself maintenance Checking and replacing fuses If any of the electrical components do not operate, a fuse may have blown. If this happens, check and replace the fuses as necessary. Turn the “ENGINE START STOP” switch off. STEP Open the fuse box cover. STEP Engine compartment Push the tab in and lift the lid off.
Page 650 Normal fuse Blown fuse Replace the blown fuse with a new fuse of an appropriate amperage rating. The amperage rating can be found on the fuse box lid. Type B Normal fuse Blown fuse Contact your Lexus dealer. GX460_U.S.A. (OM60G24U)
Page 651 4-3. Do-it-yourself maintenance Type C Normal fuse Blown fuse Contact your Lexus dealer. Type D Normal fuse Blown fuse Contact your Lexus dealer. GX460_U.S.A. (OM60G24U)
Page 652 4-3. Do-it-yourself maintenance Fuse layout and amperage ratings Engine compartment Fuse Ampere Circuit A/C RR 40 A Rear air conditioning system Air suspension system, AIR SUS AIR SUS 50 A NO.2 15 A Inverter 30 A Rear window defogger DEICER 20 A Windshield wiper deicer GX460_U.S.A.
Page 653 4-3. Do-it-yourself maintenance Fuse Ampere Circuit SUB BATT 30 A Towing 20 A Injector, ignition, meter HORN 10 A Horn EFI ECU, A/F heater relay, fuel pump 25 A relay, EFI NO.2 20 A A/F SSR FUEL OPN 10 A Fuel lid opener S/HTR RR 20 A...
Page 654 4-3. Do-it-yourself maintenance Fuse Ampere Circuit 50 A Air conditioning system WIP WSH RR 30 A Rear window wipers and washer H-LP CLN 30 A Headlight cleaner 400W INV 80 A AC INVERTER 30 A STARTER MTR DIM relay, headlights, daytime run- H-LP HI 25 A ning light system...
Page 655 4-3. Do-it-yourself maintenance Fuse Ampere Circuit Audio system, navigation system, rear RAD NO.1 15 A seat entertainment system 7.5 A Starter system RAD NO.2 10 A Navigation system MAYDAY 7.5 A MAYDAY 30 A Audio system ABS NO.1 50 A ABS, VSC ABS NO.2 30 A...
Page 656 4-3. Do-it-yourself maintenance Fuse Ampere Circuit BODY ECU, meter, heater, steering sensor, wireless remote control, seat position memory, tilt and telescopic steering, multi display, Smart access ECU-B 10 A system with push button start, folding seat, cool box, DSS#2 ECU, steering switch, D-module switch, overhead module WSH FR NO.2...
Page 657 4-3. Do-it-yourself maintenance Under the instrument panel Fuse Ampere Circuit P/OUTLET 15 A Power outlet Outside rear view mirror motor, BODY ECU, air conditioning system, audio system, navigation system, 7.5 A parking assist system, back up relay, DSS#2 ECU, AT indicator, EFI ECU, shift lock ECU, DCM, MAYDAY Back-up lights, audio system, multi BKUP LP...
Page 658 4-3. Do-it-yourself maintenance Fuse Ampere Circuit 20 A 4WD system, rear differential lock P/SEAT FL 30 A Front power seat (left) Door lock motor, glass hatch D/L NO.2 25 A opener, BODY ECU 30 A PSB ECU TI & TE 15 A Tilt and telescopic steering FOG FR...
Page 659 4-3. Do-it-yourself maintenance Fuse Ampere Circuit Rear window defogger, outside rear view mirror memory, seat heater/ven- tilator switch, inverter relay, air condi- tioning system, EC mirror, BODY ECU, exhaust gas sensor, parking assist sensor, navigation system, ECU-IG NO.2 10 A DSS#2 ECU, meter switch, accessory meter, folding seat ECU, O/H IG, head light cleaner, rear air condition-...
Page 660 4-3. Do-it-yourself maintenance Fuse Ampere Circuit EFI ECU, C/OPN RLY, VSC ECU, air bag ECU, smart entry & start system, 10 A steering lock ECU, CAN gateway GAUGE 7.5 A Meter Switch illumination, glove box light, navigation system, audio system, air conditioning system, outside rear view PANEL 7.5 A...
Page 661 If the lights do not turn on even after the fuse has been replaced, a bulb may ● need replacement. (P. 664) If the replaced fuse blows again, have the vehicle inspected by your Lexus ● dealer. If there is an overload in a circuit ■...
Page 662: Headlight Aim (Vehicles With Low Beam Halogen Bulbs)
4-3. Do-it-yourself maintenance  Headlight aim (vehicles with low beam halogen bulbs) ■ Vertical movement adjustment bolts Adjustment bolt A Adjustment bolt B ■ Before checking the headlight aim Make sure the vehicle has a full tank of gas and the area around STEP the headlight is not deformed.
Page 663 Turn bolt B the same number of STEP turns and in the same direction as in step 1 using a Phillips-head screwdriver. If the headlight cannot be adjusted using this procedure, take the vehicle to your Lexus dealer to adjust the headlight aim. GX460_U.S.A. (OM60G24U)
Page 664: Light Bulbs
You may replace the following bulbs by yourself. The difficulty level of replacement varies depending on the bulb. If necessary bulb replacement seems difficult to perform, contact your Lexus dealer. For more information about replacing other light bulbs, contact your Lexus dealer. ■...
Page 665 4-3. Do-it-yourself maintenance ■ Rear bulb locations Rear side marker light Rear turn signal light Back-up light Replacing light bulbs ■ Headlight low beams (vehicles with halogen bulbs) Turn the cover counterclockwise STEP and remove it. GX460_U.S.A. (OM60G24U)
Page 666 4-3. Do-it-yourself maintenance Turn the bulb base counterclock- STEP wise. Unplug the connector while pull- STEP ing the lock release. GX460_U.S.A. (OM60G24U)
Page 667 4-3. Do-it-yourself maintenance ■ Headlight high beams and daytime running lights Turn the bulb base counterclock- STEP wise. Unplug the connector while push- STEP ing the lock release. GX460_U.S.A. (OM60G24U)
Page 668 4-3. Do-it-yourself maintenance ■ Fog lights Remove the fender liner bolt STEP and partly remove the fender liner. Unplug the connector while pushing the lock release. Turn the bulb base counterclock- STEP wise. GX460_U.S.A. (OM60G24U)
Page 669 4-3. Do-it-yourself maintenance ■ Parking/front side marker lights Turn the bulb base counterclock- STEP wise. Remove the light bulb. STEP GX460_U.S.A. (OM60G24U)
Page 670 4-3. Do-it-yourself maintenance ■ Front turn signal lights Turn the bulb base counterclock- STEP wise. Remove the light bulb. STEP GX460_U.S.A. (OM60G24U)
Page 671 4-3. Do-it-yourself maintenance ■ Rear turn signal and rear side marker lights Open the back door. STEP Left-hand side: Remove the bolts and lamp assem- bly. Right-hand side: Remove the bolts. Close the back door half way and remove the lamp assembly. GX460_U.S.A.
Page 672 4-3. Do-it-yourself maintenance Unplug the connector while push- STEP ing the lock release. Turn the bulb bases counterclock- STEP wise. Rear turn signal light Rear side marker light Remove the light bulb. STEP Rear turn signal light Rear side marker light GX460_U.S.A.
Page 673 4-3. Do-it-yourself maintenance ■ Back-up lights Remove the bolts and pull down STEP the under cover. Turn the bulb base counterclock- STEP wise. GX460_U.S.A. (OM60G24U)
Page 674 STEP ■ Lights other than the above If any of the lights listed below has burnt out, have it replaced by your Lexus dealer. ● Headlight low beams (high-intensity discharge bulbs) ● Side turn signal lights ● High mounted stoplight ●...
Page 675 (SAE). Condensation build-up on the inside of the lens ■ Contact your Lexus dealer for more information in the following situations. Tempo- rary condensation build-up on the inside of the headlight lens does not indicate a malfunction. Large drops of water are built up on the inside of the lens.
Page 676 High-intensity discharge (HID) headlights ■ Contact your Lexus dealer before replacing high-intensity discharge headlights ● (including light bulbs). Do not touch the high-intensity discharge headlight’ s high voltage socket when ●...
Page 677: Essential Information
When trouble arises 5-2. Steps to take in an  5-1. Essential information emergency Emergency flashers....678 If a warning light turns  If your vehicle needs  on or a warning buzzer  to be towed......679 sounds........690 If you think something is ...
Page 678: Emergency Flashers
5-1. Essential information Emergency flashers Use the emergency flashers if the vehicle malfunctions or is involved in an accident. Press the switch to flash all the turn signal lights. To turn them off, push the switch once again. NOTICE To prevent battery discharge ■...
Page 679: If Your Vehicle Needs To Be Towed
If your vehicle needs to be towed If towing is necessary, we recommend having your vehicle towed by your Lexus dealer or a commercial towing service, using a lift-type truck or a flat bed truck. Use a safety chain system for all towing, and abide by all state/provincial and local laws.
Page 680 5-1. Essential information Emergency towing If a tow truck is not available in an emergency, your vehicle may be tem- porarily towed using a cable or chain secured to the emergency towing hooks. This should only attempted on hard surfaced roads for short dis- tances at low speeds....
Page 681 5-1. Essential information Towing with a sling-type truck Do not tow with a sling type truck to prevent body damage. Towing with a wheel lift-type truck From front Use a towing dolly under the rear wheels. From rear Use a towing dolly under the front wheels.
Page 682 5-1. Essential information Using a flat bed truck If your Lexus is transported by flat bed truck, it should be tied down at the locations shown in the illustra- tion. If you use chains or cables to tie down your vehicle, the angles shaded in black must be 45.
Page 683 5-1. Essential information Before emergency towing ■ The “ENGINE START STOP” switch must be in the ACCESSORY mode STEP (engine off) or IGNITION ON mode (engine running). Put the four-wheel drive control switch in H4. (The center differential is STEP unlocked.) Put the vehicle height in the N mode and press height control switch to STEP...
Page 684 5-1. Essential information NOTICE To prevent causing serious damage to the transmission and transfer when towing ■ using a wheel-lift type truck Never tow this vehicle with any of the wheels in contact with the ground. To avoid serious damage to your vehicle ■...
Page 685: If You Think Something Is Wrong
5-1. Essential information If you think something is wrong If you notice any of the following symptoms, your vehicle probably needs adjustment or repair. Contact your Lexus dealer as soon as possible. ■ Visible symptoms ● Fluid leaks under the vehicle...
Page 686: Fuel Pump Shut Off System
5-1. Essential information Fuel pump shut off system To minimize the risk of fuel leakage when the engine stalls or an airbag inflates upon collision, the fuel pump shut off system stops supplying fuel to the engine. Follow the procedure below to restart the engine after the system is acti- vated.
Page 687: Event Data Recorder
5-1. Essential information Event data recorder Your vehicle has computers that monitor and control certain aspects of your vehicle. These computers assist in driving and maintaining optimal vehicle performance. Besides storing data useful for troubleshooting, there is an event data recorder (EDR) that records data in a crash or a near car crash event.
Page 688 5-1. Essential information In a crash or a near car crash event The SRS airbag sensor assembly contains the EDR. In a crash or a near car crash event, this device may record some or all of the following infor- mation: ●...
Page 689 5-1. Essential information Disclosure of the data Lexus will not disclose the data recorded in an EDR to a third party except when: ● An agreement from the vehicle’ s owner (or the leasing company for a leased vehicle) is obtained ●...
Page 690: Steps To Take In An Emergency
Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous. The following warning indicates a possible problem in the brake system. Immediately stop the vehicle in a safe place and contact your Lexus dealer. Warning light Warning light/Details Brake system warning light (warning buzzer) •...
Page 691 Indicates a malfunction in the vehicle’ s charging system while the engine is running. Have the vehicle inspected by your Lexus dealer immediately. Failing to investigate the cause of the following warnings may lead to the system operating abnormally and possibly cause an accident. Have the vehicle inspected by your Lexus dealer immediately.
Page 692 5-2. Steps to take in an emergency Warning light Warning light/Details SRS warning light Malfunction in: • The SRS airbag system; • The front passenger occupant classification system; or • The seat belt pretensioner system. ABS warning light (U.S.A.) Malfunction in: •...
Page 693 5-2. Steps to take in an emergency Warning light Warning light/Details Automatic High Beam indicator light Indicates a malfunction in the automatic high beam system. (P. 228) (Flashing) “LDA” indicator light Indicates a malfunction in the lane departure alert.  (Flashing) (P.
Page 694 5-2. Steps to take in an emergency Have the malfunction repaired immediately. After taking the specified steps to correct the suspected problem, check that the warning light turns off. Warning light Warning light/Details Correction procedure Open door warning light (warning buzzer) Check that all doors and the A door or a back door is not back door are closed.
Page 695 1 minute: Have the system checked by Malfunction in the tire pres- your Lexus dealer. sure warning system. : Open door warning buzzer: The open door warning buzzer sounds to alert one or more of the doors is not fully closed (with the vehicle having reached a speed of 3 mph [5 km/h]).
Page 696 Is the fuel tank cap loose? ● If it is, tighten it securely. The light will go off after taking several driving trips. If the light does not go off even after several trips, contact your Lexus dealer as soon as possible. GX460_U.S.A. (OM60G24U)
Page 697 5-2. Steps to take in an emergency When the tire pressure warning light comes on ■ Check the tire inflation pressure and adjust to the appropriate level. The tire pressure warning light may turn on due to natural causes ■ The tire pressure warning light may turn on due to natural causes such as natural air leaks or tire inflation pressure changes caused by temperature.
Page 698 If there is a lot of snow or ice on the vehicle, in particular around the wheels or ● wheel housings. If non-genuine Lexus wheels are used. (Even if you use genuine Lexus wheels, ● the tire pressure warning system may not work properly with some types of tires.)
Page 699 ● ment, it is probable that you have a flat tire. Check the tires. If the tire is flat, change to the spare tire and have the flat tire repaired by the nearest Lexus dealer. Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could ●...
Page 700 5-2. Steps to take in an emergency CAUTION Maintenance of the tires ■ Each tire, including the spare (if provided), should be checked monthly when cold and inflated to the inflation pressure recommended by the vehicle manufacturer on the vehicle placard or tire inflation pressure label (tire and load information label). (If your vehicle has tires of a different size than the size indicated on the vehicle placard or tire inflation pressure label [tire and load information label], you should determine the proper tire inflation pressure for those tires.)
Page 701 5-2. Steps to take in an emergency CAUTION Maintenance of the tires ■ Your vehicle has also been equipped with a TPMS (tire pressure warning system) malfunction indicator to indicate when the system is not operating properly. The TPMS (tire pressure warning system) malfunction indicator is combined with the low tire pressure telltale (tire pressure warning light).
Page 702: If A Warning Message Is Displayed
Multi-information display Rear height control air sus- pension display If any of the warning lights comes on again after the following actions have been performed, contact your Lexus dealer. GX460_U.S.A. (OM60G24U)
Page 703 A buzzer sounds and a warning message is shown on the multi-informa- tion display. The following warning indicates the possibility of damage to the vehicle that may lead to an accident. Immediately stop the vehicle in a safe place and contact your Lexus dealer. Warning message Details...
Page 704 5-2. Steps to take in an emergency Have the vehicle inspected by your Lexus dealer immediately. A buzzer sounds and a warning message is shown on the multi-informa- tion display. Failure to investigate the cause of the following warnings may lead to the system operating abnormally and possibly cause an accident.
Page 705 5-2. Steps to take in an emergency Warning message Details Indicates a malfunction in the rear height control air suspension system (If equipped) Indicates a malfunction in the pre-collision system (Flashes) (If equipped) Indicates a malfunction in the intuitive parking assist The malfunctioning assist-sensor is flashing.
Page 706 5-2. Steps to take in an emergency Warning message Details Indicates a malfunction in the radar cruise control system (Flashes) Press the “ON-OFF” button once to deactivate the system, and then press the button again to reactivate (Flashes) the system. (If equipped) Indicates a malfunction in the LDA system Stop the vehicle in a safe place.
Page 707 5-2. Steps to take in an emergency Follow the correction procedures. A buzzer sounds and a warning message is shown on the multi-informa- tion display. After taking the specified steps to correct the suspected problem, check that the warning message goes off. Warning message Details Correction procedure...
Page 708 5-2. Steps to take in an emergency Warning message Details Correction procedure Indicates that the glass hatch is not fully closed If the vehicle reaches a speed of 3 mph  Close the glass hatch. (5 km/h), flashes and a buzzer sounds to indicate that the glass hatch is not yet fully closed.
Page 709 5-2. Steps to take in an emergency Warning message Details Correction procedure Indicates that the parking brake is still engaged If the vehicle reaches a speed of 3 mph  Release the parking (5 km/h), brake. flashes and a buzzer sounds to indicate that the parking brake is still engaged.
Page 710 Details Correction procedure Have the engine oil and oil Indicates that the engine filter checked and oil and oil filter should be changed by your Lexus changed dealer. (U.S.A. only) Clean the grille and the sensor. Indicates that the pre-...
Page 711 5-2. Steps to take in an emergency Warning message Details Correction procedure Indicates that the radar cruise control sensor is Clean the sensor. (Flashes) dirty or covered with ice A buzzer also sounds. (If equipped) Indicates that the radar If the windshield wipers cruise control system is are on, turn them off or set unable to judge vehicle-...
Page 712 5-2. Steps to take in an emergency Warning message Details Correction procedure Indicates that there is a high possibility of a colli- Slow the vehicle by apply- sion, or that the pre-crash ing the brakes. brake function is operat- (Flashes) (If equipped) Indicates that the LDA is suspended...
Page 713 5-2. Steps to take in an emergency Have the malfunction repaired immediately. After taking the specified steps to correct the suspected problem, check that the warning message and light go off. Interior Correction Exterior Warning message Details buzzer buzzer procedure The electronic key Confirm the loca- is not detected...
Page 714 5-2. Steps to take in an emergency Interior Correction Exterior Warning message Details buzzer buzzer procedure The electronic key was carried out- side the vehicle and a door other than the driver’ s Bring the elec- door was opened tronic key back and closed while into the vehicle.
Page 715 5-2. Steps to take in an emergency Interior Correction Exterior Warning message Details buzzer buzzer procedure An attempt was made to exit the Turn the vehicle with the “ENGINE START electronic key and Sounds Sounds lock the doors STOP” switch off once once without first turn-...
Page 716 5-2. Steps to take in an emergency Interior Correction Exterior Warning message Details buzzer buzzer procedure The driver’ s door was opened when the shift lever was Con- Shift the shift lever  not in P and the tinuous to P. “ENGINE START STOP”...
Page 717 5-2. Steps to take in an emergency Interior Correction Exterior Warning message Details buzzer buzzer procedure An attempt was made to lock the doors using the smart access sys- tem with push- button start while the electronic key was still inside the vehicle.
Page 718 5-2. Steps to take in an emergency Interior Correction Exterior Warning message Details buzzer buzzer procedure • When the doors were unlocked with the mechanical key and then the “ENGINE START STOP” switch was pressed, the electronic key Touch the elec- could not be tronic key to the Sounds...
Page 719 5-2. Steps to take in an emergency Interior Correction Exterior Warning message Details buzzer buzzer procedure An attempt was Shift the shift lever made to start the Sounds  engine with the to P and start the once shift lever in an engine.
Page 720 5-2. Steps to take in an emergency Interior Correction Exterior Warning message Details buzzer buzzer procedure Next time when starting the engine, increase the engine speed Power was turned slightly and main- off due to the   automatic power tain that level for off function.
Page 721 5-2. Steps to take in an emergency Interior Correction Exterior Warning message Details buzzer buzzer procedure The driver’ s door was opened and closed with the “ENGINE START STOP” switch Press the turned off and “ENGINE START then the STOP” switch “ENGINE START while depressing STOP”...
Page 722 5-2. Steps to take in an emergency Interior Correction Exterior Warning message Details buzzer buzzer procedure Press the The steering lock “ENGINE START could not be STOP” switch released within 3 Sounds while depressing  seconds of the once the brake pedal “ENGINE START and moving the STOP”...
Page 723 5-2. Steps to take in an emergency Other messages If the following message is displayed, take appropriate action and confirm that the message has disappeared. (P. 326) Message Correction procedure Select the four-wheel driving position switch in L4 and shift the shift lever to D or R. (If equipped) Confirm the operating conditions.
Page 724: If You Have A Flat Tire
5-2. Steps to take in an emergency If you have a flat tire Remove the flat tire and replace it with the spare provided. ■ Before jacking up the vehicle ● Stop the vehicle on a hard, flat surface. ● Set the parking brake. ●...
Page 725 5-2. Steps to take in an emergency Taking out the jack Remove the cover. STEP Unhook the rubber band and take STEP out the jack. For loosening For tightening GX460_U.S.A. (OM60G24U)
Page 726 5-2. Steps to take in an emergency Taking out the tool box Remove the cover. STEP Take out the tool box. STEP GX460_U.S.A. (OM60G24U)
Page 727 5-2. Steps to take in an emergency Taking out the spare tire Assembling the jack handle. STEP Remove the jack handle extension bar from the tool box and assemble by following these steps. Loosen the bolt and the screw using either the jack handle end or a screwdriver.
Page 728 5-2. Steps to take in an emergency Insert the jack handle extension STEP into the lowering socket. Lower Raise Place a rag under the jack handle extension to protect the bumper. Lower the spare tire completely to STEP the ground. If the spare tire becomes caught on the suspension components, raise the tire, pull it towards the rear of the vehicle, and begin lowering it again.
Page 729 5-2. Steps to take in an emergency Replacing a flat tire Chock the tires. STEP Flat tire Wheel chock position Left-hand side Behind the rear right-hand side tire Front Right-hand side Behind the rear left-hand side tire Left-hand side In front of the front right-hand side tire Rear Right-hand side In front of the front left-hand side tire...
Page 730 5-2. Steps to take in an emergency Slightly loosen the wheel nuts (one STEP turn). Assembling the jack handle. STEP Remove the jack handle, jack handle extension bar and jack han- dle bar from the tool box and assemble by following these steps. Loosen the bolt and the screw using either the jack handle end or a screwdriver.
Page 731 5-2. Steps to take in an emergency Assemble the jack handle extension bar and the jack han- dle and tighten the screw. Check that the screw is firmly tight- ened. Position the jack at the jack points STEP as shown. Front - Under the chassis frame side rail Rear - Under the rear axle housing...
Page 732 5-2. Steps to take in an emergency Raise the vehicle until the tire is STEP slightly raised off the ground. Remove all the wheel nuts and the STEP tire. When resting the tire on the ground, place the tire so that the wheel design faces up to avoid scratching the wheel surface.
Page 733 5-2. Steps to take in an emergency Installing the spare tire Remove any dirt or foreign matter STEP from the wheel contact surface. If foreign matter is on the wheel contact surface, the wheel nuts may loosen while the vehicle is in motion, and the tire may come off the vehicle.
Page 734 5-2. Steps to take in an emergency Firmly tighten each nut two or STEP three times in the order shown in the illustration. Tightening torque: 83 ft•lbf (112 N•m, 11.4 kgf•m) Reinstall the wheel ornament. STEP Stowing the flat/spare tire, jack and tools Lay down the tire with the outer STEP side facing up, and install the hold-...
Page 735 5-2. Steps to take in an emergency CAUTION Using the tire jack ■ Improper use of the tire jack may lead to death or injuries due to the vehicle sud- denly falling off the jack. Do not use the tire jack for any purpose other than replacing tires or installing and ●...
Page 736 If there are any cracks or deformations in the bolt screws, nut threads or bolt ● holes of the wheel, have the vehicle inspected by your Lexus dealer. Failure to follow these precautions could cause the wheel nuts to loosen and the tire to fall off, resulting in death or serious injury.
Page 737 ■ When removing or fitting the wheels, tires or the tire pressure warning valve and transmitter, contact your Lexus dealer as the tire pressure warning valve and trans- mitter may be damaged if not handled correctly. To avoid damaging the tire pressure warning valves and transmitters ■...
Page 738: If The Engine Will Not Start
5-2. Steps to take in an emergency If the engine will not start If the engine will not start even though correct starting procedures are  being followed ( P. 181), consider each of the following points: ■ The engine will not start even when the starter motor operates normally One of the following may be the cause of the problem: ●...
Page 739 ● One or both of the battery terminals may be disconnected. ● The battery may be discharged. (P. 745) ● There may be a malfunction in the steering lock system. Contact your Lexus dealer if the problem cannot be repaired, or if repair procedures are unknown. Emergency start function When the engine does not start, the following steps can be used as an interim measure to start the engine if the “ENGINE START STOP”...
Page 740: If The Shift Lever Cannot Be Shifted From P
If the shift lever cannot be shifted with your foot on the brake, there may be a problem with the shift lock system (a system to prevent accidental opera- tion of the shift lever). Have the vehicle inspected by your Lexus dealer immediately....
Page 741: If You Lose Your Keys
5-2. Steps to take in an emergency If you lose your keys New genuine Lexus keys can be made by your Lexus dealer using the other key and the key number stamped on your key number plate. GX460_U.S.A. (OM60G24U)
Page 742: If The Electronic Key Does Not Operate Properly
Unlocks the door Turning the key rearward unlocks the driver’ s door. Turning the key once again unlocks the other doors. Opens the windows and moon roof (turn and hold) : This setting must be customized at your Lexus dealer. GX460_U.S.A. (OM60G24U)
Page 743 5-2. Steps to take in an emergency Changing “ENGINE START STOP” switch modes and starting the engine Ensure that the shift lever is in P and depress the brake pedal. STEP Touch the Lexus emblem side of STEP electronic “ENGINE START STOP” switch.
Page 744 5-2. Steps to take in an emergency Stopping the engine ■ Shift the shift lever to P and press the “ENGINE START STOP” switch as you nor- mally do when stopping the engine. Replacing the key battery ■ As the above procedure is a temporary measure, it is recommended that the elec- tronic key battery be replaced immediately when the battery is depleted.
Page 745: If The Vehicle Battery Is Discharged
You can call your Lexus dealer, or qualified repair shop. If you have a set of jumper (or booster) cables and a second vehicle with a 12 volt battery, you can jump start your Lexus by following the steps below.
Page 746 Once your vehicle’ s engine has started, remove the jumper STEP cables in the exact reverse order in which they were con- nected. Once the engine starts, have the vehicle checked at your Lexus dealer as soon as possible. Starting the engine when the battery is discharged ■...
Page 747 5-2. Steps to take in an emergency CAUTION Avoiding battery fires or explosions ■ Observe the following precautions to prevent accidentally igniting the flammable gas that may be emitted from the battery: Make sure the jumper cable is connected to the correct terminal and that it is not ●...
Page 748: If Your Vehicle Overheats
STEP If the fan is operating:  Wait until the engine coolant temperature gauge begins to fall and then stop the engine. If the fan is not operating:  Stop the engine and call your local Lexus dealer. GX460_U.S.A. (OM60G24U)
Page 749 (radiator) for any leaks. Add engine coolant if required. STEP Water can be used as an emer- gency measure if engine coolant is unavailable. (P. 761) Have the vehicle checked at your nearest Lexus dealer as soon as pos- sible. GX460_U.S.A. (OM60G24U)
Page 750 5-2. Steps to take in an emergency Overheating ■ In the following situations, your vehicle may be overheating: The engine coolant temperature gauge enters the red zone or a loss of power is ● experienced. Steam is coming from under the hood. ●...
Page 751: If The Vehicle Becomes Stuck
5-2. Steps to take in an emergency If the vehicle becomes stuck Carry out the following procedures if the tires spin or the vehicle becomes stuck in mud, dirt, or snow: Stop the engine. Set the parking brake and shift the shift lever STEP to P.
Page 752 5-2. Steps to take in an emergency CAUTION When attempting to free a stuck vehicle ■ If you choose to push the vehicle back and forth to free it, make sure the surround- ing area is clear, to avoid striking other vehicles, objects or persons. The vehicle may also lunge forward or lunge back suddenly as it becomes free.
Page 753: If Your Vehicle Has To Be Stopped In An Emergency
5-2. Steps to take in an emergency If your vehicle has to be stopped in an emergency Only in an emergency, such as if it becomes impossible to stop the vehicle in the normal way, stop the vehicle using the following procedure: Steadily step on the brake pedal with both feet and firmly STEP depress it.
Page 754 5-2. Steps to take in an emergency CAUTION If the engine has to be turned off while driving ■ Power assist for the brakes and steering wheel will be lost, making the brake pedal harder to depress and the steering wheel heavier to turn. Decelerate as much as possible before turning off the engine.
Page 755: Specifications
Vehicle specifications 6-1. Specifications Maintenance data  (fuel, oil level, etc.) ....756 Fuel information...... 768 Tire information......771 6-2. Customization Customizable features ..787 6-3. Initialization Items to initialize ....807 GX460_U.S.A. (OM60G24U)
Page 756: Maintenance Data (Fuel, Oil Level, Etc.)
6-1. Specifications Maintenance data (fuel, oil level, etc.) Dimensions and weight Overall length 189.2 in. (4805 mm) Overall width 74.2 in. (1885 mm) 72.0 in. (1830 mm) 71.7 in. (1820 mm) 72.6 in. (1845 mm) Overall height 72.2 in. (1835 mm) 74.2 in.
Page 757 Vehicle identification number The vehicle identification number (VIN) is the legal identifier for your vehicle. This is the primary identification number for your Lexus. It is used in registering the ownership of your vehicle. This number is stamped on the front right frame.
Page 758 6-1. Specifications ■ Engine number The engine number is stamped on the engine block as shown. Engine Model 1UR-FE Type 8-cylinder V type, 4-cycle, gasoline 3.70  3.27 in. (94.0  83.0 mm) Bore and stroke Displacement 281.2 cu.in. (4608 cm Drive belt tension Automatic adjustment Fuel...
Page 759 7.8 qt. (7.4 L, 6.5 Imp.qt.) ■ Engine oil selection “Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus approved “Toyota Genuine Motor Oil” or equivalent to satisfy the follow- ing grade and viscosity. Oil grade: ILSAC multigrade engine oil...
Page 760 6-1. Specifications The 0W portion of the oil viscosity rating indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow for easier starting of the engine in cold weather. The 20 in 0W-20 indicates the oil viscosity when the oil is at its operating temperature.
Page 761 6-1. Specifications Cooling system With rear 16.3 qt. (15.4 L, 13.6 Imp.qt.) heater Capacity  (reference) Without rear 14.5 qt. (13.7 L, 12.1 Imp.qt.) heater Use either of the following: • “Toyota Super Long Life Coolant” • A similar high-quality ethylene glycol- Coolant type based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life...
Page 762 Toyota Genuine Differential Oil type and viscosity Gear Oil LT 75W-85 GL5 or equivalent : “Toyota Genuine Differential Gear Oil” is filled in your Lexus vehicle at factory fill. Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of matching quality to satisfy the above specification.
Page 763 Toyota Genuine Differential Oil type and viscosity Gear Oil LT 75W-85 GL5 or equivalent : “Toyota Genuine Differential Gear Oil” is filled in your Lexus vehicle at factory fill. Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of matching quality to satisfy the above specification.
Page 764 ATF cooler Fluid type Toyota Genuine ATF WS : The fluid capacity is a reference quantity. If replacement is necessary, contact your Lexus dealer. NOTICE Transmission fluid type ■ Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterio- ration in shift quality, locking up of the transmission accompanied by vibration and, ultimately, damage to the vehicle’...
Page 765 Recommended oil viscosity SAE 75W : “Toyota Genuine Transfer Gear oil LF” is filled in your Lexus vehicle at factory fill. Use Lexus approved “Toyota Genuine Transfer Gear oil LF” or an equivalent of matching quality to satisfy the above specification. Please contact your Lexus dealer for further details.
Page 766 6-1. Specifications Chassis lubrication Propeller shafts Spiders Lithium base chassis grease, NLGI No.2 Slide yoke Molybdenum-disulfide lithium base chassis grease, NLGI No.2 or lithium base multipur- pose grease, NLGI No.2 Steering Free play Less than 1.18 in. (30 mm) ® Automatic transmission fluid DEXRON Power steering fluid type or III...
Page 767 6-1. Specifications Light bulbs Light bulbs Bulb No. Type Headlights High beam 9005  Low beam (discharge bulbs  Low beam (halogen bulbs  Front turn signal lights Parking/front side marker  lights Exterior  Front fog lights  Rear turn signal lights Back-up lights ...
Page 768: Fuel Information
ASTM D4814 in the U.S.A. and CGSB3.5-M93 in Canada. Fuel tank opening for unleaded gasoline ■ To help prevent incorrect fueling, your Lexus has a fuel tank opening that only accommodates the special nozzle on unleaded fuel pumps. If your engine knocks ■...
Page 769 Lexus allows the use of oxygenate blended gasoline where the oxygenate con- ● tent is up to 10 % ethanol or 15 % MTBE. If you use gasohol in your Lexus, be sure that it has an octane rating no lower ● than 87.
Page 770 Some gasoline contains an octane enhancing additive called MMT (Methylcy clo- pentadienyl Manganese Tricarbonyl). Lexus does not recommend the use of gasoline that contains MMT. If fuel contain- ing MMT is used, your emission control system may be adversely affected.
Page 771: Tire Information
6-1. Specifications Tire information Typical tire symbols Tire size (P. 774) DOT and Tire Identification Number (TIN) (P. 773) Location of treadwear indicators (P. 631) Tire ply composition and materials Plies are layers of rubber-coated parallel cords. Cords are the strands which form the plies in a tire.
Page 772 6-1. Specifications TUBELESS or TUBE TYPE A tubeless tire does not have a tube and air is directly filled in the tire. A tube type tire has a tube inside the tire and the tube maintains the air pres- sure. Load limit at maximum cold tire inflation pressure (P.
Page 773 6-1. Specifications Typical DOT and tire identification number (TIN) DOT symbol Tire Identification Number (TIN) Tire manufacturer’ s identifica- tion mark Tire size code Manufacturer’ s optional tire type code (3 or 4 letters) Manufacturing week Manufacturing year : The DOT symbol certifies that the tire conforms to applicable Federal Motor Vehicle Safety Standards.
Page 774 6-1. Specifications Tire size ■ Typical tire size information The illustration indicates typical tire size. Tire use (P = Passenger car,  T = Temporary use) Section width (millimeters) Aspect ratio (tire height to section width) Tire construction code (R = Radial, D = Diagonal) Wheel diameter (inches) Load index (2 digits or 3 digits) Speed symbol...
Page 775 6-1. Specifications ■ Tire dimensions Section width Tire height Wheel diameter Tire section names Bead Sidewall Shoulder Tread Belt Inner liner Reinforcing rubber Carcass Rim lines Bead wires Chafer GX460_U.S.A. (OM60G24U)
Page 776 Department of Transportation. It provides the purchasers and/or prospective purchasers of Lexus vehi- cles with information on uniform tire quality grading. Your Lexus dealer will help answer any questions you may have as you read this information. ■ DOT quality grades All passenger vehicle tires must conform to Federal Safety Require- ments in addition to these grades.
Page 777 6-1. Specifications ■ Traction AA, A, B, C The traction grades, from highest to lowest, are AA, A, B and C, and they represent the tire’ s ability to stop on wet pavement as measured under controlled conditions on specified government test surfaces of asphalt and concrete.
Page 778 6-1. Specifications Glossary of tire terminology Tire related term Meaning Tire pressure when the vehicle has been parked for Cold tire inflation  three hours or more, or has not been driven more pressure than 1 mile or 1.5 km under that condition Maximum inflation pres- The maximum cold inflated pressure to which a tire sure...
Page 779 6-1. Specifications Tire related term Meaning The sum of: (a) Curb weight Maximum loaded  (b) Accessory weight vehicle weight (c) Vehicle capacity weight (d) Production options weight 150 lb. (68 kg) times the number of occupants spec- Normal occupant weight ified in the second column of Table 1 that follows Distribution of occupants in a vehicle as specified in Occupant distribution...
Page 780 6-1. Specifications Tire related term Meaning The industry manufacturer’ s designation for a rim by Rim type designation style or code Rim width Nominal distance between rim flanges Vehicle capacity weight The rated cargo and luggage load plus 150 lb. (68 (Total load capacity) kg) times the vehicle’...
Page 781 6-1. Specifications Tire related term Meaning A pneumatic tire in which the ply cords that extend Bias ply tire to the beads are laid at alternate angles substantially less than 90 degrees to the centerline of the tread The tire structure, except tread and sidewall rubber Carcass which, when inflated, bears the load Chunking...
Page 782 6-1. Specifications Tire related term Meaning The layer(s) forming the inside surface of a tubeless Innerliner tire that contains the inflating medium within the tire The parting of the innerliner from cord material in Innerliner separation the carcass (a)The sidewall that contains a whitewall, bears white lettering, or bears manufacturer, brand, and/or model name molding that is higher or deeper than Intended outboard side-...
Page 783 6-1. Specifications Tire related term Meaning The rim on which a tire is fitted for physical dimen- Measuring rim sion requirements Any parting at any junction of tread, sidewall, or Open splice innerliner that extends to cord material Outer diameter The overall diameter of an inflated new tire The linear distance between the exteriors of the Overall width...
Page 784 6-1. Specifications Tire related term Meaning A pneumatic tire in which the ply cords that extend Radial ply tire to the beads are laid at substantially 90 degrees to the centerline of the tread A tire designed to operate at higher loads and at Reinforced tire higher inflation pressures than the corresponding standard tire...
Page 785 6-1. Specifications Tire related term Meaning The rim on which a tire is fitted for testing, and may Test rim be any rim listed as appropriate for use with that tire That portion of a tire that comes into contact with the Tread road A tread section running circumferentially around a...
Page 786 6-1. Specifications Designated seating Vehicle normal load, Occupant distribution in capacity, Number of Number of occupants a normally loaded vehicle occupants 2 through 4 2 in front 5 through 10 2 in front, 1 in second seat 2 in front, 1 in second 11 through 15 seat, 1 in third seat, 1 in fourth seat...
Page 787: Customization
Your vehicle includes a variety of electronic features that can be personal- ized to suit your preferences. Programming these preferences requires specialized equipment and may be performed by your Lexus dealer. It is also possible to customize certain vehicle features yourself using the menu switch and the “ENTER”...
Page 788 6-2. Customization Press the “ENTER” switch STEP upwards or downwards to select the item to be custom- ized. Press the “ENTER” switch to confirm. Press the “ENTER” switch STEP upwards or downwards to select the desired setting for the item being customized. Press the “ENTER”...
Page 789 “ENTER” switch Vehicles without a navigation system: Settings that can be changed using the menu switch and the “ENTER” switch Settings that can be changed by your Lexus dealer Definition of symbols: O = Available, – =Not available Default...
Page 790 6-2. Customization Default Customized Item Function setting setting SPEED SENSI- TIVE AUTO. LOCK (All doors are automatically locked when – vehicle speed is approximately 12 mph  Door lock  [20 km/h] or (P. 51, higher) 742) SHIFT-LINKED AUTOMATIC LOCK (All doors are automatically –...
Page 791 6-2. Customization Default Customized Item Function setting setting SHIFT-LINKED AUTOMATIC UNLOCK (All doors are – automatically unlocked when shifting the shift lever to P) Door lock  (P. 51, DRIVER 742) DOOR- LINKED UNLOCK (All doors are – automatically unlocked when driver’...
Page 792 6-2. Customization Default Customized Item Function setting setting LOCK FEED- BACK VOL- (Adjust the vol- ume of confor- – mation buzzer sounds when Smart the vehicle is 1 to 6 access  locked or system with unlocked) push- button start LOCK/ and wire- UNLOCK...
Page 793 6-2. Customization Default Customized Item Function setting setting AUTO. RELOCK TIME ADJUSTMENT (Adjust the time elapsed before 30 seconds the automatic 60 seconds – door lock func- Smart tion is activated access sys- if a door is not 120 seconds tem with opened after push-but-...
Page 794 6-2. Customization Default Customized Item Function setting setting SELECT DOORS TO UNLOCK (The doors that are unlocked Driver’ s All the – using the smart door doors access system Smart with push but- access  ton start can be system with selected) push-...
Page 795 6-2. Customization Default Customized Item Function setting setting REMOTE  2-PRESS Driver’ s UNLOCK door (Allows all unlocked in All doors Wireless doors to be first step, all unlocked in – remote unlocked by doors first step control  pressing unlocked in ...
Page 796 6-2. Customization Default Customized Item Function setting setting LIGHT SEN- SOR SENSI- TIVITY (Adjust the sen- Standard -2 to 2 – sitivity of the ambient light sensor) DAYTIME RUNNING LIGHTS – Automatic (Daytime run- light con- ning lights can trol system  be disabled) ...
Page 797 6-2. Customization Default Customized Item Function setting setting INTERIOR LIGHTS OFF TIME ADJUST- MENT (Adjust the time 15 seconds 7.5 seconds – elapsed before the interior lights automati- 30 seconds cally turn off) Illumination  P. 514) EXT. LIGHTS OFF TIME ADJUSTMENT (Adjust the time elapsed before...
Page 798 6-2. Customization Default Customized Item Function setting setting Operation after the “ENGINE START STOP” – – – switch is turned to OFF Operation when the doors are unlocked with the smart access system – – – Illumination with push-but- P. 514) ton start or the ...
Page 799 6-2. Customization Default Customized Item Function setting setting Footwell light- – – – Running board – – – lights Enable/disable operation of the running board lights when the Illumination – – – doors are  P. 514) unlocked with the power door lock switch Enable/disable operation of the...
Page 800 6-2. Customization Default Customized Item Function setting setting Instrument Dim. Sensitivity (Adjust the sen- sitivity of the ambient light Standard -2 to 2 – – sensor used for dimming the instrument clus- ter glass etc.) Instrument Instrument Rest. cluster  Sensitivity P.
Page 801 6-2. Customization Default Customized Item Function setting setting Efficient Venti- lation Mode (Enable/disable switching of the air intake con- – – trol mode to automatic when the “AUTO” Front auto- switch ON) matic air condition- Auto A/C ing sys- Mode (Enable/disable automatic oper- ation of the air...
Page 802 6-2. Customization Default Customized Item Function setting setting Smog Sensor Sensitivity Front auto- (Adjust the sen- matic air sitivity of condition- exhaust gas Standard -3 to 3 – – ing sys- sensor used for the Efficient Ventilation Mode) DRIVER’S SEAT EASY EXIT (The distance Front seats ...
Page 803 6-2. Customization Default Customized Item Function setting setting ECO INDICA- TIOR DISPLAY Eco Driv- (The Eco Driv- ing Indica- ing Indicator – – tor Light Light can be  P. 212) enabled/dis- abled) Mechanical key – – – linked operation Power ...
Page 804 Alert Volume (Alert volume 1 to 5 – – can be adjusted) Display (Automatic dis- Intuitive play off the parking LEXUS Park – – assist-sen- Assist graphic  can be enabled/  P. 262) disabled) Distance (Distance mode can be...
Page 805 6-2. Customization Multi-information display (P. 206, 214) Settings that can be changed using the menu switch and the “ENTER” switch. km, km/L Available units km, L/100km MI., MPG (US) Available languages (accessory meters and optitron type meters) For U.S.A. English (U.S.A.) and Spanish For Canada English (U.S.A.), French and Spanish In the following situations, customize mode will automatically be turned off.
Page 806 6-2. Customization CAUTION Cautions during customization ■ As the engine needs to be running during customization, ensure that the vehicle is parked in a place with adequate ventilation. In a closed area such as a garage, exhaust gases including harmful carbon monoxide (CO) may collect and enter the vehicle.
Page 807: Initialization
6-3. Initialization Items to initialize The following items must be initialized for normal system operation in cases such as after the battery is reconnected, or maintenance is performed on the vehicle. Item When to initialize Reference Engine oil maintenance • After changing engine oil P.
Page 808 6-3. Initialization GX460_U.S.A. (OM60G24U)
Page 809: For Owners
For owners Reporting safety defects  for U.S. owners...... 810 Seat belt instructions  for Canadian owners  (in French) ....... 811 SRS airbag instructions  for Canadian owners  (in French) ......813 GX460_U.S.A. (OM60G24U)
Page 810: Reporting Safety Defects For U.s. Owners
National Highway Traffic Safety Administration (NHTSA) in addition to notifying the Lexus Division of Toyota Motor Sales, U.S.A., Inc. (Toll- free: 1-800-25-LEXUS). If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign.
Page 811: Seat Belt Instructions For Canadian Owners (In French)
Seat belt instructions for Canadian owners (in French) The following is a French explanation of seat belt instructions extracted from the seat belt section in this manual See the seat belt section for more detailed seat belt instructions in English. GX460_U.S.A.
Page 812 GX460_U.S.A. (OM60G24U)
Page 813: Srs Airbag Instructions For Canadian Owners (In French)
SRS airbag instructions for Canadian owners (in French) GX460_U.S.A. (OM60G24U)
Page 814 GX460_U.S.A. (OM60G24U)
Page 815 GX460_U.S.A. (OM60G24U)
Page 816 GX460_U.S.A. (OM60G24U)
Page 817 GX460_U.S.A. (OM60G24U)
Page 818 GX460_U.S.A. (OM60G24U)
Page 819 GX460_U.S.A. (OM60G24U)
Page 820 GX460_U.S.A. (OM60G24U)
Page 821 GX460_U.S.A. (OM60G24U)
Page 822 GX460_U.S.A. (OM60G24U)
Page 823 Index Abbreviation list ....824 Alphabetical index....826 What to do if......836 For details of equipment related to the navigation system, such as the air conditioning and audio systems, refer to the “Navigation System Owner’ s Manual”. GX460_U.S.A. (OM60G24U)
Page 824: Abbreviation List
Abbreviation list Abbreviation/Acronym list ABBREVIATIONS MEANING Four Wheel Drive Anti-Lock Brake System Adaptive Front-lighting System AI-SHIFT Artificial Intelligence Shift control Automatic Locking Retractor Adaptive Variable Suspension System Child Restraint System Downhill Assist Control system DISP Display Electronic Control Unit Event Data Recorder Electric Fuel Injection Emergency Locking Retractor GAWR...
Page 825 Abbreviation list ABBREVIATIONS MEANING Emission inspection and maintenance KDSS Kinetic Dynamic Suspension System LATCH Lower Anchors and Tethers for Children Lane Departure Alert Light Emitting Diode Methylcy clopentadienyl Manganese Tricarbonyl M + S Mud and Snow MTBE Methyl Tertiary Butyl Ether Normal On Board Diagnostics Radio Data System...
Page 826: Alphabetical Index
Alphabetical index Alphabetical index Alarm............117 Front automatic air conditioning  Antenna............415 system..........386 Anti-lock brake system......333 Rear automatic air conditioning  Armrest ............ 557 system..........402 Audio input..........454 ABS.............333 Audio system Antenna............415 Active traction control......334 Adaptive front lighting system ..225 Audio input...........
Page 827 Alphabetical index Convertible seats, installation..157 Back-up lights Front passenger occupant  Replacing light bulbs ....... 673 Wattage ..........767 classification system......142 Infant seats, definition......149 Battery Battery............. 626 Infant seats, installation ......157 Installing CRS with lower  Checking..........626 If the vehicle has discharged  anchorages.........155 battery..........
Page 828 Alphabetical index Side doors..........51 Conversation mirror ......537 Cool box............ 531 Side mirrors..........98 Cooling system Downhill assist control system..330 Engine overheating ......748 Driver’s seat belt reminder light..694 Cornering assist sensors ....262 Driving Crawl Control........326 Correct posture........121 Off-road precautions......351 Cruise control Cruise control ........
Page 829 Alphabetical index Emergency flashers Floor mats ..........559 Switch............678 Fluid Engine Brake............622 Accessory mode ........181 Power steering........624 Compartment ........612 Washer ..........630 Engine switch ......... 181 Fog lights Hood ............611 Replacing light bulbs.......668 How to start the engine..... 181 Switch............235 Identification number......757 Wattage..........767...
Page 830 Alphabetical index Garage door opener ......570 I/M test .............605 Gas station information..... 840 Identification Gauges ............197 Engine............757 Vehicle.............757 Glove box ..........519 Glove box light ........520 Ignition switch ...........181 Ignition switch light Ignition switch light......514 Hands-free system for cellular  Illuminated entry system......517 phones...........
Page 831 Alphabetical index Kinetic Dynamic Suspension  Meter Instrument cluster light  System (KDSS) ........334 control...........198 Meters............197 Lane Departure Alert......271 Micro dust and pollen filter....396 LDA ............. 271 Mirrors License plate lights Inside rear view mirror.......96 Replacing light bulbs ....... 674 Side mirror heater ......
Page 832 Alphabetical index Parking assist sensors ......262 Rear view mirror Parking brake.......... 195 Compass..........578 Parking lights Rear view monitor system ....277 Replacing light bulbs......669 Rear window defogger ......406 Switch ............222 Rear window wiper and washer..241 Wattage..........767 Replacing Electronic key battery..... 646 PCS .............
Page 833 Alphabetical index Smart access system with  Seats Adjustment ......64, 68, 79 push-button start Adjustment  Antenna location........32 precautions ......67, 77, 82 Entry functions........29 Child seats/child restraint  Starting the engine .......181 system installation......154 Spare tire Cleaning ..........596 Inflation pressure........766 Driver’s seat position memory ..79 Storage location .........
Page 834 Alphabetical index Fog light switch........235 Pressure warning system....631 Hazard light Switch ......678 Replacing ..........724 Heated steering wheel switch..552 Rotating tires..........631 Height control off switch....313 Size............766 Ignition switch......... 181 Snow tires..........364 Light switches........222 Spare tire ..........724 Tire pressure warning  Power door lock switch......51 Power window switch.......102 system............631...
Page 835 Alphabetical index Open glass hatch ......708 Warning buzzers Brake system........709 Open moon roof ......708 Open door .......694, 707 Pre-collision system....705, 710 Rear height control air suspension  Open glass hatch reminder..708 Seat belt reminder ......694 system ..........705 Smart access system with push ...
Page 836 What to do if... What to do if... A tire punctures If you have a flat tire P. 724 Engine immobilizer system P. 115 The engine does not start If the engine will not start P. 738 If the battery is discharged P.
Page 837 What to do if... The warning light or indicator If the warning light turns on P. 690 light comes on GX460_U.S.A. (OM60G24U)
Page 838 What to do if... ■Warning lights Tire pressure warning light Brake system warning light P. 695 Kinetic dynamic suspension system warning light P. 690 P. 693 “PCS” warning light ABS warning light P. 692 Master warning light P. 692 P. 695 Slip indicator light “AFS OFF”...
Page 839 What to do if... GX460_U.S.A. (OM60G24U)
Page 840: Gas Station Information
GAS STATION INFORMATION Auxiliary catch lever Fuel filler door P. 611 P. 110 Hood lock release lever Fuel filler door lever Tire inflation pressure P. 611 P. 110 P. 766 Fuel tank capacity 23.0 gal. (87 L, 19.1 lmp.gal.) (Reference) Fuel type Premium unleaded gasoline only P.

Save PDF
