ENFORCER E-941DA-1K2P Installation Manual

ELECTROMAGNETIC LOCK Installation Manual

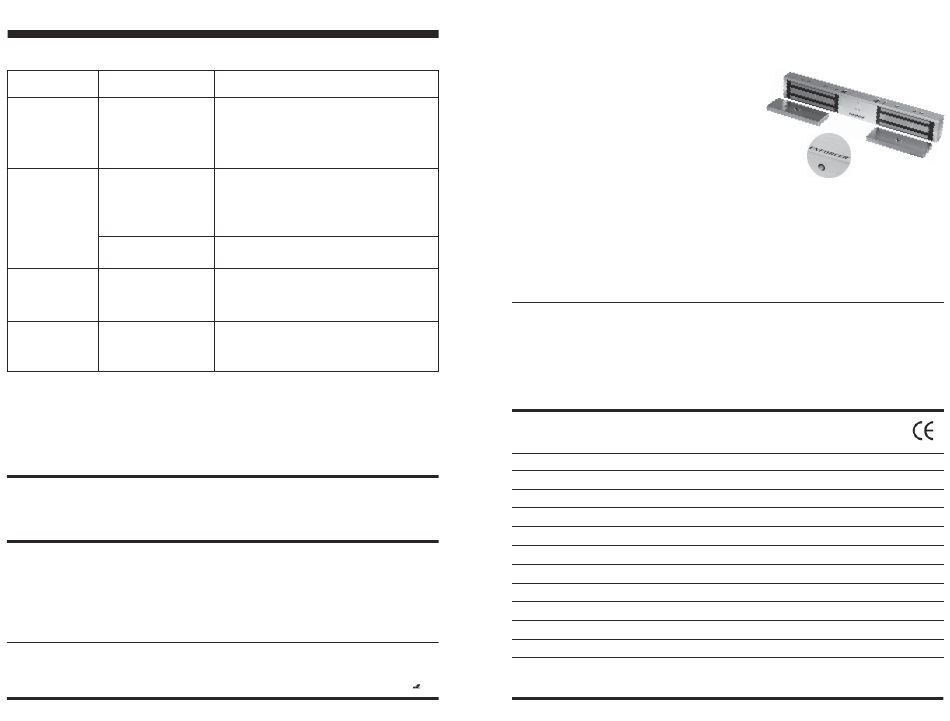

TROUBLESHOOTING
Problem: Possible cause:
• Door does not lock No power
• Status LED is not
illuminated
Door locks, but can be Poor contact between
easily forced open electromagnet and armature
plate
Incorrect voltage setting
A secondary diode was
Delay in door
installed across the
releasing
electromagnet
No relay output • No power
• Misalignment
REGULAR MAINTENANCE
• Clean the contact surfaces of the electromagnet or armature plate with a soft cloth and non-abrasive, non-
corrosive cleaner.
• Apply a light coat of a silicon lubricant to prevent rust. Wipe away the excess.
• Check that the armature plate is securely attached to the door, yet can pivot slightly around the armature screw.
• Check that the electromagnet is securely attached to the door frame.
WARRANTY:
ENFORCER Electromagnetic Locks are warranted against defects in
material and workmanship while used in normal service for a period of one (1) year from the
date of sale to the original customer. Our obligation is limited to the repair or replacement of
any defective part if the unit is returned, transportation pre-paid, to SECO-LARM.
NOTICE
The information and specifications printed in this manual are current at the time of publication.
However, the SECO-LARM policy is one of continual development and improvement. For this
reason, SECO-LARM reserves the right to change specifications without notice. SECO-LARM is
also not responsible for misprints or typographical errors.
Copyright © 2003 SECO-LARM U.S.A., Inc. All rights reserved. This material may not be
reproduced or copied, in whole or in part, without the written permission of SECO-LARM.
SECO-LARM SECO-LARM SECO-LARM SECO-LARM SECO-LARM U.S.A., Inc. U.S.A., Inc. U.S.A., Inc. U.S.A., Inc. U.S.A., Inc.
®
16842 Millikan Avenue, Irvine, CA 92606
Tel: 800-662-0800 / 949-261-2999 Fax: 949-261-7326
Page 4
Solutions:
• Check to make sure the wires are securely tightened to
the terminal block.
• Check that the power supply is connected and operating.
• Make sure the lock switch is wired correctly.
• Make sure the electromagnet and armature plate are
properly aligned.
• Make sure the contact surfaces of the electromagnet and
armature plate are clean and free from rust.
• Check the power leads with a meter, and make sure
12VDC or 24VDC is present.
• The electromagnet is fitted with a metal oxide varistor to
prevent interference, so do not install a secondary diode.
• Check that the power is connected and operating.
• Make sure the lock is aligned properly.
• Make sure the NO/NC/COM are wired properly.
Website: www.seco-larm.com
E-mail: sales@seco-larm.com
SECO-LARM U.S.A., Inc.
Installation Manual
ENFORCER
E-941DA-1K2P
1,200-Pound holding force Double-Door
Electromagnetic Lock with status sensor
and LED status display.
Also available:
E-941SA-1K2PD
E-941SA-1200
E-941SA-600
E-941SA-300
HOW THEY WORK
When power is applied to the magnetic lock, it turns on the unit's powerful built-in
electromagnet. This electromagnet is attracted to the steel armature plate which is
mounted on a door, holding the door fast against unauthorized entry. When power to the
magnetic lock is turned off, the electromagnet releases the armature plate, allowing the
door to open. In addition, the E-941DA-1K2P has built-in LEDs to show electromagnet
status, plus a status sensor to monitor whether the door is securely closed.
SPECIFICATIONS
Power
Magnet Size
Armature Size
Holding Force
Status Sensor
Status LED (2-Color)
Current Drain
Voltage Tolerance
Housing
Temperature
Weight
PITGW1
E941DA1K2P.pmd
ELECTROMAGNETIC LOCK Installation Manual
®
Status
LED
-
1200 lb. maglock with status sensor and timer
-
1200 lb. maglock without status sensor
-
600 lb. maglock without status sensor
-
300 lb. maglock without status sensor
12VDC/24VDC
21 x 1 / x 2 / in. (536 x 42 x 67 mm)
5 5
8 8
7 1 / x 1 / x 1 1 / in. (185 x 12 x 38 mm)
4 2 2
1200 lb. (545kg) per Door
Relay, 3A @ 12VDC
Locked - Green, Unlocked - Red
500mA @ 12VDC / Door, 250mA @ 24VDC / Door
± 10%
Aluminum
14° ~ 131°F, (-10° ~ 55°C)
21lbs. (10.0 kg.)
