ENFORCER E-941SA-1200Q Installation Manual

ELECTROMAGNETIC LOCK Installation Manual

TROUBLESHOOTING

Problem: Possible cause:
Door does not lock No power
Door locks, but can be Poor contact between
easily forced open electromagnet and
armature plate
Incorrect voltage
setting
Delay in door releasing A secondary diode was
installed across the
electromagnet

REGULAR MAINTENANCE

• Clean the contact surfaces of the electromagnet or armature plate with a soft cloth and
non-abrasive, non-corrosive cleaner.
• Apply a light coat of a silicon lubricant and wipe away the excess to prevent rust.
• Check that the armature plate is securely attached to the door, yet can pivot slightly
around the armature screw.
• Check that the electromagnet is securely attached to the door frame.
WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal service for a
period of one (1) year from the date of sale to the original consumer customer. SECO-LARM's obligation is limited to the repair or
replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM.
This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair, or alteration,
improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such equipment is not operating
properly as a result of causes other than defects in material and workmanship.
The sole obligation of SECO-LARM, and the purchaser's exclusive remedy, shall be limited to replacement or repair only, at SECO-LARM's
option. In no event shall SECO-LARM be liable for any special, collateral, incidental, or consequential personal or property damages of any
kind to the purchaser or anyone else.
NOTICE: The information and specifications printed in this manual are current at the time of publication. However, the SECO-LARM
policy is one of continual development and improvement. For this reason, SECO-LARM reserves the right to change specifications without
notice. SECO-LARM is also not responsible for misprints or typographical errors.
Copyright © 2008 SECO-LARM U.S.A., Inc. All rights reserved. This material may not be reproduced or copied, in whole or in part, without
the written permission of SECO-LARM.
SECO-LARM SECO-LARM SECO-LARM U.S.A., Inc. U.S.A., Inc. U.S.A., Inc.
SECO-LARM SECO-LARM ® U.S.A., Inc. U.S.A., Inc.
16842 Millikan Avenue, Irvine, CA 92606
Tel: 800-662-0800 / 949-261-2999 Fax: 949-261-7326
Page 4
Solutions:
• Check to make sure the wires are
securely tightened to the terminal block
• Check that the power supply is connected
and operating
• Make sure the lock switch is wired
correctly
• Make sure the electromagnet and
armature plate are properly aligned
• Make sure the contact surfaces of the
electromagnet and armature plate are
clean and free from rust
• Check the power leads with a meter, and
make sure 12VDC or 24VDC is present
• The electromagnet is fitted with a metal
oxide varistor to prevent interference, so
do not install a secondary diode
FILE: DT/DTP/MiE941SA4612_0807.pmd
Order part#764-014%
PITSW2
Website: www.seco-larm.com
PITLW1
E-mail: sales@seco-larm.com
SECO-LARM U.S.A., Inc.
ELECTROMAGNETIC LOCK Installation Manual
ENFORCER

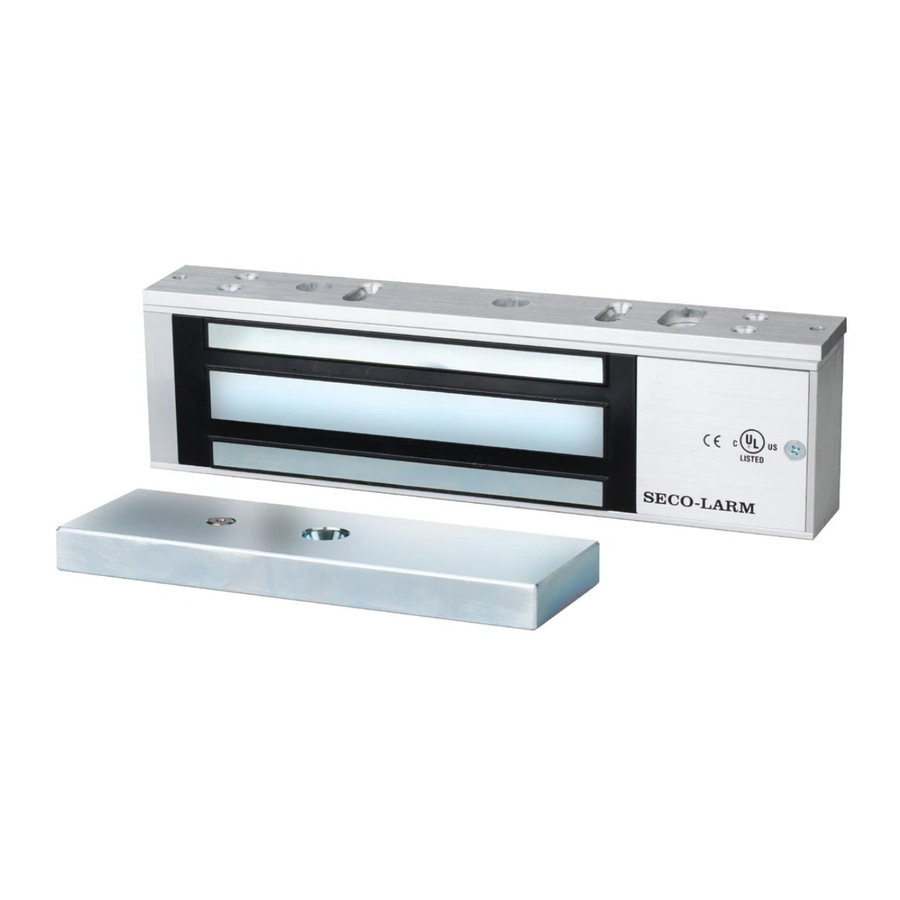

E-941SA-1200Q
E-941SA-600Q
E-941SA-400Q
ELECTROMAGNETIC LOCKS
INSTALLATION MANUAL

HOW THEY WORK

When power is applied to the
magnetic lock, it turns on the unit's
powerful built-in electromagnet. This
electromagnet is attracted to the steel
armature plate which is mounted on a

SPECIFICATIONS

E-941SA-1200Q
Power 12VDC/24VDC
Magnet Size 10½ x 1 / x 2 /
5 5
8 8
(268 x 42 x 67 mm)
Armature Size 7 / x / x 2 / in.
1 5 3
4 8 8
(185 x 16 x 61 mm)
Holding Force 1200 lb. (545kg)
Current Drain 450mA @ 12VDC
230mA @ 24VDC
Voltage Tolerance ± 10%
Housing Aluminum
Temperature 14°F to 131°F
(-10°C to 55°C)
Weight 11 lb. (5.0 kg)
Note: Products with model number that ends with "Q" or have a round green "Q" sticker represents RoHS compliant products.
door, holding the door fast against
unauthorized entry. When power to
the magnetic lock is turned off, the
electromagnet releases the armature
plate, allowing the door to open.
E-941SA-600Q E-941SA-400Q
12VDC/24VDC 12VDC/24VDC
in. 9 / x 1 / x 1 / in. 6
7 1 5 15
8 16 8
(250 x 27 x 42 mm) (164 x 26 x 35 mm)
7 / x / x 1 / in. 5 /
1 1 1 3
4 2 2
(185 x 12 x 38 mm) (130 x 11 x 32 mm)
600 lb. (272kg) 400 lb. (180kg)
450mA @ 12VDC 380mA @ 12VDC
230mA @ 24VDC 190mA @ 24VDC
± 10% ± 10%
Aluminum Stainless
14°F to 131°F 14°F to 131°F
(-10°C to 55°C) (-10°C to 55°C)
4lbs. 6oz. (2.0 kg.) 3lbs. 1.0oz. (1.41 kg.)
®
/ x 1 x 1 / in.
1
38 4
x / x 1 / in.
15 1
38 38 4
