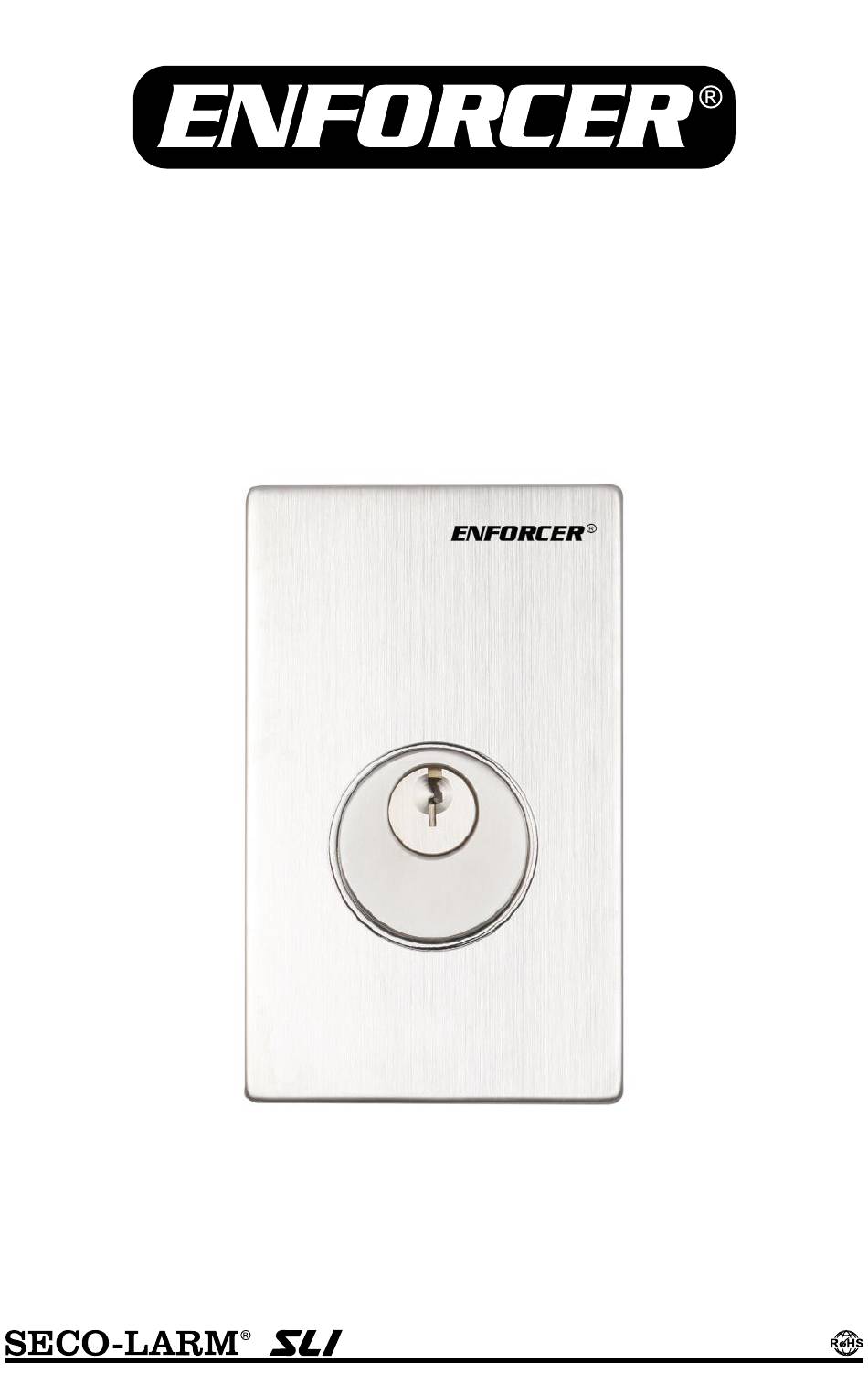

- Page 1 SD-72081-6MQ Single-Gang Mortise Cylinder Key Switch Manual...
- Page 2 If a keypad or proximity card reader fails to activate an electronic lock, the user can switch between normally closed (N.C.) and normally open (N.O.) contacts using the SD-72081-6MQ, forcing the door to open. This acts as a backup for access control systems, so that the system does not rely on the integrity of a single device.
- Page 3 ENFORCER Single-Gang Mortise Cylinder Key Switch Installation: Remove the back plate from the unit. Vandal screws Thread the cable wire through the electrical box and the center hole of the back plate. Front cover Connect the wires to the switch using the wiring diagram below.
- Page 4 ENFORCER Single-Gang Mortise Cylinder Key Switch Also Available from SECO-LARM: Flush-Mount Request-to-Exit Plate Indoor No-Touch Sensor SD-7286-GWQ SD-927PKC-NEQ Outdoor No-Touch Sensor with Mushroom Request-to-Exit Plate Manual Override SD-7201GC-PEQ SD-9263-KSVQ Illuminated Request-to-Exit Plate Piezoelectric Request-to-Exit Plate SD-7202GC-PEQ SD-6276-SS1Q For a complete listing of SECO-LARM products, please visit us online at www.seco-larm.com.
