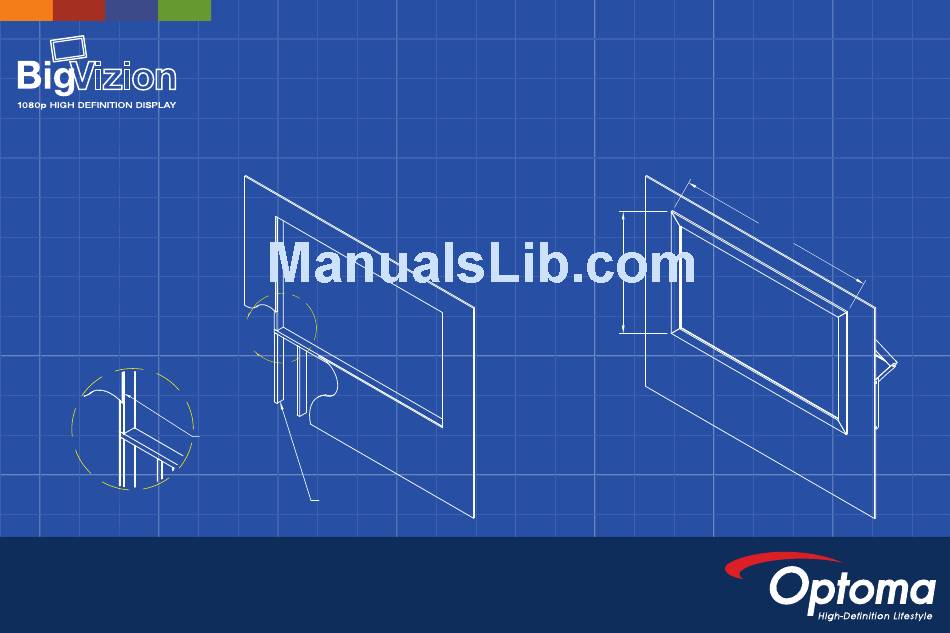

WALL DETAIL
MAKE FRAMING
BEHIND THE WALL
FLUSH WITH
WALL OPENING
DETAIL B
BIGVIZION WALL OPENING
CAD DRAWING
For more information, please visit www.OptomaUSA.com or call (408) 383-3700.
H DB V 31 0 0:
B
ESSENTIAL 2" X 4"
STRUCTURE
BEHIND WALL
100-INCH BIGVIZION
BEZEL DIMENSIONS
96 1/8"
58"
