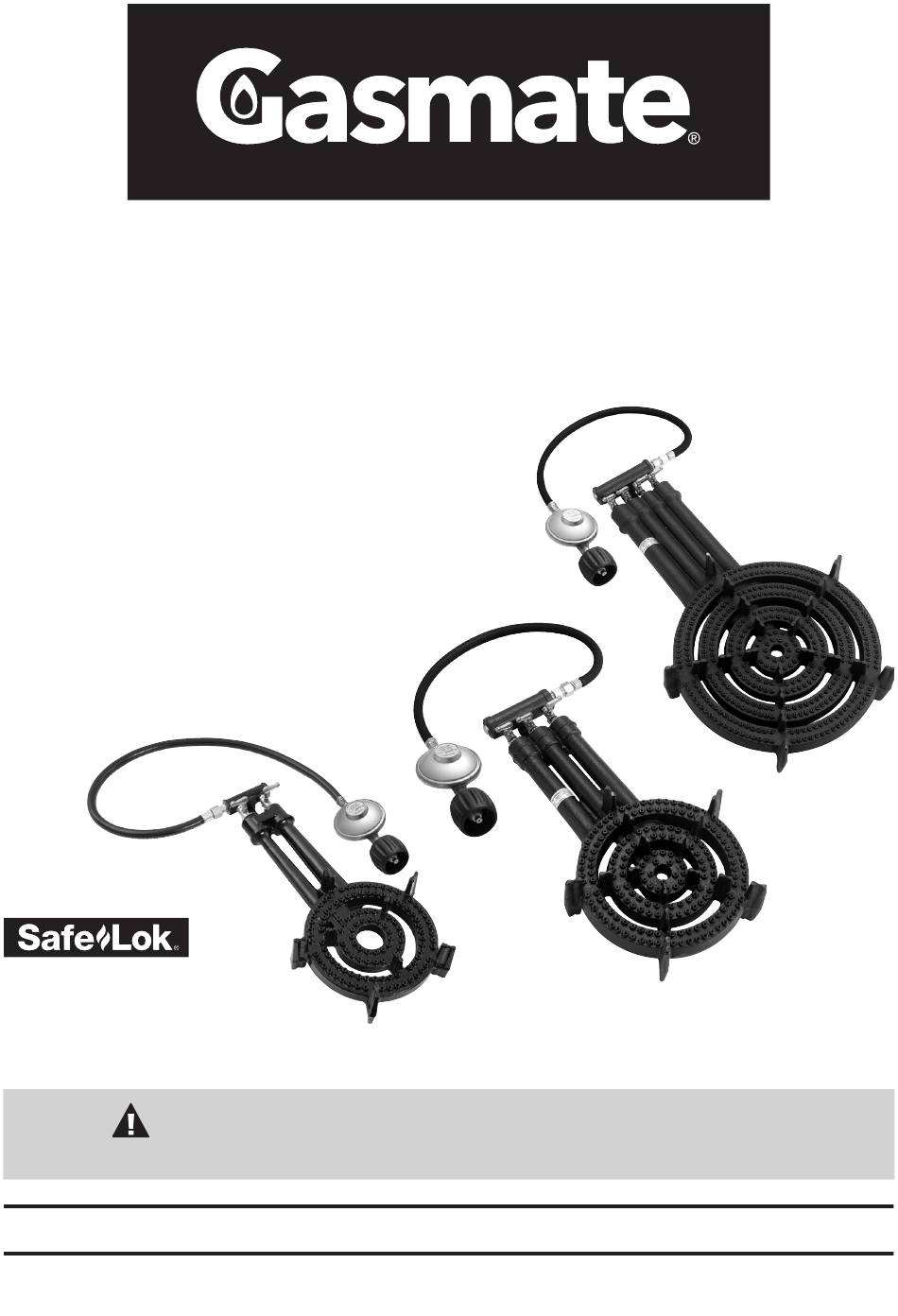

CAST IRON RING BURNERS
• Includes LCC27 Safe Lok regulator & hose
• Ideal for camping, use only on the solid ground
that is non-combustible
• Suitable for cooking at home where larger pots
and a higher heat output is required – convenient
for cooking sauces, crabs, lobster or any shell fish
• Made from high quality cast iron with brass controls
• Outlet: ¼" BSP thread
• Propane use only
• Gas certified to Australian Standards
LCC27 REGULATOR
SUPPLIED
This LCC27 Regulator can only be used
with the new safer industry standard
LCC27 Gas Cylinder Connection.
NOTE: ONLY USE ON A NON-COMBUSTIBLE SURFACE
Model No. RB2SL, RB3SL, RB4SL
USE ONLY ON THE SOLID GROUND
Important: Retain these instructions for future use.
Gasmate® is a registered trademark of
Sitro Group Australia Pty Ltd www.gasmate.com.au
Aber Living, N.Z. www.gasmate.co.nz
RB2SL
RB4SL
RB3SL
04217 06/22
Advertisement
Table of Contents
Related Manuals for Gasmate RB2SL
Summary of Contents for Gasmate RB2SL
- Page 1 CAST IRON RING BURNERS Model No. RB2SL, RB3SL, RB4SL • Includes LCC27 Safe Lok regulator & hose • Ideal for camping, use only on the solid ground that is non-combustible • Suitable for cooking at home where larger pots and a higher heat output is required – convenient for cooking sauces, crabs, lobster or any shell fish •...
-
Page 2: General Information
GENERAL INFORMATION After the assembly has been secured, turn on the gas Gas Installation Codes and check for leaks by brushing a soap and water solution • Appliance must be used in accordance with the overall connections. installation requirements of your gas supply authority, DO NOT USE this appliance if it is leaking, damaged or the appropriate installation code issued by Standards or does not operate properly. -
Page 3: For Your Safety
Never Store your Gas Cylinder Indoors Product Details If you store your appliance indoors, ALWAYS disconnect Model Number RB2SL the gas cylinder first and store the cylinder safely outside. Cylinders must be stored outdoors in a well ventilated Gas Type... -
Page 4: Gas Valve Assembly
RING BURNER COMPONENTS (Image as guide only) 1. LCC27 regulator and hose assembly 2. Gas valve • RB2SL – screws from underside • RB3SL – screws from underside • RB4SL – screws from underside 3. Burner • RB2SL - 2 rings •... -
Page 5: General Assembly
GENERAL ASSEMBLY CARE & MAINTENANCE Connecting & Disconnecting to Gas Source As with all appliances, proper care and maintenance will keep them in top operating condition and prolong their life. Familiarise yourself with the general information and safety Your new gas appliance is no exception. By following these guidelines located at the front of this manual. -
Page 6: Lighting Procedure
The ideal positioning of the aeration disk when measured from the venturi tube is: RB2SL - INNER # 1 – 2mm open - OUTER # 4 – 3mm open RB3SL - INNER # 1 – 7mm open - 1st MIDDLE# 2 –... -
Page 7: Operating Procedure
OPERATING PROCEDURE Gas Valve “ON” Max. The gas valve can be adjusted from “OFF to “HIGH” and this will affect the cooking time. The gas lever is in a straight line with the gas valve to the venturi tube. Gas valve “OFF” The gas lever is at right angles to the gas valve Primary Air Disk and the venturi tube. - Page 8 SAFE APPLIANCE LOCATIONS This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. Only use on a Non-combustible surface. Any enclosure in which the appliance is used shall comply with the following: An enclosure with walls on all sides, but at least one permanent opening at ground level and no overhead cover.
