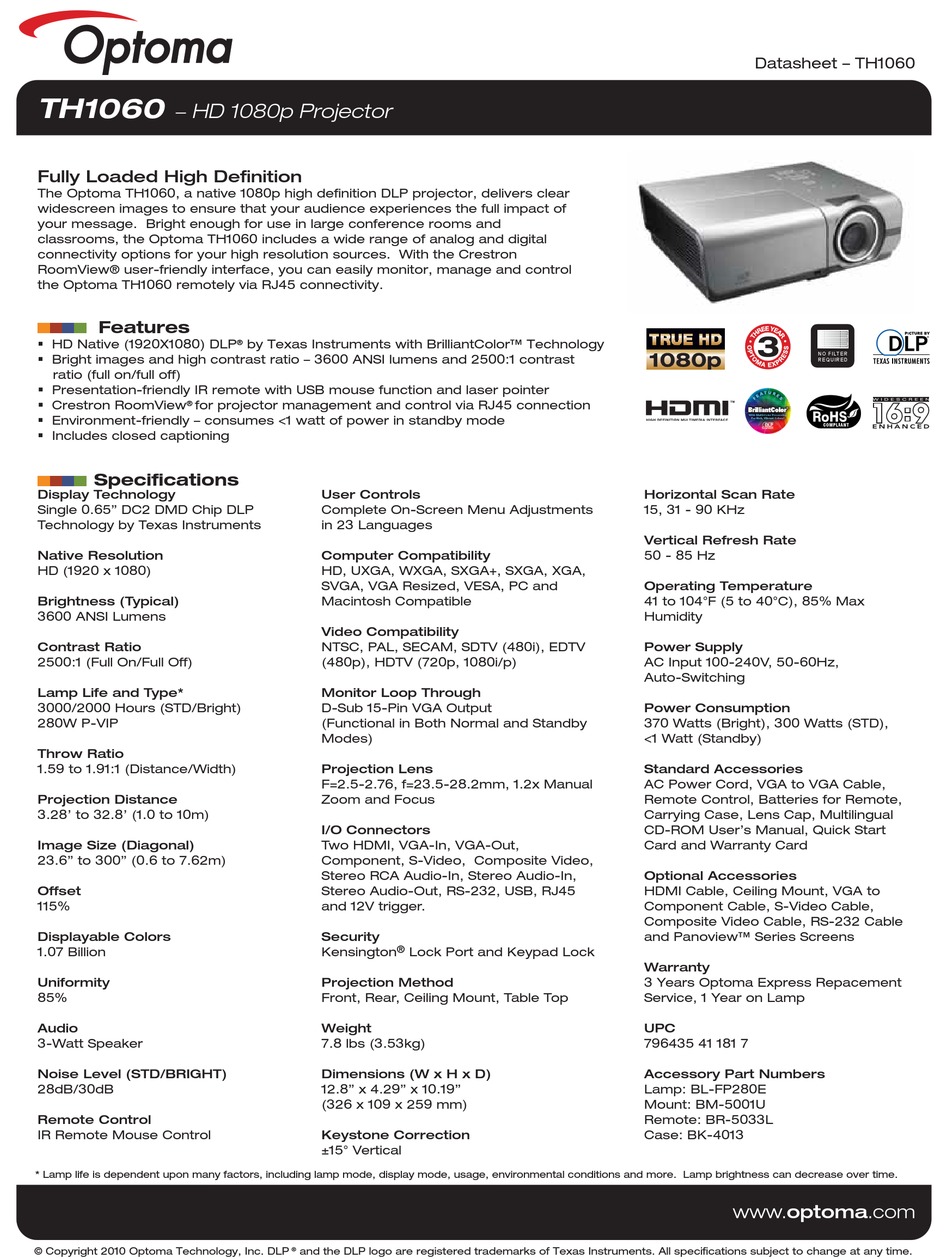

Optoma TH1060 Datasheet

TH1060
− HD 1080p Projector
Fully Loaded High Definition
The Optoma TH1060, a native 1080p high definition DLP projector, delivers clear
widescreen images to ensure that your audience experiences the full impact of
your message. Bright enough for use in large conference rooms and
classrooms, the Optoma TH1060 includes a wide range of analog and digital
connectivity options for your high resolution sources. With the Crestron
RoomView® user-friendly interface, you can easily monitor, manage and control
the Optoma TH1060 remotely via RJ45 connectivity.
Features
 HD Native (1920X1080) DLP
 Bright images and high contrast ratio – 3600 ANSI lumens and 2500:1 contrast
ratio (full on/full off)
 Presentation-friendly IR remote with USB mouse function and laser pointer
 Crestron RoomView for projector management and control via RJ45 connection
®
 Environment-friendly – consumes <1 watt of power in standby mode
 Includes closed captioning

Specifications

Display Technology
Single 0.65" DC2 DMD Chip DLP
Technology by Texas Instruments
Native Resolution
HD (1920 x 1080)
Brightness (Typical)
3600 ANSI Lumens
Contrast Ratio
2500:1 (Full On/Full Off)
Lamp Life and Type*
3000/2000 Hours (STD/Bright)
280W P-VIP
Throw Ratio
1.59 to 1.91:1 (Distance/Width)
Projection Distance
3.28' to 32.8' (1.0 to 10m)
Image Size (Diagonal)
23.6" to 300" (0.6 to 7.62m)
Offset
115%
Displayable Colors
1.07 Billion
Uniformity
85%
Audio
3-Watt Speaker
Noise Level (STD/BRIGHT)
28dB/30dB
Remote Control
IR Remote Mouse Control
* Lamp life is dependent upon many factors, including lamp mode, display mode, usage, environmental conditions and more. Lamp brightness can decrease over time.
© Copyright 2010 Optoma Technology, Inc. DLP
by Texas Instruments with BrilliantColor™ Technology
®
User Controls
Complete On-Screen Menu Adjustments
in 23 Languages
Computer Compatibility
HD, UXGA, WXGA, SXGA+, SXGA, XGA,
SVGA, VGA Resized, VESA, PC and
Macintosh Compatible
Video Compatibility
NTSC, PAL, SECAM, SDTV (480i), EDTV
(480p), HDTV (720p, 1080i/p)
Monitor Loop Through
D-Sub 15-Pin VGA Output
(Functional in Both Normal and Standby
Modes)
Projection Lens
F=2.5-2.76, f=23.5-28.2mm, 1.2x Manual
Zoom and Focus
I/O Connectors
Two HDMI, VGA-In, VGA-Out,
Component, S-Video, Composite Video,
Stereo RCA Audio-In, Stereo Audio-In,
Stereo Audio-Out, RS-232, USB, RJ45
and 12V trigger.
Security
®
Kensington Lock Port and Keypad Lock
Projection Method
Front, Rear, Ceiling Mount, Table Top
Weight
7.8 lbs (3.53kg)
Dimensions (W x H x D)
12.8" x 4.29" x 10.19"
(326 x 109 x 259 mm)
Keystone Correction
±15° Vertical
and the DLP logo are registered trademarks of Texas Instruments. All specifications subject to change at any time.
®
Datasheet – TH1060
NO FILTER
REQUIRED
Horizontal Scan Rate
15, 31 - 90 KHz
Vertical Refresh Rate
50 - 85 Hz
Operating Temperature
41 to 104°F (5 to 40°C), 85% Max
Humidity
Power Supply
AC Input 100-240V, 50-60Hz,
Auto-Switching
Power Consumption
370 Watts (Bright), 300 Watts (STD),
<1 Watt (Standby)
Standard Accessories
AC Power Cord, VGA to VGA Cable,
Remote Control, Batteries for Remote,
Carrying Case, Lens Cap, Multilingual
CD-ROM User's Manual, Quick Start
Card and Warranty Card
Optional Accessories
HDMI Cable, Ceiling Mount, VGA to
Component Cable, S-Video Cable,
Composite Video Cable, RS-232 Cable
and Panoview™ Series Screens
Warranty
3 Years Optoma Express Repacement
Service, 1 Year on Lamp
UPC
796435 41 181 7
Accessory Part Numbers
Lamp: BL-FP280E
Mount: BM-5001U
Remote: BR-5033L
Case: BK-4013
