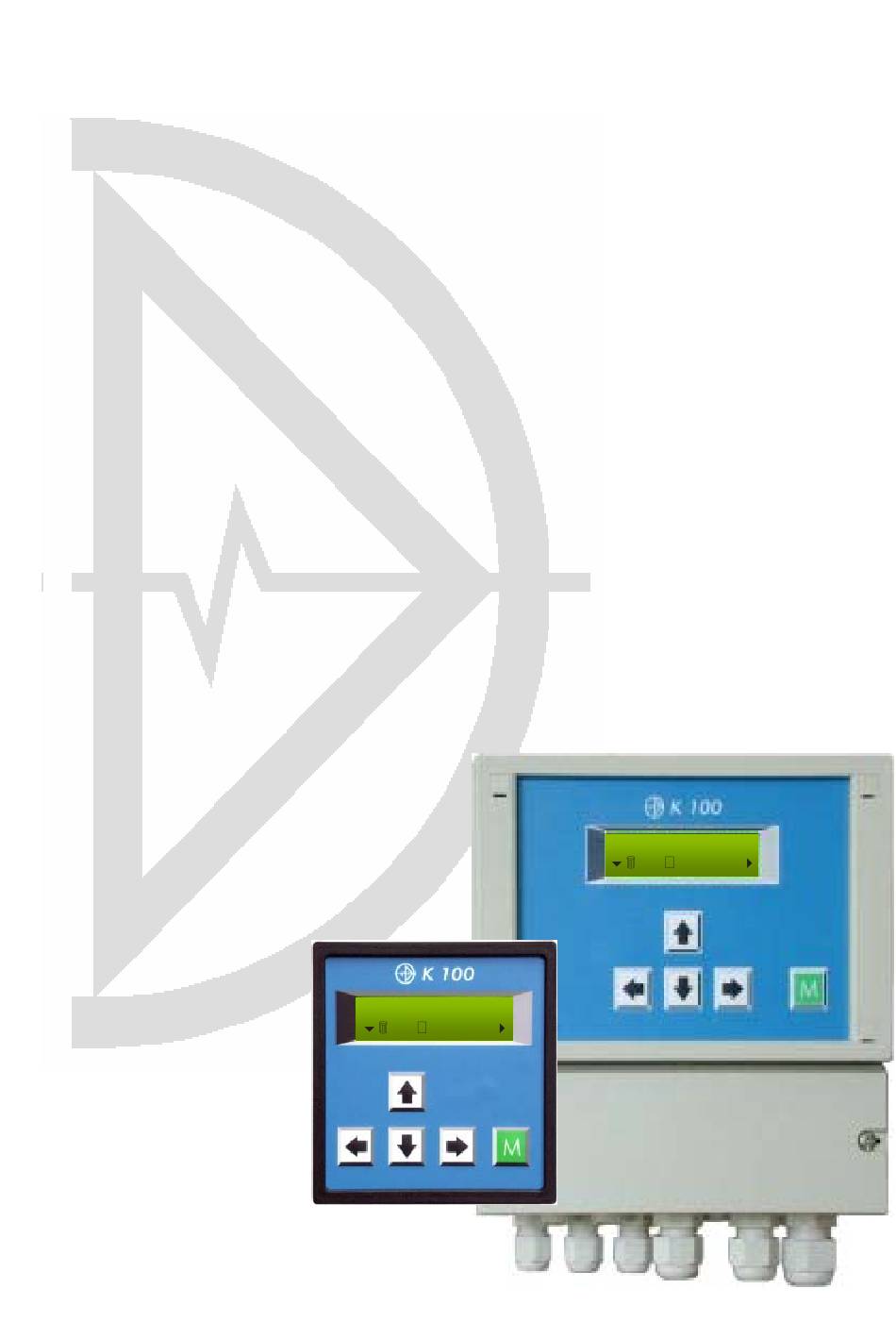

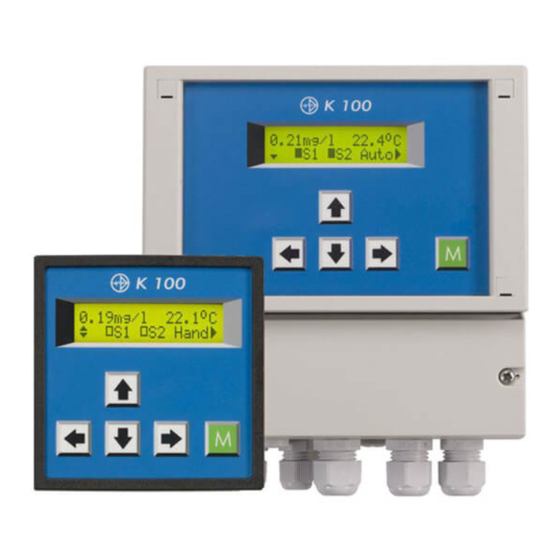

- Page 1 Manual K 100 PR K 100 W PR Measuring and control instruments for pH and ORP measurements 7.02 pH 25.0°C S2 Auto 7.02 pH 25.0°C S2 Auto...
- Page 2 Dr. A. Kuntze Gutes Wasser mit System Dr. A. Kuntze GmbH Robert-Bosch-Str. 7a D-40668 Meerbusch Tel. +49-21 50-70 66-0 Fax +49-21 50-70 66-60 info@kuntze.com www.kuntze.com Sales: georg.wilholm@kuntze.com +49-21 50-70 66-11...
-
Page 3: Table Of Contents
2.1 Dimensions .................... 10 2.2 Installation K 100 ................... 11 2.3 Installation K 100 W ................12 2.4 Connection diagram K 100 PR ............... 13 2.5 Connection diagram K 100 W PR ............14 3. Operation of the instrument ............... 15 3.1 How to adjust parameters ............... -
Page 4: Your K 100
1. Your K 100 is an instrument of Dr. A. Kuntze GmbH which offers you high quality and reliability for years. It is a member of our economy series K 100 with which we are trying to meet the rising demand for lost cost / high end instrumentation. -
Page 5: General And Safety Instructions
It contains technical information for the installation, start-up and maintenance. If you have any questions not included in this manual please contact your supplier or the official representative of Dr. A. Kuntze GmbH in your country. We would like to point out that the warranties specified in our general trading... -
Page 6: Features
1 measuring input for pH or ORP 1 measuring input for temperature sensor Pt100 Digital input external controller stop or lack-of-water indication Serial interface RS485, Baud rate 9600, data formate 8Bit, (Option) 1start and 1stop bit, no parity K 100 PR & K 100 W PR... -
Page 7: Technical Data
Alarm function 6 A/ 250 V, max. 550 VA resistive load (with RC protective circuit) Contact rating 0 - 50°C Operation temperature -20 - 65°C Storage temperature max. 90% at 40°C non-condensing Humidity K 100 PR & K 100 W PR... -
Page 8: Declaration Of Eg Conformity
EN 50 082 part 2 - industrial area accord. to Electromagnetic compatibility Standard specification Interference immunity Protection measurements IEC 364-4-41: 1992 accord. to Düsseldorf, 14 May 2002 .......... ppa Dipl.-Ing. C. Scheffold Head of the development department K 100 PR & K 100 W PR... -
Page 9: Instructions For Installation And Connections
390 Ohm 2 Watt 70 mA 47 nF 260 V 22 Ohm 2 Watt 150 mA 100 nF 260 V 47 Ohm 2 Watt 1,0 A 220 nF 260 V 47 Ohm 2 Watt K 100 PR & K 100 W PR... -
Page 10: Dimensions
2.1 Dimensions 2.1 Dimensions K 100 Option: Front door K 100 W K 100 PR & K 100 W PR... -
Page 11: Installation K 100
92 x 92 mm. Install the instrument from the front side and fix it with the two mounting clips which were part of the delivery. Screw tight until the instrument is fixed perfectly. K 100 PR & K 100 W PR... -
Page 12: Installation K 100 W
3 mm between wall and screw head for the fixture. Mount the instrument and fix it with the two lower screws. Close the terminal cover or start with the connections. K 100 PR & K 100 W PR... -
Page 13: Connection Diagram K 100 Pr
18 + 19 Alarm relay Power supply 21 + 22 + 23 Check information on the instrument label! RS485 (Option) Sub-D 3 = +, 8 = - Sub-D 4/7 bridged = terminating impedance activated K 100 PR & K 100 W PR... -
Page 14: Connection Diagram K 100 W Pr
23 + 24 23 = -, 24 = + Jumper A bridged = terminating impedance activated Digital input 26 + 27 26 = +, 27 = -, external controller stop or lack-of water indication K 100 PR & K 100 W PR... -
Page 15: Operation Of The Instrument
Changes that have not been stored will be lost. NOTE The instruments K 100 PR and K 100 W PR differ only in the enclosures. Operation and menus are the same. K 100 PR & K 100 W PR... -
Page 16: How To Adjust Parameters
1. If you keep the key pressed, the value will continue changing until the pressure is released. Store the changes with key . The double triangle disappears. NOTE If you do not want to store the change, press key „M“ instead of key . K 100 PR & K 100 W PR... -
Page 17: Menu Overview
2) Adjustments for measurement: calibration and temperature compensation for pH or selection of ORP measurement 3) Adjustments of the controller: selection of the controller version and corresponding parameters 4) Adjustments to read out data: analog, digitally and/or as alarm K 100 PR & K 100 W PR... -
Page 18: Password And Language
For the communication with the instrument you can choose from a variety of languages. Since choosing a language is part of the basic settings, it requires code 86. If a different code is set, you will be asked to enter the correct password. K 100 PR & K 100 W PR... -
Page 19: Adjustments For Measurement
Adjustment of the calibration solutions and the inner buffer of the electrode. Selection between pH and ORP measurement. pH / ORP The instruments K 100 PR and K 100 W PR can be used for pH or ORP measurements. pH measurement pH measurement requires a calibration. -
Page 20: Calibration
If you are using electrodes with a special inner buffer, adjust the pH value of the sensor buffer, since this value is used as zero for the calculation of the measured values. You will find the pH of the sensor buffer printed on the electrode. K 100 PR & K 100 W PR...
