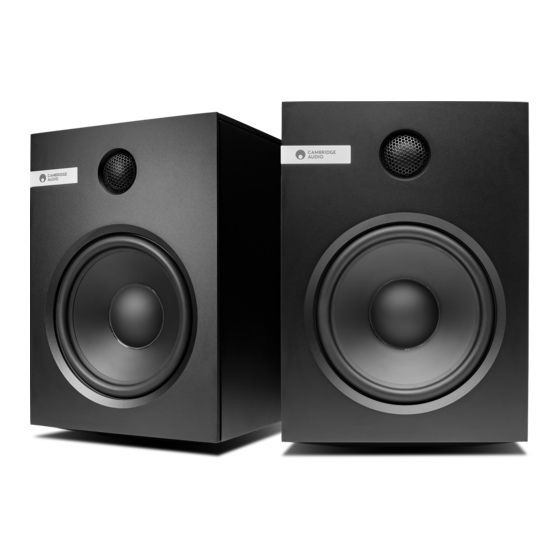

- Page 1 EVO S Bookshelf Speakers Manual Generated: 2023/02/27 - 17:01...
-
Page 2: Table Of Contents
目次 EVO S Bookshelf Speakers ......................................... Introduction ............................................... What's included with the EVO S? ....................................... Front panel ..............................................Rear panel ..............................................Installation instructions ..........................................Technical specifications ........................................... Frequently asked questions ........................................Troubleshooting ............................................ -
Page 3: Evo S Bookshelf Speakers
EVO S Bookshelf Speakers Last updated: 1月 9, 2023 08:27. Revision #8334 Users Manual... -
Page 4: Introduction
Last updated: 1月 19, 2023 01:59. Revision #8438 Thank you for purchasing these Cambridge Audio EVO S bookshelf loudspeakers. We hope that you enjoy many years of listening pleasure from them. Your loudspeakers can only be as good as the system it is connected to. Please do not compromise on your amplifier or cabling. Naturally we particularly recommend amplification from the Cambridge Audio range, which has been designed to the same exacting standards as our loudspeakers. -
Page 5: What's Included With The Evo S
What's included with the EVO S? Last updated: 1月 19, 2023 01:59. Revision #8439 1. 2 x EVO S bookshelf speakers. 2. 2 x magnetic speaker grille. 3. 2 x bass plug. 4. 2 x 3m speaker cable (terminated). 5. Quick start guide. -
Page 6: Front Panel
Front panel Last updated: 1月 19, 2023 01:59. Revision #8440 1. 1” (25mm) Silk Dome Tweeter. 2. 6.5”(165mm) Anodized Aluminium Mid/Bass Driver. -
Page 7: Rear Panel
Rear panel Last updated: 1月 19, 2023 01:59. Revision #8441 1. Rear bass port. 2. +/- Speaker connection terminals. -
Page 8: Installation Instructions
Last updated: 1月 19, 2023 02:00. Revision #8442 1. Firstly, using high quality speaker cable connect the EVO S speakers to the speaker terminals on your amplifier. Ensure that you pay close attention to match the polarity of each connection. -
Page 10: Technical Specifications
Technical specifications Last updated: 1月 19, 2023 02:00. Revision #8443 Sensitivity (SPL) 88dB Frequency Response 50Hz - 40kHz Impedance 8 Ohms Drivers 1 x 6.5” (165mm) anodized aluminium cone mid/bass. 1 x 1” (25mm) silk dome tweeter. Crossover 2 Way Recommended Amplifier Power 25 - 200 watts Porting... -
Page 11: Frequently Asked Questions
Frequently asked questions Last updated: 1月 19, 2023 02:00. Revision #8444 What is meant by speaker sensitivity? Speaker sensitivity is the level produced by the speaker at one meter, when supplied with one watt of power from an amplifier. It’s a way of describing how well the speaker produces acoustic energy, based on a given input. -
Page 12: Troubleshooting
Troubleshooting Last updated: 1月 19, 2023 02:00. Revision #8445 No sound through one or both channels. • Check that the amplifier is turned on. • Ensure that the correct input source is selected on the amplifier. • Confirm that all connections between the amplifier and loudspeakers are secure. •...
