Summary of Contents for Cambridge Audio ES20

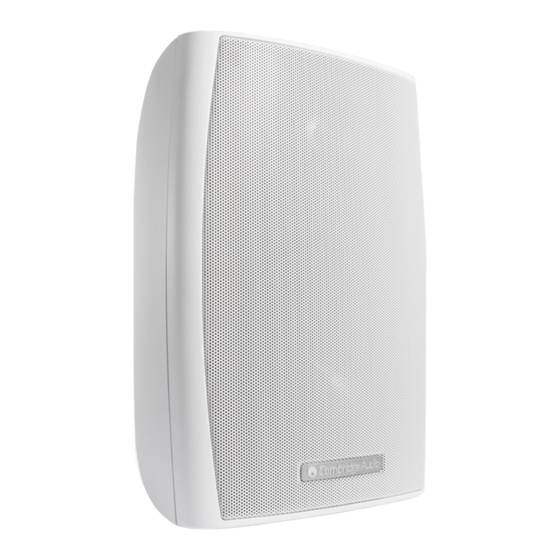

- Page 1 ES20 Outdoor Speaker Manual Generated: 26/03/2023 - 02:41...
-
Page 2: Table Of Contents
目錄 ES20 Outdoor Speaker ..........................................Introduction ............................................... What's included with the ES20? ........................................ Installation instructions ..........................................Technical specifications ..........................................Frequently asked questions ........................................Troubleshooting ............................................ -
Page 3: Es20 Outdoor Speaker
ES20 Outdoor Speaker Last updated: 十二月 22, 2022 07:40. Revision #8281 Users Manual... -
Page 4: Introduction
Last updated: 一月 19, 2023 02:00. Revision #8446 Thank you for purchasing these Cambridge Audio Incognito outdoor speakers. We hope that you enjoy many years of listening pleasure from them. Your speakers can only be as good as the system it is connected to. Please do not compromise on your amplifier or cabling. Naturally we particularly recommend amplification from the Cambridge Audio range, which has been designed to the same exacting standards as our speakers. -
Page 5: What's Included With The Es20
What's included with the ES20? Last updated: 一月 19, 2023 02:35. Revision #8447 1. 1 x ES20 Outdoor Speaker 2. 1 x Mounting Bracket. -
Page 6: Installation Instructions
Last updated: 一月 19, 2023 02:35. Revision #8448 Before installing your ES20 outdoor speakers, consider their positioning and requirements for cabling. Where possible use existing cover to minimise direct exposure to the elements and ensure that the wall being used for mounting will be able to support the weight of the speaker. -
Page 7: Technical Specifications
Technical specifications Last updated: 一月 19, 2023 02:35. Revision #8449 Sensitivity (SPL) 88dB Frequency Response 65Hz - 20kHz Impedance 4 - 8 Ohms Drivers 1 x 5.25” injection moulded cone woofer. 1 x 1” anodized aluminium dome tweeter. Recommended Amplifier Power 10 - 100 Watts Speaker Dimensions (H x W x D) 273 x 172 x 265mm. -
Page 8: Frequently Asked Questions
Frequently asked questions Last updated: 一月 19, 2023 02:35. Revision #8450 What is meant by speaker sensitivity? Speaker sensitivity is the level produced by the speaker at one meter, when supplied with one watt of power from an amplifier. It’s a way of describing how well the speaker produces acoustic energy, based on a given input. -
Page 9: Troubleshooting
Troubleshooting Last updated: 一月 19, 2023 02:35. Revision #8451 No sound through one or both channels. • Check that the amplifier is turned on. • Ensure that the correct input source is selected on the amplifier. • Confirm that all connections between the amplifier and loudspeakers are secure. •...
