Summary of Contents for Ford Pro

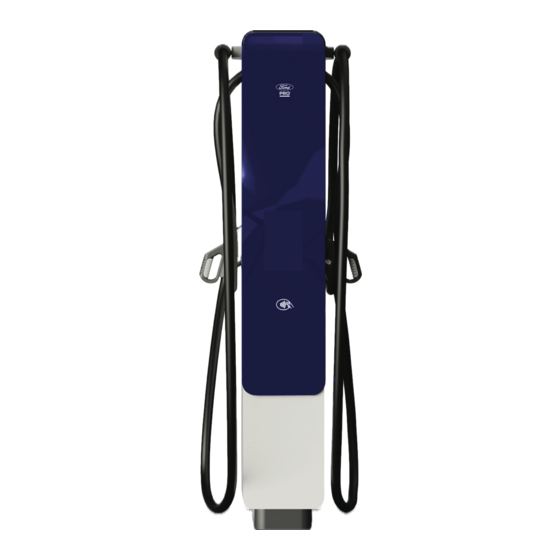

- Page 1 ™ Ford Pro Commercial DC Dispenser Installation Manual Revision 1.5...
-
Page 2: Site Recommendations
It is recommended that the ground should not exceed the level of the foundation. •+ Maximum permissible ground pressure of 150 KN/m •+ Soil compaction degree of 98%. •+ Maximum land unevenness of 0.25%. •+ !'" Ford Pro contact info: chargingsupport@fordpro.com and 1-800-34-FLEET *%$*'%',&".)8"%)&.+,'((&.E),1$)$B0&*#$.,) - Page 3 !+The transverse side of the reinforcement must be able to withstand forces of up to 10kN. Note that the thickness of the slab must be determined from the results of the geotechnical study. See anchor recommendations at the "Anchoring requirements" section. !(" Ford Pro contact info: chargingsupport@fordpro.com and 1-800-34-FLEET *%$*'%',&".)8"%)&.+,'((&.E),1$)$B0&*#$.,)
- Page 4 7.09 11.42 21.61 6.30 Consult anchoring recommendations in section “Anchoring requirements”. In case the project includes a posts skid, Power Electronics will provide additional instructions for building the base site. !)" Ford Pro contact info: chargingsupport@fordpro.com and 1-800-34-FLEET *%$*'%',&".)8"%)&.+,'((&.E),1$)$B0&*#$.,)
-
Page 5: Minimum Safety Distances
The recharging posts are designed to ensure optimum performance outdoors. For proper inspection and ventilation, it is important to leave a clearance C = 1m (3.28ft) around the equipment. #+" Ford Pro contact info: chargingsupport@fordpro.com and 1-800-34-FLEET *%$*'%',&".)8"%)&.+,'((&.E),1$)$B0&*#$.,) - Page 6 In case the project includes a posts skid, Power Electronics will provide additional anchoring instructions. #*" *%$*'%',&".)8"%)&.+,'((&.E),1$)$B0&*#$.,) In case the project includes a posts skid, Power Electronics will provide additional anchoring instructions. #*" Ford Pro contact info: chargingsupport@fordpro.com and 1-800-34-FLEET *%$*'%',&".)8"%)&.+,'((&.E),1$)$B0&*#$.,)
- Page 7 Index, model MTP; with a tightening torque of 120 Nm (manufacturer’s recommendation). The minimum distance from the screws to the edge of the base is M = 160mm (6.3 inches) and minimum length h is 300mm (11.81 inches). #!" Ford Pro contact info: chargingsupport@fordpro.com and 1-800-34-FLEET *%$*'%',&".)8"%)&.+,'((&.E),1$)$B0&*#$.,)
-
Page 8: Ventilation System
The recharging posts have a forced ventilation system with an inlet located at the bottom front of the post and three outlets located at the back of the post. Air enters through the bottom grill and exits through the rear grills. ##" Ford Pro contact info: chargingsupport@fordpro.com and 1-800-34-FLEET *%$*'%',&".)8"%)&.+,'((&.E),1$)$B0&*#$.,)
