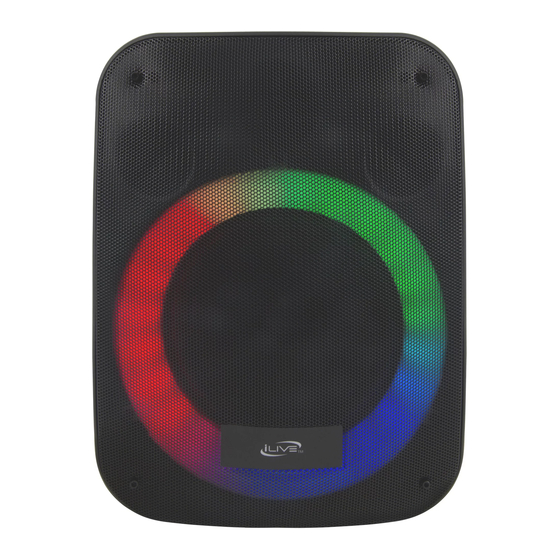

iLive Wave ISB273B User Manual

Wave Wireless Speaker System
User's Guide for Model ISB273B v3045
Features
• Bluetooth wireless - range 60 ft.
• Party +: Connect to another ISB273 speaker
• Voice prompts announce speaker functions
• LED light effects
• Bass Boost
• Microphone Input
Includes
• User's Guide
• MicroUSB to USB charging cable
Overview
Top Controls
1
2
Controls and Functions
Lights: Press to cycle through LED light effects. Press and hold 5
1.
seconds to turn Voice Prompts on/off.
Mode/Bluetooth: Press to switch between Bluetooth, Aux, USB, and
2.
MicroSD. Press and hold for 3 seconds to activate Party + Mode.
Vol -/Previous: Press to decrease volume. Press and hold to return to
3.
previous track.
4. Play/Pause: Press to play or pause tracks. Press and hold for 3 seconds
to disconnect Bluetooth.
Vol +/Next: Press to increase volume. Press and hold to skip to next
5.
track.
6. Bass: Press to turn Bass Boost feature on/off.
Charging the Battery
To power the unit or charge the internal battery, connect the DC Power
Input on the speaker to a powered-on computer or standard power outlet
using an UL certified AC/DC power adapter (not included).
After charging, unplug charging cable from the speaker. You can play music
and operate the speaker normally during charging.
ISB273_IB_draft_1312023.indd 1 ISB273_IB_draft_1312023.indd 1
3 4 5
• 3.5mm Aux in
• MicroSD card slot
• USB port – supports MP3 file format
• Carry handle
• Built-in rechargeable battery
• Battery life: approx. 5 hours at 50%
• Aux cable (3.5mm cable)
Back Inputs
6
7
8
7. Power On/Off
Aux In (3.5mm Input).
8.
9. MicroSD Card Slot
10. USB Port
11. Microphone Input
12. LED Charging Indicator
13. DC Power Input: Use to charge the internal battery and power the
speaker. Charge time is approximately 4 hours.
Bluetooth Wireless
Pairing & Playing Audio
1. When powered on, the speaker will enter Bluetooth Mode
automatically. If you are playing from a different source, press the
Mode button to select Bluetooth Mode.
2. Using the Bluetooth setting on your device, search for new devices
and select ISB273. Refer to the user's manual for your specific device for
instructions on pairing and connecting Bluetooth devices.
3. When successfully paired, a voice prompt will announce the
connection.
4. Use the controls on the connected device to select and begin playing
audio. Use the controls on the speaker or the connected device to play,
pause, and adjust volume.
Note: The speaker will automatically connect to the last paired device when
powering on. If your device becomes unpaired or it is unable to connect, press
and hold the Play/Pause/Pair button for 3 seconds to enter pairing mode. A
voice prompt will announce "Bluetooth is connecting" start from step two to
connect to your device.
Party + Mode
Pair two ISB273 speakers wirelessly to double the audio from your Bluetooth
device.
1. After powering on, press and hold the Mode button for 3 seconds
to enter Party + mode. When connected, you will hear a notification
sound.
2. Using the Bluetooth setting on your device, search for new devices and
select ISB273.
To exit Party + Mode, press and hold the Mode button for 3 seconds on
3.
either speaker.
Note: When powered off while paired, the two speakers will reconnect again
after powering on.
9 10 11 12 13
