Summary of Contents for iLive ITB260 v2517-01

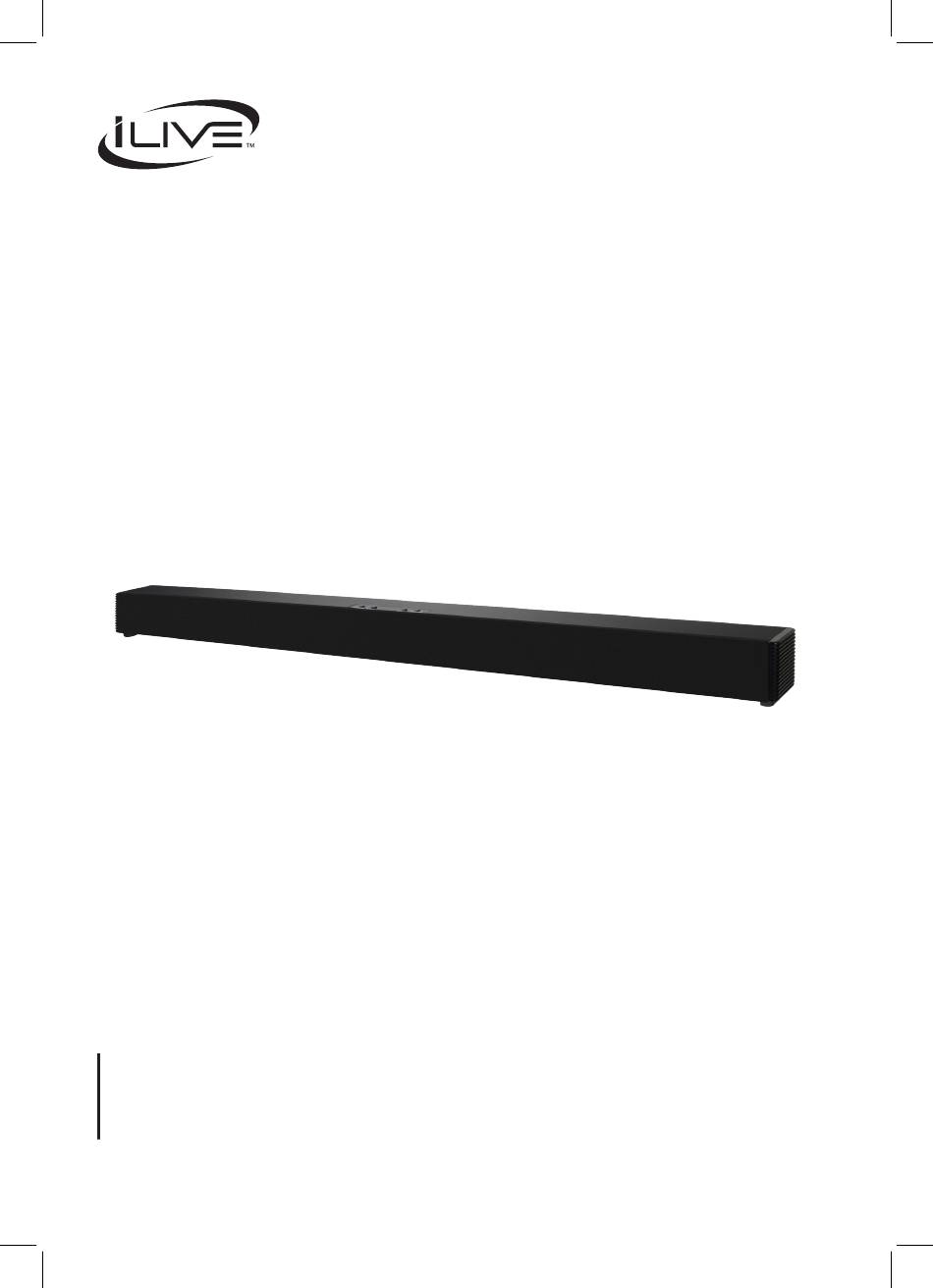

- Page 1 37˝ HD Sound bar Bluetooth Wireless with User’s Guide for Model ITB260 v2517-01 For the most up-to-date version of this User’s Guide, go to: www.iLiveElectronics.com...
- Page 2 Safety Instructions & Warnings Important Safety Instructions WARNING: To reduce the risk of electric CAUTION RISK OF ELECTRIC SHOCK shock, do not remove cover (or back). No DO NOT OPEN • Read these Instructions. user-serviceable parts inside. Refer servicing ATTENTION •...
- Page 3 FCC Warnings • CAUTION: Danger of explosion if battery is incorrectly Warning: Changes or modifications to this unit not expressly replaced. Replace only with the same or equivalent type. approved by the party responsible for compliance could void the • Battery shall not be exposed to excessive heat such as user’s authority to operate the equipment.
-
Page 4: Table Of Contents
Table of Contents Setup Features & Specifications - 5 Power - 5 Remote Battery - 5 Includes - 5 Orientation Top View - 6 Source Mode Indicator LED - 6 Speaker Controls (Top) - 6 Rear View - 7 Speaker Inputs Detail (Rear) - 7 Remote Functions &... -
Page 5: Setup
Setup Features & Specifications Includes • 37" length • Remote control with 1 CR2025 battery pre-installed • Supports Bluetooth: range 60 ft. • Optical audio cable • 2 channel stereo sound • AC/DC power adapter • Digital volume control • Wall-mount hardware and instructions •... -
Page 6: Orientation
Orientation Top View Controls Source Indicator LED (front) Source Mode Indicator LED STATUS INDICATOR LIGHT Power Off Red Light Bluetooth Standby/Pairing Slow/Quick Flashing Blue Light Bluetooth Connected Solid Blue Light Optical Mode Orange Light Aux In (RCA) Mode White Light Coaxial Mode Purple Light Line In Mode... -
Page 7: Rear View
Rear View Wall Mount Pegs Speaker Inputs Speaker Inputs Detail (Rear) DC Power Input Stereo RCA Audio Inputs (AUX IN) Coaxial In Line In (3.5mm audio input) Optical Input... -
Page 8: Remote
Remote Functions & Controls Power Mute Press to turn Press to mute the unit on or off. the volume. POWER MUTE Press to switch to Bluetooth Mode. Optical Press to switch OPTICAL COAXIAL to Optical mode. Coaxial Press to switch to Coaxial mode. -
Page 9: Connecting Devices
Connecting Devices Pairing & Playing Audio When first powered on, the sound bar defaults to Bluetooth Mode, indicated by a voice prompt. 1. Power ON the sound bar. The sound bar defaults to Bluetooth Mode and is ready to pair automatically. When pairing, remain within 3 feet of the Bluetooth device. -
Page 10: Stereo Rca Inputs (Aux In) & Coaxial Audio Input
Connecting Devices Stereo RCA Inputs (Aux In) & Coaxial Audio Input Requires RCA stereo audio cable (not included) or Coaxial audio cable (not included). When connecting RCA stereo audio plugs (Red/White), match them to their corresponding color coded ports. 1. Connect an RCA stereo audio cable to the Aux In ports on the sound bar and the RCA audio outputs on a television or other audio source. -
Page 11: Optical Input
Optical Input Requires an audio source with an Optical Audio Output and a Digital Optical Audio Cable (included). 1. Using a Digital Optical Audio Cable, connect the Optical Input on the sound bar to the Optical Output on your audio source (TV, amplifier, etc.). 2. -
Page 12: Company Information
Company Information Contact Information Warranty Website: www.iLiveElectronics.com For Warranty Information and the most up-to-date version of this User’s Guide, go to: Email Support: prodinfo@dpiinc.com www.iLiveElectronics.com Email Parts: partsinfo@dpiinc.com Phone Support: 1-888-999-4215 International Support To download this User’s Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit the support section at: www.iLiveElectronics.com Para descargar este Manual del Usuario en inglés, español y francés, o para obtener respuestas a preguntas frecuentes, visite la sección de apoyo en: www.iLiveElectronics.com...
