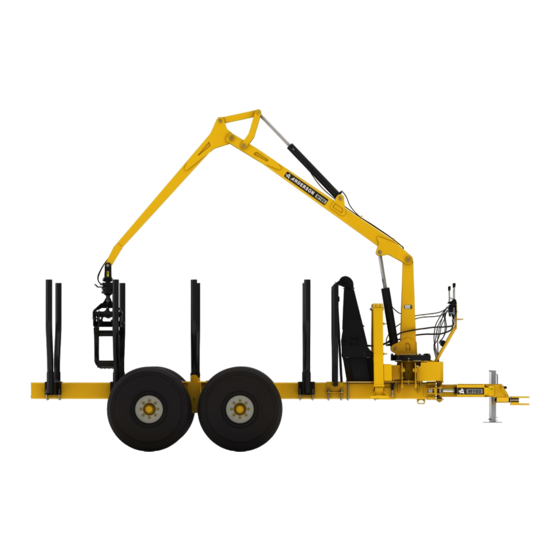

Log loader and forestry trailer
Hide thumbs Also See for M90:
Table of Contents

Advertisement

Quick Links

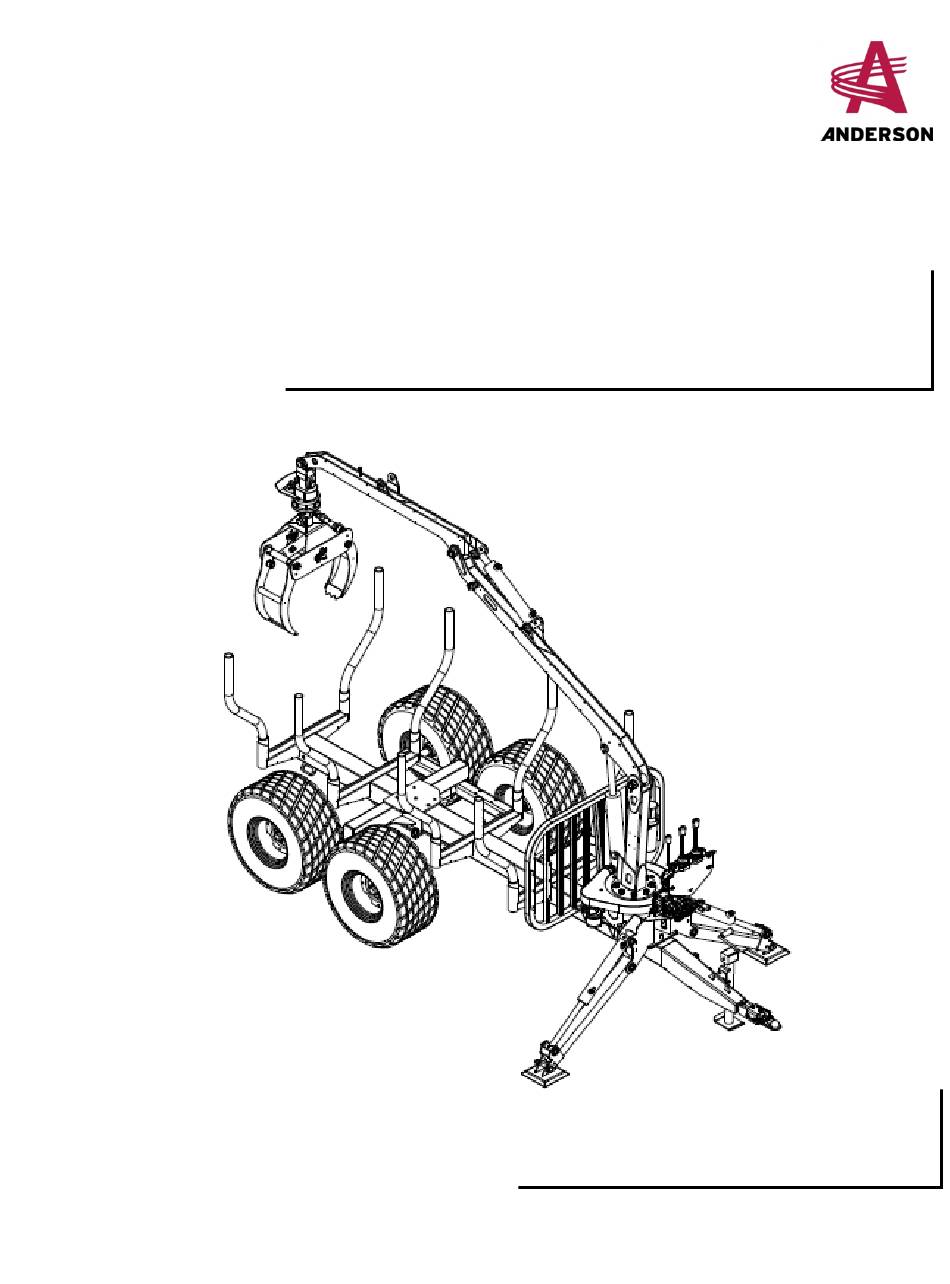

404616-4
Log Loader and Forestry Trailer
M90/115/140/160 and RF380/410/512/612/612HD
User Guide
ORIGINAL NOTICE – 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M90 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Anderson M90

Summary of Contents for Anderson M90

  • Page 1 404616-4 Log Loader and Forestry Trailer M90/115/140/160 and RF380/410/512/612/612HD User Guide ORIGINAL NOTICE – 2021...

  • Page 3: Table Of Contents

    Table of contents How to reach us Starting guidelines Anderson limited warranty About this manual Introduction 1.1 Overview 1.2 Technical specifications 1.3 Optional parts Safety precautions 2.1 Operator skills and abilities 2.2 Operation 2.3 Safety perimeter 2.4 Basic safety guidelines 2.5 Handling fuel...
  • Page 4 5.4 Unloading logs Maintenance 6.1 Greasing 6.2 Tire pressure 6.3 Tightening the lug nuts 6.4 Checking the oil filter 6.5 Cleaning and other maintenance 6.6 Storage Troubleshooting 7.1 Common problems User Guide – Log Loader and Forestry Trailer Anderson Group...

  • Page 5: How To Reach Us

    Please always call your representative first. If your representative is absent or helping another customer, our support team can provide immediate assistance. The Anderson service department works in partnership with your dealer. Together, we will ensure any problems you encounter are resolved quickly and efficiently.

  • Page 7: Anderson Limited Warranty

    The one-year warranty begins on the date that the new equipment is sold to the customer. If during the year following the purchase of new equipment, your Anderson equipment fails to function properly due to defective design, materials, manufacturing or assembly, our company will repair your equipment free of charge.
  • Page 8 Except for conditions or warranties that may not be excluded by law, the selling dealer makes no warranty of its own on any item warranted by Anderson unless it delivers to the purchaser a separate written warranty document specifically warranting the item. The selling dealer has no authority to make any representation or promise on behalf of Anderson or to modify the terms or limitations of this warranty in any way.

  • Page 9: About This Manual

    This guide covers all log loader models. Ensure that you consult the sections that apply to your machine. Disclaimer The illustrations and information in this manual are accurate as of printing. Anderson Group reserves the right to modify its machines without prior notice. Conventions “Danger!”...

  • Page 11: Introduction

    1 Introduction Congratulations! You have just purchased an Anderson log loader, which is a quality piece of machinery specially designed for handling logs. This machine was carefully manufactured by our company to give you many years of reliable performance. 1.1 Overview The log loader must be installed on a forestry trailer.

  • Page 12: Technical Specifications

    1,100 kg 1,490 kg 1,920 kg (1,521 lb.) (2,425 lb.) (3,285 lb.) (4,233 lb.) Table 2 — General Specifications M-90 M-115 M-140 M-160 Required RF-380 RF-410 RF-512 RF-612 forestry trailer RF-612HD User Guide – Log Loader and Forestry Trailer Anderson Group...
  • Page 13 (36 psi) Torque: 271 Torque: 271 N.m (200 Torque: 271 Torque: 271 N.m (200 lb./ft.) on each nut N.m (200 N.m (200 lb./ft.) on each lb./ft.) on each lb./ft.) on each Anderson Group Log Loader and Forestry Trailer – User Guide...
  • Page 14 Table 3 — Standard Components M-90 M-115 M-140 M-160 Loader Stabilizers Grapple Articulated drawbar Adjustable tandem Barrier Post Off-road tires Below this temperature, the log loader will not operate in an optimal manner. User Guide – Log Loader and Forestry Trailer Anderson Group...

  • Page 15: Optional Parts

    15 L (3.96 US gal.) oil tank. Other models: The hydraulic power unit consists of a 13 hp Honda engine, a 26 Lpm (6.87 US gpm) hydraulic pump and a 36 L (9.51 US gal.) oil tank. Anderson Group Log Loader and Forestry Trailer – User Guide...
  • Page 16 (available for the M-90 and M-115 models)" on page 39. 1.3.7 Telescopic stabilizer The telescopic stabilizer replaces the stabilizers on the log loader. It is sturdier and makes the machine more stable. User Guide – Log Loader and Forestry Trailer Anderson Group...
  • Page 17 The three-position grapple joystick makes it easier to open and close the grapple. It installs on the fifth lever (see "Controls" on page 43). Figure 3 —Three-Position Grapple Joystick 1.3.9 Additional posts Additional posts can be installed for loading shorter logs. Anderson Group Log Loader and Forestry Trailer – User Guide...

  • Page 19: Safety Precautions

    2 Safety precautions Your Anderson log loader was designed to minimize risk to the operator. Nevertheless, it must only be used for its intended purpose. Misuse of the loader may result in injury to the operator. The log loader has a hydraulic system and moving mechanical parts. All these parts may cause serious and even fatal injuries to people and animals.

  • Page 20: Safety Perimeter

    Use extra caution if operating the log loader near power lines. A power line touching the boom, grapple, bucket or auger can result in electrocution. User Guide – Log Loader and Forestry Trailer Anderson Group...

  • Page 21: Basic Safety Guidelines

    At the end of the workday, remember to shut off the fuel supply to the hydraulic power unit (see Figure 4). Anderson Group Log Loader and Forestry Trailer – User Guide...
  • Page 22 Shut off the tractor or hydraulic power unit engine. Remove the key from the tractor’s ignition so it cannot start accidentally while you are working. Chock the wheels if you need to work under the machine. User Guide – Log Loader and Forestry Trailer Anderson Group...

  • Page 23: Handling Fuel

    2.7 Transporting the log loader When driving on the road, comply with all local identification and lighting regulations. Anderson Group recommends always attaching the safety chains to the machine and tractor and locking the locking pin with a pin.
  • Page 24 If the grapple is holding a load, put it towards the rear. 3. To prevent damage, remove the jack and secure it to the safety barrier with its pin. Remove the jack before moving to prevent damage. User Guide – Log Loader and Forestry Trailer Anderson Group...

  • Page 25: Hitching

    If hitching is not done properly, the machine may unhook during transport or use. This could cause injury to the operator or other people or damage the tractor, ATV or machine. Anderson Group Log Loader and Forestry Trailer – User Guide...

  • Page 26: Hitching To The Tractor

    3. Attach the safety chains between the trailer and the tractor using the provided anchor points. NOTE: If driving on public roads, comply with all local identification and lighting regulations. User Guide – Log Loader and Forestry Trailer Anderson Group...

  • Page 27: Hitching To An Atv

    Figure 6 — Trailer Coupler 1. Hitch the trailer coupler to the hitch ball on the ATV. 2. Attach the safety chains to the trailer and the ATV using the provided anchor points. Anderson Group Log Loader and Forestry Trailer – User Guide...

  • Page 28: Connecting The Hydraulic System

    "Controls" on page 43. 4. Adjust the hydraulic flow of the control valves if needed. The log loader is now ready to load and transport logs. User Guide – Log Loader and Forestry Trailer Anderson Group...
  • Page 29 NOTE: You will need to order the new plug from your Anderson distributor (part number: 470104). 1. Remove the fitting from the valve outlet hole (A) and place it in the hole underneath (B).
  • Page 30 NOTE: You will need to order the new plug from your Anderson distributor (part number: 450062). 1. Disconnect the hydraulic hose from the fitting (A) on the side of the main valve and remove the fitting.
  • Page 31 Figure 9 — Fitting and Plug 2. Remove the plug (B) on the front of the main valve and place it on the side of the valve, where the fitting was. Anderson Group Log Loader and Forestry Trailer – User Guide...
  • Page 32 NOTE: You will need to order the new plug from your Anderson distributor (part number: 450062). User Guide – Log Loader and Forestry Trailer...
  • Page 33 3. Insert the new NPT plug (450062) into the hole on the front of the valve. Figure 12 — Installing the New Plug and Fitting 4. Install the fitting (A) on the NPT plug (C). 5. Reconnect the hose to the fitting. Anderson Group Log Loader and Forestry Trailer – User Guide...
  • Page 34 6. Turn the screw two (2) turns (see Figure 8) to increase the pressure of the pressure relief valve. User Guide – Log Loader and Forestry Trailer Anderson Group...

  • Page 35: Adjusting The Adjustable Tandem And Installing Optional Components

    2. Slide the adjustable tandem backward to shift more weight to the drawbar, or forward to shift more weight to the trailer axle. 3. Insert the bolt to hold the tandem in place. Figure 13 — Adjusting the Adjustable Tandem Anderson Group Log Loader and Forestry Trailer – User Guide...

  • Page 36: Installing The 400 Hydraulic Winch (Available For The M-90 And M-115 Models)

    2. Similarly, install the pulley bracket using the two mounting holes a bit further along the boom. Figure 14 — Installing the 400 Hydraulic Winch User Guide – Log Loader and Forestry Trailer Anderson Group...

  • Page 37: Installing The 750 Hydraulic Winch (Available For The M-115, M-140 And M-160 Models)

    2. Place the hydraulic winch on the trailer's centre bar so that the cable guide is facing the rear of the trailer. 3. Attach the hydraulic winch with two U-bolts and four nuts. Figure 15 — Installing the 750 Hydraulic Winch Anderson Group Log Loader and Forestry Trailer – User Guide...

  • Page 38: Installing The Loader Bucket (Available For The M-90 And M-115 Models)

    (4). Figure 16 — Installing the Loader Bucket Remove the hose support underneath the cylinder and coil the two unused hoses around the mast, in front of the cylinder. User Guide – Log Loader and Forestry Trailer Anderson Group...

  • Page 39: Installing The Auger (Available For The M-90 And M-115 Models)

    (1). 2. Remove the bolt that secures the grapple to the rotator base (2). 3. Secure the auger to the rotator base with the bolt. Figure 17 — Installing the Auger Anderson Group Log Loader and Forestry Trailer – User Guide...

  • Page 40: Installing The Dump Box (Available For The M-90 And M-115 Models)

    3. Place the dump box on the trailer so its rear supports straddle the rear crossbar. NOTE: You can use the loader boom and chains to install the dump box on the trailer. User Guide – Log Loader and Forestry Trailer Anderson Group...
  • Page 41 5. Secure the hydraulic cylinder to the front support with a nut and a bolt (1). 6. Reattach the cylinder to the dump box with plates, nuts and bolts (2). 7. Secure the front support with a lock and a pin. Anderson Group Log Loader and Forestry Trailer – User Guide...

  • Page 43: Operation

    This could cause damage. 5.1 Controls The following figures illustrate the hydraulic controls for each loader model. Their functions are described in the table below. Figure 18 — M-90 Hydraulic Controls Anderson Group Log Loader and Forestry Trailer – User Guide...
  • Page 44 Figure 19 — M-115 Hydraulic Controls Figure 20 — M-140 and M-160 Hydraulic Controls User Guide – Log Loader and Forestry Trailer Anderson Group...

  • Page 45: Placing The Stabilizers

    2. Start the hydraulic power unit. 3. Using the hydraulic controls (see "Controls" on page 43), lower the two stabilizers until they touch the ground and the loader is stable and as level as possible. Anderson Group Log Loader and Forestry Trailer – User Guide...

  • Page 46: Loading Logs

    When nearing completion, lift fewer logs with the grapple each time to avoid destabilizing the trailer as the counterweight decreases. Use extra caution when the boom is fully extended. User Guide – Log Loader and Forestry Trailer Anderson Group...
  • Page 47 If the trailer seems unstable, immediately lower the grapple and move the trailer closer to where the logs are being placed. Remember to raise the stabilizers and jack before moving the machine. Anderson Group Log Loader and Forestry Trailer – User Guide...

  • Page 49: Maintenance

    This section explains how to maintain your log loader to keep it running smoothly and prevent premature wear and tear. Immediately replace any defective or worn parts. To keep your warranty valid, Anderson Group recommends using original or approved parts.

  • Page 50: Greasing

    The trailer and log loader must be greased with a grease gun in the locations marked with the following sticker: Figure 22 — Greasing Point Marker NOTE: Anderson Group recommends using synthetic grease. Table 7 — Greasing Part (number of greasing points) Frequency...

  • Page 51: Tire Pressure

    27.7 kg/m (200 lb./ft.) of torque must be applied to each nut. 6.4 Checking the oil filter Replace the oil filter after the first 50 hours. Then, replace it every 300 hours. Anderson Group Log Loader and Forestry Trailer – User Guide...

  • Page 52: Cleaning And Other Maintenance

    Close the fuel supply valve to prevent gasoline from seeping into the engine base. NOTE: Anderson Group strongly recommends cleaning and performing general maintenance on the machine before storing it for long periods. User Guide – Log Loader and Forestry Trailer...

  • Page 53: Troubleshooting

    Repair or replace it if needed. Check that the valve is working. Repair or replace it if needed. Wait for the oil to cool, then check the oil level and add more if needed. Anderson Group Log Loader and Forestry Trailer – User Guide...
  • Page 54 The control valve is Check the control valve pressure. Repair or replace defective. the control valve if needed. For any other problems, please contact your dealer or our technical service department. User Guide – Log Loader and Forestry Trailer Anderson Group...
  • Page 55 ANDERSON GROUP 5125 De la Plaisance St. Chesterville, QC G0P 1J0 CANADA Email: service@grpanderson.com Phone: 1-819-382-2952 Fax: 1-819-382-2218 www.grpanderson.com...
  • Page 57 Chargeuse à bois et remorque forestière M140/160 et RF512/612/612HD LIVRE DE PIÈCE NOTICE ORIGINALE - 2021...
  • Page 58 00 - VUE GÉNÉRALE / GENERAL VIEW Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 59 00 - VUE GÉNÉRALE / GENERAL VIEW ITEM ENGLISH DESCRIPTION DESCRIPTION FRANCAISE NOTE M-140 LOG LOADER CHARGEUSE M-140 RF-512 TRAILER REMORQUE RF-512 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 60 OP1 - PATTES TÉLESCOPIQUES / TELESCOPIC STABILIZER 22 H08 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 61 OP2 - UNITÉ DE PUISSANCE COMPACT / POWER UNIT COMPACT Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 62 OP3 & OP4 - U. DE P. LARGE & TREUIL 750 / P. U. LARGE & WINCH 750 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 63 OP5 - PÔLE / TONGUE Barrure de pole seul #217007 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 64 OP6 - CONTRÔLEUR 3 POSITIONS / 3 POSITIONS JOYSTICK Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 65 UNITÉ DE PUISSANCE LARGE HYDRAULIC VALVE VALVE HYDRAULIQUE WINCH 750 TREUIL 750 469136 HYDRAULIC MOTOR MOTEUR HYDRAULIQUE 217031 LOCKED TONGUE POLE FIXE T4-JG 3 POSITIONS JOYSTICK CONTRÔLEUR 3 POSITIONS Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 66 Plaque de fixation: inclus si la chargeuse est vendue sans la remorque part # / # pièce : 28-FRM-005 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 67 ROTATEUR HYDRAULIQUE COMPLET 467309 BOOM CYLINDER CYLINDRE DU BRAS 467293 STICK CYLINDER CYLINDRE AVANT BRAS 214039 LEFT OUTRIGGER PATTE GAUCHE 214040 RIGHT OUTRIGGER PATTE DROITE OUTRIGGER CYLINDER CYLINDRE PATTES Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 68 02 - BASE COMPLETE / COMPLETE BASE Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 69 HEX NYLON LOCKNUT GR8 3/4-16 Z ÉCROU NYLON IND HEX GR8 3/4-16 Z 451173 6 M.JIC - 10 M.ORB 6 M.JIC - 10 M.ORB 215039 STOPPER BUTÉE Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 70 03 - GARDE MAT / MAST GUARD Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 71 HEX BOLT GR5 1/4-20 X 1 BOULON HEX GR5 1/4-20 X 1 502002 FLAT WASHER 1/4 Z RONDELLE PLATE 1/4 Z 502044 LOCK WASHER 1/4 Z RONDELLE DE BLOCAGE 1/4 Z Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 72 04 - GARDE BASE / BASE GUARD Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 73 HEX BOLT GR5 1/4-20 X 1 1/4 BOULON HEX GR5 1/4-20 X 1 1/4 215031 MOTOR GUARD GARDE MOTEUR 502044 LOCK WASHER 1/4 Z RONDELLE DE BLOCAGE 1/4 Z Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 74 05 - MAT / MAST 10.2.1 10.2.1 10.1 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 75 ENGRENAGE DU MAT 10.1 214009 MAST 10.2.1 214527 BRONZE BUSHING COUSSINET DE BRONZE 325120 MANUAL CASE COFFRE DU MANUEL 507040 SELF-DRILLING SCREW VIS AUTO-PERCEUSE 214556 SPACING PLATE PLAQUE D'ESPACEMENT Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 76 06 - BRAS M140 / BOOM M140 10.2.2 10.2.2 10.1 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 77 COTTER PIN 3/16 X 2 Z GOUPILLE FENDUE 3/16 X 2 Z 501142 HEX CASTLE NUT 1 1/4-12 ÉCROU CHÂTEAU HEX GR5 1 1/4-12 224004 HOSE CLAMP ATTACHE DE BOYAUX Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 78 06 - BRAS M160 / BOOM M160 10.23 10.1 10.23 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 79 COTTER PIN 3/16 X 2 Z GOUPILLE FENDUE 3/16 X 2 Z 501142 HEX CASTLE NUT 1 1/4-12 ÉCROU CHÂTEAU HEX GR5 1 1/4-12 322295 GREASE FITTING GRAISSEUR Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 80 07 - AVANT BRAS M140 / STICK M140 2.2.1 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 81 GOUPILLE FENDUE 3/16 X 2 Z 214021 HOSE PLATE PLAQUE À BOYAU 501032 HEX NYLON LOCKNUT GR5 3/8-16 Z ÉCROU NYLON IND HEX GR5 3/8-16 Z 322299 GREASE FITTING GRAISSEUR Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 82 07 - AVANT BRAS M160 / STICK M160 5.2.1 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 83 COTTER PIN 3/16 X 2 Z GOUPILLE FENDUE 3/16 X 2 Z 215002 STICK M160 AVANT-BRAS M160 5.2.1 214534 BRONZE BUSHING COUSSINET DE BRONZE 322299 GREASE FITTING GRAISSEUR Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 84 08 - PETIT GENOU M140 / SMALL KNEE M140 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 85 PART/PIECE ENGLISH DESCRIPTION DESCRIPTION FRANCAISE NOTE 322299 GREASE FITTING GRAISSEUR 214001 OUTSIDE KNEE GENOU EXTÉRIEUR 214503 BRONZE BUSHING COUSSINET DE BRONZE 214502 BRONZE BUSHING COUSSINET DE BRONZE Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 86 08 - PETIT GENOU M160 / SMALL KNEE M160 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 87 PART/PIECE ENGLISH DESCRIPTION DESCRIPTION FRANCAISE NOTE 322299 GREASE FITTING GRAISSEUR 215001 OUTSIDE KNEE GENOU EXTÉRIEUR 214503 BRONZE BUSHING COUSSINET DE BRONZE 214502 BRONZE BUSHING COUSSINET DE BRONZE Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 88 09 - GRAND GENOU M140 / LARGE KNEE M140 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 89 PIVOT DU GENOU 215041 KNEE AXLE AXE DU GENOU 214000 INSIDE KNEE GENOU INTÉRIEUR 320002 COTTER PIN 3/16 X 2 Z GOUPILLE FENDUE 3/16 X 2 Z Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 90 09 - GRAND GENOU M160 / LARGE KNEE M160 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 91 RONDELLE DE BLOCAGE 3/8 215042 KNEE AXLE AXE DU GENOU 320002 COTTER PIN 3/16 X 2 Z GOUPILLE FENDUE 3/16 X 2 Z 215000 INSIDE KNEE GENOU INTÉRIEUR Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 92 10 - POIGNET DU GRAPPIN / GRAPPLE WRIST Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 93 HEX BOLT GR5 1-8 X 5 1/2 Z BOULON HEX GR5 1-8 X 5 1/2 Z 501057 HEX HALF NUT GR5 1-8 Z DEMI ÉCROU HEX GR5 1-8 Z 214006 WRIST POIGNET Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 94 11 - GRAPPIN / GRAPPLE Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 95 RETAINING RING ANNEAU DE RETENUE 215012 WASHER RONDELLE 322299 GREASE FITTING GRAISSEUR 500330 HEX BOLT GR5 1-8 X 4 Z BOULON HEX GR5 1-8 X 4 Z Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 96 12 - SUPPORT DE VALVE COMPLET / COMPLETE VALVE SUPPORT OPTION TREUIL 750 OPTION WINCH 750 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 97 HEX BOLT GR5 5/16-18 X 2 1/4 BOULON HEX GR5 5/16-18 X 2 1/4 501031 HEX NYLON LOCKNUT GR5 5/16-18 Z ÉCROU NYLON IND HEX GR5 5/16-18 Z Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 98 13 - PATTE GAUCHE / LEFT OUT TRIGGER Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 99 COTTER PIN 3/16 X 2 Z GOUPILLE FENDUE 3/16 X 2 Z 215032 OUTTRIGGER CYLINDER AXLE TIGE CYLINDRE PATTE 215033 AXLE OUTTRIGGER AXE PIVOT PATTE CYLINDER LEFT OUT TRIGGER CYLINDRE PATTE GAUCHE Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 100 14 - PATTE DROITE / RIGHT OUT TRIGGER Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 101 COTTER PIN 3/16 X 2 Z GOUPILLE FENDUE 3/16 X 2 Z 215032 OUTTRIGGER CYLINDER AXLE TIGE CYLINDRE PATTE 215033 AXLE OUTTRIGGER AXE PIVOT PATTE CYLINDER RIGHT OUT TRIGGER CYLINDRE PATTE DROIT Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 102 15 - REMORQUE R-FLEX 512 & 612 / R-FLEX 512 & 612 TRAILER Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 103 GARDE POST HOLDER HAREM TANDEM SUPPORT SUPPORT DE TANDEM LEFT TANDEM TANDEM GAUCHE 481506 WHEEL ASSEMBLY ROUE COMPLETE RIGHT TANDEM TANDEM DROIT CYLINDER TONGUE CYLINDRE DE POLE Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 104 1.1.13 1.1.7 1.1.15 1.1.10 1.1.6 1.1.16 1.1.11 1.1.14 1.1.6 1.1.8 1.1.2 1.1.9 1.1.5 1.1.8 1.1.12 1.1.8 1.1.12 1.1.5 1.1.2 CONFIGURATION SANS CYLINDRE DE TIMON NO POLE CONFIGURATION Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 105 84-HTC-AE JACK BRACKET SUPPORT CRIC 1.1.17 214011 OUTRIGGER CYLINDER AXLE TIGE CYLINDRE DE PATTE 217007 TONGUE LOCKING BAR BARRURE POUR POLE FIXE CYLINDER TONGUE CYLINDRE DE POLE Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 106 1.1.18 1.1.3 1.1.1 1.1.8 1.1.13 1.1.15 1.1.9 1.1.10 1.1.16 1.1.14 1.1.12 1.1.11 1.1.2 1.1.17 1.1.6 1.1.11 1.1.7 1.1.5 1.1.2 CONFIGURATION SANS CYLINDRE DE TIMON NO POLE CONFIGURATION Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 107 BOULON HEX GR5 3/4-10 X 1 1/2 1.1.18 214011 OUTRIGGER CYLINDER AXLE TIGE CYLINDRE DE PATTE 217007 TONGUE LOCKING BAR BARRURE POUR POLE FIXE CYLINDER TONGUE CYLINDRE DE POLE Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 108 16 - CADRE REMORQUE R-FLEX 612HD / TRAILER FRAME R-FLEX 612HD Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 109 AXE DU CYLINDRE 320171 POLE PIN AXE TIMON 219007 DRAWBAR AXLE AXE DU TIMON 500212-1 HEX BOLT GR8 3/4-16 X 1 1/2 BOULON HEX GR8 3/4-16 X 1 1/2 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 110 U BOLT BOULON EN U 502009 FLAT WASHER 3/4 Z RONDELLE PLATE 3/4 Z 501039 HEX NYLON LOCKNUT GR5 3/4-16 Z ÉCROU NYLON IND HEX GR5 3/4-16 Z Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 111 U BOLT BOULON EN U 501039 HEX NYLON LOCKNUT GR5 3/4-16 Z ÉCROU NYLON IND HEX GR5 3/4-16 Z 502009 FLAT WASHER 3/4 Z RONDELLE PLATE 3/4 Z Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 112 18 - HAREM / POST HOLDER R-FLEX 512 R-FLEX 612 / R-FLEX 612HD Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 113 HEX NYLON LOCKNUT GR5 3/4-16 Z ÉCROU NYLON IND HEX GR5 3/4-16 Z 502009 FLAT WASHER 3/4 Z RONDELLE PLATE 3/4 Z R-FLEX 612 / R-FLEX 612HD Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 114 HEX NYLON LOCKNUT GR5 3/4-16 Z ÉCROU NYLON IND HEX GR5 3/4-16 Z 505002 HEX BOLT GR5 3/4-16 X 2 1/2 BOULON HEX GR5 3/4-16 X 2 1/2 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 115 HEX NYLON LOCKNUT GR5 3/4-16 Z ÉCROU NYLON IND HEX GR5 3/4-16 Z 505002 HEX BOLT GR5 3/4-16 X 2 1/2 BOULON HEX GR5 3/4-16 X 2 1/2 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 116 HEX NYLON LOCKNUT GR5 3/4-10 Z ÉCROU NYLON IND HEX GR5 3/4-10 Z 500287 HEX BOLT GR5 3/4-10 X 2 1/2 BOULON HEX GR5 3/4-10 X 2 1/2 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 117 HEX WHEEL NUT 5/8-18 ÉCROU DE ROUE 5/8-18 507010 WHEEL BOLT 1/2-20 X 1 1/2 BOULON DE ROUE 1/2-20 X 1 1/2 R-FLEX 512 R-FLEX 612 / R-FLEX 612HD Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 118 LEFT TANDEM TANDEM GAUCHE R-FLEX 512 481453 MOYEU ITEM PART/PIECE ENGLISH DESCRIPTION DESCRIPTION FRANCAISE NOTE 219011 LEFT TANDEM TANDEM GAUCHE R-FLEX 612 & R-FLEX 612 HD 481452 MOYEU Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 119 218008 RIGHT TANDEM TANDEM DROIT 481453 MOYEU ITEM PART/PIECE ENGLISH DESCRIPTION DESCRIPTION FRANCAISE NOTE R-FLEX 612 & R-FLEX 612 HD 219012 RIGHT TANDEM TANDEM DROIT 481452 MOYEU Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 120 22 - PATTES TÉLESCOPIQUES / TELESCOPIC STABILIZER DETAIL A Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 121 BOULON HEX GR5 1/4-20 X 1 502002 FLAT WASHER 1/4 Z RONDELLE PLATE 1/4 Z 215018 COUVERCLE 224004 HOSE CLAMP ATTACHE DE BOYAUX 467022 HYDRAULIC CYLINDER CYLINDRE HYDRAULIQUE Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 122 BOULON HEX GR5 3/4-10 X 6 501036 HEX NYLON LOCKNUT GR5 3/4-10 Z ÉCROU NYLON IND HEX GR5 3/4-10 Z 218037 RF512 MOUNT ATTACHE RF512 219045 RF612 MOUNT ATTACHE RF612 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 123 23 - UNITÉ DE PUISSANCE COMPACTE / COMPACT POWER UNIT Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 124 23 - UNITÉ DE PUISSANCE COMPACTE / COMPACT POWER UNIT Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 125 23 - UNITÉ DE PUISSANCE COMPACTE / COMPACT POWER UNIT Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 126 23 - UNITÉ DE PUISSANCE COMPACTE / COMPACT POWER UNIT Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 127 HEX NYLON LOCKNUT GR5 1/4-20 Z ÉCROU NYLON IND HEX GR5 1/4-20 Z 450072 PLUG BOUCHON 468001 HYDRAULIC PUMP POMPE HYDRAULIQUE 700067 DEFLECTOR DÉFLECTEUR HYDRAULIC VALVE VALVE HYDRAULIQUE Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 128 24 - UNITÉ DE PUISSANCE LARGE / LARGE POWER UNIT Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 129 24 - UNITÉ DE PUISSANCE LARGE / LARGE POWER UNIT Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 130 24 - UNITÉ DE PUISSANCE LARGE / LARGE POWER UNIT Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 131 BOULON À CARROSSERIE GR5 1/4-20 X 1 Z 500442 CARRIAGE BOLT GR5 3/8-16 X 1 Z BOULON À CARROSSERIE GR5 3/8-16 X 1 Z HYDRAULIC VALVE VALVE HYDRAULIQUE Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 132 THIS PAGE INTENTIONNALY LEFT BLANK CETTE PAGE EST LAISSÉE VIDE INTENTIONELLEMENT Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 133 25 - TREUIL 750 / WINCH 750 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 134 25 - TREUIL 750 / WINCH 750 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 135 25 - TREUIL 750 / WINCH 750 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 136 25 - TREUIL 750 / WINCH 750 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 137 KEY 3/8 X 3/8 X 2 CLE 3/8 X 3/8 X 2 502001 FLAT WASHER 3/16 Z RONDELLE PLATE 3/16 Z 502014 FLAT WASHER 5/16 Z RONDELLE PLATE 5/16 Z Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 138 U-BOLT 3/4-10 X 8 7/8 X 10 BOULON U 3/4-10 X 8 7/8 X 10 501036-1 HEX NYLON LOCKNUT GR5 3/4-16 Z ÉCROU NYLON IND HEX GR5 3/4-16 Z Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 139 (452000) 22-13 (M140) 22-63 (M160) 5205-8-12 (450549) 24-01 (COMP.) 49-01 (LARGE) RÉSERVOIR À HUILE 5315-8-10 OIL TANK (451179) 5405-12-16 POMPE UNITÉ DE PUISSANCE (450725) POWER UNIT PUMP Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 140 22-16 (M140) 22-67 (M160) 22-66 (M160) 22-16 (M140) 22-66 (M160) 5315-6-10 5315-6-10 5315-6-6 (451173) (2x) (451173) (2x) (451171) AVANT-BRAS MOTEUR MAT BRAS / BOOM STICK MAT MOTOR Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 141 (451260) (2x) (451260) (2x) PATTE DROITE STD. PATTE GAUCHE STD. R. OUT-TRIGGER STD. L. OUT-TRIGGER STD. PATTE DROITE OPT. PATTE GAUCHE OPT. R. OUT-TRIGGER OPT. L. OUT-TRIGGER OPT. Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 142 22-05C (M140) 22-07 (M140) 22-57 (M160) 22-55C (M160) 22-57 (M160) 5205-6-6 (450542) (4x) ROTATEUR ROTATOR 22-08 (M140) 22-58 (M160) 22-09 (M140) 22-59 (M160) 82505-06-06 (451359) GRAPPIN GRAPPLE Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 143 H00 - SCHÉMA HYDRAULIQUE / HYDRAULIC SCHEME OPTION MOTEUR TREUIL / WINCH MOTOR OPTION BOYAU/HOSE #25-02 BOYAU/HOSE #22-26 (M140) #22-76 (M160) BOYAU/HOSE #22-21 BOYAU/HOSE #25-03 BOYAU/HOSE #22-21 MOTEUR DU TREUIL MOTOR OF WINCH Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 144 OPTION CYLINDRE REMORQUE / FRAME CYLINDER OPTION R-FLEX 512 / R-FLEX 612 R-FLEX 612HD TRACTEUR TRACTOR 22-14 22-15 612HD-02 TRACTEUR TRACTOR 5515-6-6 5706-6 5706-6 (451260) (450972) (450972) 612HD-01 5515-6-6 (451260) Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 145 215171 22-71 214422 22-22 215172 22-72 214423 22-23 215173 22-73 214424 22-24 215174 22-74 214425 22-25 215175 22-75 214426 22-26 215176 22-76 219043 612HD-01 219044 612HD-02 Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 146 DESCRIPTION FRANCAISE NOTE 469138 HYDRAULIC MOTOR MOTEUR HYDRAULIQUE 451173 6 M.JIC - 10 M.ORB 6 M.JIC - 10 M.ORB 451352 PLUG 4 M. ORB PLUG 4 M. ORB Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 147 H2 - ROTOR / ROTATEUR ITEM PART/PIECE ENGLISH DESCRIPTION DESCRIPTION FRANCAISE NOTE 451359 82505-6-6 ADAP. MALE JIC/MALE BSPP 82505-6-6 ADAP. MALE JIC/MALE BSPP 469144-1 ROTOR ROTATEUR 452479 COUDE45ø-M(JIC)37ø/M BSP COUDE45ø-M(JIC)37ø/M BSP Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 148 6 M.JIC - 6 M.ORB 90° 451171 6 M.JIC- 6M.ORB 6 M.JIC- 6M.ORB 214500 BRONZE BUSHING PALIER LISSE EN BRONZE 214501 BRONZE BUSHING PALIER LISSE EN BRONZE Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 149 H4 - CYLINDRE BRAS / BOOM CYLINDER ITEM PART/PIECE ENGLISH DESCRIPTION DESCRIPTION FRANCAISE NOTE 451260 6 M.JIC - 6 M.ORB 90° 6 M.JIC - 6 M.ORB 90° 467309 CYLINDER HBU3524 CYLINDRE HBU3524 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 150 CYLINDRE HBU3518 M160 ITEM PART/PIECE ENGLISH DESCRIPTION DESCRIPTION FRANCAISE NOTE 451260 6 M.JIC - 6 M.ORB 90° 6 M.JIC - 6 M.ORB 90° 467303 CYLINDER HBU3030 CYLINDRE HBU3030 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 151 R-FLEX 512 & R-FLEX 612 ITEM PART/PIECE ENGLISH DESCRIPTION DESCRIPTION FRANCAISE NOTE 451260 6 M.JIC - 6 M.ORB 90° 6 M.JIC - 6 M.ORB 90° 467043 CYLINDER HBU3010 CYLINDRE HBU3010 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 152 H6 - CYLINDRE REMORQUE / TRAILER CYLINDER R-FLEX 612HD ITEM PART/PIECE ENGLISH DESCRIPTION DESCRIPTION FRANCAISE NOTE 450711 HYDRAULIC FITTING ADAPTEUR HYDRAULIQUE 467029 450972 HYDRAULIC FITTING ADAPTEUR HYDRAULIQUE Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 153 H7 - CYLINDRE PATTE GAUCHE - CYLINDER LEFT OUT TRIGGER ITEM PART/PIECE ENGLISH DESCRIPTION DESCRIPTION FRANCAISE NOTE 451260 6 M.JIC - 6 M.ORB 90° 6 M.JIC - 6 M.ORB 90° 467287 CYLINDER HBU2513 CYLINDRE HBU2513 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 154 H7 - CYLINDRE PATTE DROIT - CYLINDER RIGHT OUT TRIGGER ITEM PART/PIECE ENGLISH DESCRIPTION DESCRIPTION FRANCAISE NOTE 451260 6 M.JIC - 6 M.ORB 90° 6 M.JIC - 6 M.ORB 90° 467311 CYLINDER HBU2513 CYLINDRE HBU2513 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 155 H8 - CYL. STABILIS. TÉLÉSCOPIQUE G. / L. TELES. STABILIZER CYLINDER ITEM PART/PIECE ENGLISH DESCRIPTION DESCRIPTION FRANCAISE NOTE 450710 6 M.JIC - 4 M.NPT 90° 6 M.JIC - 4 M.NPT 90° 467022 HYDRAULIC CYLINDER CYLINDRE HYDRAULIQUE Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 156 H8 - CYL. STABILIS. TÉLÉSCOPIQUE D. / R. TELES. STABILIZER CYLINDER ITEM PART/PIECE ENGLISH DESCRIPTION DESCRIPTION FRANCAISE NOTE 450710 6 M.JIC - 4 M.NPT 90° 6 M.JIC - 4 M.NPT 90° 467022 HYDRAULIC CYLINDER CYLINDRE HYDRAULIQUE Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 157 8 M JIC - 8 M NPT 8 M JIC - 8 M NPT 452000 1/2 QUICK COUPLER F RACCORD RAPIDE 1/2 M 470098 PLUG # P3T SD6 BOUCHON # P3T SD6 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 158 PLUG 4 M.NPT HOLLOW HEX PLUG 4 M.NPT HOLLOW HEX 450133 8 M.NPT - 8 M.NPT 45° 8 M.NPT - 8 M.NPT 45° 450108 HYDRAULIC FITTING ADAPTEUR HYDRAULIQUE Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 159 LIMTEUR DE PRESSION 451261 6 M.JIC - 8 M.ORB 6 M.JIC - 8 M.ORB 451172 6 M JIC - 8 M ORB 6 M JIC - 8 M ORB Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 160 452001 QUICK COUPLER 1/2 F RACCORD RAPIDE 1/2 F 450133 8 M.NPT - 8 M.NPT 45° 8 M.NPT - 8 M.NPT 45° 465548 LEVER M8X120 BRAS M8X120 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 161 6 M.ORB - 8 F.NPSM 45° 6 M.ORB - 8 F.NPSM 45° 450008 HYDRAULIC FITTING ADAPTEUR HYDRAULIQUE 452001 QUICK COUPLER 1/2 F RACCORD RAPIDE 1/2 F 465548 LEVER M8X120 BRAS M8X120 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 162 H13 - MOTEUR TREUIL 750 / WINCH 750 MOTOR ITEM PART/PIECE ENGLISH DESCRIPTION DESCRIPTION FRANCAISE NOTE 469136 HYDRAULIC MOTOR MOTEUR HYDRAULIQUE 451173 6 M.JIC - 10 M.ORB 6 M.JIC - 10 M.ORB Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 163 PLUG 8 M. ORB 451265 8 M.JIC - 8 M.ORB 90° 8 M.JIC - 8 M.ORB 90° 451266 8 M.JIC - 10 M.ORB 90° 8 M.JIC - 10 M.ORB 90° Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 164 GROUPE ANDERSON 5125, rue de la Plaisance Chesterville (Québec) CANADA G0P 1J0 Courriel : service@grpanderson.com Téléphone : 1-819-382-2952 Télécopieur : 1-819-382-2218 www.grpanderson.com...

This manual is also suitable for:

M115M140M160Rf380Rf410Rf512 ... Show all

Table of Contents
