404615-5

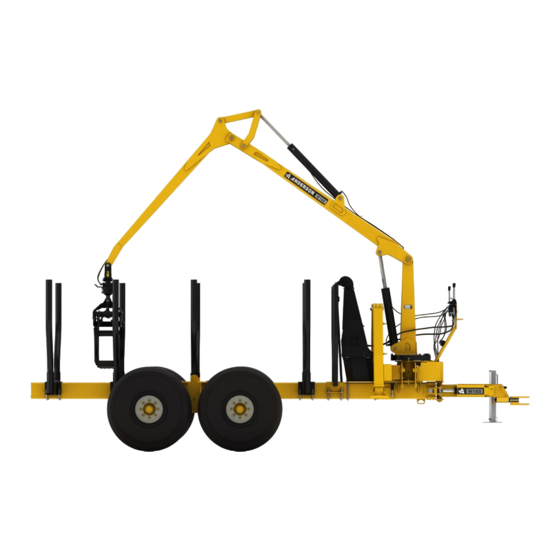

Log Loader and Forestry Trailer
M90/115/140/160 and RF380/410/512/612/612HD
Operator's Manual
TRANSLATION OF THE ORIGINAL INSTRUCTIONS – 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M90 and is the answer not in the manual?

Questions and answers

Related Manuals for Anderson M90

Summary of Contents for Anderson M90

  • Page 1 404615-5 Log Loader and Forestry Trailer M90/115/140/160 and RF380/410/512/612/612HD Operator's Manual TRANSLATION OF THE ORIGINAL INSTRUCTIONS – 2023...

  • Page 3: Table Of Contents

    Table of contents How to reach us Starting guidelines Anderson limited warranty About this manual Introduction 1.1 Overview 1.2 Technical specifications 1.3 Optional parts Safety precautions 2.1 Operator skills and abilities 2.2 Operation 2.3 Safety perimeter 2.4 Basic safety guidelines 2.5 Handling fuel...
  • Page 4 5.4 Unloading logs Maintenance 6.1 Greasing 6.2 Tire pressure 6.3 Tightening the lug nuts 6.4 Checking the oil filter 6.5 Cleaning and other maintenance 6.6 Storage Troubleshooting 7.1 Common problems Operator's Manual – Log Loader and Forestry Trailer Anderson Group...

  • Page 5: How To Reach Us

    Please always call your representative first. If your representative is absent or helping another customer, our support team can provide immediate assistance. The Anderson service department works in partnership with your dealer. Together, we will ensure any problems you encounter are resolved quickly and efficiently.

  • Page 7: Anderson Limited Warranty

    In no event will Anderson be liable for any incidental or consequential damages or injuries, including but not limited to loss of profits, rental of substitute equipment, or other commercial or personal loss or damages arising as a result of a fundamental breach or breach of a fundamental term.
  • Page 8 Except for conditions or warranties that may not be excluded by law, the selling dealer makes no warranty of its own on any item warranted by Anderson unless it delivers to the purchaser a separate written warranty document specifically warranting the item. The selling dealer has no authority to make any representation or promise on behalf of Anderson or to modify the terms or limitations of this warranty in any way.

  • Page 9: About This Manual

    This guide covers all log loader models. Ensure that you consult the sections that apply to your machine. Disclaimer The illustrations and information in this manual are accurate as of printing. Anderson Group reserves the right to modify its machines without prior notice. Conventions “Danger!”...

  • Page 11: Introduction

    1 Introduction Congratulations! You have just purchased an Anderson log loader, which is a quality piece of machinery specially designed for handling logs. This machine was carefully manufactured by our company to give you many years of reliable performance. 1.1 Overview The log loader must be installed on a forestry trailer.

  • Page 12: Technical Specifications

    6.20 m 6.20 m (144 in.) (209 in.) (244 in.) (244 in.) Total weight 690 kg 1,100 kg 1,490 kg 1,920 kg (1,521 lb.) (2,425 lb.) (3,285 lb.) (4,233 lb.) Operator's Manual – Log Loader and Forestry Trailer Anderson Group...
  • Page 13 Torque: 271 N.m Torque: 271 N.m Torque: 271 N.m (200 lb./ft.) on Torque: 271 N.m (200 lb./ft.) on (200 lb./ft.) on each nut (200 lb./ft.) on each nut each nut each nut Anderson Group Log Loader and Forestry Trailer – Operator's Manual...
  • Page 14 Table 3 — Standard Components M-90 M-115 M-140 M-160 Loader Stabilizers Grapple Articulated drawbar Adjustable tandem Barrier Post Off-road tires Below this temperature, the log loader will not operate in an optimal manner. Operator's Manual – Log Loader and Forestry Trailer Anderson Group...

  • Page 15: Optional Parts

    15 L (3.96 US gal.) oil tank. Other models: The hydraulic power unit consists of a 13 hp Honda engine, a 26 Lpm (6.87 US gpm) hydraulic pump and a 36 L (9.51 US gal.) oil tank. Anderson Group Log Loader and Forestry Trailer – Operator's Manual...
  • Page 16 (available for the M-90 and M-115 models)" on page 39. 1.3.7 Telescopic stabilizer The telescopic stabilizer replaces the stabilizers on the log loader. It is sturdier and makes the machine more stable. Operator's Manual – Log Loader and Forestry Trailer Anderson Group...
  • Page 17 The three-position grapple joystick makes it easier to open and close the grapple. It is installed on the fifth lever (see "Controls" on page 43). Figure 3 —Three-Position Grapple Joystick 1.3.9 Additional posts Additional posts can be installed for loading shorter logs. Anderson Group Log Loader and Forestry Trailer – Operator's Manual...

  • Page 19: Safety Precautions

    2 Safety precautions Your Anderson log loader was designed to minimize risk to the operator. Nevertheless, it must only be used for its intended purpose. Misuse of the loader may result in injury to the operator. The log loader has a hydraulic system and moving mechanical parts. All these components can cause serious or even fatal injury to people and animals.

  • Page 20: Safety Perimeter

    Failure to do so can cause serious or even fatal injury. Use extra caution if operating the log loader near power lines. A power line touching the boom, grapple, bucket auger result electrocution. Operator's Manual – Log Loader and Forestry Trailer Anderson Group...

  • Page 21: Basic Safety Guidelines

    At the end of the workday, remember to shut off the fuel supply to the hydraulic power unit (see Figure 4). Anderson Group Log Loader and Forestry Trailer – Operator's Manual...
  • Page 22 Shut off the tractor or hydraulic power unit engine. Remove the key from the tractor’s ignition so it cannot start accidentally while you are working. Chock the wheels if you need to work under the machine. Operator's Manual – Log Loader and Forestry Trailer Anderson Group...

  • Page 23: Handling Fuel

    2.7 Transporting the log loader When driving on the road, comply with all local identification and lighting regulations. Anderson Group recommends always attaching the safety chains to the machine and tractor and locking the locking pin with a pin.
  • Page 24 If the grapple is holding a load, put it towards the rear. 3. To prevent damage, remove the jack and secure it to the safety barrier with its pin. Remove the jack before moving to prevent damage. Operator's Manual – Log Loader and Forestry Trailer Anderson Group...

  • Page 25: Hitching

    If hitching is not done properly, the machine may unhook during transport or use. This could injure the operator or other people, or damage the tractor, ATV, or machine. Anderson Group Log Loader and Forestry Trailer – Operator's Manual...

  • Page 26: Hitching To The Tractor

    3. Attach the safety chains between the trailer and the tractor using the provided anchor points. NOTE: If driving on public roads, comply with all local identification and lighting regulations. Operator's Manual – Log Loader and Forestry Trailer Anderson Group...

  • Page 27: Hitching To An Atv

    Figure 6 — Trailer Coupler 1. Hitch the trailer coupler to the hitch ball on the ATV. 2. Attach the safety chains to the trailer and the ATV using the provided anchor points. Anderson Group Log Loader and Forestry Trailer – Operator's Manual...

  • Page 28: Connecting The Hydraulic System

    "Controls" on page 43. 4. Adjust the hydraulic flow of the control valves if needed. The log loader is now ready to load and transport logs. Operator's Manual – Log Loader and Forestry Trailer Anderson Group...
  • Page 29 NOTE: You will need to order the new plug from your Anderson distributor (part number: 470104). 1. Remove the fitting from the valve outlet hole (A) and place it in the hole underneath (B).
  • Page 30 NOTE: You will need to order the new plug from your Anderson distributor (part number: 450062). 1. Disconnect the hydraulic hose from the fitting (A) on the side of the main valve and remove the fitting.
  • Page 31 Figure 9 — Fitting and Plug 2. Remove the plug (B) on the front of the main valve and place it on the side of the valve, where the fitting was. Anderson Group Log Loader and Forestry Trailer – Operator's Manual...
  • Page 32 NOTE: You will need to order the new plug from your Anderson distributor (part number: 450063). Operator's Manual – Log Loader and Forestry Trailer...
  • Page 33 3. Insert the new NPT plug (450063) into the hole on the front of the valve. Figure 12 — Installing the New Plug and Fitting 4. Install the fitting (A) on the NPT plug (C). 5. Reconnect the hose to the fitting. Anderson Group Log Loader and Forestry Trailer – Operator's Manual...
  • Page 34 6. Turn the screw two (2) turns (see Figure 8) to increase the pressure of the pressure relief valve. Operator's Manual – Log Loader and Forestry Trailer Anderson Group...

  • Page 35: Adjusting The Adjustable Tandem And Installing Optional Components

    2. Slide the adjustable tandem backward to shift more weight to the drawbar, or forward to shift more weight to the trailer axle. 3. Insert the bolt to hold the tandem in place. Figure 13 — Adjusting the Adjustable Tandem Anderson Group Log Loader and Forestry Trailer – Operator's Manual...

  • Page 36: Installing The 400 Hydraulic Winch (Available For The M-90 And M-115 Models)

    2. Similarly, install the pulley bracket using the two mounting holes a bit further along the boom. Figure 14 — Installing the 400 Hydraulic Winch Operator's Manual – Log Loader and Forestry Trailer Anderson Group...

  • Page 37: Installing The 750 Hydraulic Winch (Available For The M-115, M-140 And M-160 Models)

    2. Place the hydraulic winch on the trailer's centre bar so that the cable guide is facing the rear of the trailer. 3. Attach the hydraulic winch with four bolts, two Fastenal plates, and four nuts. Figure 15 — Installing the 750 Hydraulic Winch Anderson Group Log Loader and Forestry Trailer – Operator's Manual...

  • Page 38: Installing The Loader Bucket (Available For The M-90 And M-115 Models)

    (4). Figure 16 — Installing the Loader Bucket Remove the hose support underneath the cylinder and coil the two unused hoses around the mast, in front of the cylinder. Operator's Manual – Log Loader and Forestry Trailer Anderson Group...

  • Page 39: Installing The Auger (Available For The M-90 And M-115 Models)

    (1). 2. Remove the bolt that secures the grapple to the rotator base (2). 3. Secure the auger to the rotator base with the bolt. Figure 17 — Installing the Auger Anderson Group Log Loader and Forestry Trailer – Operator's Manual...

  • Page 40: Installing The Dump Box (Available For The M-90 And M-115 Models)

    3. Place the dump box on the trailer so its rear supports straddle the rear crossbar. NOTE: You can use the loader boom and chains to install the dump box on the trailer. Operator's Manual – Log Loader and Forestry Trailer Anderson Group...
  • Page 41 5. Secure the hydraulic cylinder to the front support with a nut and a bolt (1). 6. Reattach the cylinder to the dump box with plates, nuts and bolts (2). 7. Secure the front support with a lock and a pin. Anderson Group Log Loader and Forestry Trailer – Operator's Manual...

  • Page 43: Operation

    This could cause damage. 5.1 Controls The following figures illustrate the hydraulic controls for each loader model. Their functions are described in the table below. Figure 18 — M-90 Hydraulic Controls Anderson Group Log Loader and Forestry Trailer – Operator's Manual...
  • Page 44 Figure 19 — M-115 Hydraulic Controls Figure 20 — M-140 and M-160 Hydraulic Controls Operator's Manual – Log Loader and Forestry Trailer Anderson Group...

  • Page 45: Placing The Stabilizers

    2. Start the hydraulic power unit. 3. Using the hydraulic controls (see "Controls" on page 43), lower the two stabilizers until they touch the ground and the loader is stable and as level as possible. Anderson Group Log Loader and Forestry Trailer – Operator's Manual...

  • Page 46: Loading Logs

    When nearing completion, lift fewer logs with the grapple each time to avoid destabilizing the trailer as the counterweight decreases. Use extra caution when the boom is fully extended. Operator's Manual – Log Loader and Forestry Trailer Anderson Group...
  • Page 47 If the trailer seems unstable, immediately lower the grapple and move the trailer closer to where the logs are being placed. Remember to raise the stabilizers and jack before moving the machine. Anderson Group Log Loader and Forestry Trailer – Operator's Manual...

  • Page 49: Maintenance

    This section explains how to maintain your log loader to keep it running smoothly and prevent premature wear and tear. Immediately replace any defective or worn parts. To keep your warranty valid, Anderson Group recommends using original or approved parts.

  • Page 50: Greasing

    The trailer and log loader must be greased with a grease gun in the locations marked with the following sticker: Figure 22 — Greasing Point Marker NOTE: Anderson Group recommends using synthetic grease. Table 7 — Greasing Part (number of greasing points) Frequency...

  • Page 51: Tire Pressure

    27.7 kg/m (200 lb./ft.) of torque must be applied to each nut. 6.4 Checking the oil filter Replace the oil filter after the first 50 hours. Then, replace it every 300 hours. Anderson Group Log Loader and Forestry Trailer – Operator's Manual...

  • Page 52: Cleaning And Other Maintenance

    Close the fuel supply valve to prevent gasoline from seeping into the engine base. NOTE: Anderson Group strongly recommends cleaning and performing general maintenance on the machine before storing it for long periods. Operator's Manual – Log Loader and Forestry Trailer...

  • Page 53: Troubleshooting

    2. Dry out the cylinder by cranking the starter. because the fuel valve 3. Put the spark plug back in and restart the wasn't closed during hydraulic power unit. transport or prolonged inactivity. Anderson Group Log Loader and Forestry Trailer – Operator's Manual...
  • Page 54 The control valve is Check the control valve pressure. Repair or replace defective. the control valve if needed. For any other problems, please contact your dealer or our technical service department. Operator's Manual – Log Loader and Forestry Trailer Anderson Group...
  • Page 55 ANDERSON GROUP 5125 De la Plaisance St. Chesterville, QC G0P 1J0 CANADA Email: service@grpanderson.com Phone: 1-819-382-2952 Fax: 1-819-382-2218 www.grpanderson.com...
  • Page 58 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email :...
  • Page 59 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email :...
  • Page 60 COMPLETE KIT PURCHASE ONLY 469016 HYDRAULIC MOTOR MOTEUR HYDRAULIQUE 469136 HYDRAULIC MOTOR MOTEUR HYDRAULIQUE 467304 HYDRAULIC CYLINDER CYLINDRE HYDRAULIQUE 467013 HYDRAULIC CYLINDER CYLINDRE HYDRAULIQUE 467030 HYDRAULIC CYLINDER CYLINDRE HYDRAULIQUE Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 61 OP1 , OP2, OP3 - GODET 20po & BENNE / BUCKET 20 in & DUMPER Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 62 OP4 & OP5 - UNITÉ DE PUISSANCE COMPACT & TREUIL 400 POWER UNIT COMPACT & WINCH 400 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 63 OP6 & OP7 - UNITÉ DE PUISSANCE LARGE ET TREUIL 750 POWER UNIT LARGE & WINCH 750 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 64 OP8 & OP9 TARRIÈRE 6" & 9" / AUGER 6" & 9" Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 65 OP10 - PATTES TÉLESCOPIQUES / TELESCOPIC STABILIZER 27 H11 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 66 OP11 - CONTRÔLEUR 3 POSITIONS / 3 POSITIONS JOYSTICK Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 67 OP12 - PÔLE / TONGUE Barrure de pole #217007 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 68 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email :...
  • Page 69 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email :...
  • Page 70 02 - BASE COMPL TE - COMPLETE BASE 5.1.1 Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 71 GOUPILLE FENDUE 3/16 X 2 Z 404002 LUBRICATION STICKER DECALQUE GRAISSAGE 213024 PIN FOR OUT TRIGGER AXE DU STABILISATEUR 502044 LOCK WASHER 1/4 RONDELLE DE BLOCAGE 1/4 210629 WASHER RONDELLE Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 72 03 - GARDE MAT / MAST GUARD Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 73 HEX NYLON LOCKNUT GR5 1/4-20 Z CROU NYLON IND HEX GR5 1/4-20 Z 500004 HEX BOLT GR5 1/4-20 X 3/4 BOULON HEX GR5 1/4-20 X 3/4 Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 74 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email :...
  • Page 75 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email :...
  • Page 76 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email :...
  • Page 77 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email :...
  • Page 78 06 - PATTE GAUCHE / LEFT OUT TRIGGER Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 79 BOULON HEX GR5 1-8 X 4 1/2 Z 501057 HEX HALF NUT GR5 1-8 Z DEMI ÉCROU HEX GR5 1-8 Z 320002 COTTER PIN 3/16 X 2 Z GOUPILLE FENDUE 3/16 X 2 Z Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 80 07 - PATTE DROITE / RIGHT OUT TRIGGER Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 81 BOULON HEX GR5 1-8 X 4 1/2 Z 501057 HEX HALF NUT GR5 1-8 Z DEMI ÉCROU HEX GR5 1-8 Z 320002 COTTER PIN 3/16 X 2 Z GOUPILLE FENDUE 3/16 X 2 Z Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 82 08 - BRAS / BOOM Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 83 322295 GREASE FITTING GRAISSEUR 320009-1 PIPE CLAMPS TWIN 16 mm SUPPORT BOYAU DOUBLE 16 mm 501142 HEX CASTLE NUT 1 1/4-12 ÉCROU CHÂTEAU HEX GR5 1 1/4-12 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 84 09 - AVANT BRAS / STICK Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 85 AXE DE CYLINDRE AVANT BRAS 320002 COTTER PIN 3/16 X 2 Z GOUPILLE FENDUE 3/16 X 2 Z 320009-1 PIPE CLAMPS TWIN 16 mm SUPPORT BOYAU DOUBLE 16 mm Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 86 10 - GRAPPIN / GRAPPLE Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 87 HALF HEX NYLON LOCKNUT GR5 1/12 Z DEMI ÉCROU NYLON IND HEX GR5 1/12 Z 501057 HEX HALF NUT GR5 1-8 Z DEMI ÉCROU HEX GR5 1-8 Z CYLINDER GRAPPLE CYLINDRE DU GRAPPIN Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 88 11 - POIGNET DU GRAPPIN / GRAPPLE WRIST Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 89 501037 HEX NYLON LOCKNUT GR5 1-8 Z ÉCROU NYLON IND HEX GR5 1-8 Z 501057 HEX HALF NUT GR5 1-8 Z DEMI ÉCROU HEX GR5 1-8 Z Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 90 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email :...
  • Page 91 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email :...
  • Page 92 13 - CADRE DE REMORQUE / TRAILER FRAME Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 93 BOULON HEX. M8 X 1.25 X 100mm CL8.8 506051 NYLON NUT M8 X 1.25 ECROU NYLON M8 X 1.25 84-HTC-AE JACK BRACKET SUPPORT CRIC 217031 TONGUE POLE OPTION CYLINDER TONGUE CYLINDRE DE POLE OPTION Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 94 14 - GARDE- GUARD Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 95 CROU NYLON IND HEX GR5 3/4-10 Z 500293 HEX BOLT GR5 3/4-10 X 4 BOULON HEX GR5 3/4-10 X 4 502017 FLAT WASHER SAE 3-4 ZINC RONDELLE PLATE SAE 3-4 ZINC Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 96 15 - HAREM / POST HOLDER Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 97 CROU NYLON IND HEX GR5 3/4-10 Z 500293 HEX BOLT GR5 3/4-10 X 4 BOULON HEX GR5 3/4-10 X 4 502017 FLAT WASHER SAE 3-4 ZINC RONDELLE PLATE SAE 3-4 ZINC Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 98 16 - SUPPORT DE TANDEM / TANDEM SUPPORT Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 99 HEX BOLT GR8 3/4-16 X 1 1/2 BOULON HEX GR8 3/4-16 X 1 1/2 501036 HEX NYLON LOCKNUT GR5 3/4-10 Z ÉCROU NYLON IND HEX GR5 3/4-10 Z Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 100 17 - TANDEM DROIT / RIGHT TANDEM Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 101 COTTER PIN 3/16 X 2 Z GOUPILLE FENDUE 3/16 X 2 Z 501075 HEX CASTLE NUT 1-14 ÉCROU CHÂTEAU HEX GR5 1-14 502011 FLAT WASHER 1 Z RONDELLE PLATE 1 PO Z Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 102 18 - TANDEM GAUCHE / LEFT TANDEM Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 103 COTTER PIN 3/16 X 2 Z GOUPILLE FENDUE 3/16 X 2 Z 501075 HEX CASTLE NUT 1-14 ÉCROU CHÂTEAU HEX GR5 1-14 502011 FLAT WASHER 1 Z RONDELLE PLATE 1 PO Z Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 104 19 - TREUIL 400 / WINCH 400 DETAIL A Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 105 19 - TREUIL 400 / WINCH 400 Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 106 19 - TREUIL 400 / WINCH 400 Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 107 FLAT WASHER 3/16 Z RONDELLE PLATE 3/16 Z 224081 BRAKE CYLINDER CYLINDRE DE FREIN 500006 HEX BOLT GR5 1/4-20 X 1 BOULON HEX GR5 1/4-20 X 1 Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 108 CARROSSERIE GR5 3/8-16 X 1 Z 501022 HEX FLANGE NUT GR2 3/8-16 Z CROU EMBASE HEX GR2 3/8-16 Z 485268 PULLEY POULIE 220013 PULLEY SUPPORT SUPPORT DE POULIE Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 109 303018 BEARING 6203 ROULEMENT 6203 485268 PULLEY POULIE 220013 PULLEY SUPPORT SUPPORT DE POULIE 320012 RETAINNING RING EXT. 2 1/4 BAGUE DE RETENUE EXT. 2 1/4 Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 110 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email :...
  • Page 111 20 - TREUIL 750 / WINCH 750 Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 112 20 - TREUIL 750 / WINCH 750 Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 113 20 - TREUIL 750 / WINCH 750 Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 114 20 - TREUIL 750 / WINCH 750 Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 115 KEY 3/8 X 3/8 X 2 CLE 3/8 X 3/8 X 2 502001 FLAT WASHER 3/16 Z RONDELLE PLATE 3/16 Z 502014 FLAT WASHER 5/16 Z RONDELLE PLATE 5/16 Z Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 116 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email :...
  • Page 117 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email :...
  • Page 118 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email :...
  • Page 119 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email :...
  • Page 120 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email :...
  • Page 121 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email :...
  • Page 122 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email :...
  • Page 123 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email :...
  • Page 124 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email :...
  • Page 125 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email :...
  • Page 126 23 - GODET 20" / 20" BUCKET Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 127 GODET 20" 322299 GREASE FITTING GRAISSEUR 467030 HYDRAULIC CYLINDER CYLINDRE HYDRAULIQUE 500335 HEX BOLT GR5 1-8 X 6 Z BOULON HEX GR5 1-8 X 6 Z Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 128 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email :...
  • Page 129 24 - BENNE / DUMPER Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 130 24 - BENNE / DUMPER DETAIL B DETAIL A DETAIL C DETAIL D Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 131 GOUPILLE D'ATTELAGE QR 5/16 X 1 1/2 467304 HYDRAULIC CYLINDER CYLINDRE HYDRAULIQUE 500198 HEX BOLT GR5 1/2-13 X 6 1/2 BOULON HEX GR5 1/2-13 X 6 1/2 Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 132 25 - TARRIÈRE 6" / AUGER 6" ITEM PART/PIECE ENGLISH DESCRIPTION DESCRIPTION FRANCAISE NOTE T4-T AUGER TARRIÈRE 450504 HYDRAULIC CAP 5129-06 BOUCHON HYDRAULIQUE 5129-06 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 133 26 - TARRIÈRE 9" / AUGER 9" ITEM PART/PIECE ENGLISH DESCRIPTION DESCRIPTION FRANCAISE NOTE T4-T9 9" AUGER TARRIÈRE 9" 450504 HYDRAULIC CAP 5129-06 BOUCHON HYDRAULIQUE 5129-06 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 134 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email :...
  • Page 135 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email :...
  • Page 136 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email :...
  • Page 137 24-01 (COMPACT) R duit/Reducer (451189) R SERVOIR HUILE POMPE UNIT DE PUISSANCE 49-01 (LARGE) (451999) COMPACT OIL TANK POWER UNIT PUMP 5205-12-12 3218-12-12 (451073) (450558) 5515-12-10 (451275) Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 138 115-26 5315-6-8 5315-6-10 (451172) (2x) (451173) (4x) 3249-8-6 5515-6-6 (451413) (451260) (2x) VMP 5-38-TS MOTEURS MAT (466000) MAT MOTORS 9515-6-6 (451413) BRAS / BOOM AVANT-BRAS STICK Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 139 PATTE D. STD. PATTE G. STD. STD. R. OUT-TRIGGER STD. L. OUT-TRIGGER PATTE D. OPT. PATTE G. OPT. R. OUT-TRIGGER OPT. L. OUT-TRIGGER OPT. 5515-6-6 5515-6-6 (451260) (451260) Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 140 (450542) (4x) 115-20 115-21 ROTATEUR ROTATOR 115-13 5515-6-8 115-14 5515-6-6 5315-6-6 (451261) (2x) (451260) (451171) VERT / GREEN YELLOW / JAUNE GRAPPIN / GRAPPLE GODET / BUCKET Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 141 (AVEC TRACTEUR) (WITH TRACTOR) 5515-6-8 (451261) 5515-6-10 115-50 (451262) (SANS TRACTEUR) (WITHOUT TRACTOR) 115-28 115-51 AE-SAE8-SD5 115-29 5365-8-8 (466988) (451229) 5515-6-8 (451261) (2x) 5706-6 5515-8-8 (450972) (451265) Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 142 5515-6-8 (451261) 014-35 014-36 115-25 (WINCH 400) 115-29 115-23 (WINCH 750) 5515-6-10 CYLINDRE REMORQUE / FRAME CYLINDER (451262) AE-SAE8-SD5 115-28 (466988) 5515-6-8 (451261) (2x) 5515-8-8 (451265) Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 143 213065 115-29 213068 115-30 213069 115-31 213107 115-50 213108 115-51 213105 014-35 213106 014-36 213109 24-01 213110 24-02 213111 24-03 213112 49-01 213113 49-02 213114 49-03 Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 144 HYDRAULIC FITTING ADAPTEUR HYDRAULIQUE 451094 8 M.ORB - 6 M.NPT 8 M.ORB - 6 M.NPT 451413 6 M.ORB - 6 F.NPSM 90° 6 M.ORB - 6 F.NPSM 90° Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 145 H2 - CYLINDRE AVANT BRAS / STICK CYLINDER ITEM PART/PIECE ENGLISH DESCRIPTION DESCRIPTION FRANCAISE NOTE 451260 6 M.JIC - 6 M.ORB 90° 6 M.JIC - 6 M.ORB 90° 467288 CYLINDER HBU2518 CYLINDRE HBU2518 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 146 COUDE45ø-M ORB AJ./F NPSM TOUR COUDE45ø-M ORB AJ./F NPSM TOUR 451260 6 M.JIC - 6 M.ORB 90° 6 M.JIC - 6 M.ORB 90° 467311 CYLINDER HBU2513 CYLINDRE HBU2513 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 147 6 M.JIC - 6 M.ORB 90° 6 M.JIC - 6 M.ORB 90° 451393 COUDE45ø-M ORB AJ./F NPSM TOUR COUDE45ø-M ORB AJ./F NPSM TOUR 467287 CYLINDER HBU2513 CYLINDRE HBU2513 Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 148 DESCRIPTION FRANCAISE NOTE 451359 82505-6-6 ADAP. MALE JIC/MALE BSPP 82505-6-6 ADAP. MALE JIC/MALE BSPP 469144-1 ROTOR ROTATEUR 452479 COUDE45 -M(JIC)37 /M BSP COUDE45 -M(JIC)37 /M BSP Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 149 DESCRIPTION FRANCAISE NOTE 467286 GRAPPLE CYLINDER CYLINDRE GRAPPIN 451260 6 M.JIC - 6 M.ORB 90° 6 M.JIC - 6 M.ORB 90° 451171 6 M.JIC- 6M.ORB 6 M.JIC- 6M.ORB Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 150 H7 - CYLINDRE REMORQUE / TRAILER CYLINDER ITEM PART/PIECE ENGLISH DESCRIPTION DESCRIPTION FRANCAISE NOTE 450711 HYDRAULIC FITTING ADAPTEUR HYDRAULIQUE 322299 GREASE FITTING GRAISSEUR 467291 CYLINDER CYLINDRE Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 151 H08 - MOTEUR TREUIL 400 / WINCH 400 MOTOR ITEM PART/PIECE ENGLISH DESCRIPTION DESCRIPTION FRANCAISE NOTE 451173 6 M.JIC - 10 M.ORB 6 M.JIC - 10 M.ORB 469016 HYDRAULIC MOTOR MOTEUR HYDRAULIQUE Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 152 H09 - MOTEUR TREUIL 750 / WINCH 750 MOTOR ITEM PART/PIECE ENGLISH DESCRIPTION DESCRIPTION FRANCAISE NOTE 469136 HYDRAULIC MOTOR MOTEUR HYDRAULIQUE 451173 6 M.JIC - 10 M.ORB 6 M.JIC - 10 M.ORB Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 153 H10 - CYLINDRE BENNE / DUMPER CYLINDER ITEM PART/PIECE ENGLISH DESCRIPTION DESCRIPTION FRANCAISE NOTE 467304 HYDRAULIC CYLINDER CYLINDRE HYDRAULIQUE 451229 8 M.JIC - 8 M.ORB 45° 8 M.JIC - 8 M.ORB 45° Anderson Group, 5125 de la Plaisance Chesterville (Québec) G0P 1J0 Email : service@grpanderson.com...
  • Page 154 HYDRAULIC CYLINDER CYLINDRE HYDRAULIQUE 451169 6 M.JIC - 4 M.ORB 6 M.JIC - 4 M.ORB 450913 6 F.JIC - 6 M.JIC 6 F.JIC - 6 M.JIC Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 155 6 M.JIC - 8 M.ORB 467030 HYDRAULIC CYLINDER CYLINDRE HYDRAULIQUE 452501 HYDRAULIC FITTING ADAPTEUR HYDRAULIQUE 450993 6 F.JIC - 4 M.NPT 6 F.JIC - 4 M.NPT Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 156 8 M.ORB - 8 F.NPSM 45 1.1.3 452000 1/2 QUICK COUPLER NPTM RACCORD RAPIDE 1/2 NPTM VA SUR LE BOYAU HYDRAULIQUE / GO ON HYDRAULIC HOSE Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 157 6 M JIC - 8 M ORB 6 M JIC - 8 M ORB 2.1.1.5 451396 8 M.ORB - 8 F.NPSM 45 8 M.ORB - 8 F.NPSM 45 Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 158 HEX BOLT GR5 5/16-18 X 2 1/2 BOULON HEX GR5 5/16-18 X 2 1/2 501031 HEX NYLON LOCKNUT GR5 5/16-18 Z CROU NYLON IND HEX GR5 5/16-18 Z Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 159 8 M.NPT - 8 M.NPT 45 8 M.NPT - 8 M.NPT 45 2.1.1.5 451396 8 M.ORB - 8 F.NPSM 45 8 M.ORB - 8 F.NPSM 45 Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...
  • Page 160 8 M.ORB - 8 F.NPSM 45 8 M.ORB - 8 F.NPSM 45 3.1.1.4 450008 HYDRAULIC FITTING ADAPTEUR HYDRAULIQUE 3.1.1.5 452001 QUICK COUPLER 1/2 F RACCORD RAPIDE 1/2 F Anderson Group, 5125 de la Plaisance Chesterville (Qu bec) G0P 1J0 Email : service@grpanderson.com...

This manual is also suitable for:

M115M140M160Rf380Rf410Rf512 ... Show all

Table of Contents
