Summary of Contents for Orbinox EB

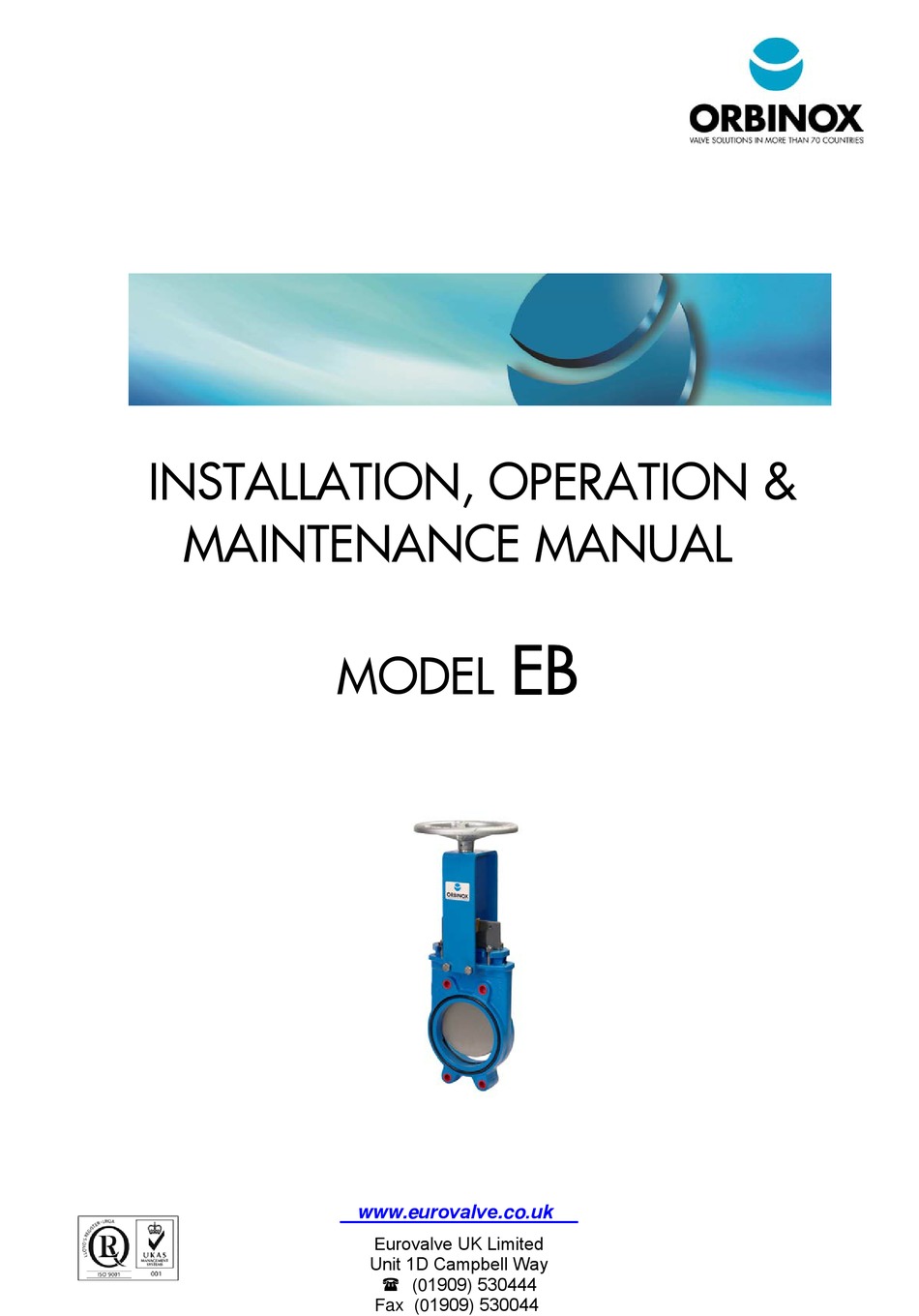

- Page 1 INSTALLATION, OPERATION & MAINTENANCE MANUAL MODEL www.eurovalve.co.uk E urovalve UK Limited Unit 1D Campbell Way (0 1909 ) 530444 Fax (0 1909 ) 530044...
- Page 2 6.- Parts list & drawing ........……………………………………..….... 0.- DESCRIPTION The EB model knife gate is a bi-directional valve and consequently it can be installed without considering the flow direction. This valve is designed for general industrial service applications. The design of the body and seat assures non-clogging shut-off with suspended solids.
- Page 3 Eyebolts: make sure the eyebolts have the same thread as the boltholes and they are all well • secured. Ideally when using lifting gear to move an Orbinox valve, it should be supported by two or more eyebolts screwed into the tapped fixing holes in the valve body.
-
Page 4: Installation
The valve can be mounted in any position with regard to the pipe. However, it is advisable to place it vertically in horizontal pipeline (A) if the installation allows it. (Please consult the technical department at Orbinox). With larger diameters (> 300 mm), heavy actuators (pneumatic, electric, etc.), or with the valve installed horizontally (B) or at an angle (C) on a horizontal pipeline, the installation will require the construction of suitable supports. - Page 5 Once the valve is installed, test that the flanges have been fastened correctly and that all electrical and/or pneumatic connections have been properly made. These instructions must be observed when installing an Orbinox knife gate valve in an ATEX zone: Make sure the valve is ATEX marked according to the requested zone and it includes all •...
- Page 6 Make sure these actuators are ATEX marked according to the requested zone. • Maximum travel speed of the gate must equal or below 0,05 m/s • www.e urovalve .co .uk EDITION 01-2017 E urovalve UK Limited EB-6/11 Unit 1D Campbell Way (0 1909 ) 530444 Fax (0 1909 ) 530044...
-
Page 7: Maintenance
4.- MAINTENANCE The valve must not undergo any modifications without a previous agreement with ORBINOX. ORBINOX shall not be liable for any damages that may arise due to the use of non original parts or components. To avoid personal injury or damage to property from the release of process fluid: •... - Page 8 12.Carry out some operations with a loaded circuit and then re-tighten the gland follower (5) to prevent leakage. www.e urovalve .co .uk EDITION 01-2017 E urovalve UK Limited EB-8/11 Unit 1D Campbell Way (0 1909 ) 530444 Fax (0 1909 ) 530044...
- Page 9 • Any other materials but those above are not allowed to be used in ATEX zones. • In order to keep the ATEX approval, always use original spares from Orbinox. • Washer DIN 6798A (This washer guarantees continuity among carbon steel parts, coated...
- Page 10 For any component installed in the valves, electric motors, solenoid valves, etc, please refer to their own instructions manuals www.e urovalve .co .uk EDITION 01-2017 E urovalve UK Limited EB-10/11 Unit 1D Campbell Way (0 1909 ) 530444 Fax (0 1909 ) 530044...
-
Page 11: Parts List & Drawings
4.- PACKING LINE 10.- NYLON COLLAR AND WASHER 5.- GLAND FOLLOWER 11.- PIN 6.- STEM 12.- HANDWHEEL www.e urovalve .co .uk EDITION 01-2017 E urovalve UK Limited EB-11/11 Unit 1D Campbell Way (0 1909 ) 530444 Fax (0 1909 ) 530044...
