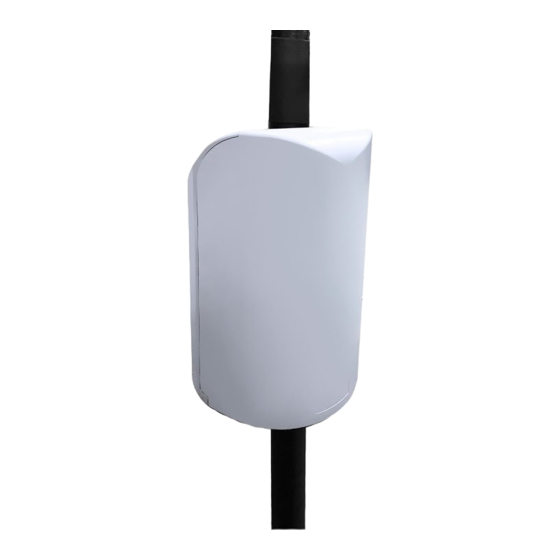

BLiNQ Networks Inc. FW-300i Quick Installation Manual

QUICK INSTALLATION GUIDE –
FW-300i
This quick installation guide is designed to aid in the initial setup FW-300i
system. For information on configuring the FW-300i, please refer to the
FW-300i User Guide.
Installation should be performed by trained personnel, adhering to the
applicable local, regional and national regulatory requirements.
ALL safety, electrical and regulatory requirements need to be met by
the operator and/or installer/user.
SPECIFICATIONS
FW3-B48-00-HP-NA / FW3-B42-43-HP-EU*
RADIO
FW3-B48-00-HP-NA: TDD LTE Band 48
Frequency Band
FW3-B42-43-HP-EU: TDD LTE Band 42/43
Transmit Power -10dBm up to 30dBm (33dBm for Sector 1)
PERFORMANCE AND ATTRIBUTES
TDD-LTE (Supports all standard frame
Operating Mode
configurations)
Power Consumption 180 W
Power 48 VDC
Current Draw
4 Amp max.
(AC/DC)
1 x Copper 1000BaseT
Connectivity
Optional: 1 x SFP
Integral GPS antenna (GPS, GLONASS,
Synchronization
BeiDou), 1588v2
CBRS CBSD Category B
Embedded EPC Software Option
MECHANICAL
Dimensions
13.78" x 22.4" x 8.9" (350 x 570 x 227 mm)
(L x W x D)
Survival Wind Speed Up to 124 mph (200 km/hour)
Weight 30.8 lbs (14 kg)
Operational
-40°C to 60°C (-40°F to 140°F)
Temperature
Lightning Protection DC Ground
Pole Diameter
2.5" to 6" (63.5 to 152.4 mm)
Supported
Mechanical
0 – 10 degrees
Uptilt/Downtilt
*For regulatory information, please refer to the FW-300i User Guide.
Confidential - Restricted Use and Duplication
© 2012-2021 BLiNQ Networks Inc. All rights reserved.
FW3-B48-00-NA / FW3-B48-00-HP-NA / FW3-B42-43-HP-EU
FW3-B48-00-NA*
RADIO
Frequency Band
Transmit Power
PERFORMANCE AND ATTRIBUTES
Operating Mode
Power Consumption
Power
Current Draw (AC/DC)
Connectivity
Synchronization
CBRS
Embedded EPC
MECHANICAL
Dimensions
(L x W x D)
Survival Wind Speed
Weight
Operational
Temperature
Lightning Protection
Pole Diameter
Supported
Mechanical
Uptilt/Downtilt
*For regulatory information, please refer to the FW-300i User Guide.
PACKAGE CONTENTS
QUANTITY DESCRIPTION
1 FW-300i unit with Hanging Bracket
1 Mounting Bracket
2 Clamps
3/8"-16, 7" L Carriage Bolt
4
3/8"-16, 1 1/4" L Hex Screw
4
3/8" Split Lock Washer
8
3/8" Washers
12
3/8"-16 Hex Nuts
8
Ferrite Core
1
6.5' (2 m; 18 AWG) DC Cable
1
BLINQ NETWORKS (CCARI) • 205 - 140 RENFREW DRIVE, MARKHAM, ON L3R6B3 CANADA • 1-800-301-4962
Online Help Portal: support.blinqnetworks.com
TDD LTE Band 48
-10dBm up to 30dBm (33dBm for Sector 1)
TDD-LTE (Supports all standard frame
configurations)
150 W
48 VDC
3.5 Amp max.
1 x Copper 1000BaseT
Optional: 1 x SFP
Integral GPS antenna (GPS, GLONASS,
BeiDou), 1588v2
CBSD Category B
Software Option
13.78" x 22.4" x 8.9" (350 x 570 x 227 mm)
Up to 124 mph (200 km/hour)
26.5 lbs. (12.0 Kg)
-40°C to 60°C (-40°F to 140°F)
DC Ground
2.5" to 6" (63.5 to 152.4 mm)
0 – 10 degrees

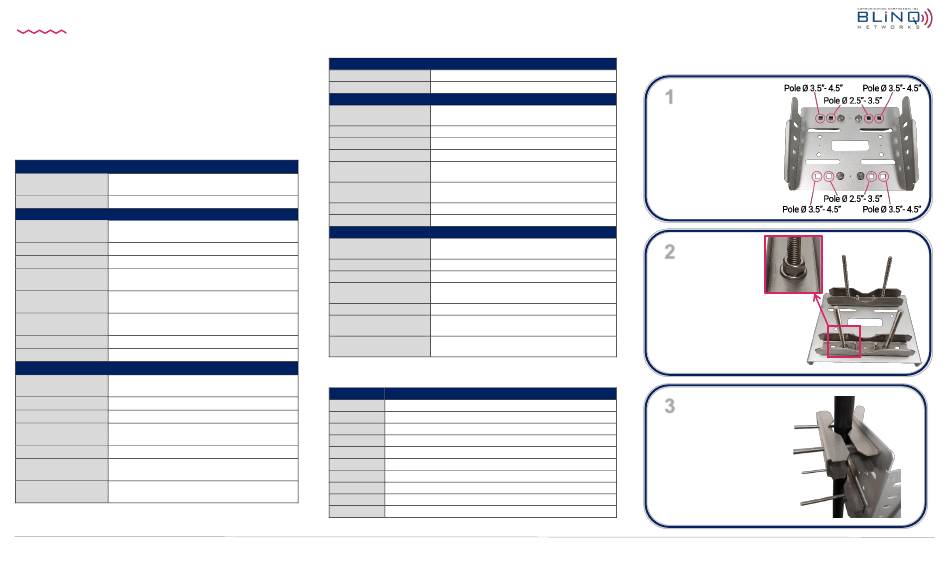

INSTALLATION
Installing Pole Mount
1
Slot four carriage bolts into
the four-square openings of
the mounting bracket,
according to the diameter of
the pole – two on the top row
and two on the bottom row.
2
Turn mounting bracket
around and insert a 3/8"
washer and a 3/8" hex
nut into the carriage bolt
and tighten the nut by
hand. Repeat till all four
carriage bolts are
secured.
3
Set mounting bracket
upright, against the
pole.
Slide clamp through the
top two carriage bolt s,
with the pole in the
middle of clamp and
bracket.
BQD00005 – RevB02 | Page 1
