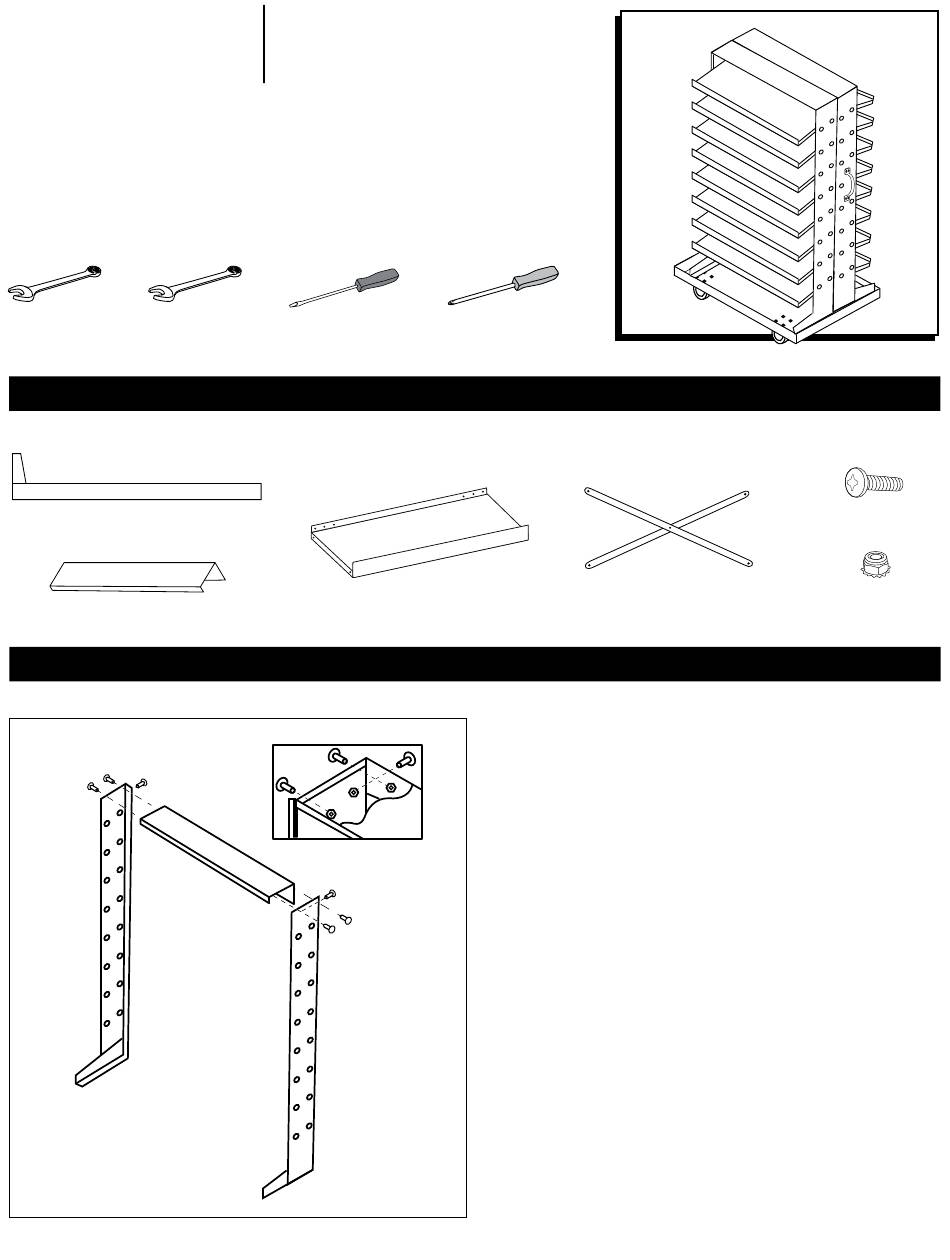

π
MOBILE GRAVITY
BIN ORGANIZER

TooLS nEEdEd

10mm
11mm
Wrench
Wrench
2 racks included. Each carton contains:
Upright x 2 (1 left, 1 right)
Crossbeam x 1
Figure 1
PAGE 1 OF 3
1-800-295-5510
uline.com
Flat Head
Screwdriver

RACK PARTS LiST

Shelf x 8

RACK ASSEmbLy

Phillips
Screwdriver
Brace x 2 (1 Set)
1. Attach the crossbeam to one of the uprights using
3 bolts and 3 locknuts. Make sure that the back
lip of the upright is facing inside. Repeat for the
second upright. (See Figure 1)
Bolt x 48
Locknut
0714 IH-3895

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-3895 and is the answer not in the manual?

Questions and answers

Related Manuals for U-Line H-3895

Summary of Contents for U-Line H-3895

  • Page 1 π 1-800-295-5510 uline.com MOBILE GRAVITY BIN ORGANIZER TooLS nEEdEd 10mm 11mm Flat Head Phillips Wrench Wrench Screwdriver Screwdriver RACK PARTS LiST 2 racks included. Each carton contains: Bolt x 48 Upright x 2 (1 left, 1 right) Shelf x 8 Brace x 2 (1 Set) Locknut Crossbeam x 1...
  • Page 2 RACK ASSEmbLy ConTinUEd 2. Attach top shelf to uprights using 2 bolts and Figure 2 2 locknuts on each side. Repeat for remaining 7 shelves. (See Figure 2) 3. Attach 1 brace diagonally to the back of the unit Figure 3 using 2 bolts and 2 locknuts.
  • Page 3 mobiLE bASE PARTS LiST Nut x 24 Bolt x 33 Deck x 1 Handle x 2 Lock Washer x 16 Locknut x 9 Swivel Caster x 2 Locking Swivel Caster x 2 mobiLE bASE ASSEmbLy noTE: There may be hardware left over after Figure 4 assembly as this mobile base is used for multiple products.
