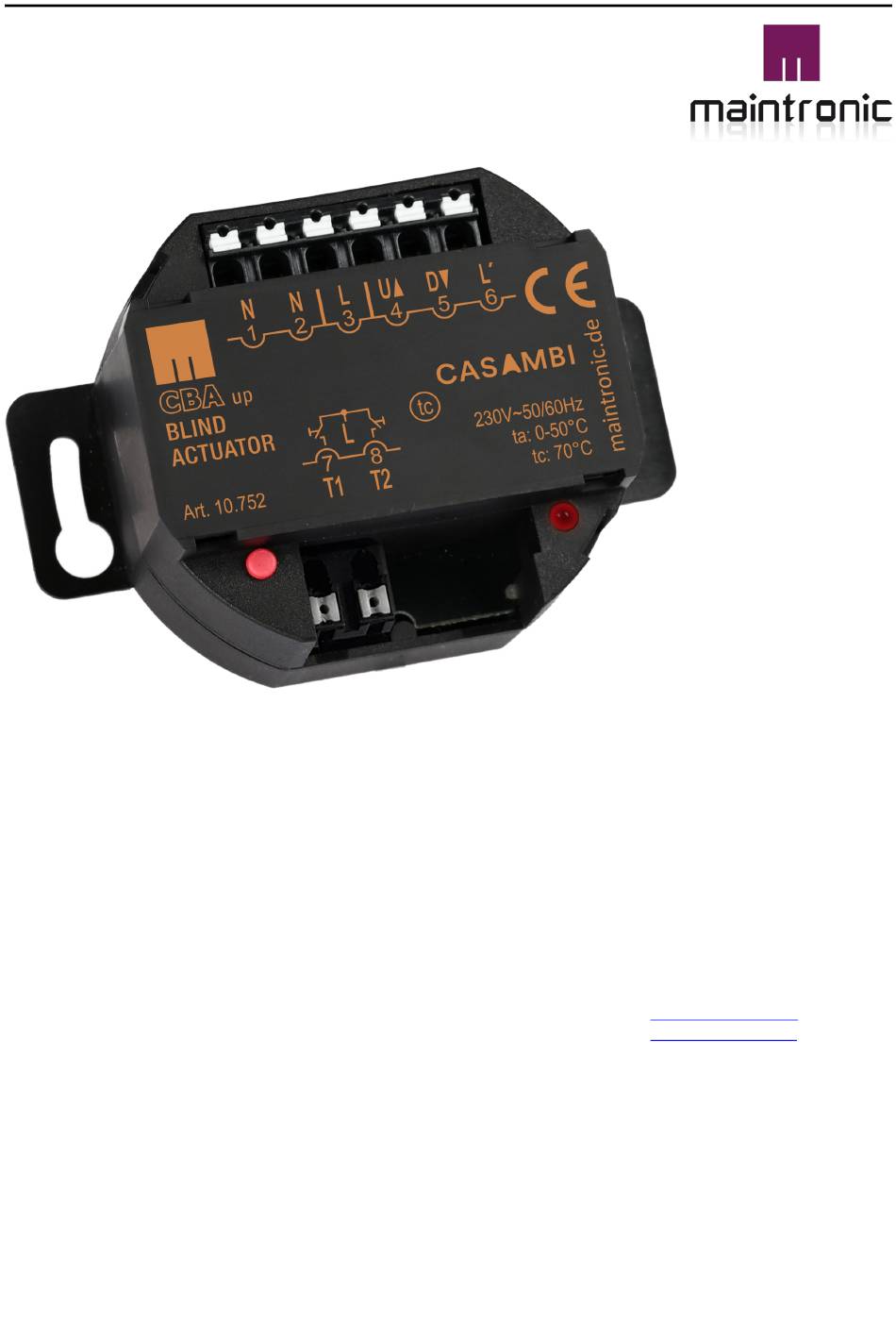

product number
product name
10.752
CBA UP
Dokument
Version: 20221014
Manufacturer's address and contact details
Adress
MTC maintronic GmbH
Carl-Zeiss-Straße 10
D-97424 Schweinfurt/Germany
product designation
 Casambi Jalousieaktor UP
supported product version
H1 F2.5
Contact details
E-Mail
Web
Phone
info@maintronic.com
www.maintronic.com
0049 9721 7766-0

Advertisement

Table of Contents
loading

Related Manuals for Maintronic CBA UP

Summary of Contents for Maintronic CBA UP

  • Page 1 10.752 CBA UP  Casambi Jalousieaktor UP H1 F2.5 Dokument Version: 20221014 Manufacturer's address and contact details Adress MTC maintronic GmbH Contact details E-Mail info@maintronic.com Carl-Zeiss-Straße 10 www.maintronic.com D-97424 Schweinfurt/Germany Phone 0049 9721 7766-0...

  • Page 2: Table Of Contents

    9. Service and maintenance . CBA UP ........

  • Page 3: Notes To The Instruction . Cba Up

    1. Notes to the instruction . CBA UP 1.1 Applicable documents This document contains all the necessary information for using this product. Please refer to this document in partial instructions (such as installation instructions). 1.2 Usage This manual describes everything necessary for the safe and efficient use of the device. The manual is an integral part of the product and must be handed over to the end customer.

  • Page 4: Used Symbols

    Zero-cross switch - Device powers up or voltage down by zero crossing of the sinewave Wireless protocol Casambi Weight in gramm DALI protocol interface CBA UP - 10.752 Manual english - www.maintronic.com / 4 53...
  • Page 5 The symbols explained here show the technical data of the devices.  changeover relay These symbols can be found in the technical documentation of the respective device. Number indicates the amount of relays CBA UP - 10.752 Manual english - www.maintronic.com / 5 53...
  • Page 6 Switch Relay (normally open contact) Number indicates the amount of relays and 16A the switch current of the relay Relay with high inrush current - current peaks up to 165A for 20mS CBA UP - 10.752 Manual english - www.maintronic.com / 6 53...

  • Page 7: Storage

    Dieses Handbuch wurde mit größtmöglicher Sorgfalt erstellt, es sind dennoch Fehler und Irrtümer nicht vollständig auszuschließen. Die Firma MTC maintronic GmbH übernimmt keinerlei Haftung für Personen- oder Sachschäden, die sich aus Fehlern oder Irrtümern in dieser Bedienungsanleitung herleiten oder durch Nichtbeachtung von Sicherheitshinweisen.

  • Page 8: Safety . Cba Up

    2. Safety . CBA UP 2.1 General safety information Qualified personnel DANGER The unit must only be installed and serviced by a proven electrican specialist, in accordance of all relevant regulations, safety and accident prevention directives of the country. Be sure that the existing mains voltage corresponds with the specified operating voltage before operating the device.
  • Page 9 CE-marking The devices comply with the EU directives applicable at the time they are placed on the market.  CBA UP - 10.752 Manual english - www.maintronic.com / 9 53...

  • Page 10: Intended Use

    Betrieb gemäß den aufgeführten technischen Daten die Installation in trockenen Innenräumen die Nutzung mit den am Gerät vorhandenen Anschlussmöglichkeiten HINWEIS Zur bestimmungsgemäßen Verwendung gehört auch die Einhaltung aller Angaben dieser Nutzerinformation. CBA UP - 10.752 Manual english - www.maintronic.com 10 53...

  • Page 11: Not-Intended Use

    Veränderungen Reparaturen Einsatz im Außenbereich Einsatz in Nasszellen MTC maintronic GmbH haftet nicht für Schäden, die durch bestimmungswidrige Verwendung des Geräts entstehen. Das Risiko hierfür trägt allein der Benutzer/Betreiber. CBA UP - 10.752 Manual english - www.maintronic.com 11 53...

  • Page 12: Functions . Cba Up

    3. Functions . CBA UP 3.1 Performance characteristics The device can be controlled via the Casambi app, available for iOS and Android. Another optional operation ist given by the push button input. Casambi app automatically identifies the device and can be integrated into existing networks. All functions triggered by the buttons are individually configurable.

  • Page 13: Technical Data . Cba Up

    4. Technical data . CBA UP Specification CBA UP Artikel Nr. 10.752 Power supply 130 ... 240V AC 50/60Hz Switching type 2x interlocked changeover  Switching output Fuse External fuse max 10A required Power consumption Standby 0,22W Switch operation  0,77W Terminals and wiring Phoenix push-in spring connection 0,5 - 1,5 mm²...

  • Page 14: Installation . Cba Up

    5. Installation . CBA UP 5.1 Considerations and planning A Casambi network is a mesh network and every participant (dimmer, switches, etc.) extend the reach of the network. Casambi is based on the energy-saving Bluetooth 4.0 standard. If a module is nearby, all luminaires within range of this module can be controlled.

  • Page 15: Mechanical Installation

    (>60 mm) is highly recommended. Depending on which push- button is used, up to 30 mm of the available space must be deducted. CBA UP - 10.752 Manual english - www.maintronic.com 15 53...
  • Page 16 Install the device with labeling, LED and device button must point to the front. Remove the eyelets and flip the device, install with labeling, LED and device- button faces forwards. CBA UP - 10.752 Manual english - www.maintronic.com 16 53...

  • Page 17: Electrical Installation

    Please note that mains voltage is always applied to the pin of the switched phase L ́ (pin 6) as long as no active movement is carried out via the Casambi control level. Connection diagram CBA UP - 10.752 Manual english - www.maintronic.com 17 53...
  • Page 18 Wiring 0,5...1,5mm²  Solid conductor 0,5...1,5mm²  Fine-stranded conductor 0,5...0,75mm²  Fine-stranded conductor with ferrule CBA UP - 10.752 Manual english - www.maintronic.com 18 53...
  • Page 19 Operating elements Controls Device button Status LED CBA UP - 10.752 Manual english - www.maintronic.com 19 53...

  • Page 20: Commissioning . Cba Up

    6. Commissioning . CBA UP 6.1 Operation with Casambi The device can be controlled via the Casambi app, available for iOS and Android. Another optional operation ist given by the push button input. Casambi app automatically identifies the device and can be integrated into existing networks. All functions triggered by the buttons are individually configurable.
  • Page 21 The following steps are necessary for this purpose: Open Casambi App Choose existing network or create a new network Go to nearby devices Add found maintronic device to a network CBA UP - 10.752 Manual english - www.maintronic.com 21 53...

  • Page 22: Select An Operating Mode

    24873 CBA Shutter + Buttons + Group Position Position Slider (0% - 100%) Single trip Up ON/OFF Toggle Down Single trip Down ON/OFF Toggle Master Group ON/OFF Toggle Master Function CBA UP - 10.752 Manual english - www.maintronic.com 22 53...
  • Page 23 CBA Blind + Buttons Integration of external buttons and use of scenes same as CBA Blind + Buttons CBA Blind + Buttons + Group Operate several CBA UP together in a group Profiles für Roller Blinds Operation via app CBA Shutter...
  • Page 24 The fixture "CBA Blind" has no additional controls for control via external buttons or scenes. For this, the fixture "CBA Blind + Buttons" ID 18445 or "CBA Blind + Buttons + Group" ID 24843 would have to be used.   CBA UP - 10.752 Manual english - www.maintronic.com 24 53...
  • Page 25 In addition to the two sliders for position and angle, the fixture "CBA Blind + Buttons" has a toggle switch for each direction of travel and a push button for the slat adjustment. The switches and buttons can be used to program scenes when automated drives are to be used.   CBA UP - 10.752 Manual english - www.maintronic.com 25 53...
  • Page 26 (toggle switch) for a group function. The switches and buttons can be used to program scenes when automated drives are to be used.   CBA UP - 10.752 Manual english - www.maintronic.com 26 53...
  • Page 27 The fixture "CBA Shutter" has no additional controls for control via external buttons or scenes. For this, the fixture "CBA Shutter + Buttons" ID 19477 or "CBA Shutter + Buttons + Group" ID 24873 would have to be used.   CBA UP - 10.752 Manual english - www.maintronic.com 27 53...
  • Page 28 In addition to the slider for position, the fixture "CBA Shutter + Buttons" has a toggle switch for each direction of travel. The switches and buttons can be used to program scenes when automated drives are to be used.   CBA UP - 10.752 Manual english - www.maintronic.com 28 53...
  • Page 29 In addition to the slider for position, the fixture "CBA Shutter + Buttons + Group" has a toggle switch for each direction of travel and a master switch (toggle switch) for a group function. The switches and buttons can be used to program scenes when automated drives are to be used.   CBA UP - 10.752 Manual english - www.maintronic.com 29 53...
  • Page 30 Casambi Profile - CBA Buttons - Fixture ID 19474 App Icon Bedienelemente Parameter Application Push button operation without slider function Possibility of switching (driving till the end) and buttons (press = drive, release = stop) CBA UP - 10.752 Manual english - www.maintronic.com 30 53...
  • Page 31 Parameter Application Push button operation without slider function Possibility of switching (driving till the end) and buttons (press = drive, release = stop) + Additional group function with master switch. CBA UP - 10.752 Manual english - www.maintronic.com 31 53...

  • Page 32: Change Operating Mode

    In order to select a specific operation mode, a Casambi profile must be selected via the Casambi app when teaching the device. Preparation Device must be unpaired: Open Casambi App and select „... More“ Open "Nearby Devices" Change Profile Tap on the desired device Select "Change Profile" CBA UP - 10.752 Manual english - www.maintronic.com 32 53...
  • Page 33 Tap on the desired profile Select "Start Update" Add the device to a network Wait for the update to complete successfully Select "Use in my network" Device is now connected to your network CBA UP - 10.752 Manual english - www.maintronic.com 33 53...

  • Page 34: Calibration

    Set the measured time in ms in the parameters under „Angle Time“. Set drive direction If the drive direction is not correct, the parameter „Swap Controls Up/Down“ can be used to swap the direction. CBA UP - 10.752 Manual english - www.maintronic.com 34 53...

  • Page 35: Operation . Cba Up

    7. Operation . CBA UP 7.1 Notes for operation There are different methods to operate the blind actuator. Driving with "Drive Time" When driving with an adjusted "Drive Time", a single pulse (e.g. pressing a button or starting a time-controlled scene) is triggered, which causes the blind / roller blind etc.
  • Page 36 Perform a calibration (reference run measure time - see instructions 6.5) Set Drive Time and Angle Time manually in the parameters of each device Combine all desired blind actuators together in a Casambi group CBA UP - 10.752 Manual english - www.maintronic.com 36 53...
  • Page 37 In order to drive the connected blind of the master device individually via app, the toggle switch "Master" must first be deactivated. After that, the individual blind can be operated as usual. CBA UP - 10.752 Manual english - www.maintronic.com...

  • Page 38: Sensors And Parameters

    Swap Controls Up/Down Logical inversion of the direction of drive No | Yes Reverse direction of drive Push Button mode Behavior of keystroke gears Button Casambi Casambi Group Button Switch Group Switch CBA UP - 10.752 Manual english - www.maintronic.com 38 53...

  • Page 39: Operation With App

    A toggle switch in the app acts like a conventional  ON Switch and has two positions and OFF The switch remains in its position until a new switching command comes   CBA UP - 10.752 Manual english - www.maintronic.com 39 53...
  • Page 40 Button A button has no fixed position but is only active as long as the button   is held. CBA UP - 10.752 Manual english - www.maintronic.com 40 53...

  • Page 41: Operation With Push-Button Input

    The following steps are necessary: Open the Casambi app and select "... More" Open item "Switch" Choose your maintronic module with keystroke gears Scroll down to the item "Button" As an example, program buttons with single function. Controls select a luminaire (default) Tap on "luminaire"...
  • Page 42 In the parameter settings of the master, the "push-button mode" must be set to "Button" or "Switch", then the keystroke gears of the device react directly to the device.   CBA UP - 10.752 Manual english - www.maintronic.com 42 53...

  • Page 43: Operation With Wireless Switch

    Controls an element - here the "Up" or "Down" toggle switch of the master must be used Then you have a button for a run "Up" or "Down" Proceed the same way for the opposite direction CBA UP - 10.752 Manual english - www.maintronic.com 43 53...
  • Page 44 With the CTS2 module, a convenient function with visual feedback is possible through a built-in LED. Thus, you always know by a light LED whether an individual or group ride is set. CBA UP - 10.752 Manual english - www.maintronic.com...
  • Page 45 With the two created scenes, an animation is now created (IMPORTANT is that the time for the scene of the run must be shorter than the set drive time)    CBA UP - 10.752 Manual english - www.maintronic.com 45 53...
  • Page 46 Please note for animations with Toggle Switch: The scene or animation ends when the drive time expires. If animations are used, the animation must be at least 1 second shorter than the drive time. CBA UP - 10.752 Manual english - www.maintronic.com 46 53...

  • Page 47: Operation With Device Button

    The device-button has the same priority as the Casambi App, the last one wins.  Switching pattern * Function Relais   green Relais   STOP Relais   DOWN STOP Relais   * Short press on the device-button CBA UP - 10.752 Manual english - www.maintronic.com 47 53...

  • Page 48: Push-Button Mode

    If several blind actuators are combined as a group, one device of the group must be defined as the master. For the desired master, the push button style must be set to Group Button. The other maintronic devices in the group are automatically slaves and the function of the master takes place.

  • Page 49: Programming Timers

    Double click on the device → scroll to "Manual control" → set the parameter to "Timeout, if automation waiting"  program scene with toggle switch Deactivate scene in THE timer after the desired drive time has elapsed "Turns OFF" (Turns OFF time must be greater than drive time) CBA UP - 10.752 Manual english - www.maintronic.com 49 53...
  • Page 50 CBA UP - 10.752 Manual english - www.maintronic.com 50 53...

  • Page 51: Troubleshooting . Cba Up

    8. Troubleshooting . CBA UP 8.1 Failure causes and solutions Faulty group drives Group drive command responds only the single device Please check if the toggle switch master is activated on the desired device. Not all blind actuators respond during a group drive It could be possible that there are several masters defined in the group.
  • Page 52 NOTE Without access to the network, there is no way of making changes to the device or removing it from a network. CBA UP - 10.752 Manual english - www.maintronic.com 52 53...

  • Page 53: Service And Maintenance . Cba Up

    9. Service and maintenance . CBA UP CBA UP - 10.752 Manual english - www.maintronic.com 53 53...
