Power PWM Actuator 1CH
DASPip INS
Quick guide
Gültig für folgende Versionen:
(H=Hardware F=Firmware)
10.712 - DASPip INS
H 2 F 1.5.0
10.772 - DASPip UP
H 1 F 1.5.0
DASPip_10712_10772_Manual_EN
Dokument Datum: 10.07.2018
1. Safety instructions
For your own safety, read all instructions and information in
this manual carefully before initial operation.
Keep this manual for future reference.
• The instructions are an integral part of the product and
must be handed to the end customer.
• All information and instructions in this manual must be ob-
served completely and in detail. The manufacturer is not
responsible for any direct or consequential damage that
results from disregarding any information in this manual.
• Electrical equipment may only be installed by a qualified
electrician in compliance with the country-specific stan-
dards, guidelines and regulations.
• Risk of electric shock. Do not operate the device without
a cover. Even when switched off, voltage may be present
at the outputs. When working on the device or connected
loads, always disconnect the upstream fuse from the po-
wer supply.
• Install the device only on places with a good ventilation
and without humidity or high temperatures. Do Not expose
the unit to rain or snow. Do not operate the unit near heat
sources, e.g. radiators.
• Make sure the applied mains voltage matches to the speci-
fied operating voltage before operating the device.
The device may only be used
• as a dimmer for switching and dimming lights
• firmly in a dry and clean environment
• only approved for indoor use
• that access is only possible with tools
• only operate on 1 phase with 230 V AC
• with a backup fuse of max. 16A
1
2. Functions / Features
• DALI 1CH Power PWM Actuator for LED
• energy saving design through feedforwards relay
• control with DALI or tastDIM (230V touch dimming) (1)
• DALI interface (D1/D2) / own DALI-short adress
• EEG frequency shift compliant
• Protection circuits for safe operation
Dimming or switching commands are operated by DALI para-
meters or by pressing a button (tastDIM).

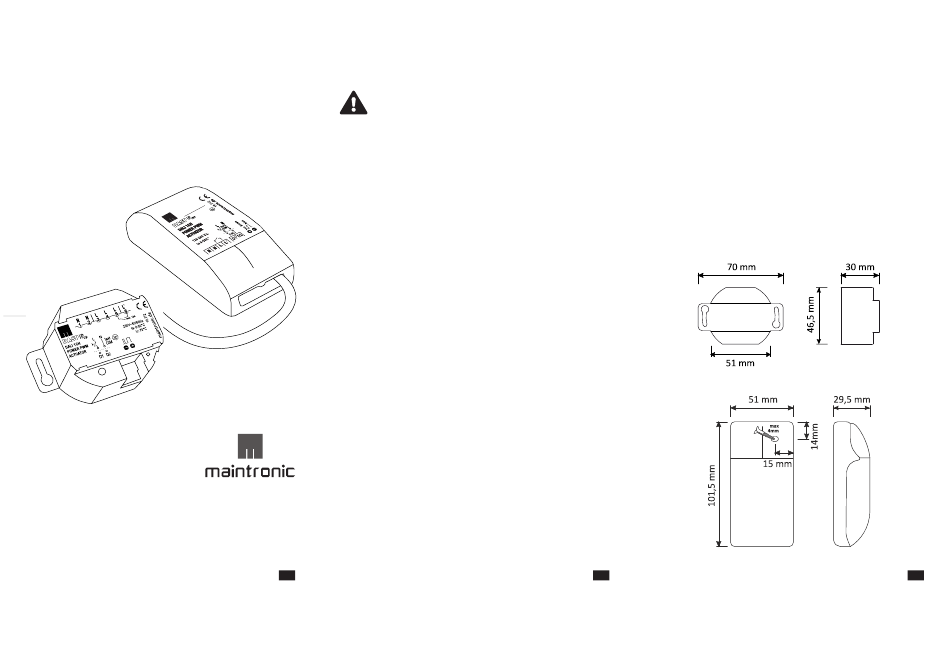

2.1 Installation
DASPip UP - flush mounting
DASPip INS - Installation housing for indoor use, for ceiling or
luminaire installation, in floor ducts or for wall mounting.
2
