Control 4 C4-DIN-BEG-V2 Installation Manual page 2

Before you install in a third-party DIN rail panel
1 Install the third-party panel according to the third-party instructions.
Installation instructions
Install in a Control4 Panel
1 With the Ethernet port facing right, hold the Bus Ethernet Gateway upright
and angle it to the left so that the left side of the module fits onto the rail in
the panel (see Figure 2).

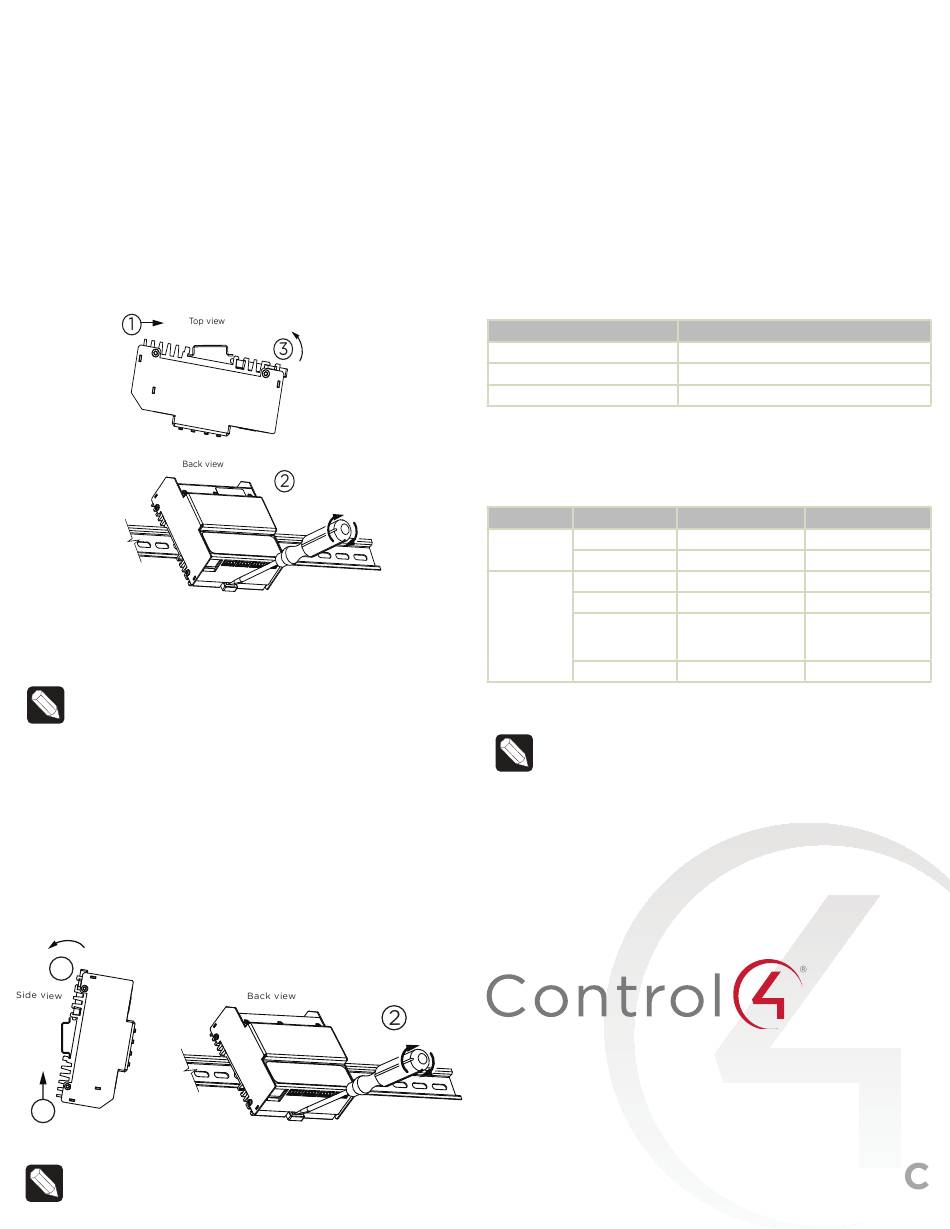

Figure 2: Snap on the Bus Ethernet Gateway - Control4 Panels
2 With the left side already in place, use a flat blade screwdriver to move the
latch.
3 While pressing forward on the right side of the Bus Ethernet Gateway,
release the latch to secure it onto the rail.
Note: To remove the module, use a flat blade screwdriver to move the
latch, pull it out from the right side, and remove it from the left side.
Installing the module horizontally in a third-party panel
Third-party DIN rails can be mounted in any orientation; however, these
instructions assume a horizontal orientation.
1 With the Ethernet port facing up, hold the module lengthwise and angle it
down so that the bottom side of the module fits onto the rail (see Figure 3).
2 With the bottom side already in place, use a flat blade screwdriver to move
the latch.
3 While rotating it upward, release the latch to secure it onto the rail.
Figure 3: Snap on the Bus Ethernet Gateway - third-party panels
3
1
Note: To remove the module, push the module toward the bottom,
rotate the module up, and lift it off.
4 On the top of the Bus Ethernet Gateway, connect the Ethernet Cat5 cable to
the RJ-45 port.
5 Install the other modules in the panel as defined in their respective
installation guides.
Wiring diagrams
For information about bus wiring details, refer to the Keypad Bus Wiring Guide.
Operations and configuration
Button taps
Function
Identify
Factory reset
Reboot
LED indicators
The indicator lights on the front of the Bus Ethernet Gateway communicate the
status of the device.
Indicator Color
Status Blue
Black
Link/Activity Solid green
Orange
Flashing green
Flashing red
Reset button
Note: The Reset button is recessed and must be pressed using a
paperclip or similar device. A single press of the Reset button is
equivalent to powering the Bus Ethernet Gateway off and back on.
Warranty and legal information
Find details of the product's Limited Warranty and other safety, patent, and legal
resources at snapone.com/legal or request a paper copy from Customer Service
at 866.424.4489 .
