OfficeSource PL178L Assembly Instructions

®
OFFICE FURNITUR E
1 2
Cam Lock
16 Pcs
A
1
Line up Cam Lock,
turn clockwise.
IMPORTANT !! IMPORTANT !!
Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the parts from Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the parts from
being scratched. being scratched.
Check that you have all parts and hardware. Check that you have all parts and hardware.
Remove all wrapping materials, including staples & packing straps before you start to assemble. Remove all wrapping materials, including staples & packing straps before you start to assemble.
Do not tighten any screws or bolts until the unit is completely assembled. Do not tighten any screws or bolts until the unit is completely assembled.
Keep all hardware parts out of reach of children. Keep all hardware parts out of reach of children.
Last Updated: 7/2022

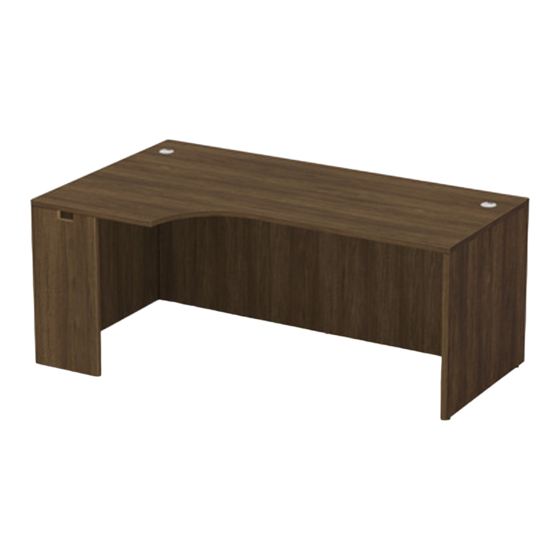

Thank you for purchasing the Office Source Bow Front Pork Chop Desk.
Please follow these instructions for easy assembly.
3 4
Housing
Klix Cam
Cap (Long)
16 Pcs
9 Pcs
B
Top Panel Back Panel

KLIX CAM INSTRUCTIONS

2
Insert the cam with the arrow
pointing towards the hole in the
5 6
Adjustable
Housing
Glide
Cap (Short) L-Bracket
5 Pcs
7 Pcs
C D
Side Panel #A Side Panel #B
3
Insert the Cam Lock into Klix
Cam. Turn Klix Cam to lock.
edge.
ASSEMBLY INSTRUCTIONS
MODEL NO. PL178L/R
PL 178L/R GG
PORKCHOP CRED
7 9
Screw
M4 x 65
6 Hole
Allen-Key
#6 x 5 "
8
30 Pcs
5 Pcs
E
Side Panel #C
PAGE 1 OF 2
OFFICESOURCE.COM
1 Pc
