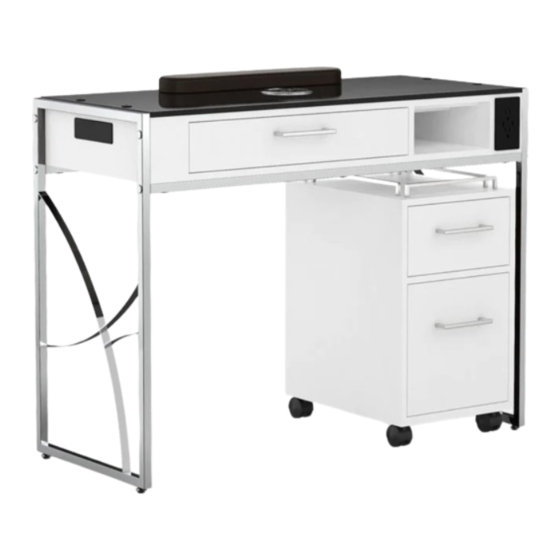

Manicure table

Advertisement

Available languages

Available languages

Step 1: place the Top Cabinet on the floor (cover foam sheet
under to prevent scratching) with top plane down the floor.
Top Cabinet
Foam Sheet
Fig.1
INSTRUCTION FOR ASSEMBLY PRIVE 300 MANICURE TABLE
Step 2: attach Left and Right Leg Frame into Top cabinet
by Positioning Pin.
Right Leg Frame
Fig.2
Left Leg Frame
Top Cabinet
Positioning Pin
Step 3: insert Bolt to connect Top Cabinet with Left and Right
Leg Frame then close the Cap Cover.
8 Bolt M6 x 25
Fig.3
8 Cap Cover

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRIVE 300 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lexor PRIVE 300

  • Page 1 INSTRUCTION FOR ASSEMBLY PRIVE 300 MANICURE TABLE Step 3: insert Bolt to connect Top Cabinet with Left and Right Step 1: place the Top Cabinet on the floor (cover foam sheet Step 2: attach Left and Right Leg Frame into Top cabinet Leg Frame then close the Cap Cover.
  • Page 2 Assembly Double Nail Table : Put connector pipe into vent hole of Nail Table A and then assemble Nail Table B into Nail Table A by Connector Pipe Vent hole cover Connector Pipe PVC pipe 3 inch output Nail Table A Nail Table B Fig.4...
  • Page 3 HƯỚNG DẪN LẮP RÁP PRIVE 300 MANICURE TABLE Bước 2: lắp Khung Chân Trái, Phải vào Cụm Tủ Trên bằng 4 Bước 3: lắp Ốc để liên kết Cụm Tủ Trên với Khung Chân Trái Bước 1: đặt Cụm Tủ Trên ở trên mặt sàn ( lót tấm xốp ở dưới để...
  • Page 4 Lắp ráp 2 bàn nail: đặt ống nối thẳng vào lỗ thông hơi của bàn nail A sau đó lắp bàn nail B vào bàn nail A bằng ống nối thẳng Nắp Bích Bàn Nail Ống Nối Thẳng Ống Nối Ngoài Bàn Nail A Bàn Nail B Hình.
