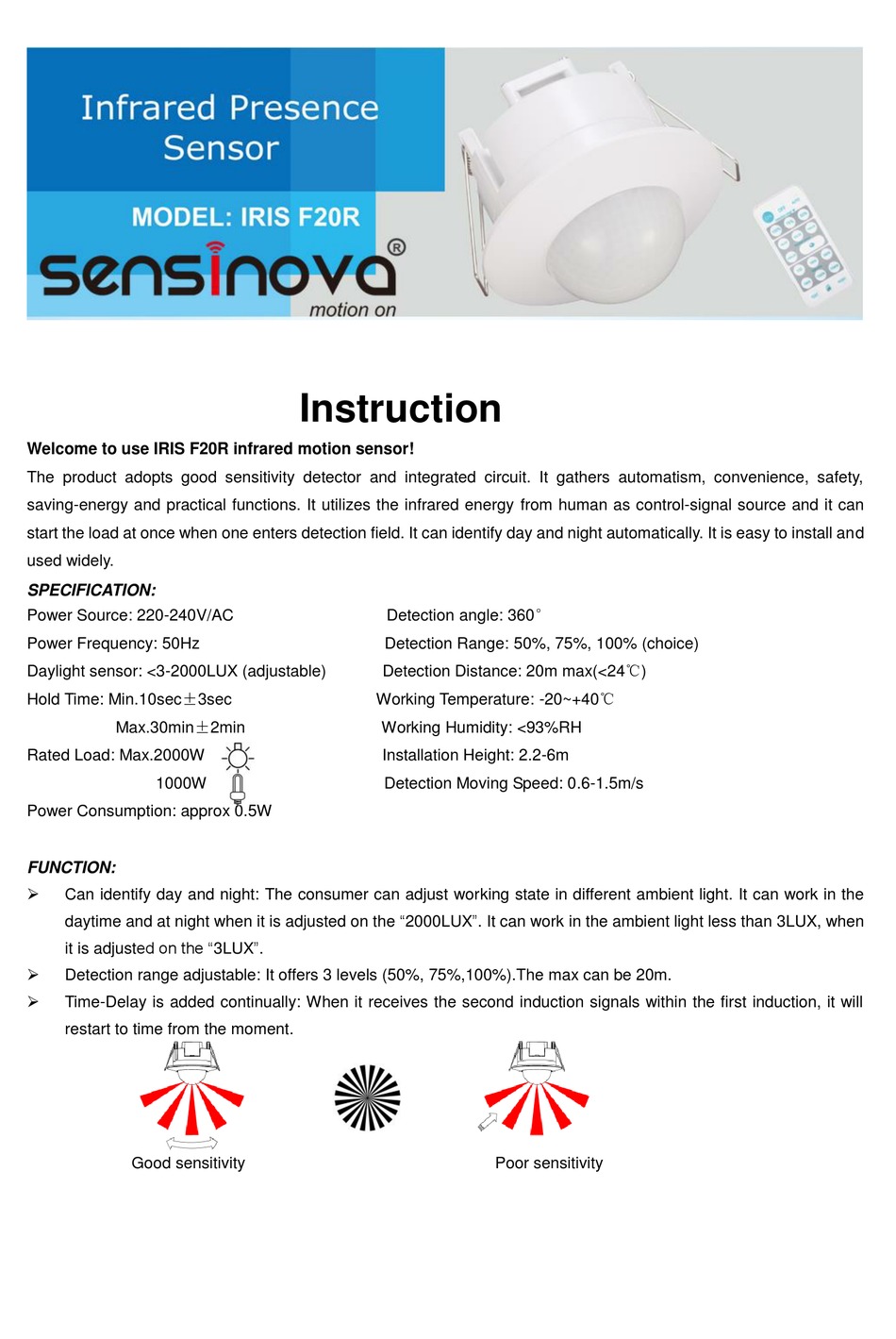

SENSINOVA IRIS F20R Instructions

Welcome to use IRIS F20R infrared motion sensor!
The product adopts good sensitivity detector and integrated circuit. It gathers automatism, convenience, safety,
saving-energy and practical functions. It utilizes the infrared energy from human as control-signal source and it can
start the load at once when one enters detection field. It can identify day and night automatically. It is easy to install and
used widely.

SPECIFICATION:

Power Source: 220-240V/AC
Power Frequency: 50Hz
Daylight sensor: <3-2000LUX (adjustable)
Hold Time: Min.10sec±3sec
Max.30min±2min
Rated Load: Max.2000W
1000W
Power Consumption: approx 0.5W

FUNCTION:


Can identify day and night: The consumer can adjust working state in different ambient light. It can work in the
daytime and at night when it is adjusted on the "2000LUX". It can work in the ambient light less than 3LUX, when
it is adjusted on the "3LUX".

Detection range adjustable: It offers 3 levels (50%, 75%,100%).The max can be 20m.

Time-Delay is added continually: When it receives the second induction signals within the first induction, it will
restart to time from the moment.
Good sensitivity
Instruction
Detection angle: 360°
Detection Range: 50%, 75%, 100% (choice)
Detection Distance: 20m max(<24℃)
Working Temperature: -20~+40℃
Working Humidity: <93%RH
Installation Height: 2.2-6m
Detection Moving Speed: 0.6-1.5m/s
Poor sensitivity
