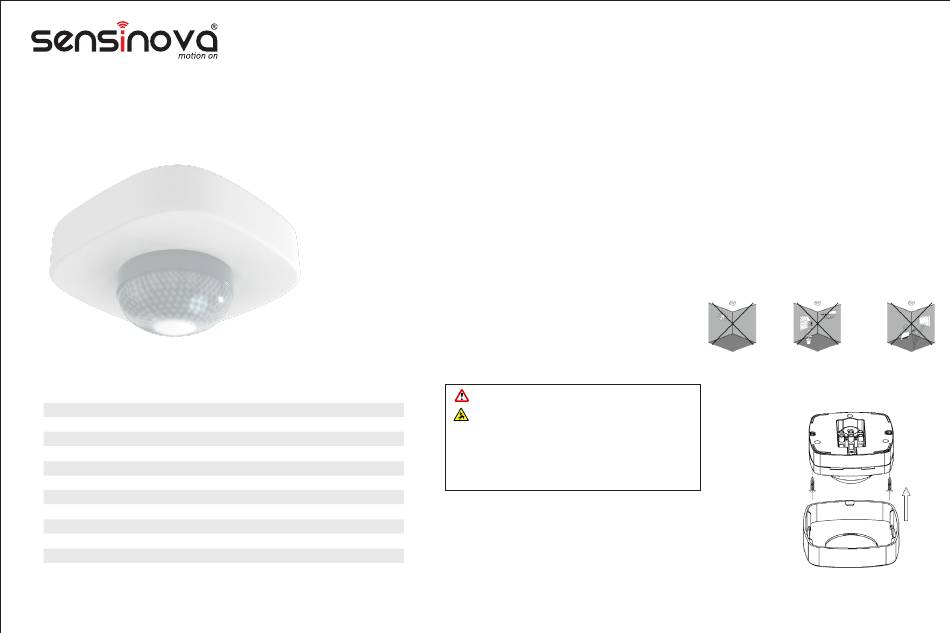

IRIS-S20
TECHNICAL SPECIFICATION
Power Source:
220-240V/AC
Power Frequency:
50Hz
Detection Range:
360
o
Ditection Distance:
20m max(<24 C)
Ambient Light:
<3-2000LUX (Adjustable)
Hold Time:
Min. 10Sec±3Sec, 30Min±2min
Working Temprature:
-5°C~+55°C
Working Humidity:
<93%RH
Power Consumption:
Approx 0.5W
Rated Load:
2000W(Incandescent), 1000W (LED Load)
Installation Height:
2.2-6m
o
IRIS-S20 PIR MOTION SENSOR
Congratulation on purchasing your new sensor and thank you for the confidence you have shown in us.
You have chosen a high-quality product that has been manufactured, tested and packed with the greatest
care. Please familiarize yourself with these instructions before attempting to install the product because
prolonged, reliable and trouble-free operation will only be ensured if it is fitted and used properly.
We hope your new sensor will bring you lasting pleasure.
FUNCTIONS
• Can identify day and night: The consumer can adjust working state in different ambient light. It can work
in the daytime and at night when it is adjusted on the "sun" position (max). It can work in the ambient
light less than 3LUX, when it is adjusted on the "3" position (min). As for the adjustment pattern,
please refer to the testing pattern.
• Time-Delay is added continually: When it receives the second induction signals within the first induction,
it will restart to time from the moment.
INSTALLATION
1) Avoid pointing the detector towards objects with
highly reflective surfaces, such as mirrors etc.
2) Avoid mounting the detector near heat sources,
such as heating vents, air conditioning units, light etc.
3) Avoid pointing the detector towards objects that may
move in the wind, such as curtains, tall plants etc.
WARNING
DANGER OF DEATH THROUGH ELECTRIC SHOCK!
• Must be installed by professional electrician.
• Disconnect power source.
• Cover or shied any adjacent live components.
• Ensure device cannot be switched on.
• Check power supply is disconnected.
4) Unload the cover directly.
5) Connect the power and the load into the connection-wire column of
the sensor according to connection-wire diagram.
6) Fix the sensor on the selected position with the inflated screw as
the figure on the right.
7) Install back the cover and then you can test it.
Fig 1
Advertisement
Related Manuals for SENSINOVA IRIS-S20
Summary of Contents for SENSINOVA IRIS-S20
- Page 1 IRIS-S20 PIR MOTION SENSOR Congratulation on purchasing your new sensor and thank you for the confidence you have shown in us. You have chosen a high-quality product that has been manufactured, tested and packed with the greatest care. Please familiarize yourself with these instructions before attempting to install the product because IRIS-S20 prolonged, reliable and trouble-free operation will only be ensured if it is fitted and used properly.
- Page 2 CONNECTION- APPLICATION WIRE DIAGRAM Daylight Function Hold time is set to 30 sec, Lux is set to 300 Fig 2 Light on when detect movement and off After people leave at leave at night. Applications: Corridor, Staircase. Note: When testing in daylight, please turn LUX knob to (SUN) position, otherwise the sensor could not work! CALIBRATION: 1) Sensitivity Reach is the term used to describe the diameter of the more or less circular detection zone...
- Page 3 NOTE • Electrician or experienced human can install it. • Can not be installed on the uneven and shaky surface • In front of the sensor there shouldn’t be obstructive object affecting detection. • Avoid installing it near the metal and glass which may affect the sensor. •...
