NOVA - PFC-S Microwave Sensor
Instruction Manual

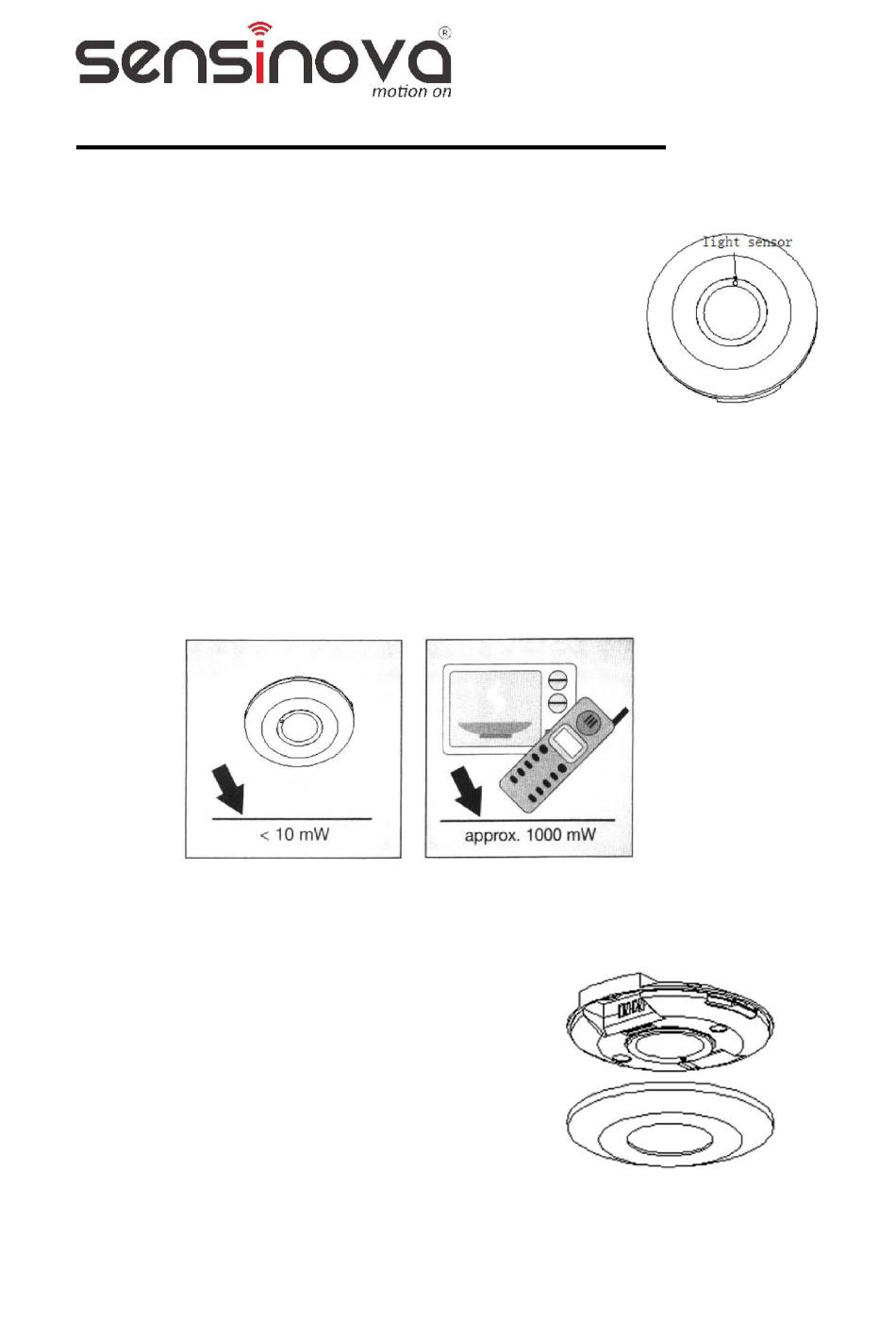

The sensor is an active motion detector, it emits
high-frequency electro-magnetic wave (5.8GHz) and
receives their echo. The sensor detects the change in echo
from even the slightest movement in its detection zone. A
microprocessor then triggers the "switch light ON" command.
Detection is possible through doors, panes of glass or thin
walls.
Important: Persons or objects moving towards the
sensor are detected best !
NOTE: The high-frequency output of this sensor is <10Mw- that is just one 100th of the
transmission power of a mobile phone or the output of a microwave oven.
Technical Specifications
Power supply: 220-240VAC
Power frequency: 50/60Hz
Installation site: Indoors, Ceiling mounting
HF system: 5.8GHz CW radar，ISM band
Transmission power: <10mW
Current: MAX.7A
Power consumption: <0.5W
Detection angle: 360°
Reach: max.8m (radius), adjustable
Time setting: 8sec/ 3min/ 8min/ 12min, adjustable
Light Control: 10lux/ 20lux/ 30lux/ 2000lux
Output: Dry contact
Advertisement
Related Manuals for SENSINOVA NOVA-PFC-S
Summary of Contents for SENSINOVA NOVA-PFC-S
- Page 1 NOVA - PFC-S Microwave Sensor Instruction Manual The sensor is an active motion detector, it emits high-frequency electro-magnetic wave (5.8GHz) and receives their echo. The sensor detects the change in echo from even the slightest movement in its detection zone. A microprocessor then triggers the “switch light ON”...
- Page 2 Product Dimension (mm): Connection illumination: Important: Connection must be done by an electrician or a specialist. This product is using microwave motion detection function to give dry closing contact signal for the controlled system (this signal is passive dry closing contact signal only.) This product has a built-in daylight function, and different detection rang, hold time, daylight threshold options for customer to choose by dip switches.
- Page 3 Light-control setting The chosen light response threshold can be infinitely from approx.10lux-30lux. Switch to the on is “1”, switch to the off is “0”; he corresponding file of switch location and detection distance as follow: 20LUX 30LUX 10LUX Time setting Time can be set 20s to 10min.Any movement detected before this time elapse will re-start the timer.
- Page 4 Troubleshooting Malfunction Cause Remedy The load will not work ·wrong light-control setting selected ·Adjust setting ·load faulty ·Change load ·mains switch OFF ·Switch ON The load work always ·continuous movement in the ·Check zone setting detection zone The load work without any ·the sensor not mounted for ·Securely mount enclosure identifiable movement...
