ENGLISH

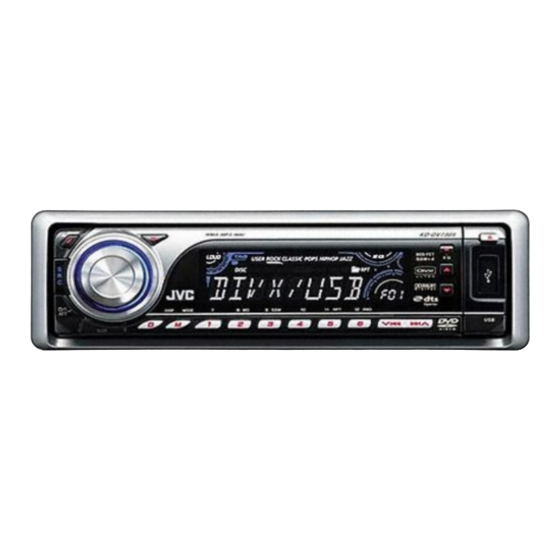

This unit is designed to operate on 12 V DC, NEGATIVE ground electrical systems. If your vehicle does
not have this system, a voltage inverter is required, which can be purchased at JVC car audio dealers.
WARNINGS
• DO NOT install any unit in locations where;
– it may obstruct the steering wheel and gearshift lever operations.
– it may obstruct the operation of safety devices such as air bags.
– it may obstruct visibility.
• DO NOT operate the unit while driving.
• If you need to operate the unit while driving, be sure to look around carefully.
• The driver must not watch the monitor while driving.
If the parking brake is not engaged, "DRIVER MUST NOT WATCH THE MONITOR WHILE
DRIVING." appears on the monitor, and no playback picture will be shown.
– This warning appears only when the parking brake wire is connected to the parking brake
system built into the car.
To prevent short circuits, we recommend that you disconnect the battery's negative terminal and make all
electrical connections before installing the unit.
• Be sure to ground this unit to the car's chassis again after installation.
Notes:
• Replace the fuse with one of the specified rating. If the fuse blows frequently, consult your JVC car audio
dealer.
• It is recommended to connect to the speakers with maximum power of more than 50 W (both at the rear
and at the front, with an impedance of 4 Ω to 8 Ω). If the maximum power is less than 50 W, change
"Amp Gain" setting to prevent the speakers from being damaged (see page 37 of the INSTRUCTIONS).
• To prevent short-circuit, cover the terminals of the UNUSED leads with insulating tape.
• The heat sink becomes very hot after use. Be careful not to touch it when removing this unit.

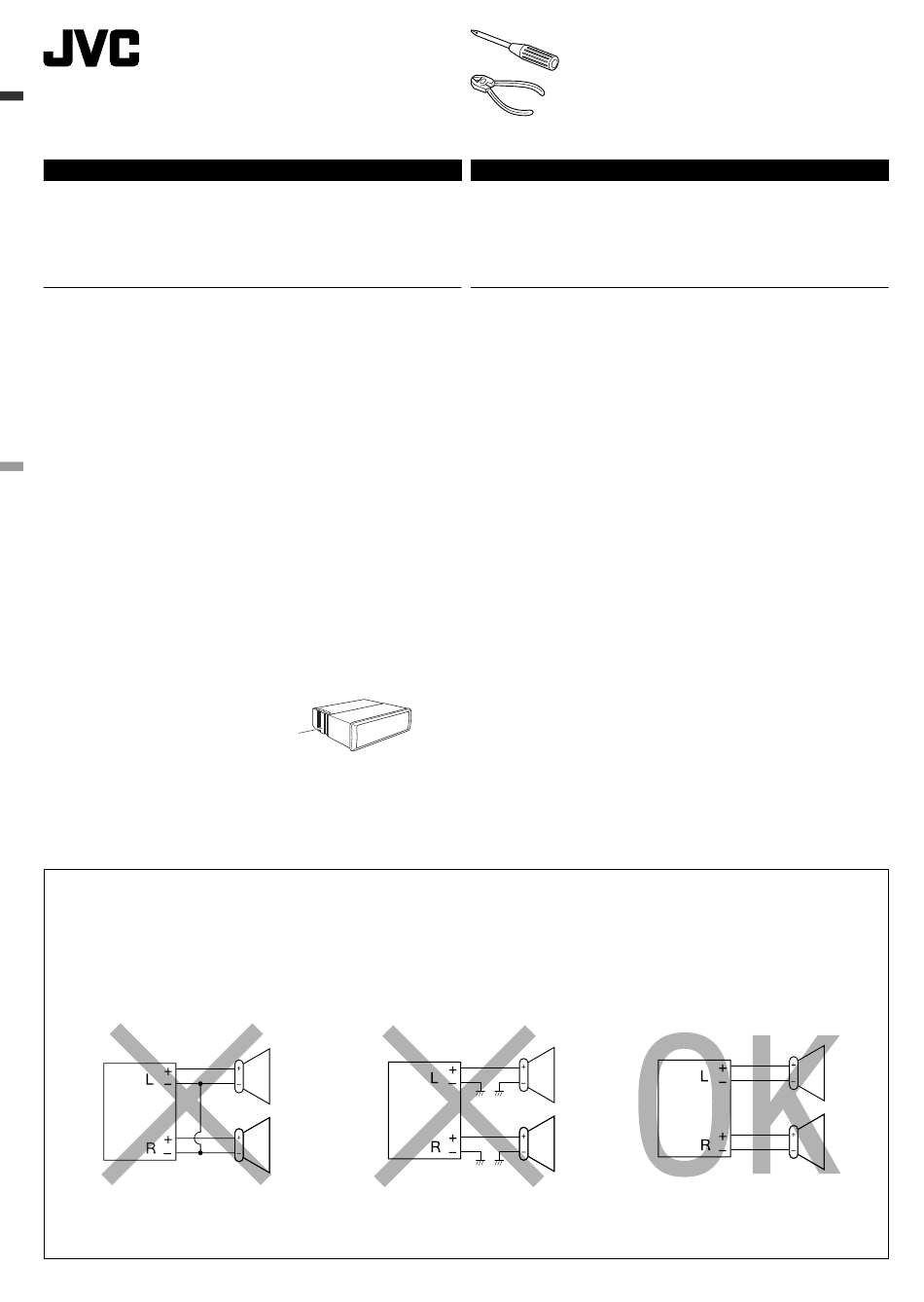

PRECAUTIONS on power supply and speaker connections:
• DO NOT connect the speaker leads of the power cord to the car battery; otherwise, the unit
will be seriously damaged.
• BEFORE connecting the speaker leads of the power cord to the speakers, check the speaker wiring in
your car.
Heat sink
散熱片
中文
本機僅可使用直流 12 V 、負極接地的電源系統。如果您的車輛沒有這一電源系統，則需要一個電
壓變換器，可以在 JVC 汽車音響分銷商處買到。
警告
• 切勿將本機安裝在下述位置；
– 可能會妨礙操作方向盤和變速排檔桿的位置。
– 可能會妨礙操作安全裝置，如安全气袋等的位置。
– 可能會妨礙視野的位置。
• 切勿在駕駛過程中操作本機。
• 在駕駛過程中若需要操作本機，切記要密切注意前方。
• 駕駛員在駕駛過程中切勿觀看顯示器。
若手剎車末嚙合，"駕駛時，駕駛員請勿觀看顯示屏。"字樣在顯示器上出現，且無法播放圖
像。
– 僅當手剎車導線與汽車內置的手剎車系統相連接時此警告信息才會出現。
為防止短路，建議在安裝本機之前，斷開電池的負極，並把所有電路都連接好。
• 安裝完畢後務必將本機的地線重新接至車身。
注意:
• 把保險絲更換為額定負荷值的保險絲。如果保險絲經常燒壞，請向 JVC 汽車音響分銷商詢問。
• 後置和前置揚聲器的最大輸入功率應大於 50 W，其阻抗為 4 Ω
請調校"Amp Gain"設定值，以防止揚聲器損壞。（參閱使用說明書的第 37 頁。）
• 為防止電源短路，請用絕緣帶包住未使用電線的端子。
• 本機使用後，散熱片會很熱。因此，在移出本機時，小心不要觸摸散熱片。
電源和揚聲器接線注意事項:
• 切勿把揚聲器導線接頭接至電池，否則本機將會嚴重損壞。
• 在把揚聲器導線接頭接至揚聲器之前，檢查您汽車上的揚聲器線路。
