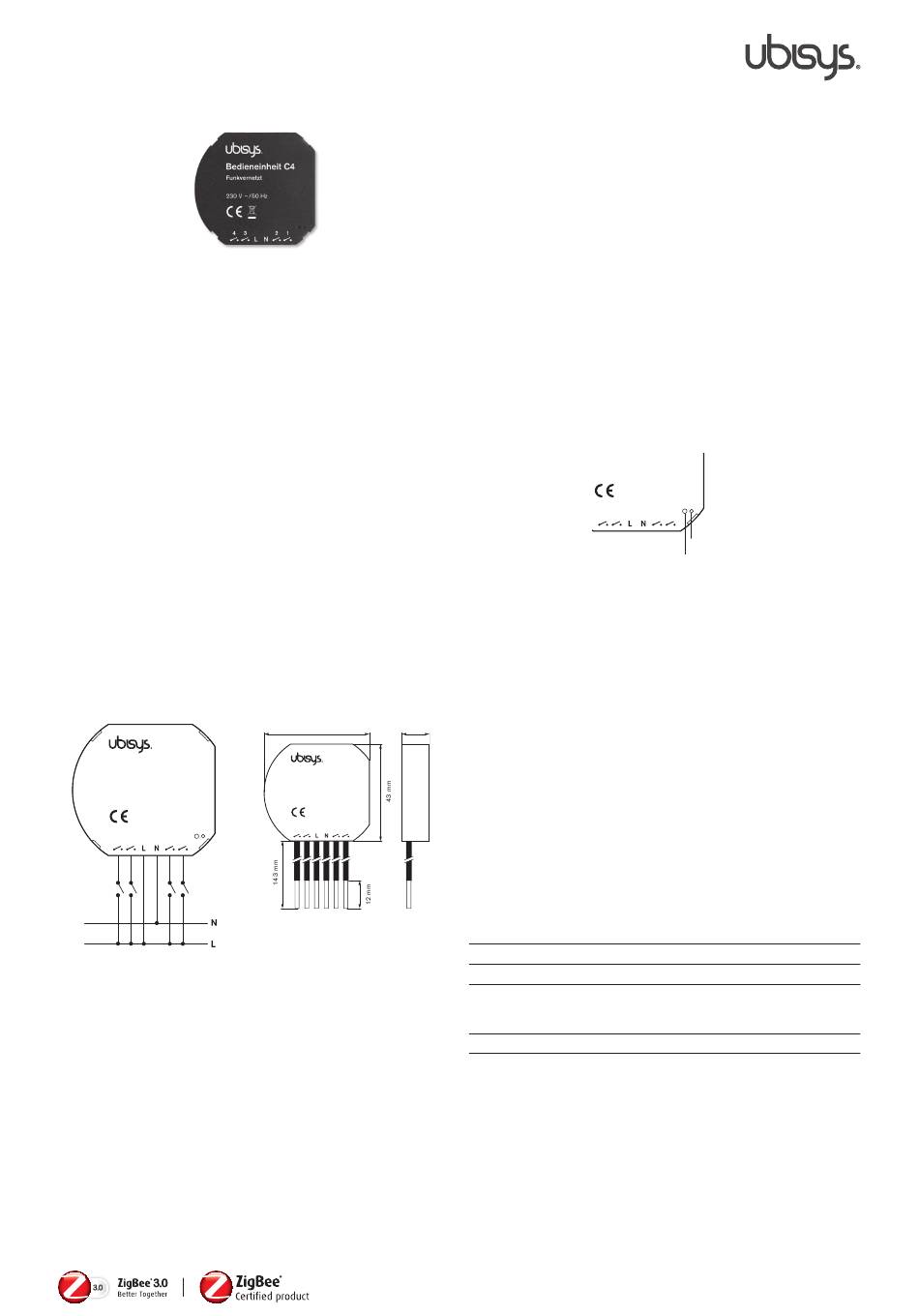

Ubisys C4 Quick Start Manual

Control unit C4
Radio linked
Jalousiesteuerung J1
Funkvernetzt mit
Stromverbrauchsmessung
230 V ~ / 50 Hz, 500 VA
2 2
1 1
Specifications
The control unit C4 is a radio controlled device with 4 universal inputs to
control further smart home components. In the current flush mount version,
it is compatible to standard switch boxes and fully integrates into the rest of
your smart home. It is not only suitable for new buildings, but also for existing
buildings, because retrofitting has, due to use of radio technology, no special
requirements to the electrical installation. For new buildings and renovations,
it helps reducing both planning and cabling costs. The system can gradually
be extended by adding new components. Determine scope and timing at any
time by yourself.
The control unit C4 is an additional option and offers full functionality when
combined with other components of the ubisys smart home product line and
allows for example:
•
Freely configurable assignments between control elements and consu-
mers
•
Leistungsschalter S2
Scenes and group controlling
•
Funkvernetzt mit
Can be connected to switches and motion sensors
Stromverbrauchsmessung
230 V ~ / 50 Hz, 2 x 500 VA
More information about the features of the ubisys smart home product line
can be found at www.ubisys.de.
2 1
Installation
The control unit C4 is designed for installation in flush mounted sockets
according to DIN 49073. For installation behind a switch, power socket or
motion sensor, deep sockets are recommended.
Leads:
12 mm 47 mm
Bedieneinheit C4
Universaldimmer D1
Funkvernetzt
Funkvernetzt mit
Stromverbrauchsmessung
AC 230 V ~ / 50 Hz
230 V ~ / 50 Hz, 500 VA
2 1
4 3
47 mm 12 mm
For installation of the control unit C4, the included clamps can be used.
During installation, the general risks of household voltage networks have to
be noted!
Router R0
90 - 270 V~, 50/60 Hz
(12 - 400 V=)
Basic ZigBee Commissioning
2
The device joins an open ZigBee network when it is factory new and power
is applied.
Universaldimmer D1
Funkvernetzt mit
Stromverbrauchsmessung
230 V ~ / 50 Hz, 500 VA
2 1
LED
Button
Router R0
90 - 270 V~ , 50/60 Hz
(12 - 400 V=)
Button
2 1
Dimensions:
12 mm 47 mm
Bedieneinheit C4
Funkvernetzt
AC 230 V ~ / 50 Hz
2
4 3 2
2 1
47 mm 12 mm
2
Factory Reset
Power-Cycle Sequencing Factory Reset: It is possible to instigate a factory
reset using a special power-cycle sequence. This is equivalent to selecting
Leistungsschalter S1
menu item #5, with the advantage that you need no access to the device
Funkvernetzt mit
Stromverbrauchsmessung
itself (only to its power supply).
230 V ~ / 50 Hz, 3.680 VA
1. Power the device for at least four seconds.
2. Interrupt the power supply for at least a second.
3. Reapply power for less than two seconds but more than half a second.
Notice that at the end of this cycle, the device is off and should remain off for
at least a second.
LED
4. Repeat the previous step two more times, for a total of three short
Button
power cycles.
5. Apply power to the device and leave it powered on. The device will now
factory reset and reboot.
Factory Reset via Button: To reset the device to its factory fresh settings
(e.g. in order to join it to another network afterwards), press the button in the
larger of the two holes on the front for more than 10 seconds until the LED
starts flashing rapidly. * )
Only use the electrically isolated tool provided with the device to press the
button in the hole.
Router R0
Funkvernetzt
AC 230 V ~ / 50 Hz
LED
Button
*) If the device has legacy firmware this feature might not be available. In this
case, keep the button pressed for one second, until the LED flashes three
times and then blinks once every second. Then press the button four times
for less than a second, until the LED flashes five times, followed by a pause,
then flashes five times again, followed by a pause, etc. In this state, keep the
button pressed for more than a second until the LED starts flashing rapidly.
Configuration
The control unit C4 has 4 inputs. Every single input can be configured indivi-
12 mm
dually and can be used to control smart home components.
For integration into the smart home radio network, the control unit C4 has to
be configured first. Direct access to the control unit C4 is not necessary for
configuration. That means that network configuration can also be done after
successful electrical installation. It is best to hold the 16 digit serial number
of the control unit C4 in the construction plan during installation. This allows
you to allocate the device at a later point.
When connected to power, the control unit C4 automatically logs into the
1
ZigBee network. After that it can be configured via the electrician's installati-
on software (ubisys Network Manager) or the ubisys smartphone app.
More information about adding and configuring ubisys smart home compon-
ents can be found in the ubisys Smart Home Installation manual.
Technical Information
Rated voltage
Own consumption
Radio technology
Environment temperature
*) More information about radio technology can be found at www.ubisys.de.
Leistungsschalter S2
Funkvernetzt mit
Stromverbrauchsmessung
230 V ~ / 50 Hz, 2 x 500 VA
2 1 2 1
LED
Button
Bedieneinheit C4
Funkvernetzt
AC 230 V ~ / 50 Hz
4 3 2 1
LED LED
Button
230 V ~, 50 Hz
0.3 W
ZigBee 3.0 in 2.4 GHz ISM Band,
IEEE 802.15.4 channels 11-26, 0...5dBm
transmitting power *)
-20°C - +45°C
LED
Button
Page 1/2 As per 02/2017
