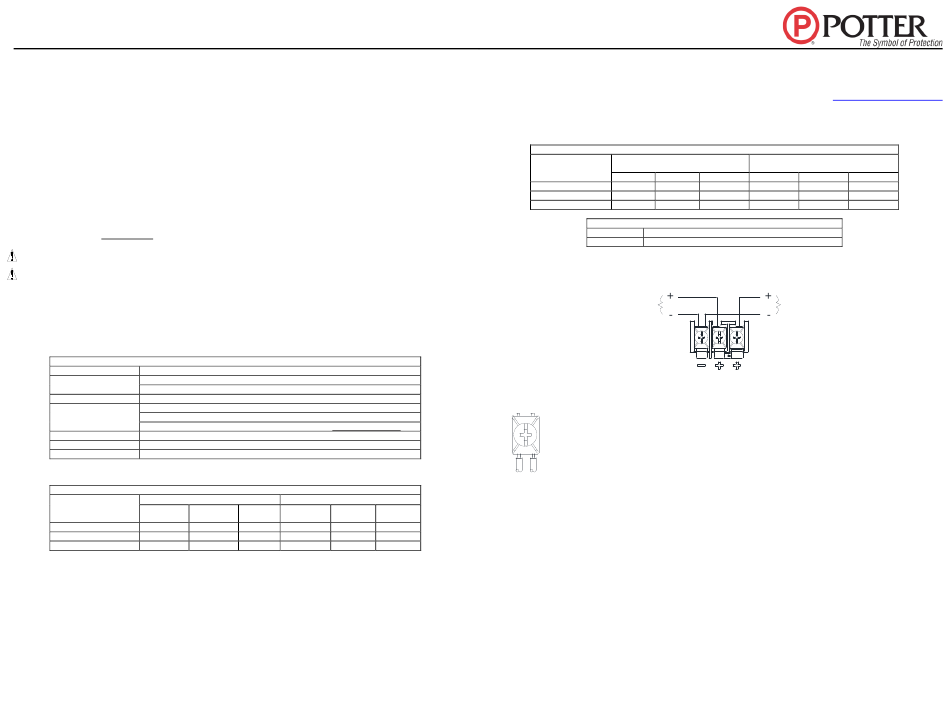

Potter PE-LFHN Series Installation Instructions

INSTALLATION INSTRUCTIONS
POTTER LOW FREQUENCY SOUNDERS
AND SOUNDER STROBES
WITH PRE-WIRE/PRE-TEST (WALL MOUNT)
Use this product according to this instruction manual. Please keep this instruction manual for future reference.

GENERAL:

The Potter Electric series PE-LFHN Sounder (520Hz) and PE-LFHS Sounder Strobe (110/177cd) appliances are designed for easy
installation with a pre-wire capable mounting plate. All models are for 24V operation. The PE-LFHN Sounder and PE-LFHS Sounder
Strobe are rated as low frequency devices per UL 464, suitable for sleeping areas per NFPA 72. The PE-LFHN sounder may be wall or
ceiling mounted.
The Potter PE series meets NFPA 2016 20 millisecond light pulse duration code requirements. The maximum number of PE series devices
per NAC is determined by dividing the maximum current rating of the FACP NAC by the total current rating of one PE series device, with a
maximum of 105 PE series strobe devices per NAC. Refer to FACP installation instructions for more detail.
The Potter PE series Multi-Candela Strobes provides a synchronized strobe appliance when used in conjunction with an FACP or power
supply that incorporates the Wheelock Sync protocol.
CAUTION: Do not change factory applied finishes. "DO NOT PAINT".
ATTENTION: Ne pas modifiez les finitions appliquées en usine. "NE PAS PEINTURER"
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. FAILURE TO COMPLY WITH ANY OF THE FOLLOWING
INSTRUCTIONS COULD RESULT IN IMPROPER APPLICATION, INSTALLATION AND/OR OPERATION OF THESE PRODUCTS IN
AN EMERGENCY SITUATION, WHICH COULD RESULT IN PROPERTY DAMAGE AND SERIOUS INJURY OR DEATH TO YOU
AND/OR OTHERS.

SPECIFICATIONS:

Models PE-LFHS (Sounder Strobe), PE-LFHN (Sounder)
Agency Strobe: UL1638, UL1971,CAN/ULC-S526-16
Sounder: UL464, CAN/ULC-S525-16
Input Voltage DC or FWR, 24V Regulated, 16 to 33V (All models)
Non-Sync: Continuous, Code 3 (field selectable)
Sounder Patterns
Wheelock Sync: Code 3 Sync, T3/T4 Sync (selectable w/Wheelock Sync)
Coded Operation: Use Continuous Setting on PE-LFHN Sounder Only Model
Strobe Light Output 110cd or 177cd (field selectable)
Max. line resistance: 35Ω
NAC Characteristics
Environmental Indoor Use Only. 0° C - 50° C (32° F - 122° F) 93% R.H.
* Code 3/Code 4 (T3/T4) operation requires the use of the Wheelock Sync or DSM-12/24-R sync module.
Table 2: Current Ratings (AMPS) **
Regulated 24DC (16-33VDC)
Sound Setting
PE-LFHS
110cd
Continuous (CONT) 0.164
Code 3 (T3) 0.164
Code 3/Code 4 (T3/4) 0.164
** Setting will determine the current draw of the product.
When calculating the total currents, use Table 2 to determine the highest value of RMS current for an individual appliance, then multiply
these values by the total number of appliances. Be sure to add the currents for any other appliances, including audible signaling
appliances powered by the same source, and to include any required safety factors.
Important: When installing strobes in an open office or other areas containing partitions or other viewing obstructions, special attention
should be given to the location of the strobes so that the operating effect can be seen by all intended viewers. Furthermore, the intensity,
number, and type of strobes shall be sufficient to alert the intended viewer with proper illumination, regardless of the viewers orientation.
PN P85753-005A
Table 1: Specifications
Regulated 24FWR (16-33VRMS)
PE-LFHS PE-LFHN PE-LFHS PE-LFHS
177cd 110cd 177cd
0.256 0.098 0.235 0.348
0.256 0.098 0.235 0.348
0.256 0.098 0.235 0.348
Sound Setting
Continuous
Code 3
Code 3/Code 4

WIRING DIAGRAMS:

Figure 2:

NOTES:

PE-LFHN 1. The strobe will produce 1 flash per second over the "Regulated Voltage" range.
2. Strobe are not designed to be used on coded systems in which the applied voltage is cycled on and off.
0.138 3. The maximum number of PE series strobes on a single notification appliance circuit shall not exceed 105.
These appliances are UL Listed as "Regulated". They are intended to be used with FACPs whose notification circuits are UL Listed
4.
0.138
as "Regulated." Refer to the FACP instructions for special application and strobe synchronization compatibility.
0.138
5. These appliances were tested to the regulated voltage limits of 16.0-33.0 Volts. Do not apply voltage outside of this range. Check
the minimum and maximum output of the power supply and standby battery and subtract the voltage drop from the circuit wiring
resistance to determine the applied voltage to the strobes. The max wire impedance between strobes shall not exceed 35 ohms.
Make sure that the total RMS current required by all appliances that are connected to the system's primary and secondary power
6.
sources, notification appliance circuits, sync modules, or Potter power supplies does not exceed the power sources rated capacity or
the current ratings of any fuses on the circuits to which these appliances are wired.
7. The Code 3 temporal pattern (1/2 second on, 1/2 second off, 1/2 second on, 1/2 second off, 1/2 second on, 1-1/2 off and repeat) is
specified by ANSI and NFPA 72 for standard emergency evacuation signaling. Code 3 Horn shall be used only for fire evacuation
signaling and not for any other purpose.
8. The Code 4 temporal pattern (100 ms on, followed by 100 ms off, for 4 cycles, followed by 5 seconds of silence and repeat), is specified
by ANSI and NFPA 720 for carbon monoxide emergency signaling.
9. The effect of shipping and storage temperatures shall not adversely affect the performance of the appliance when it is stored in the
original cartons and not subjected to misuse or abuse.
Table 3A: Sound Output – dBA at 10Ft
Reverberant dBA per UL 464
16V 24V 33V
80 80 80
80 80 80
80 80 80
Table 3B: ULC Directional Characteristics
-3dB +/- 90 Degrees Horizontal, +/- 89 Degrees Vertical
-6dB +/- 90 Degrees Horizontal, +/- 90 Degrees Vertical
Figure 1:
FROM PRECEDING APPLIANCE
FACP, POWER SUPPLY
OR SYNC MODULE
*Refer to Potter power supply or sync module instructions for additional information.
1. This model has in-out wiring terminals that accept two #12 to #18 American Wire Gauge (AWG) wires at
each screw terminal. Strip leads 3/8 inches and connect to screw terminals.
2. Break all in-out wire runs on supervised circuits to assure integrity of circuit supervision as shown in
Figure 2. The polarity shown in the wiring diagrams is for operation of the appliances. The polarity is
reversed by the FACP during supervision.
1609 Park 370
Hazelwood, MO 63042
1-800-325-3936
www.pottersignal.com
Anechoic dBA per CAN/ULC-S525-16
For Dwelling Use Only
16V 24V 33V
80 80 80
80 80 80
80 80 80
TO NEXT
APPLIANCE
OR E.O.L.R.
Page 1
