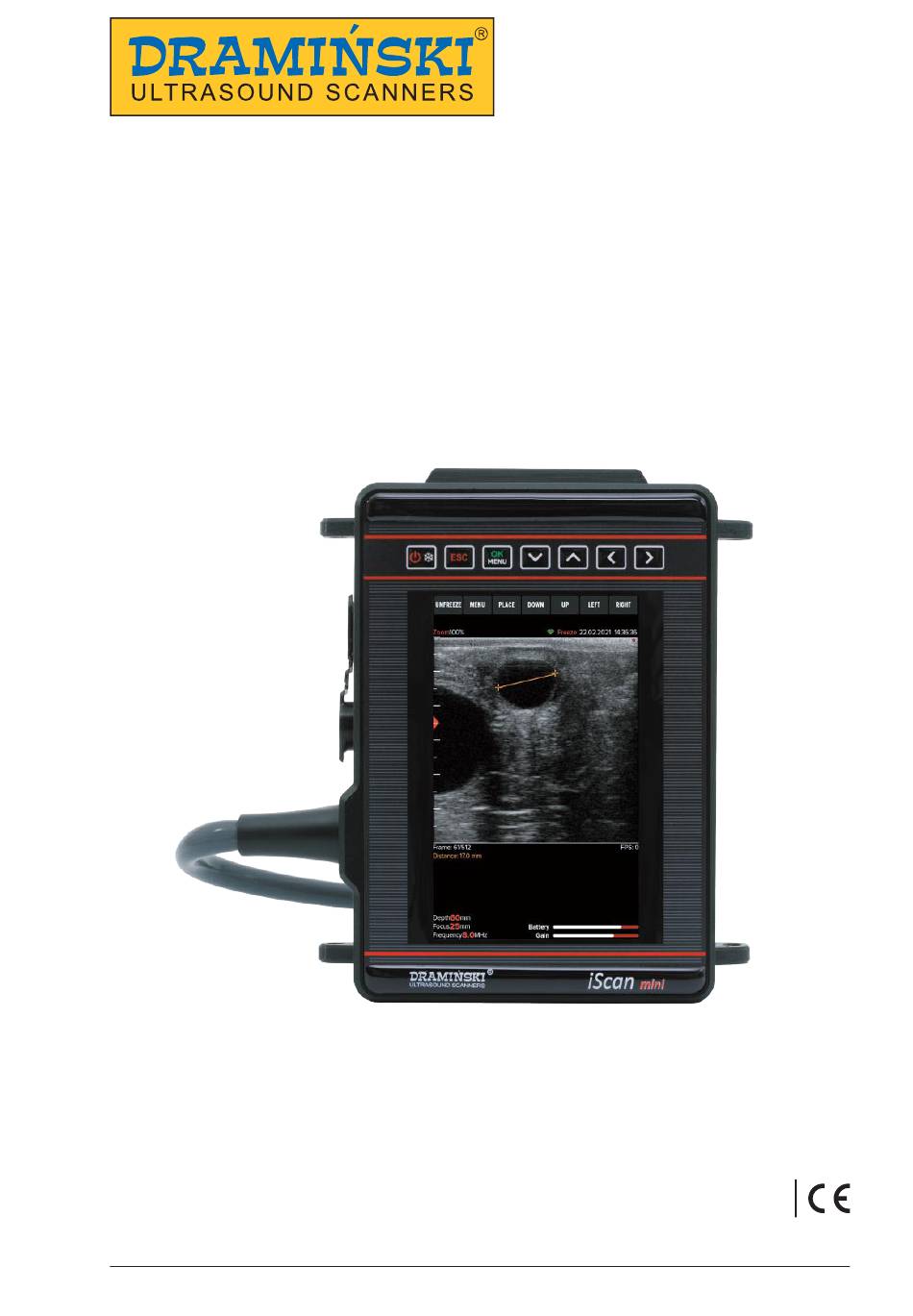

- Page 1 DRAMIŃSKI iScan mini Veterinary Ultrasound Scanner USER GUIDE www.draminski.com ISO 9001 1.1_18032021...
- Page 2 We are sure that with our product you will be able to provide good care for your patients. DRAMIŃSKI S.A. will be glad to receive your feedback regarding the device and this manual. Please call the number: +48 89 527 11 30 or send an e-mail to: ultrasound@draminski.com Prepared by DRAMIŃSKI S.A. All rights reserved.
-
Page 3: Table Of Contents
1.2. Warnings, comments and symbols used in the user guide ..........5 1.3. Preliminary information about iScan mini – a portable ultrasound scanner......5 2. - Page 4 DRAMIŃSKI iScan mini – user guide 11.1. Frame averaging................. 23 11.2.
-
Page 5: Introduction
A precise automatic follicle measurement will speed up work, and WiFi will allow easy sharing of photos and videos from the examination. We are sure that iScan mini will become an indispen- sable tool in your work. -
Page 6: Safe Use
Warning! User and patient safety depends on the compliance with the following guidelines! 1st DRAMIŃSKI iScan mini is a device that should be used only by qualified personnel for diagnostic purposes. 2nd The ultrasound scanner and its equipment should be disinfected after their potential contact with conta- gious substances. -
Page 7: List Of Components Of Dramiński Iscan Mini Ultrasound Scanner
User guide on a USB drive Additional equipment OLED/LCD goggles option Linear rectal probe extension for cattle option Linear rectal probe extension for sheep option Any additional accessories for use with the iScan mini ultrasound scanner are available upon agreement with the vendor. -
Page 8: Design Of The Iscan Mini Ultrasound Scanner

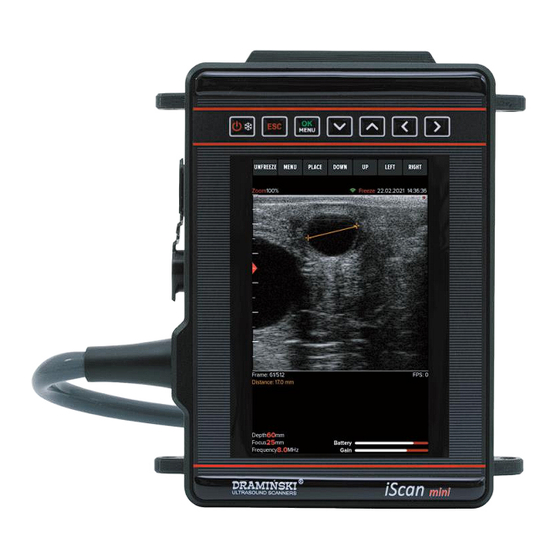

DRAMIŃSKI iScan mini – user guide 4. Design of the iScan mini ultrasound scanner iScan mini — front and rear view WiFi antenna Spacer Hooks for carrying belts USB C socket Goggles connection socket Screen Probe cable Battery attachment interlock... -
Page 9: Getting Started
5. Getting started 5.1. How to charge the batteries iScan mini is powered by a Li-ion 14.4 V 2.25 Ah rechargeable battery. The battery has an internal thermal fuse protecting it against overheating during charging. Mascot charger, type 2440, is intended only to charge the batteries of the iScan mini ultrasound scanner. It is adopted to the mains 110-240 V / 60 Hz. -
Page 10: Safety Measures For Handling A Li-Ion Battery Pack
DRAMIŃSKI iScan mini – user guide 5.1.1. Safety measures for handling a Li-Ion battery pack • Never dismantle the battery pack which forms an integrated unit. • Never short-circuit contacts in the battery pack casing using metal items. • Do not throw battery packs into the fire nor heat them up. •... -
Page 11: How To Turn The Ultrasound Scanner On
DRAMIŃSKI iScan mini – user guide 5.3. How to turn the ultrasound scanner on In order to turn on the ultrasound scanner: Attach the battery. Press and hold the On / Off button until the DRAMIŃSKI ULTRASOUND SCANNERS logo appears on the screen. -
Page 12: How To End Operation Of The Ultrasound Scanner
DRAMIŃSKI iScan mini – user guide 6. How to end operation of the ultrasound scanner 6.1. How to turn the ultrasound scanner off In order to turn the ultrasound scanner off, press and hold the On / Off button for approx. 2 seconds. Remember, pressing the ON/OF button for a short time will freeze the image. -
Page 13: User Control Panel
DRAMIŃSKI iScan mini – user guide 7. User control panel 7.1. User control panel’s structure User control panel Button functions Information about freeze mode Information about active WiFi connection Set preset name (if turned on) Zoom Date and time Centimetre scale Distance measurement Beam focusing level 10. -
Page 14: Button Functions
DRAMIŃSKI iScan mini – user guide 11. Cine loop current frame / all frames 12. Image refresh rate 13. Measurement result 14. Current settings 15. Battery charge level 16. Overall gain level 7.2. Button functions Buttons have various functions, depending on the ultrasound scanner’s operation mode. Below are the default uses of the buttons in scanning and freezing mode. -
Page 15: Menu Structure Of The Ultrasound Scanner
DRAMIŃSKI iScan mini – user guide 8. Menu structure of the ultrasound scanner In order to open the Menu, press OK. In order to leave the Menu, press ESC. When you select certain functions, a tip is displayed on the screen which explains how to change their settings. The graphics below presents the menu structure: Preset Measurements Database... -
Page 16: Menu Personalisation
DRAMIŃSKI iScan mini – user guide 8.1. Menu personalisation You may to decide what functions will be assigned to the buttons during scanning and when the image is frozen. The buttons that may be assigned various functions are: ESC, Left, Right, Up, Down. Functions that may be assigned to buttons during scanning: Depth +/-, Focus +/-, Gain, Frequency, Gamma, Dynamics, TGC, B+B, Zoom. -
Page 17: Description Of The Ultrasound Scanner's Functions
DOWN — deeper. 9.1.4. Frequency The probe connected to the iScan mini ultrasound scanner is a broadband, multi-frequency probe. Changing the frequency of operation influences the image resolution and the depth to which the ultrasounds penetrate the body. -
Page 18: Gamma
DRAMIŃSKI iScan mini – user guide 9.1.5. Gamma Gamma adjustment changes the way the grayscale is displayed on the screen. Uniform display of all shades High / low contrast Predominant Predominant light shades dark shades In order to change Gamma settings: Open Menu and choose Gamma. -
Page 19: Loading Presets
DRAMIŃSKI iScan mini – user guide 9.2.2. Loading presets In order to load the settings saved in the preset: Open the Menu and select Presets. Select an appropriate preset. Confirm with the OK button. 9.3. How to freeze the image In order to freeze the image, press Freeze or ON/OFF. -
Page 20: Follicle
DRAMIŃSKI iScan mini – user guide 9.4.3. Follicle The measurement is used to automatically determine the largest dimension of a follicle. For a correct measure- ment as clear image of the follicle as possible has to be obtained. The result is presented in mm. In order to measure a follicle: Freeze the image. -
Page 21: How To Export Data To An External Data Storage Device
9.8. Exporting data by WiFi to mobile devices For exporting data by WiFi an app is needed, which may be downloaded here: http://update.draminski.com/iScan2MULTI/android/app-release.apk The application works on mobile devices with an Android operating system. It enables, among others, brows- ing of images in the memory of the ultrasound scanner, downloading and sharing them. -
Page 22: Imaging Modes
DRAMIŃSKI iScan mini – user guide 10. Imaging modes The ultrasound scanner operates in B and B+B modes. 10.1. B Mode This is the standard mode of ultrasound scanner operation. It enables observing the cross-section of tissues on a real-time grayscale image. 10.2. -
Page 23: System Settings
DRAMIŃSKI iScan mini – user guide 11. System settings 11.1. Frame averaging This function enables anti-aliasing by super-imposing every two or every four neighbouring frames and dis- playing them simultaneously. In order to change the frame averaging: Enter the Menu and choose Settings. Select Frame averaging. -
Page 24: Mirror Image
DRAMIŃSKI iScan mini – user guide In order to rotate the image: Open the Menu. Go to Settings. Go to Rotate image by 90°. Confirm with the OK button. When the image is rotated, all the data are shown at the bottom part of the screen. Attention! The navigation buttons show the direction in accordance with the image orientation! 11.6. -
Page 25: Lcd Brightness
DRAMIŃSKI iScan mini – user guide 11.8. LCD brightness Adjust the display brightness depending on current lighting conditions. Adjustment is possible in a scale of 1–15 degrees. In order to adjust brightness: Open the Menu. Go to Settings. Go to LCD Brightness. Use arrows to set the value. -
Page 26: Accessories
DRAMIŃSKI iScan mini – user guide 12. Accessories 12.1. Goggles The system of the Dramiński Head Goggles Displays guarantees clear image in sunny days with great contrast. With 5-step adjustment, every user can set the displays according to their preferences, while observing the safety rules. -
Page 27: Maintenance Of The Device And The Probes
DRAMIŃSKI iScan mini – user guide 13. Maintenance of the device and the probes 13.1. Cleaning and disinfection Attention! In view of the biological security, it is recommended to clean and disinfect the ultrasound scanner after you finish working with it. During use, the device may become strongly contaminated, including contagious material. -
Page 28: Transportation Of The Device
It is recommended to transport the device in the provided transport case. The arrangement of the elements in the case is shown in the following figure: Placement of the iScan mini system elements in the transport case Ultrasound scanner Probe and carrying belts... -
Page 29: Operational And Technical Notes
1. Check if the battery is properly attached. 2. Check if the battery is charged. 3. Check if the device operates with another battery for iScan mini, if The device does not turn on available. Remember that repeated attempts to turn on the ultrasound scanner... -
Page 30: Technical Specification
Exporting to mobile devices with the use of WiFi Distance Measurements Follicle (automatic) Area (from 2 measurements) Image with measurements Saving data to the memory Cine loop (max. 512 frames) Image memory Cine loop memory USB-C Data transmission WiFi (to Draminski App) - Page 31 DRAMIŃSKI iScan mini – user guide Presets May be created by the user Power supply Li-Ion, 14.4 V, 2.25 Ah Continuous operation when the battery Up to 3:40 hours is fully charged Charging of the battery pack 3 hours Battery charge indicator Automatic —...
-
Page 32: Labels
DRAMIŃSKI iScan mini – user guide 17. Labels Symbols used on labels attached to this product and their packaging are explained below. CE marking which indicates conformity of the product with Directives in force Note, read the user guide Warnings about hazards which concern user safety Date of manufacture of the product 2021 Name of the product’s manufacturer and its address... -
Page 33: Warranty
The warranty is honoured on the basis of a proof of purchase (invoice). In order to claim under this warranty, notify Draminski about the alleged defect within a reasonable period of time since the defect has been no- ticed, however, no later than the expiry date of the warranty. - Page 34 DRAMIŃSKI iScan mini – user guide...
- Page 36 DRAMIŃSKI S.A. Owocowa 17, 10-860 Olsztyn, Poland tel. +48 89 527 11 30 e-mail: ultrasound@draminski.com...
