Summary of Contents for Draminski SONOFARM mini

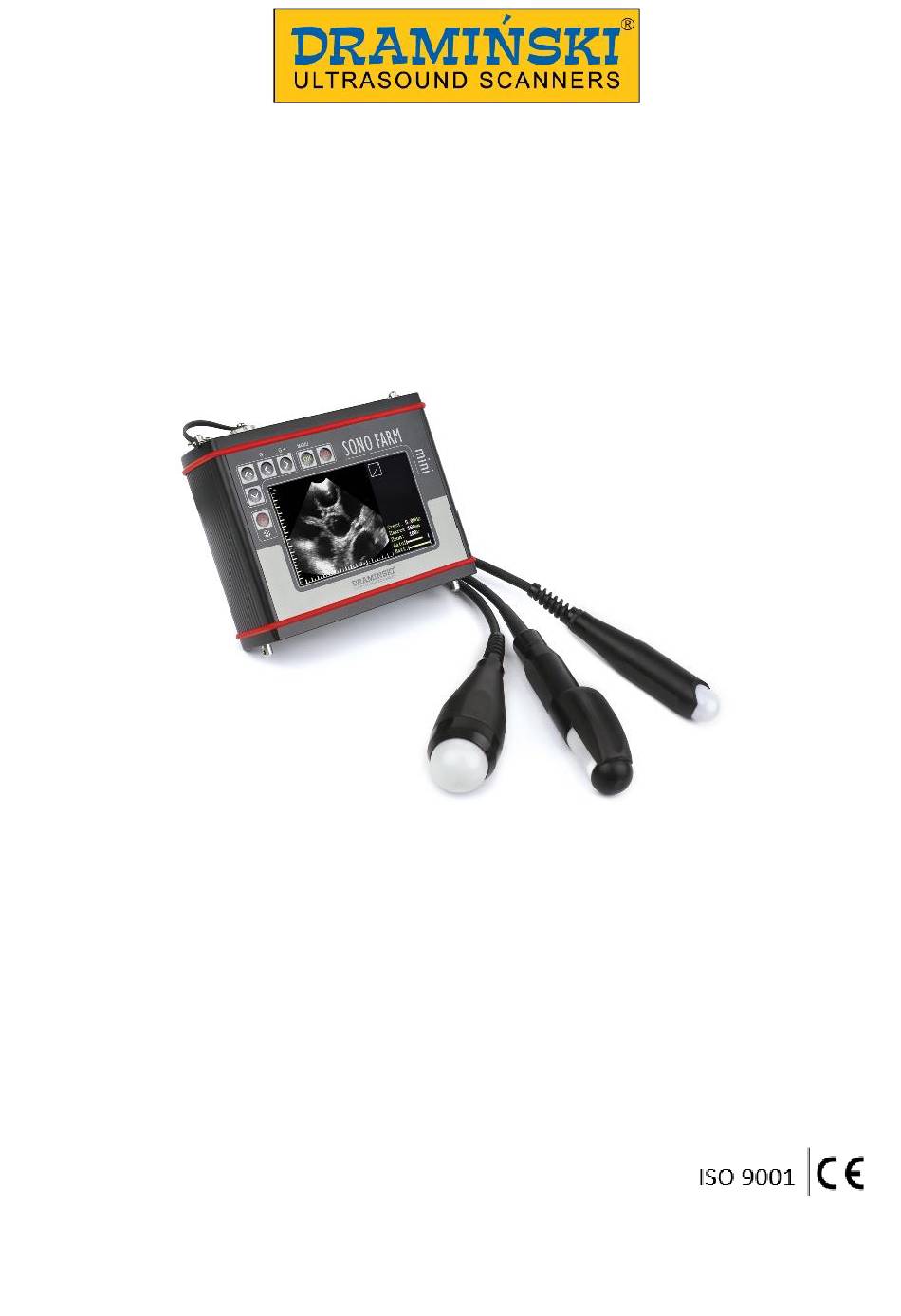

- Page 1 SONO FARM mini ANUAL www.draminski.com EN 25.04.2017...
- Page 2 We wish you and all the users of our product every success with your patients and we are convinced that with our product you will be able to serve your patients well. DRAMINSKI S.A. company will be happy to hear any comments from our clients with regard to the device and this instruction.
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ..............................5 ACCESSORIES ..............................5 DESIGN OF THE SCANNER ..........................6 SPECIFICATIONS ............................12 FRONT PANEL with a membrane keyboard ....................13 PREPARING THE DEVICE FOR OPERATION ....................15 MENU STRUCTURE ............................16 ANIMAL EXAMINATION ..........................19 CHARGING BATTERIES ........................... 20 MAINTENANCE OF THE DEVICE AND PROBES .................... - Page 4 Information on the user manual for the device The goal of this User Manual is to identify the technical characteristics of the device. It has been written in an accessible way to facilitate, as much as possible, the use of information contained in it. In no way will reading the manual substitute even a basic ultrasound course.
-
Page 5: Introduction
It is a portable device powered by a highly efficient battery pack (a fully charged battery pack enables over 6 hours of continuous work). Thanks to is small size and weight, SonoFarm mini makes the examination of animals very easy even in difficult conditions. -
Page 6: Design Of The Scanner
DESIGN OF THE SCANNER Sono Farm mini is built from a few elements: 1. A case with membrane keyboard and LCD LED display 2. An ultrasound probe pluggable to a multipin plug 3. An external battery pack (charging) 4. A charger for the battery pack; powered by a 110-240V/ 60Hz power grid 1. - Page 7 The view and the description of casing elements Membrane keyboard with monitor LCD LED a window for the monitor fastening of the body of aluminum silicone load-bearing belt casing gasket 12- pin connector for connecting heads...
- Page 8 View of the back of the casing without the attached battery pack Connectors for plugging in the battery pack Lock for fixing the battery pack system of fixing the battery pack to the casing...
- Page 9 2. Sonda ultradźwiękowa Probe (head) is a crucial element of the device. Ultrasound scanner DRAMIŃSKI SonoFarm mini equipped with one port but can cooperate with three types of mechanical sector probes, these are: Rectal probe, sector 5.0 MHz (3-7 MHz), 180 degrees angle of scanning Abdominal probe, sector 5,0 MHz ( 3-7 MHz), 90 degrees angle of scanning Abdominal-rectal probe, sector 5,0 MHz ( 3-7 MHz), 90 degrees angle of scanning, „Down Fire”...
- Page 10 3. Battery packs Specially configured Li-Ion type batteries create an enclosed package with own thermal cut-out, safeguarding against the overheating during loading. The battery pack is fastened to the back of the device with a special system of fastenings with a lock. There is a socket for the charger cable as well as a special slots with joints used for an electric connection with the ultrasound scanner.
- Page 11 4. Battery charger for the battery pack The battery pack can be only charged with a dedicated charger powered by a power grid of 110- 240V/60Hz and equipped both in wires and a color diode signaling the state of the charging process. Warning: The battery pack should be charged only with the original battery charger delivered with the ultrasound scanner.
-
Page 12: Specifications
SPECIFICATIONS Depicting method In real time B-mode Frequency of probes 3 -7 MHz – central frequency - 5.0 MHz Probe types sector, mechanical: 1. abdominal, 2. rectal, 3. Down Fire Frequency of probes 3 -7 MHz – central frequency - 5.0 MHz Penetration depth up to 25 cm (for abdominal and Down Fire probes) Scanning angle... -
Page 13: Front Panel With A Membrane Keyboard
FRONT PANEL with a membrane keyboard Front panel, apart from LCD display, contains also a membrane keyboard enabling the user to change parameters during examination. The function and placing of the buttons are shown in the picture below: Penetration depth selection (to 7cm, 10cm, 12cm, 15cm, 20cm, 25cm) G-, G+ Regulation of amplifying the signal from the probe Opening the MENU and confirming available... - Page 14 Messages and pieces of information are displayed on the screen during ongoing work with the device. A sample view of ultrasound scanner SonoFarm mini with a description of messages and displayed information: Information bar showing actual settings: the level of probe signal amplification (Gain), set probe frequency, scope of scanning, zoom, gamma level, freezing the image, the state of the battery.
-
Page 15: Preparing The Device For Operation
PREPARING THE DEVICE FOR OPERATION Plugging in the probe Warning! Probe connector should be protected from mechanical damage, dirtying and wetting. Probe wire should be protected from overburden, strong repeated bending and pulling. After precise sticking in the round connector to the nest in the casing, one should screw probes in holding them by the metal part in order to ensure the full and correct contact of the probe connector with the nest in the casing. -
Page 16: Menu Structure
MENU STRUCTURE Navigating the menu The menu of SonoFarm mini ultrasound scanner, which is simple and very intuitive, can be opened with the „OK” button. Particular options can be chosen and settings can be changed with the buttons. - Page 17 Brightness Language Factory settings Set probe Switch L-R Sound Auto shutdown Setting User options enabling the change of parameters and setting the system. Monitor brightness The option of adjusting the level of brightness of the image displayed on the LCD monitor.
- Page 18 Auto shutdown. The option of automatic switching off the device. The user has an option to choose the time after which the device switches off. The time is counted from the last use of any keyboard button and can be set to: 2, 5, 10, 20, 30 minutes or - - - - (the device does not switch down itself automatically).
-
Page 19: Animal Examination
ANIMAL EXAMINATION The device and accessories should be prepared before work. 1. Switch on the power supply and check whether the indicator is not signaling that the batteries require loading up. Fully charged batteries ensure over 6 hours of regular work of conducting animal examination. -
Page 20: Charging Batteries
(over 6 hours). At the bottom of the screen, Dramiński SonoFarm mini has a graphic indication of battery status. When the indicator is shortened or changes from green to yellow, it means that the battery will be discharged in about 1.5 hours. - Page 21 Attention! A charger is an auxiliary device used solely for the purpose of battery charging. It is not an integral part of DRAMIŃSKI SonoFarm mini ultrasound scanner, used during operation of the device. Attention! Connecting the charger to the pack attached to the ultrasound scanner causes automatic disconnection from the power source and makes examination impossible.
-
Page 22: Maintenance Of The Device And Probes
MAINTENANCE OF THE DEVICE AND PROBES During use, the device may be contaminated, also with infectious agents. Directly after work, the device should be cleaned with a damp, wet cloth or paper towel, using a mild detergent. When cleaning, protect slots in the casing from moisture. The surface of the device should be disinfected with a special agent for disinfecting medical equipment. -
Page 23: Touble Shooting
2. v. low ambient temperature 3. battery is worn (a normal symptom resulting from the battery's construction and rules of using the battery) If none of the basic actions helps, please contact DRAMIŃSKI S.A. service centre, tel. +48 89 527–11–30 or email: usgvet@draminski.com... -
Page 24: Guarantee
2. A copy of the proof of purchase clearly identifying the name and address of the seller, date and place of purchase, type of product and product serial number. The Guarantor is DRAMIŃSKI S.A.: Owocowa 17, 10-860 Olsztyn, Poland Phone: +48 89 527 11 30, fax +48 89 527 84 44 e-mail: serwis@draminski.com www.draminski.com...
