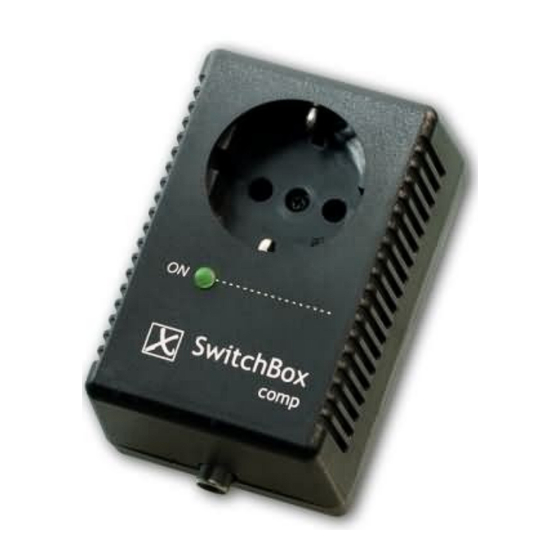

- Page 1 Datentechnik GmbH info@antrax.de - www.antrax.de SwitchBox-comp Relay version • Switching input: Composite – Video signal • Manual 23.10.2009 - 1 - Hasenbrink 4, 32052 Herford, Germany Tel. +49 (0) 5221 929660 Fax +49 (0) 5221 9296628...
- Page 2 Only connect the SwitchBox-comp to properly installed 230V AC outlets. Only clean the exterior of the SwitchBox-comp with a dry cloth after unplugging it from the electrical outlet and removal of the interface cable. Only clean the exterior of the SwitchBox-comp with a dry cloth after unplugging it from the ...
- Page 3 The load circuit is switched about a single-pole electrical relay, therefore even when the SwitchBox-comp outlet is switched to off there can still be a mains voltage on one of the outlet sockets!! Very fast ON/OFF switching sequences can be controlled with the SwitchBox-comp. The ...
- Page 4 Datentechnik GmbH info@antrax.de - www.antrax.de Supported Control Units All media devices (satellite or cable receiver, DVD player, VCR) who offer a video output with composite signal (mostly a cinch socket marked in yellow). You may have to use an adapter cable (e.g. scart cinch).
